Alarm Module, (Vehicle Antitheft)
>>

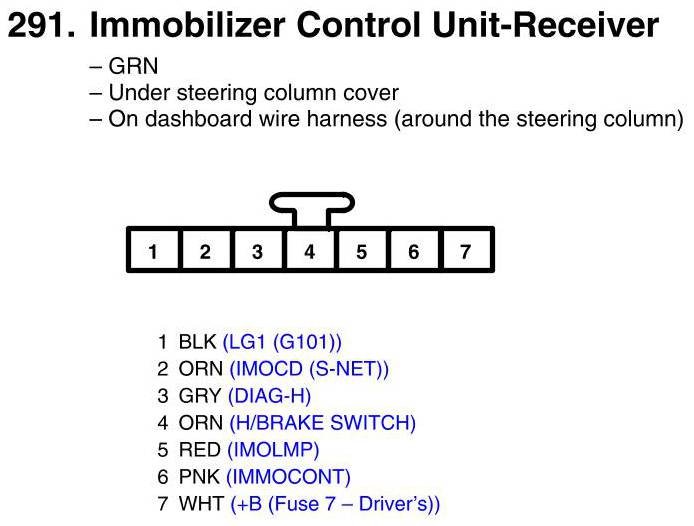

Immobilizer Control Unit-Receiver Connector View
Immobilizer Control Unit-Receiver Connector View
