Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor 1 Replacement

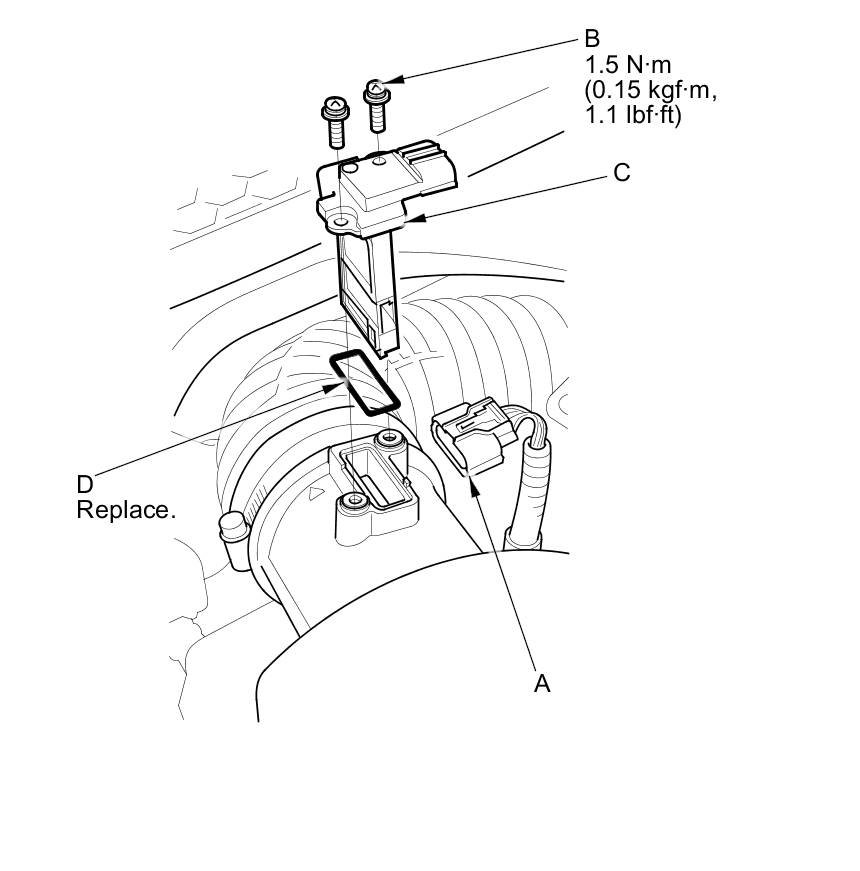

1. Disconnect the MAF sensor/IAT sensor 1 connector (A).





2. Remove the screws (B).

3. Remove MAF sensor/IAT sensor 1 (C).

4. Install the parts in the reverse order of removal with a new gasket (D).
