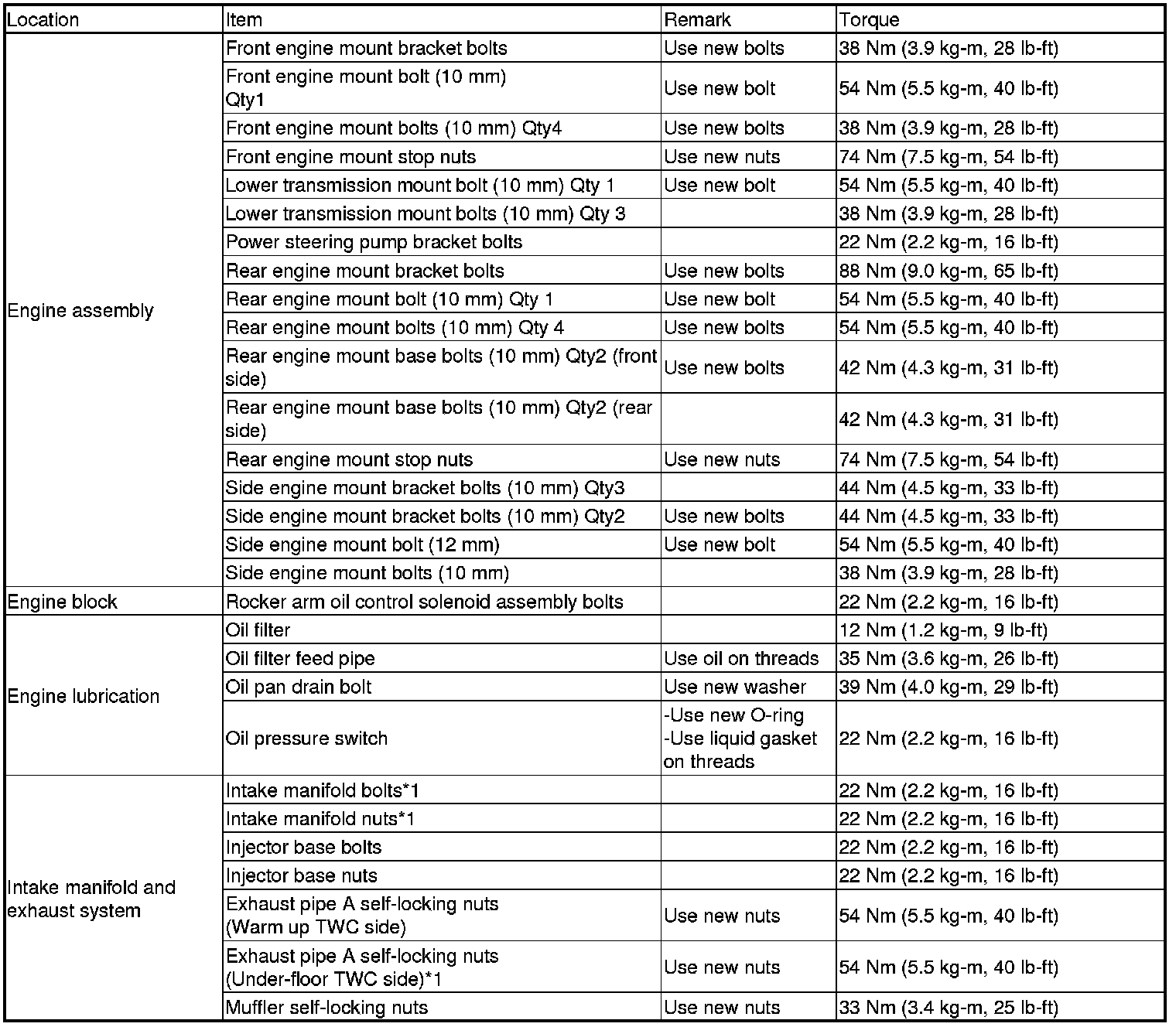

Torque Specifications

Torque Specifications

NOTE
*Refer to the precautions and procedures for the bolts/nuts not indicated here.
*1: Parts to be tightened in particular orders.
*2: Follow the procedures closely for torque, sequence, and special steps.


Engine Mechanical
