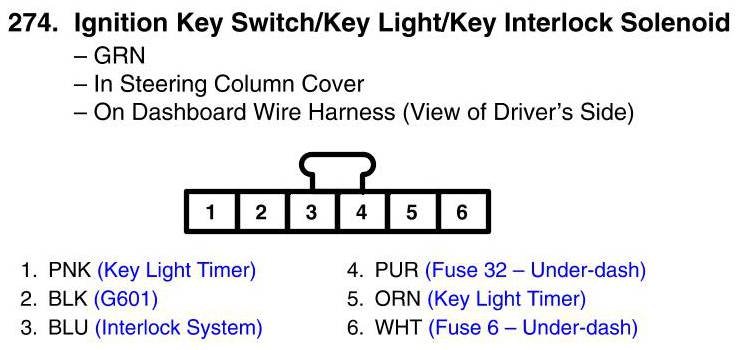

Ignition Key Switch/Key Light/Key Interlock Solenoid Connector View
Ignition Key Switch/Key Light/Key Interlock Solenoid Connector View
