Acura
>>
2012
>>
MDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>

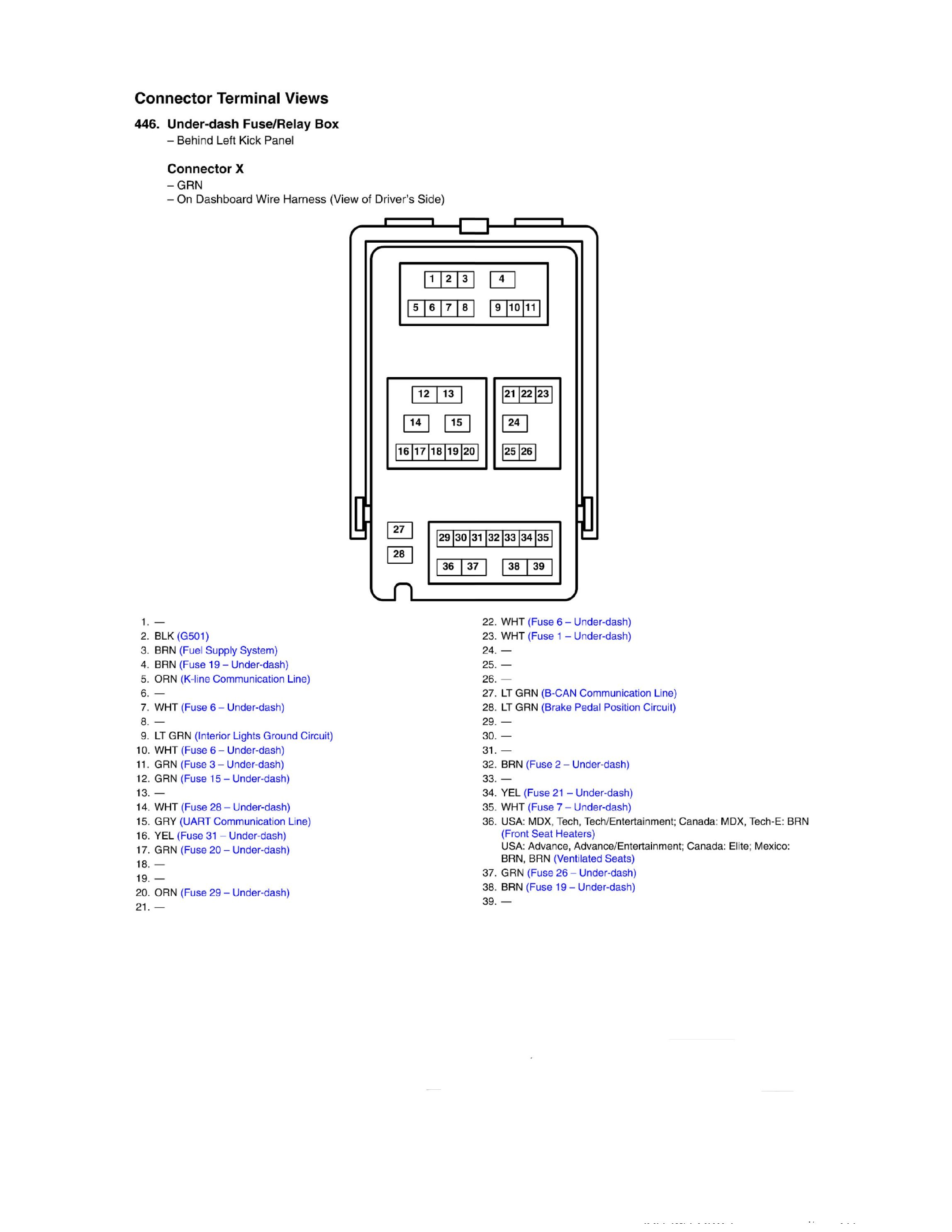

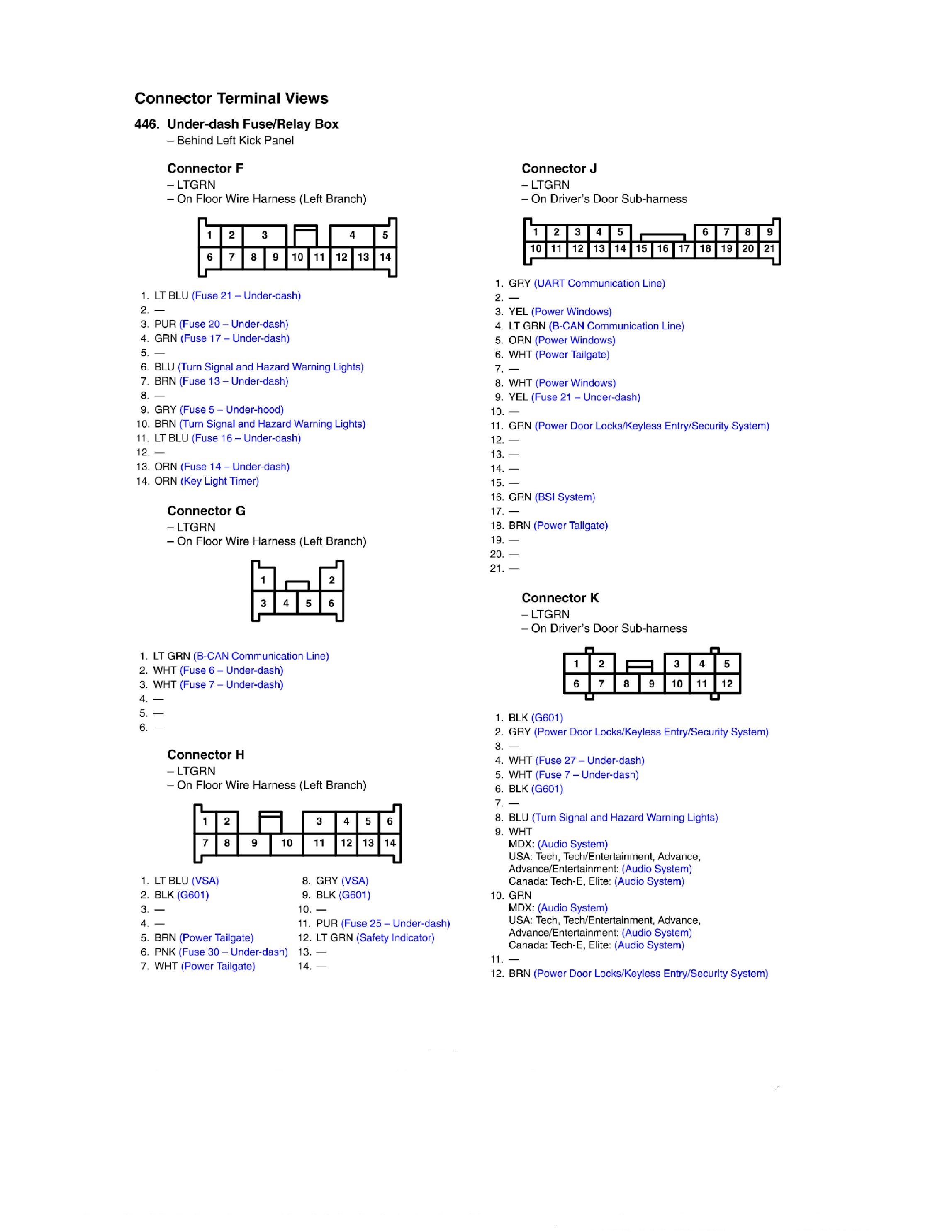

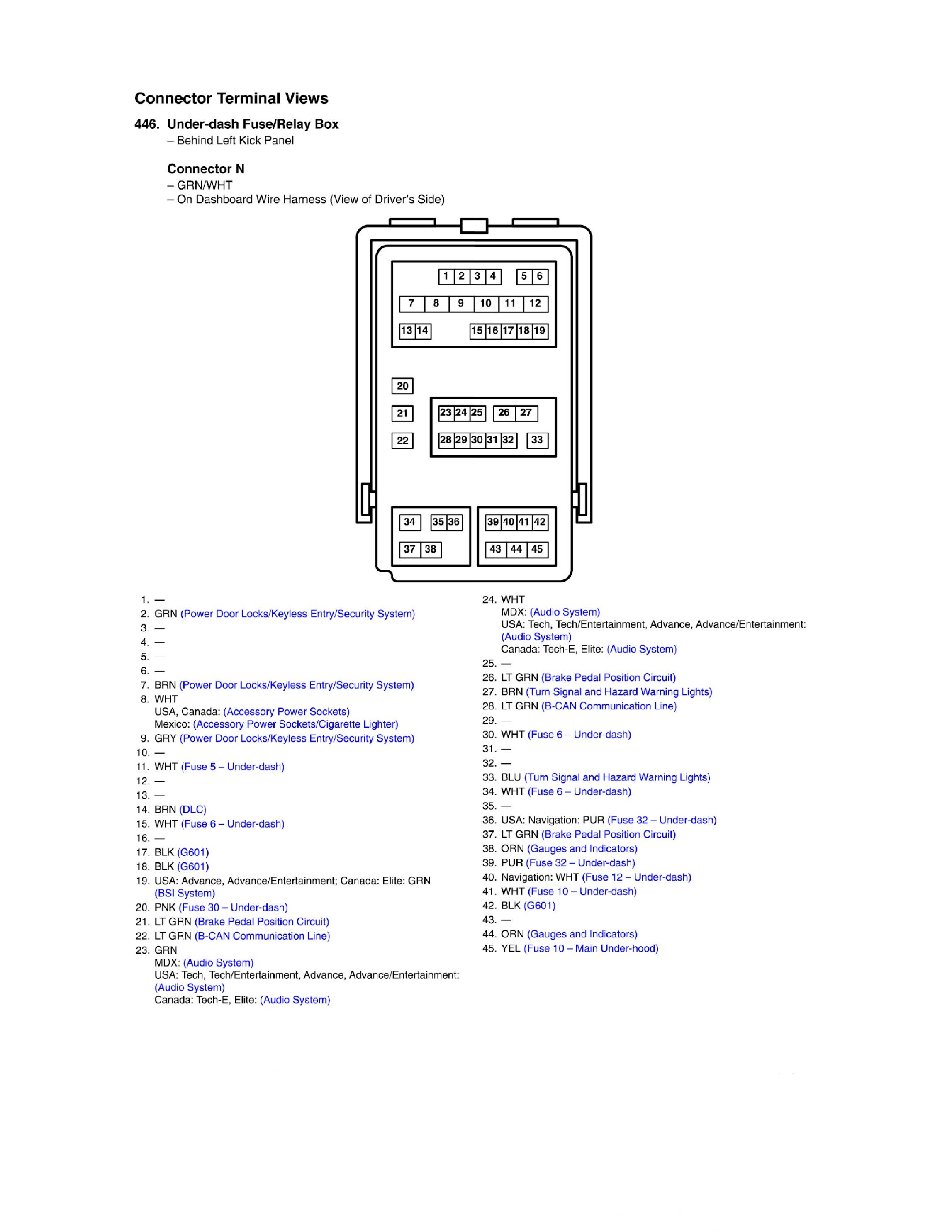

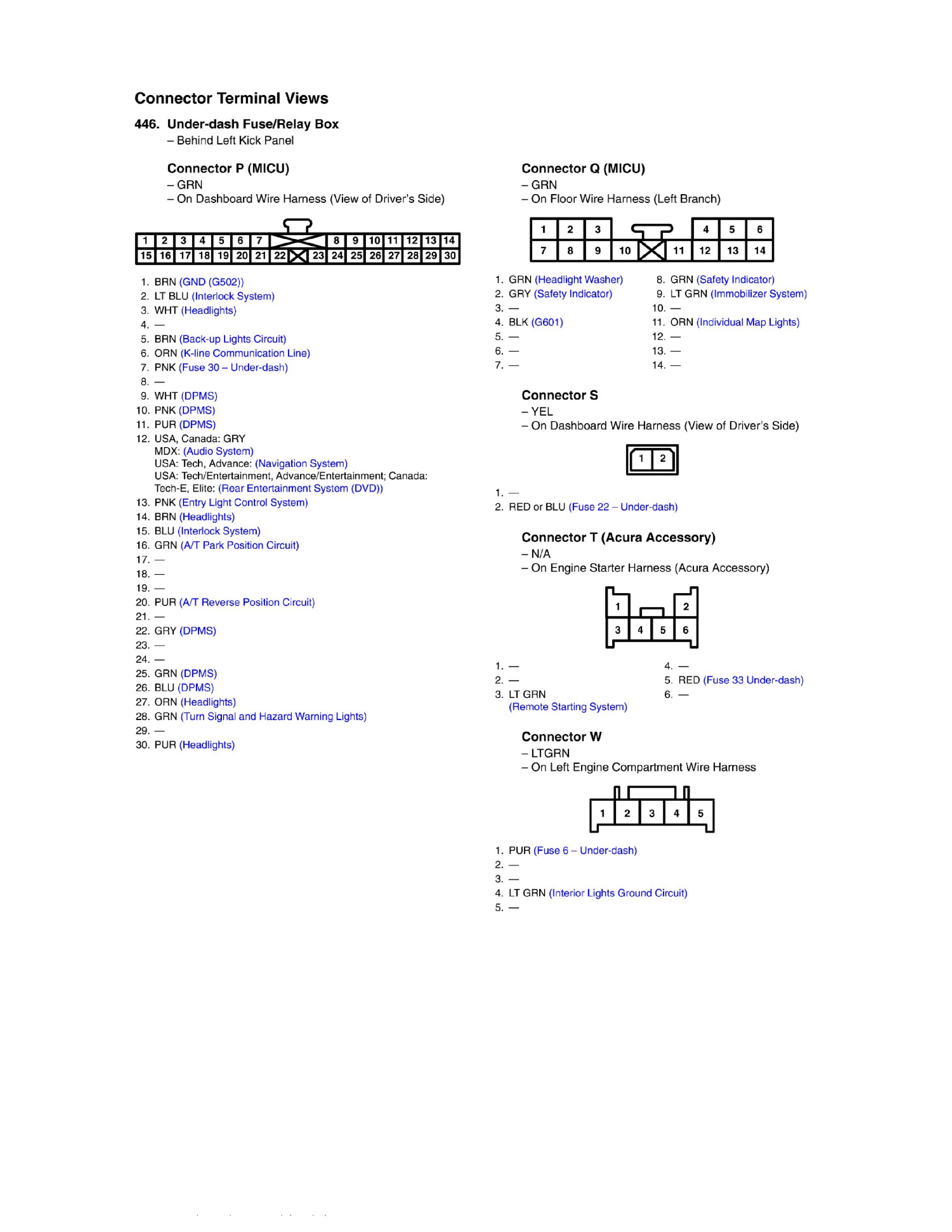

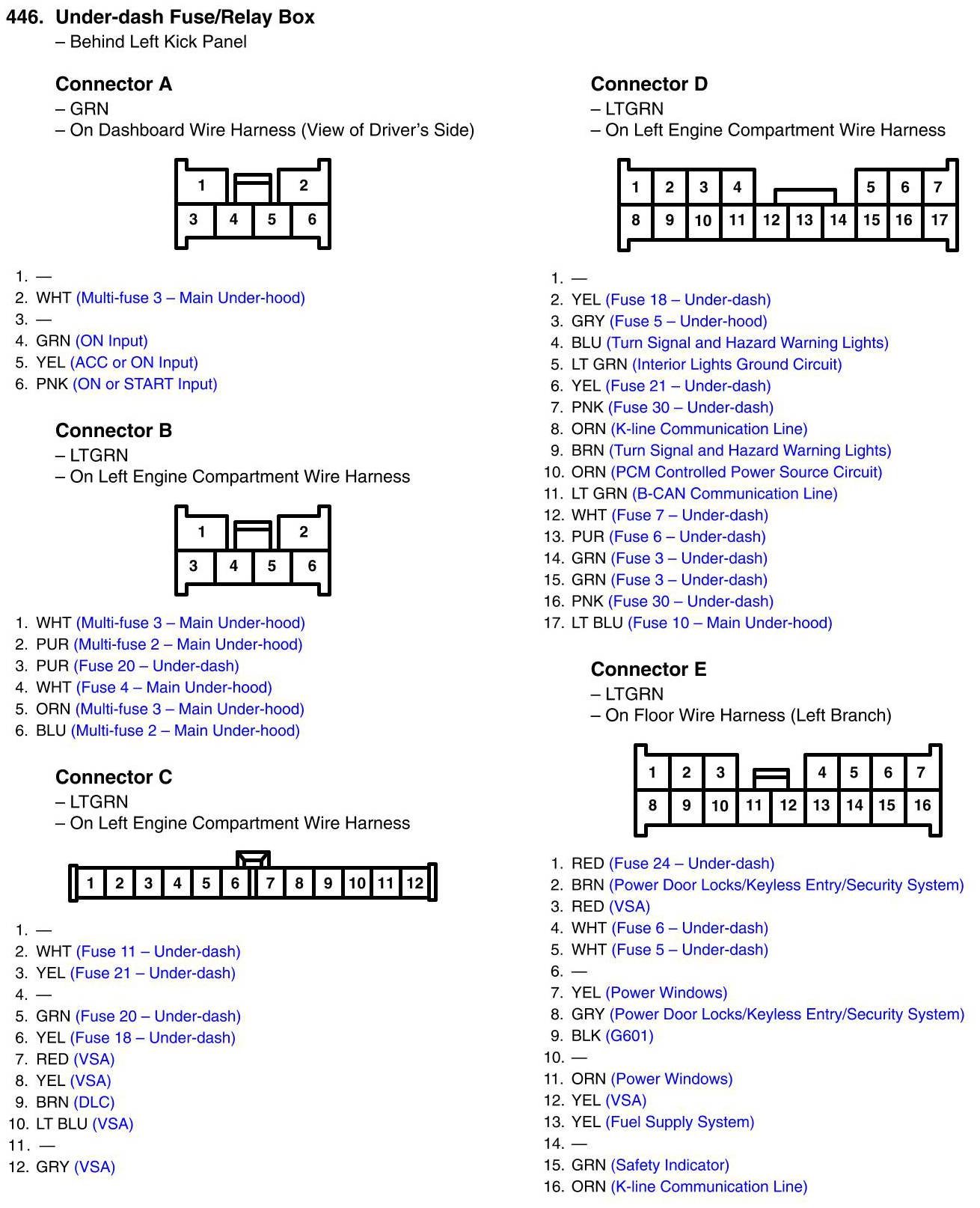

Under-dash Fuse/Relay Box Connector View
Under-dash Fuse/Relay Box Connector View
