Keyless Access RF Unit 2 Replacement (With Keyless Access System)

Keyless Access RF Unit 2 Replacement

1. Remove the rear seat-back Rear Seat Removal/Installation.

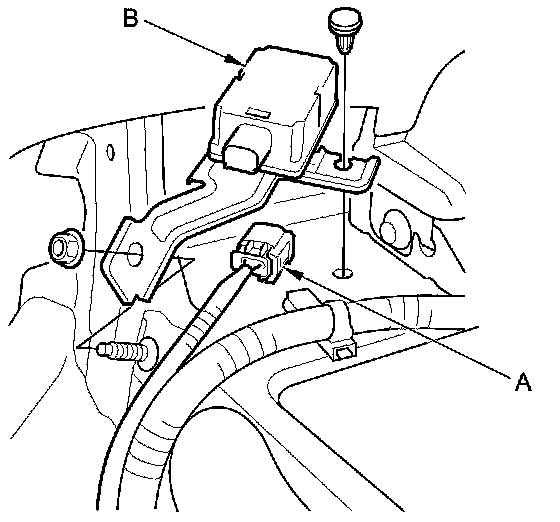

2. Disconnect the 3P connector (A) from RF unit 2 (B).





3. Remove the nut and the clip, then remove RF unit 2.

4. Install the unit in the reverse order of removal.
