Tightening Torques

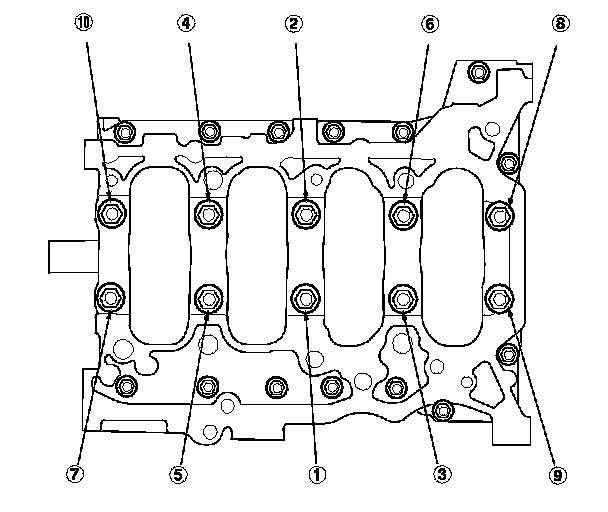

Main bearing cap





Tightening torque 29 N-m (3.0 kgf-m, 22 lbf-ft)
Tighten additional 48 °

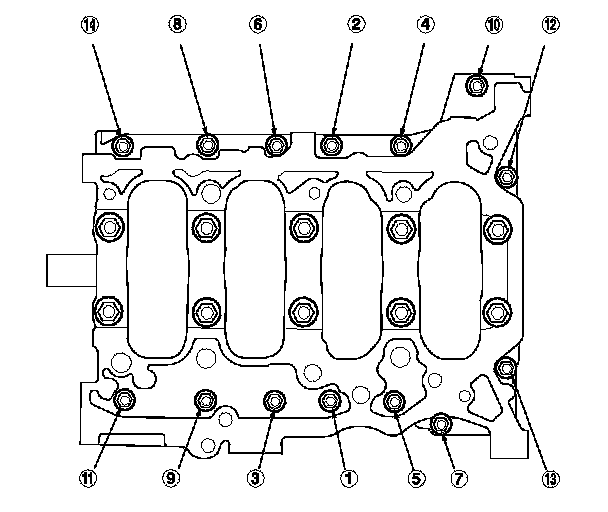

8 mm bolts 22 N-m (2.2 kgf-m, 16 lbf-ft)

Crankshaft Pulley
Used crank and pulley 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten additional 90 °

New pulley or crank
Tightening torque 177 Nm (18.0 kgf-m, 130 lbf-ft)
Remove bolt
Re-tighten 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten additional 90 °
