CMP Sensor A Replacement
CMP Sensor A Replacement

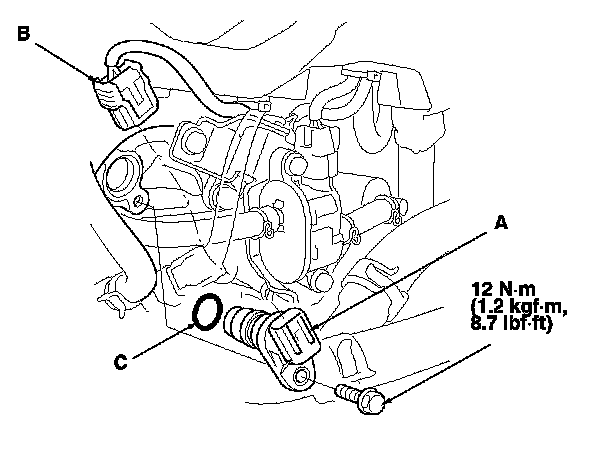

1. Disconnect the CMP sensor A connector (B).
2. Remove CMP sensor A from the intake camshaft side of the cylinder head.
3. Install the parts in the reverse order of removal with a new O-ring (C).
