Acura
>>
2009
>>
TSX L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
>>

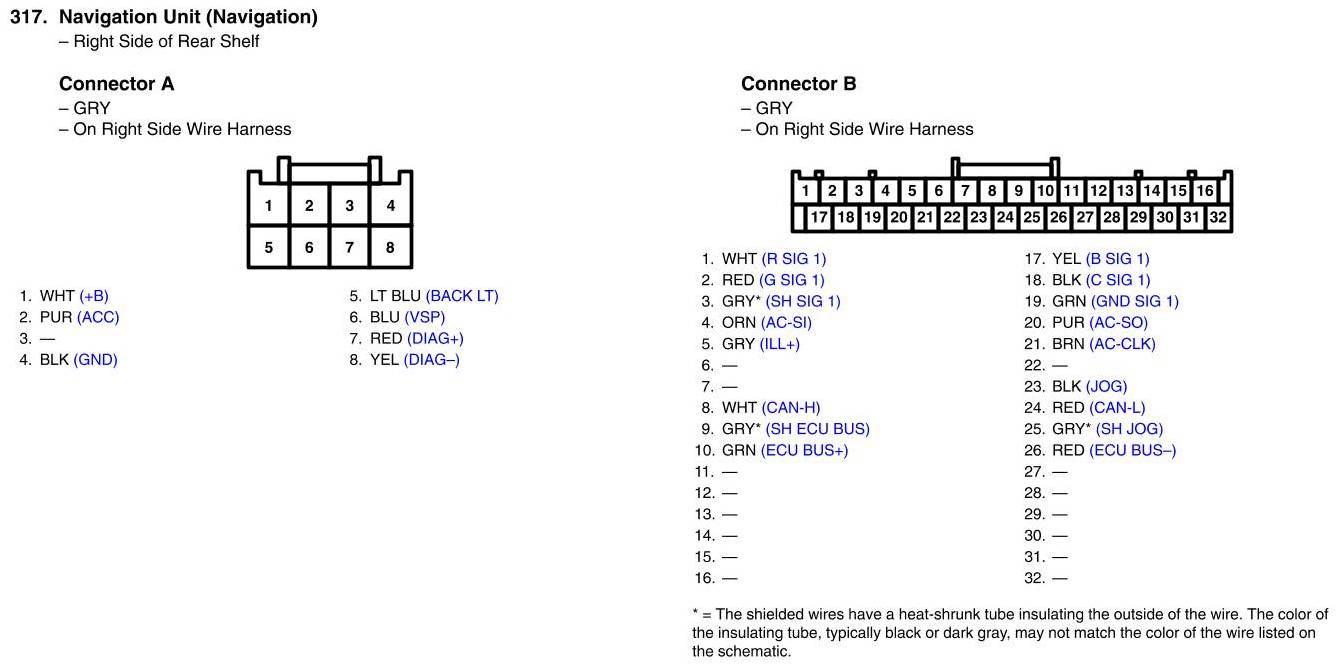

Navigation Unit Connector View (Navigation)
Navigation Unit Connector View (Navigation)
