System Specifications

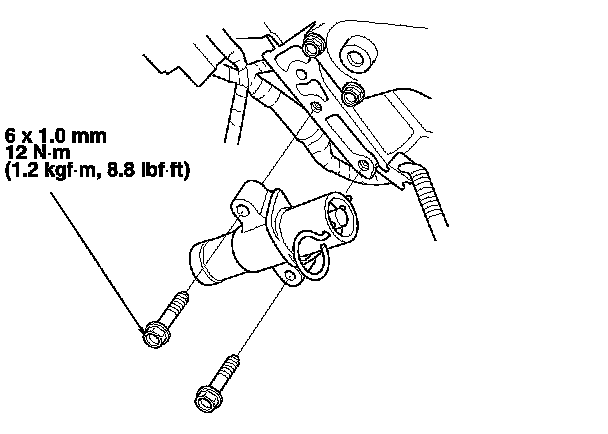

Auto-tensioner

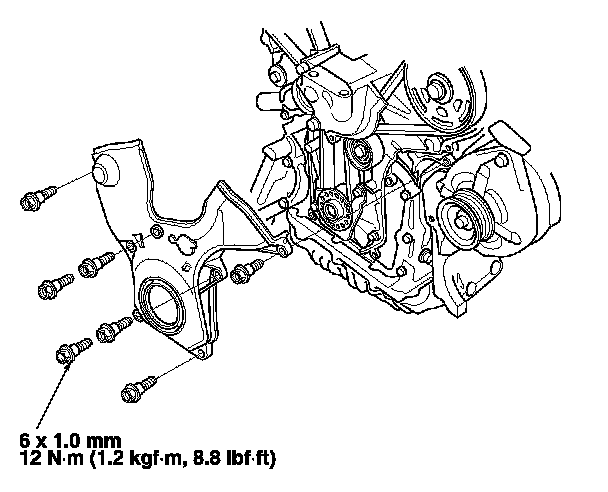

Timing cover






Crankshaft pulley
1st 64 N-m (6.5 kgf-m, 47 lbf-ft)
2nd additional 60 °
