Home >> Acura >> 2009 >> RL V6-3.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine

Connecting Rod, Engine

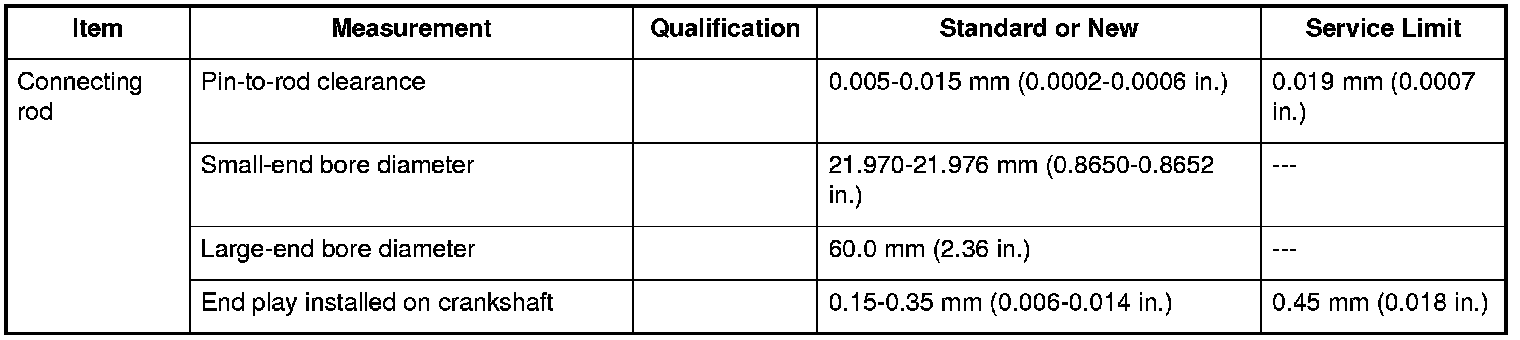

Connecting rod Specifications

Connecting rod






Connecting rod cap
1st 20 N-m (2.0 kgf-m, 14 lbf-ft)
2nd 90 °
