Navigation Module
>>

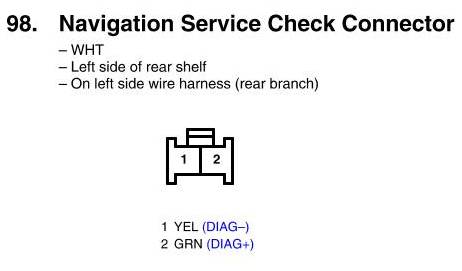

Navigation Service Check Connector View
Navigation Service Check Connector View
