Keyless Access System RF Unit 1 Replacement

Keyless Access System RF Unit 1 Replacement

1. Remove the navigation display unit. Service and Repair

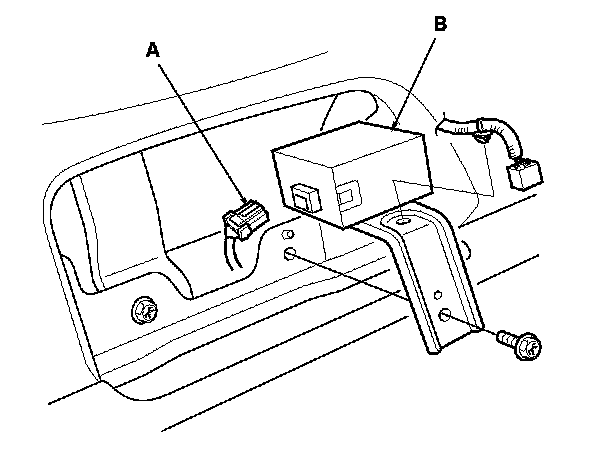

2. Disconnect the 6P connector (A) from RF unit 1 (B).

3. Remove the bolt and RF unit 1.

4. Install the unit in the reverse order of removal.
