Intake Manifold

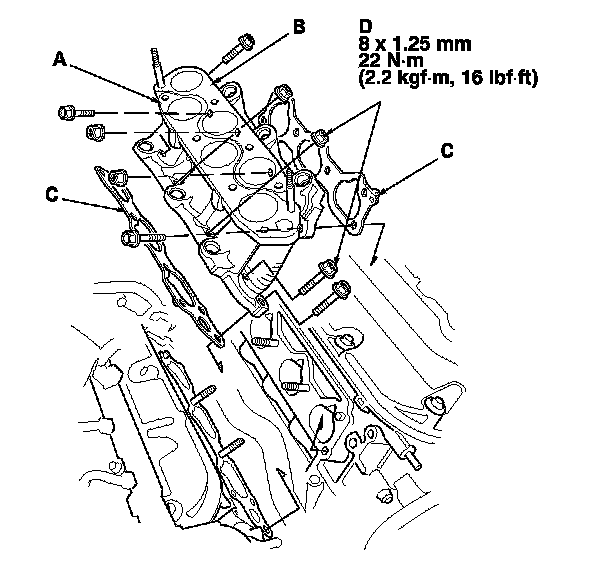

Intake manifold components

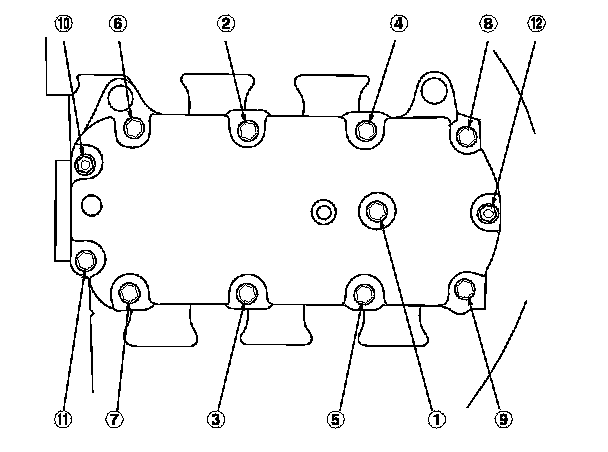

Injector Base 22 Nm (2.2 kgf-m, 16 ft lb)





Tighten the bolts/nuts in a crisscross pattern in three steps, beginning with the inner nuts

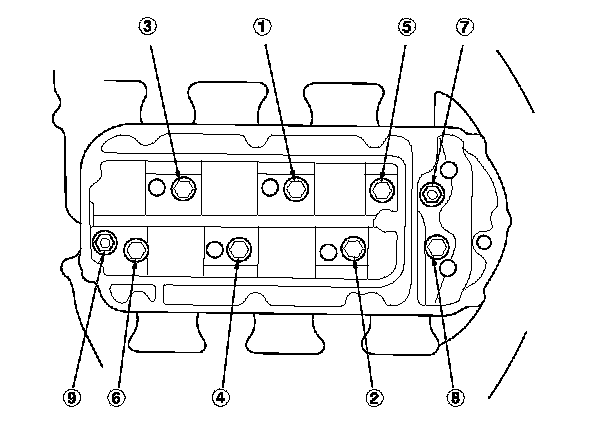

Intake Manifold








Tighten the bolts and nuts sequentially in three steps.

Upper Cover
