Humidity Sensor: Service and Repair

Humidity/In-car Temperature Sensor Replacement

1. Remove the driver's dashboard lower cover. Driver's Dashboard Lower Cover Removal/Installation

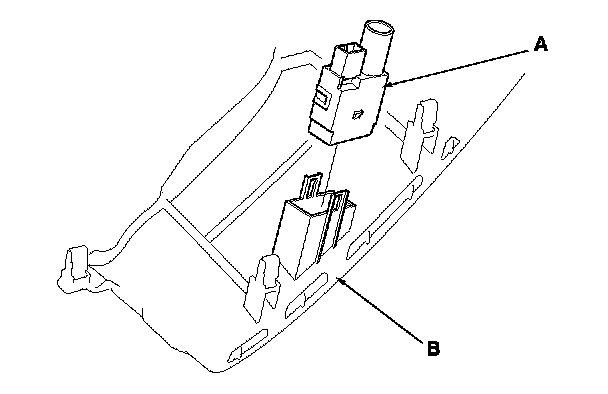

2. Remove the humidity/in-car temperature sensor (A) from the driver's dashboard lower cover (B).

3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
