Driving Position Memory System (DPMS) Power Mirror Circuit Input Test

Driving Position Memory System (DPMS) Power Mirror Circuit Input Test

NOTE: Before testing the power mirror circuit unit, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

MICU

1. Turn the ignition switch to LOCK (0).

2. Remove the left side kick panel. Interior Trim Removal/Installation - Front Door Sill Area

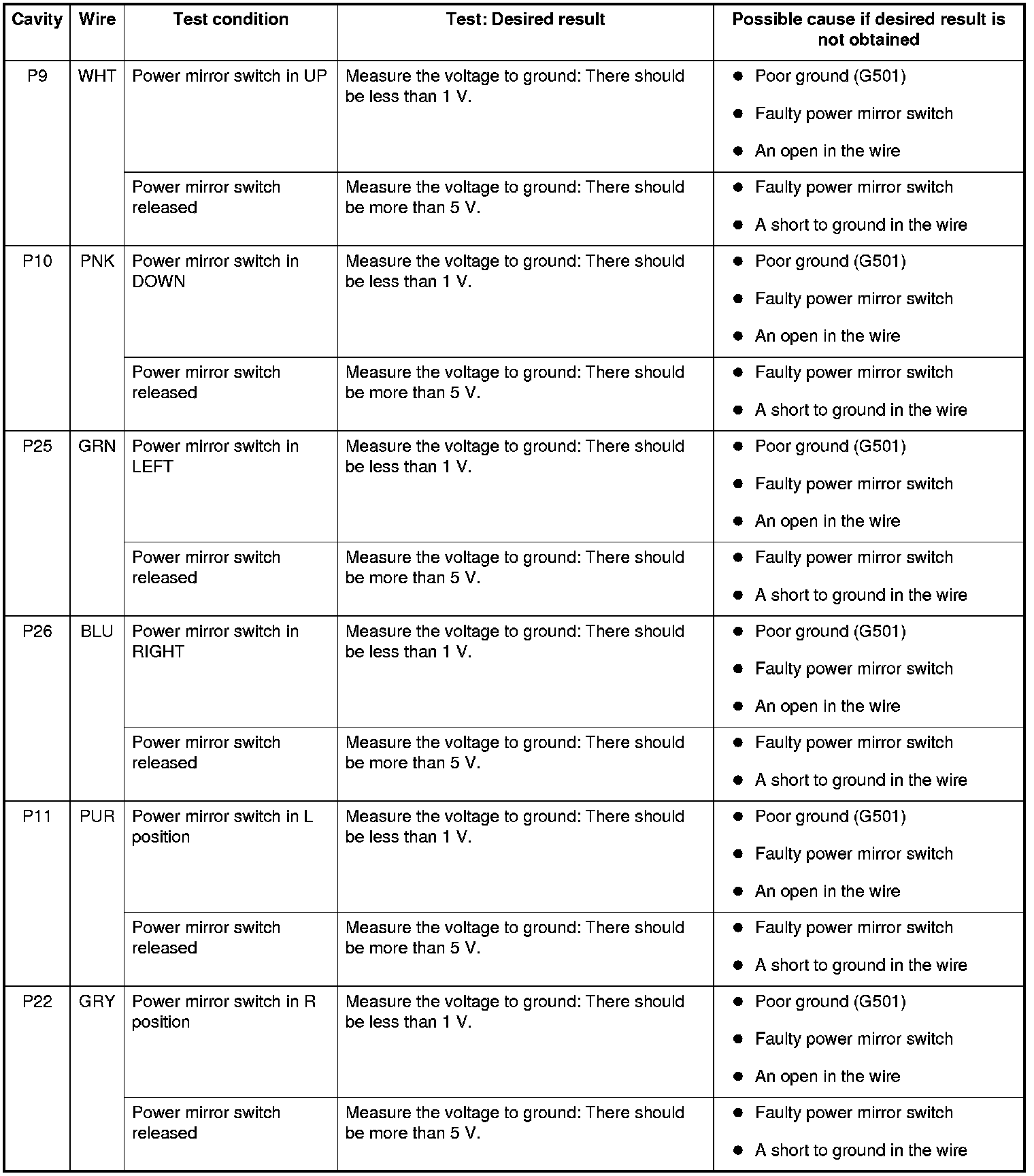

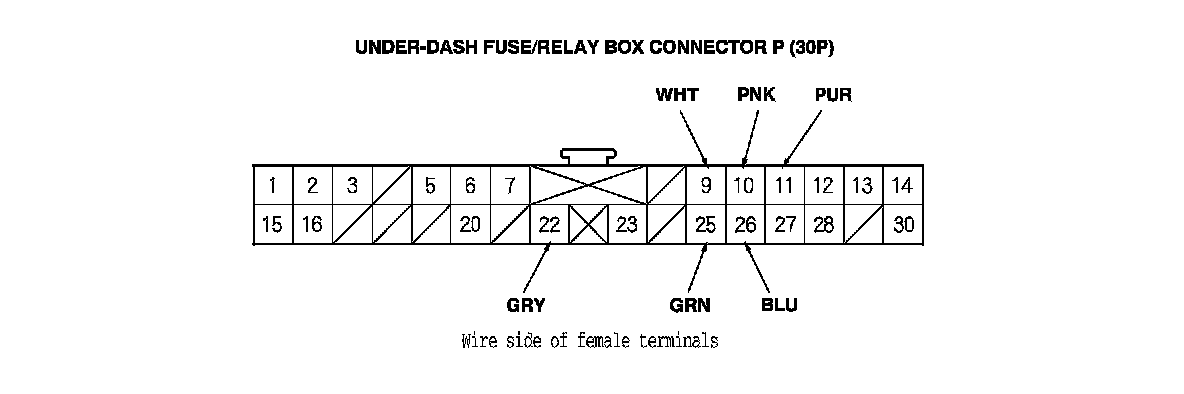

3. Disconnect under-dash fuse/relay box connector P (30P).

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, go to step 5.

5. Reconnect the connector to the under-dash fuse/relay box.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.










Driver's MPCS Unit

6. Remove the driver's door panel. Front Door Panel Removal/Installation

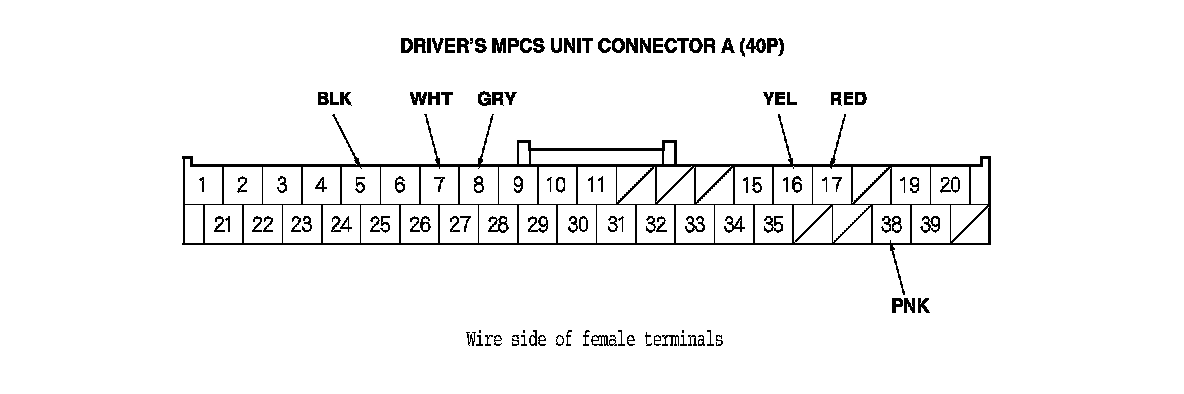

7. Disconnect driver's MPCS unit connector A (40P).

8. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 9.

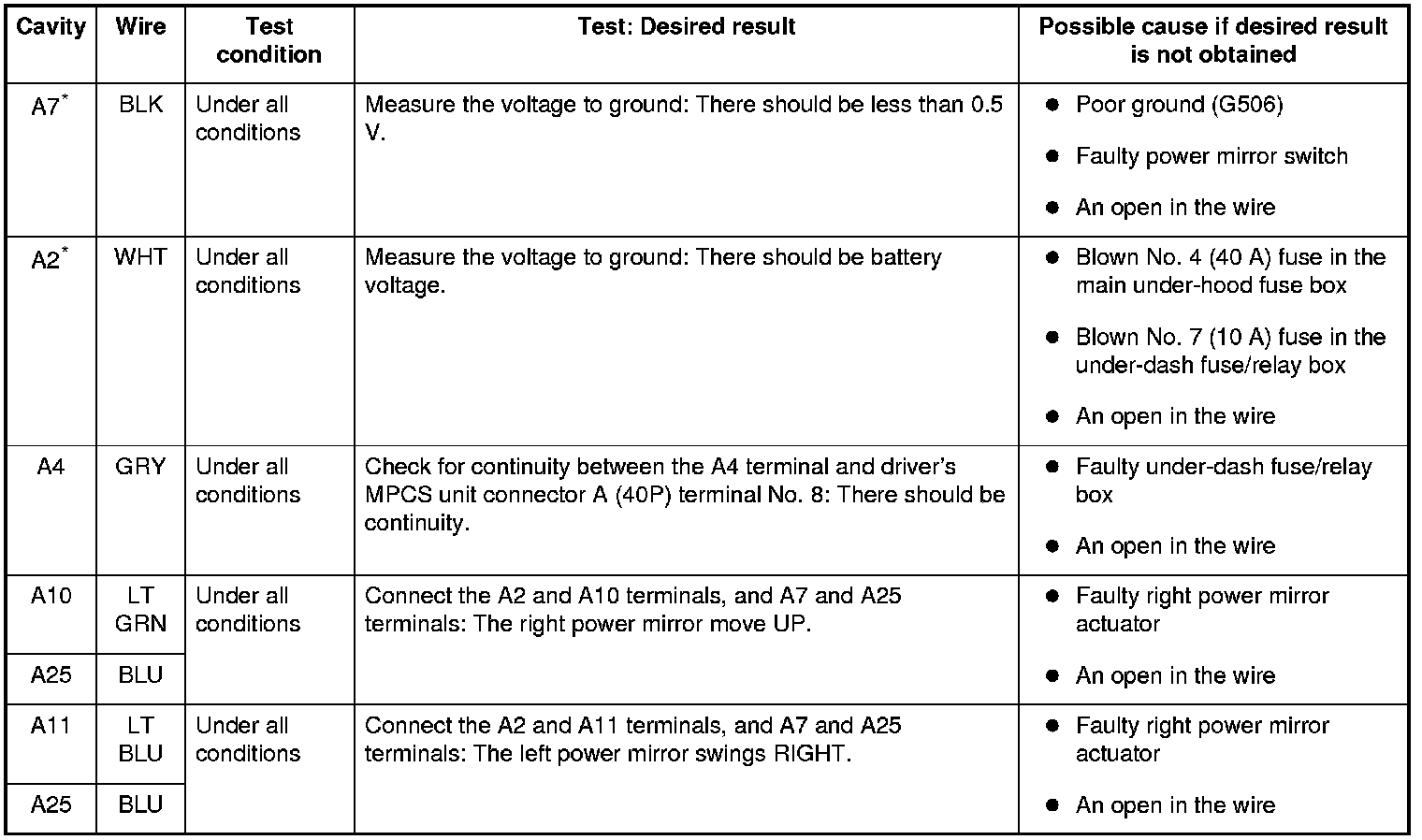

9. With the connector still disconnected, do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 10.





*: Reconnect the connector to the driver's MPCS unit.






Front Passenger's MPCS Unit

10. Remove the front passenger's door panel. Front Door Panel Removal/Installation

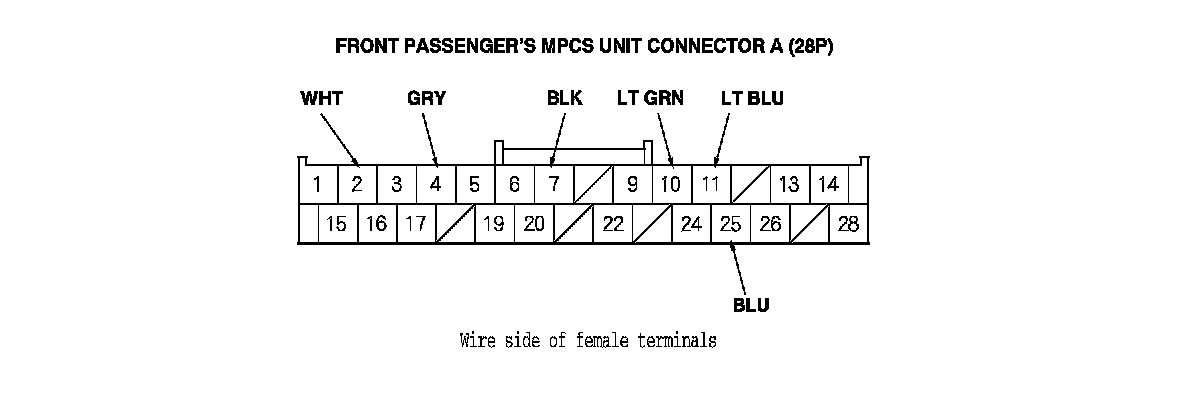

11. Disconnect the front passenger's MPCS unit connector A (28P).

12. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 13.

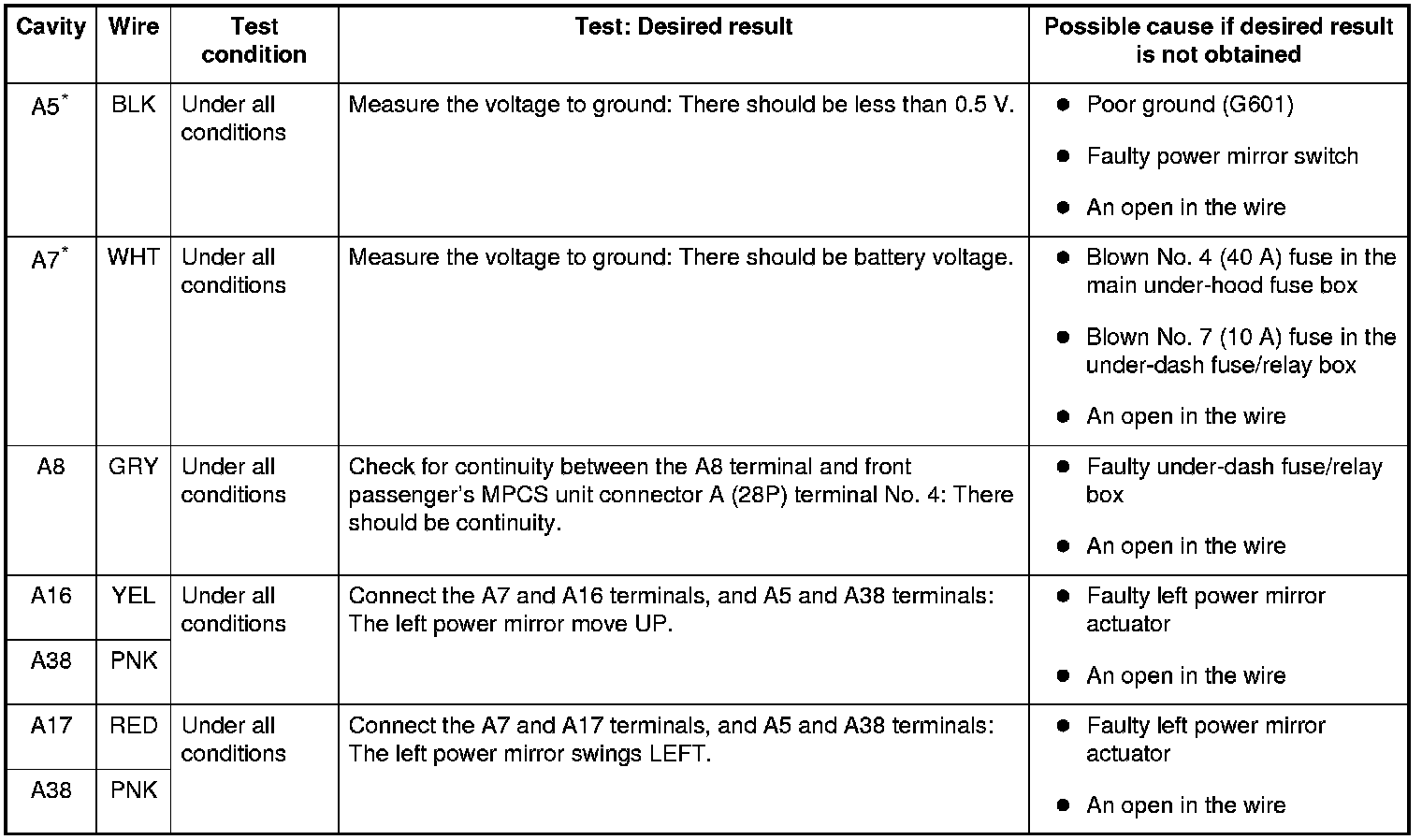

13. With the connector still disconnected, do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 14.





*: Reconnect the connector to the front passenger's MPCS unit.

14. If multiple failures are found on the more than one control unit, replace the under-dash fuse/relay box (includes the MICU). If input failures are related to a particular control unit, replace the control unit.
