Keyless Buzzer Test/Replacement

Keyless Buzzer Test/Replacement

1. Remove the rear bumper. Rear Bumper Removal/Installation

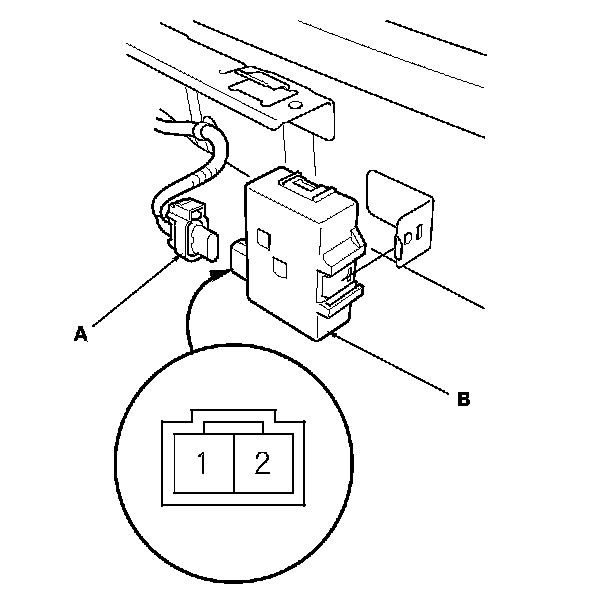

2. Disconnect the 2P connector (A) from the keyless buzzer (B).

3. Test the buzzer by connecting battery power to the terminal No. 1 and ground to the terminal No. 2.
The buzzer should sound.

4. If the buzzer does not sound, replace it.

5. Install the buzzer in the reverse order of removal.
