A/F Sensor Replacement
A/F Sensor ReplacementSpecial Tools Required
O2 sensor wrench. Snap-on SWR2, Snap-on YA9375, or equivalent, commercially available

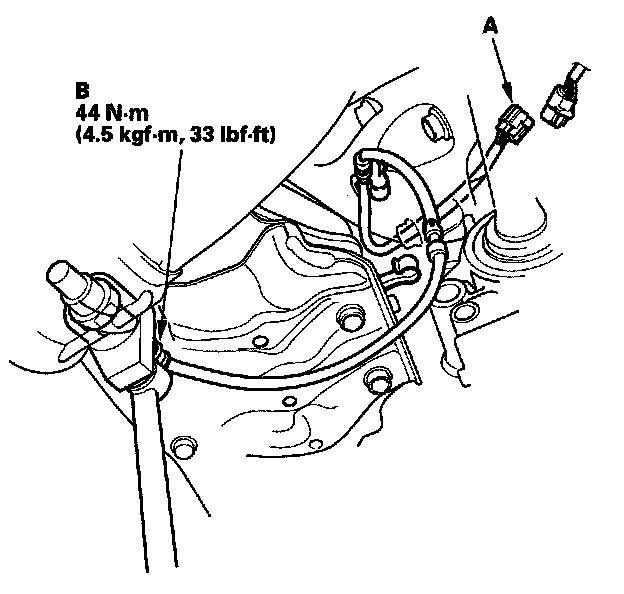

1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B).
2. Install the parts in the reverse order of removal.
