Navigation System
>>
System Diagram
System Diagram
Navigation System Circuit Diagram (Part 3):
Navigation System Circuit Diagram (Part 4):
Navigation System Circuit Diagram (Part 5):

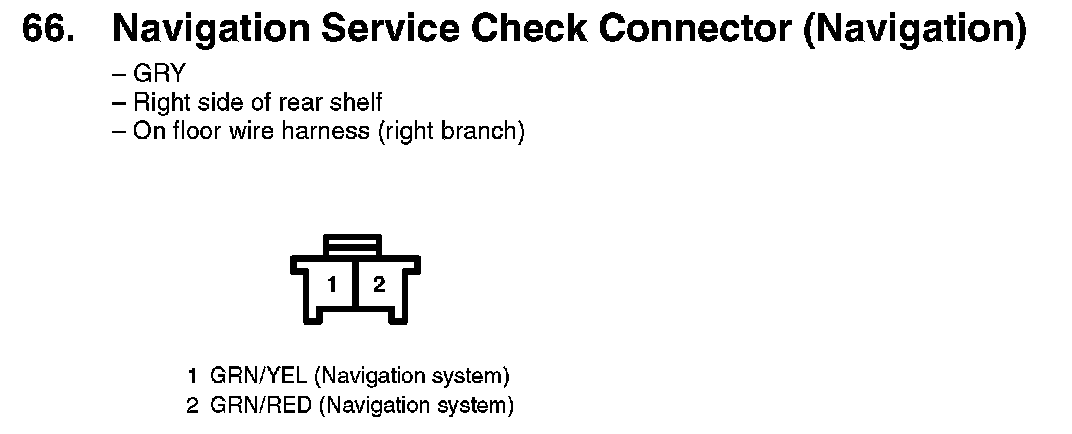

66. Navigation Service Check Connector (Navigation):
