Home >> Acura >> 2008 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC

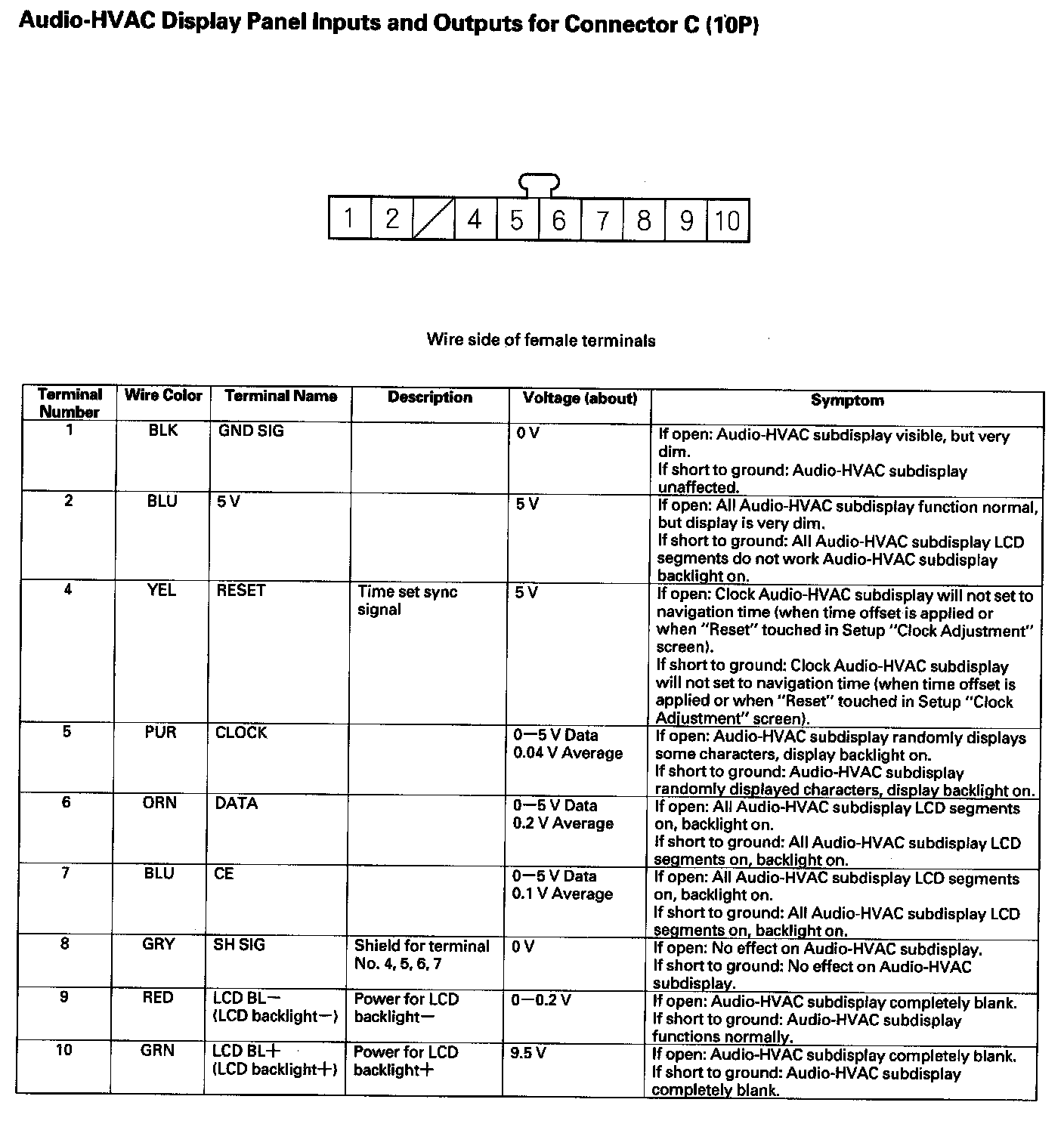

Audio-HVAC Display Panel Inputs And Outputs For Connector C (10P):

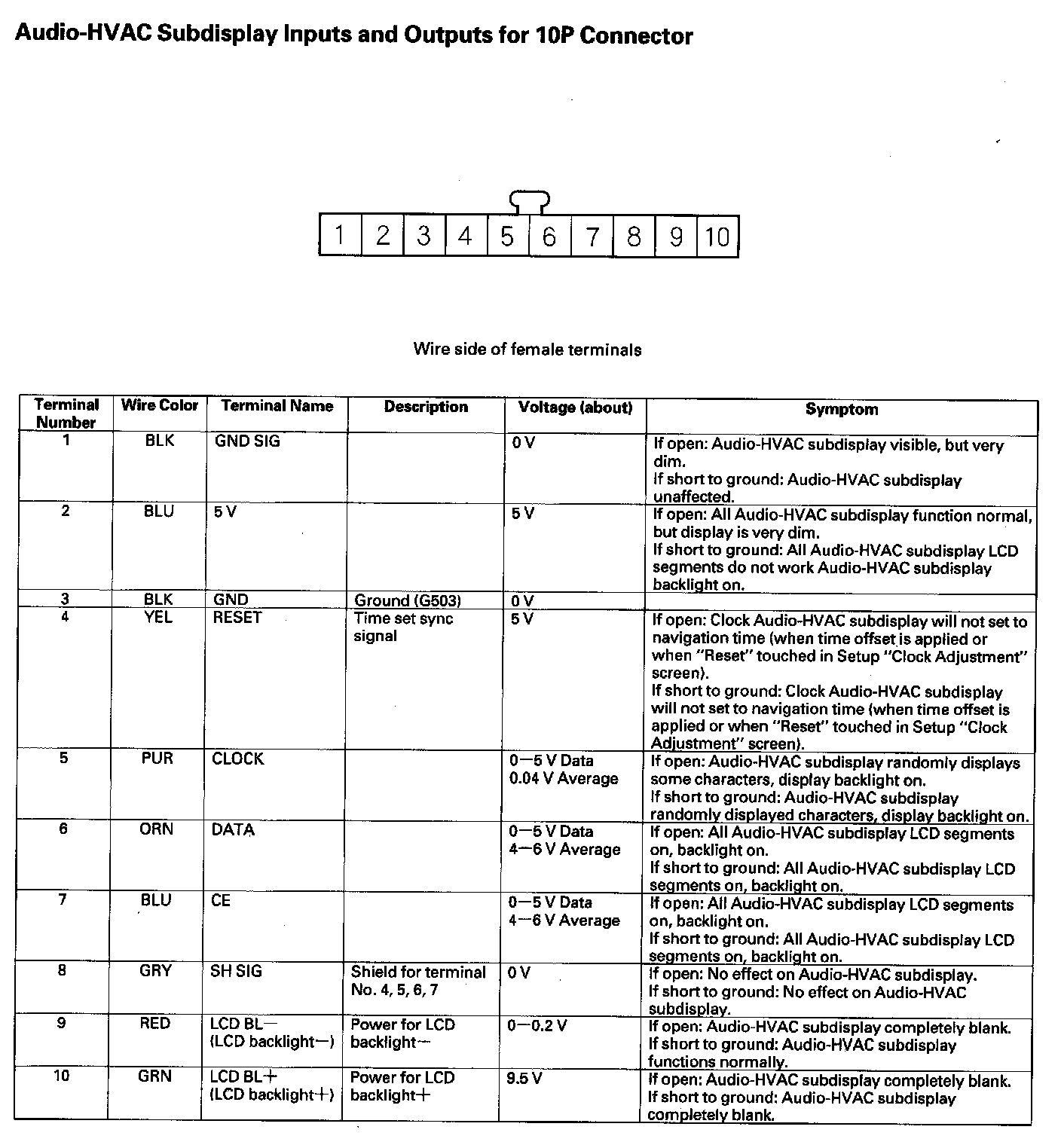

Audio-HVAC Subdisplay Inputs And Outputs For 10P Connector:



213. Audio-HVAC Sub Display Unit (Navigation) Or Clock (expect Navigation):

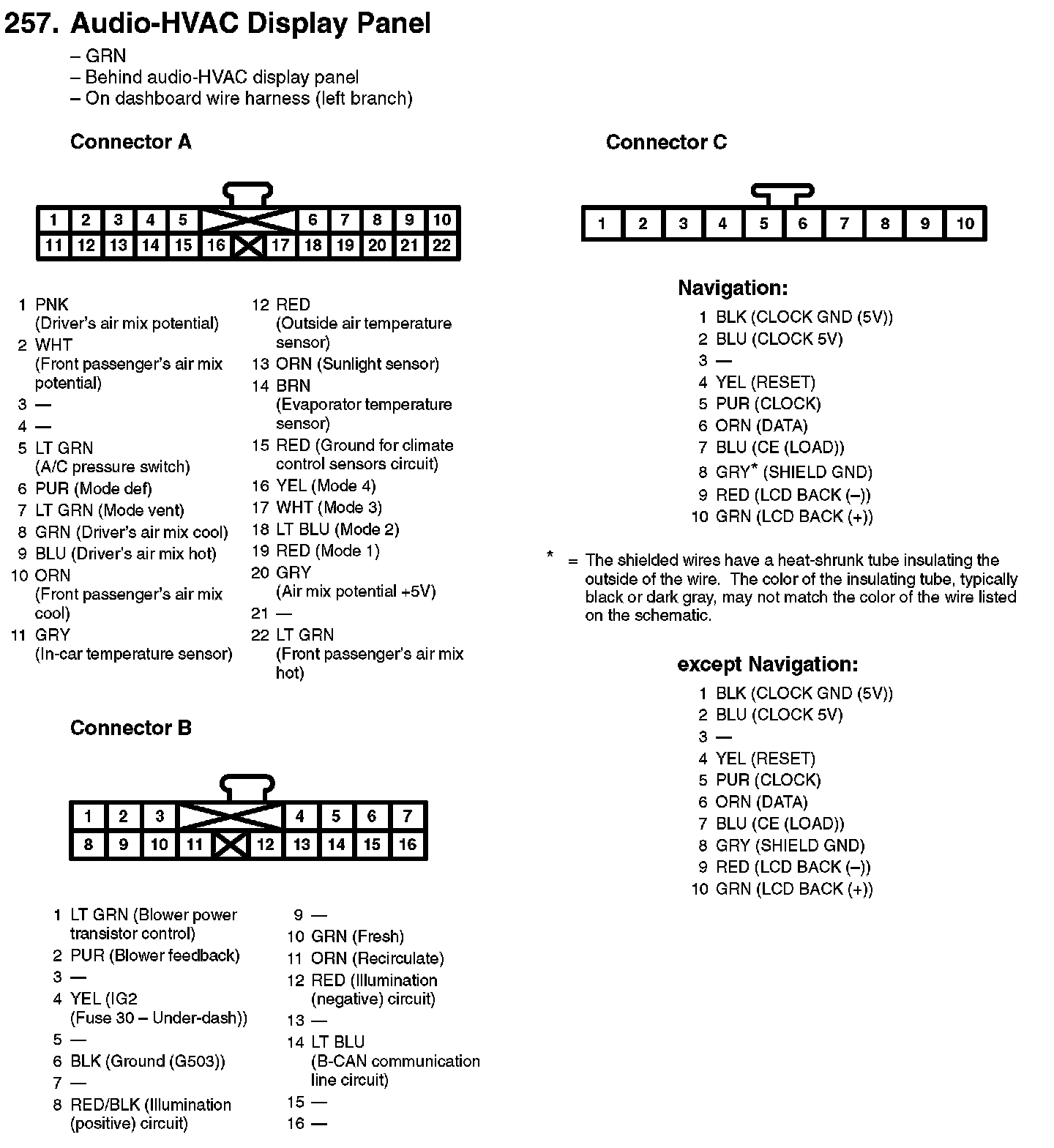

257. Audio-HVAC Display Panel:
