Transmission Position Sensor/Switch: Diagrams

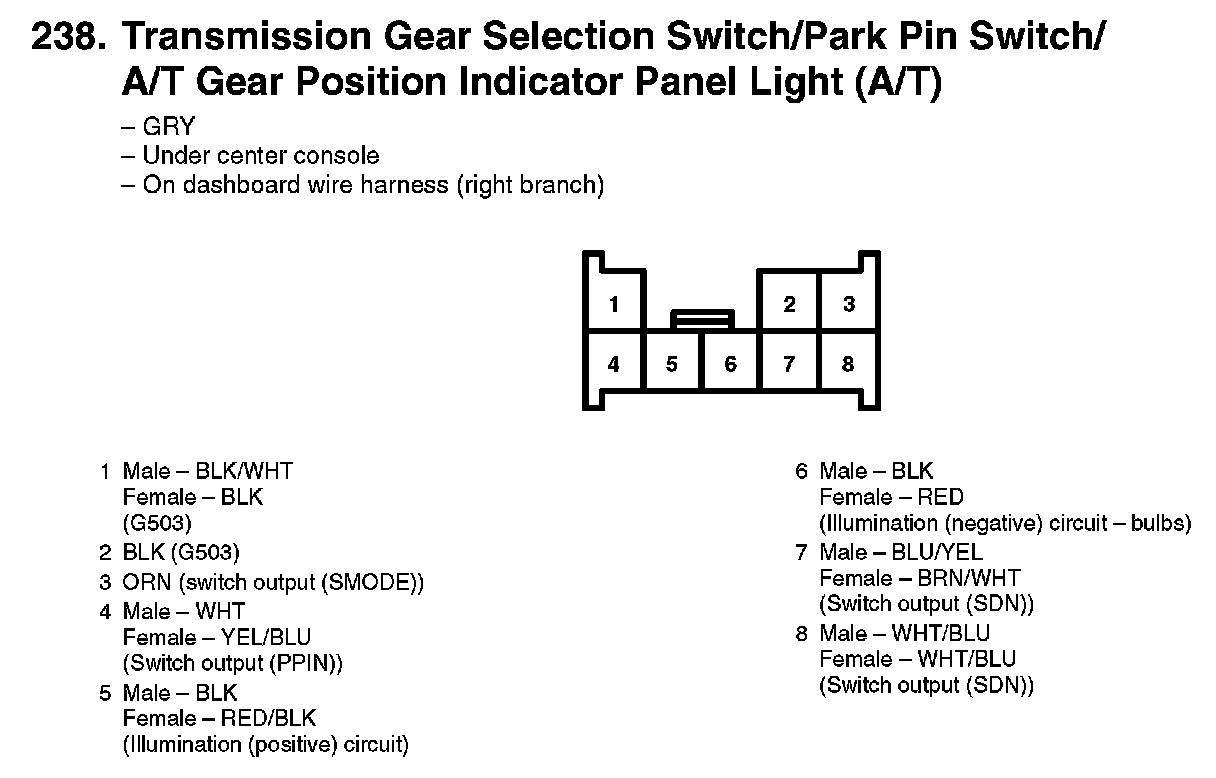

238. Transmission Gear Selection Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light (A/T):

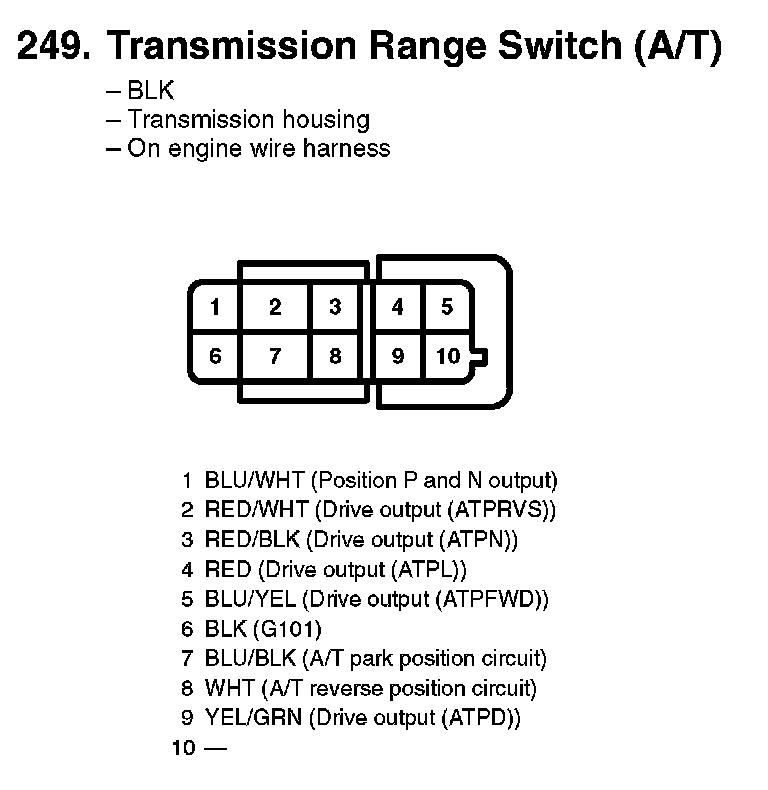

249. Transmission Range Switch (A/T):
