Electronic Brake Control Module
Electronic Brake Control Module
VSA Modulator-
Control Unit
Inputs and Outputs for 37P Connector

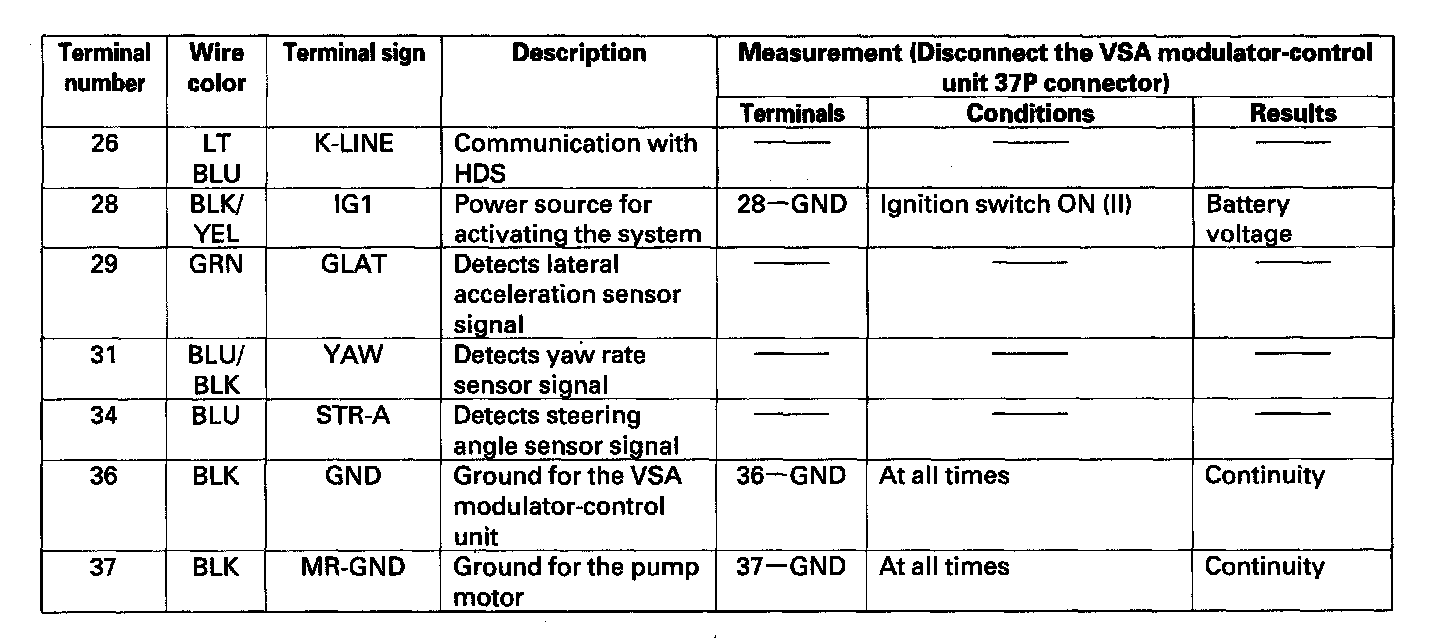

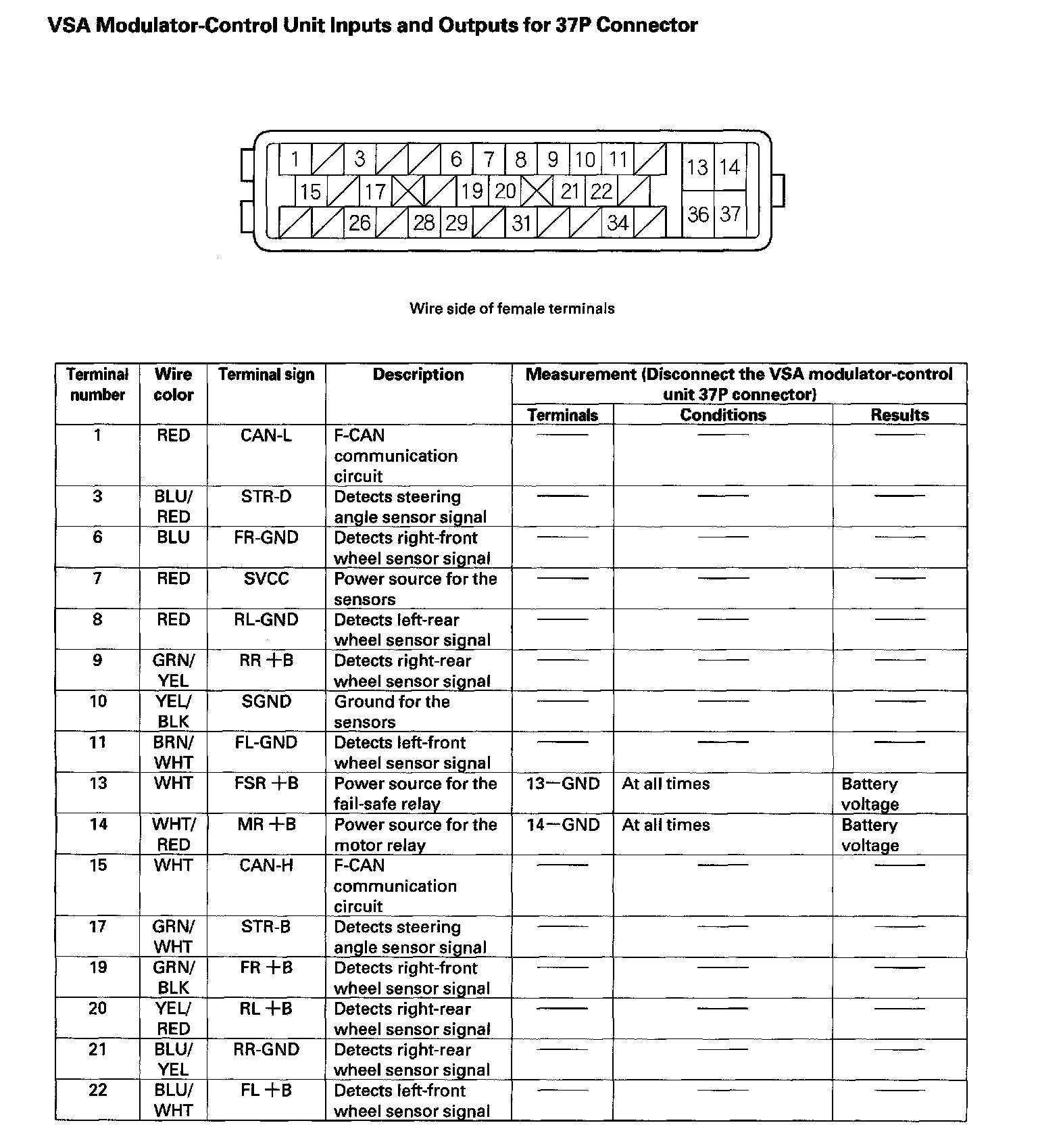

VSA Modulator-Control Unit Inputs and Outputs for 37P Connector:
