Main Relay (Computer/Fuel System): Locations

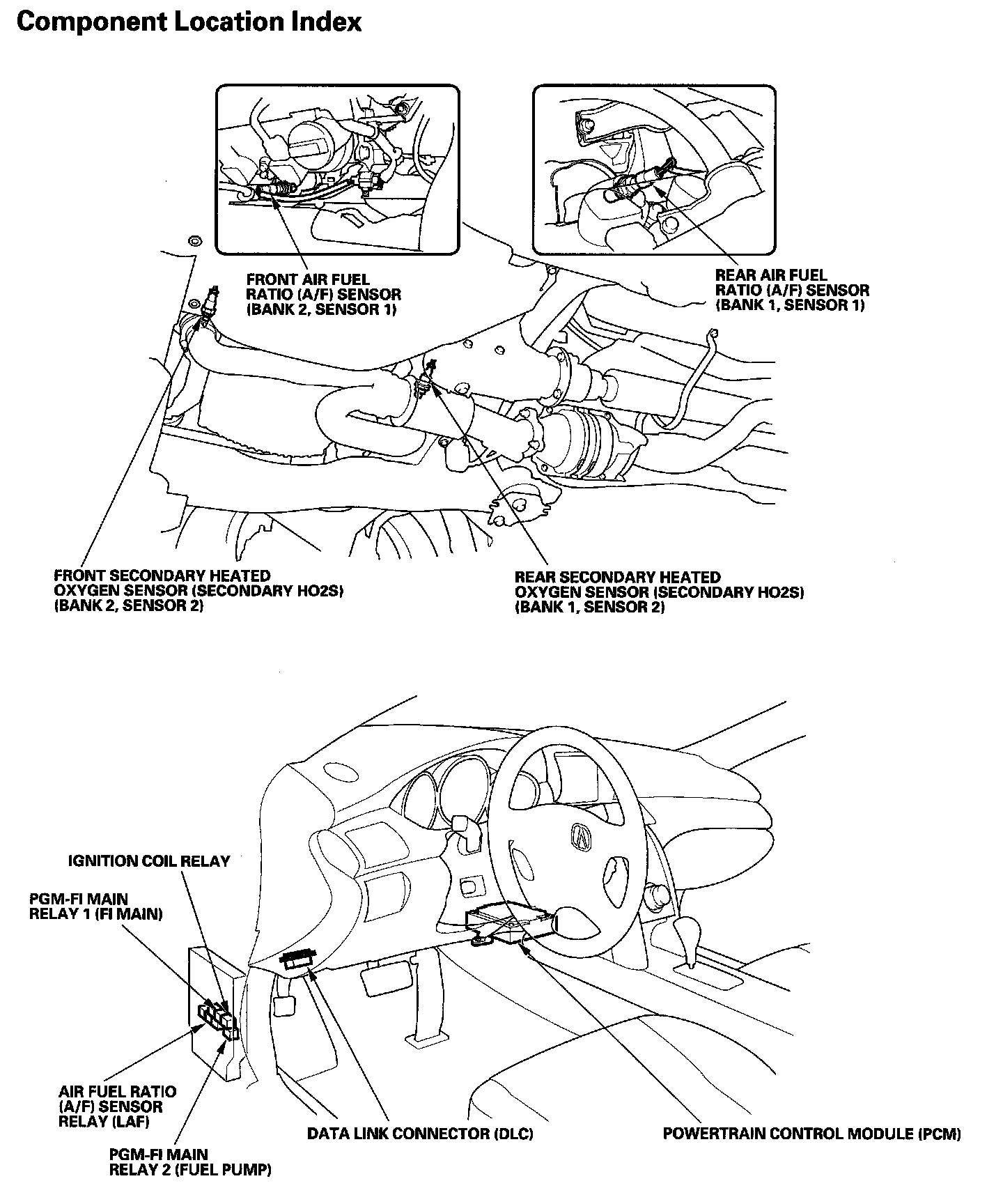

Fuel Supply System Component Location Index:
PGM-FI System Component Location Index:

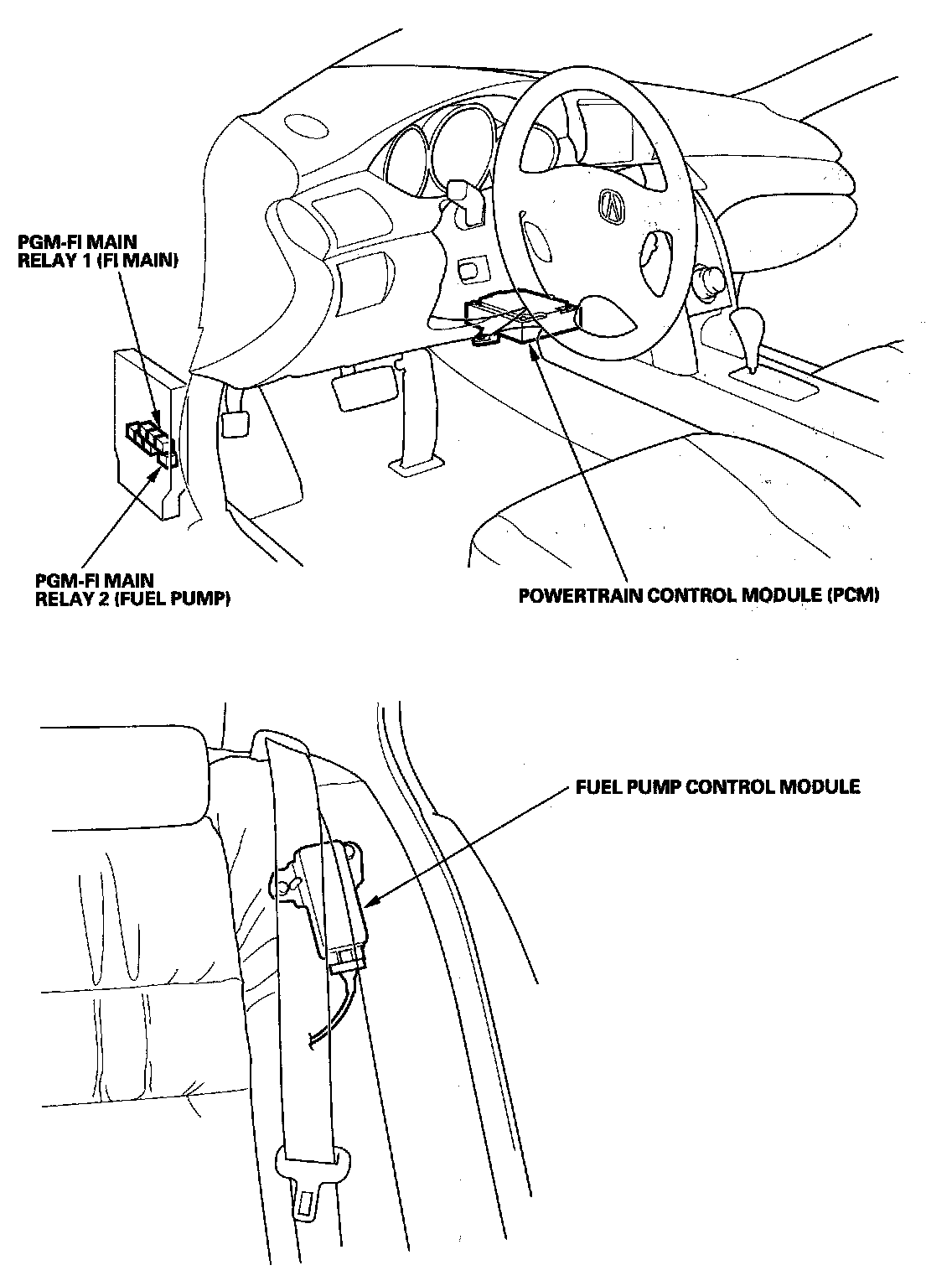

Relay And Control Unit Locations Dashboard:
