Pinout Values and Diagnostic Parameters

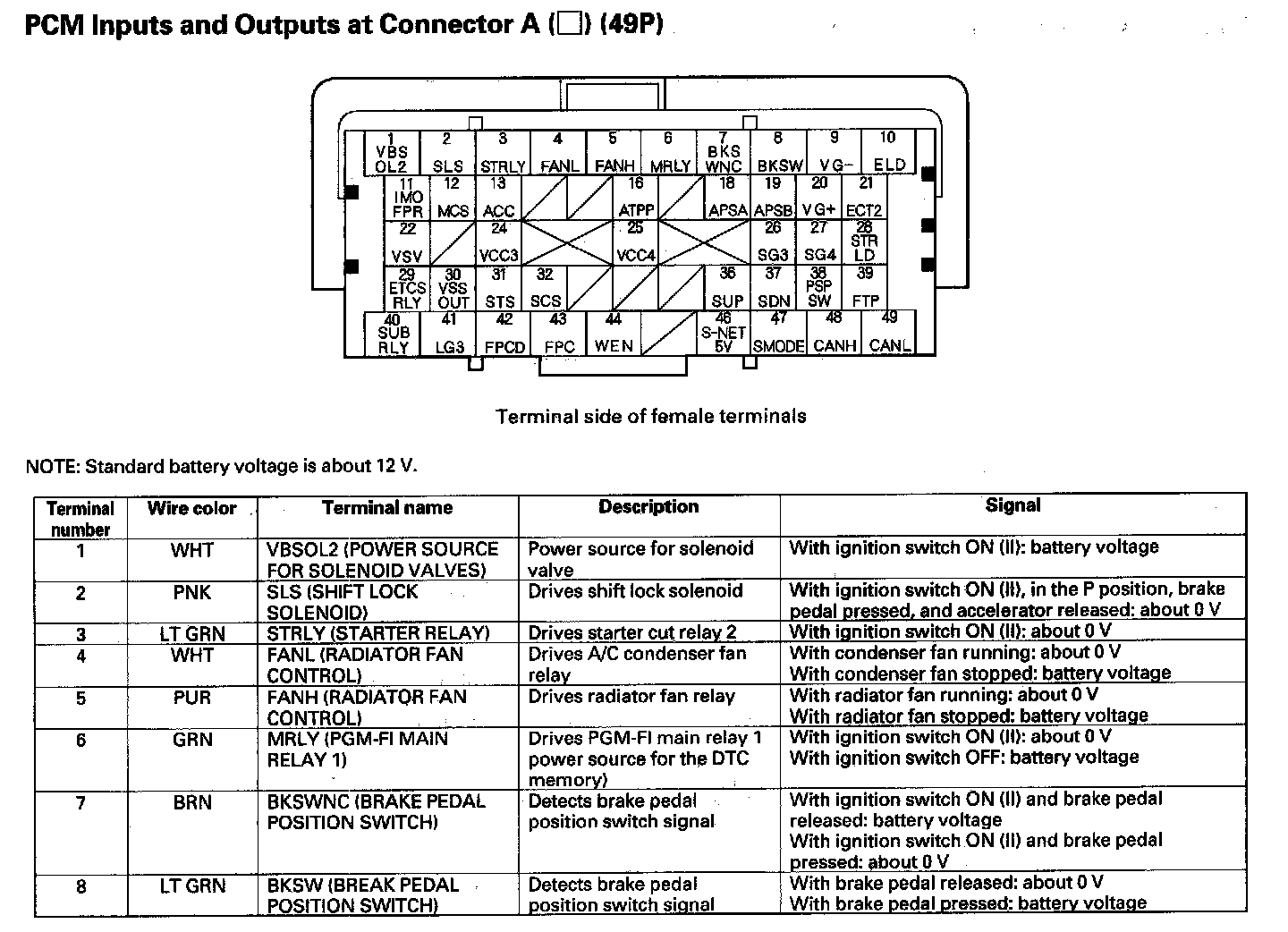

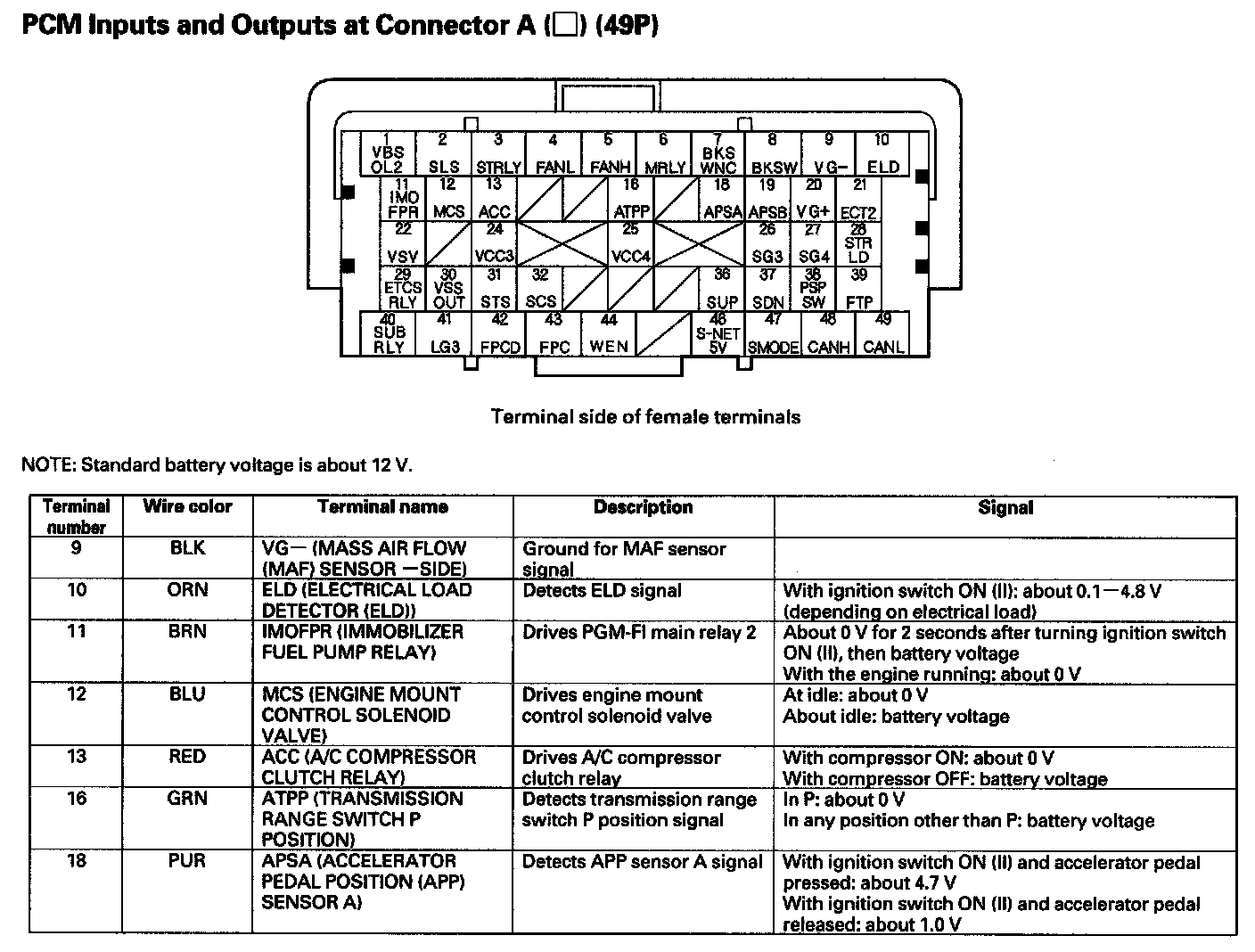

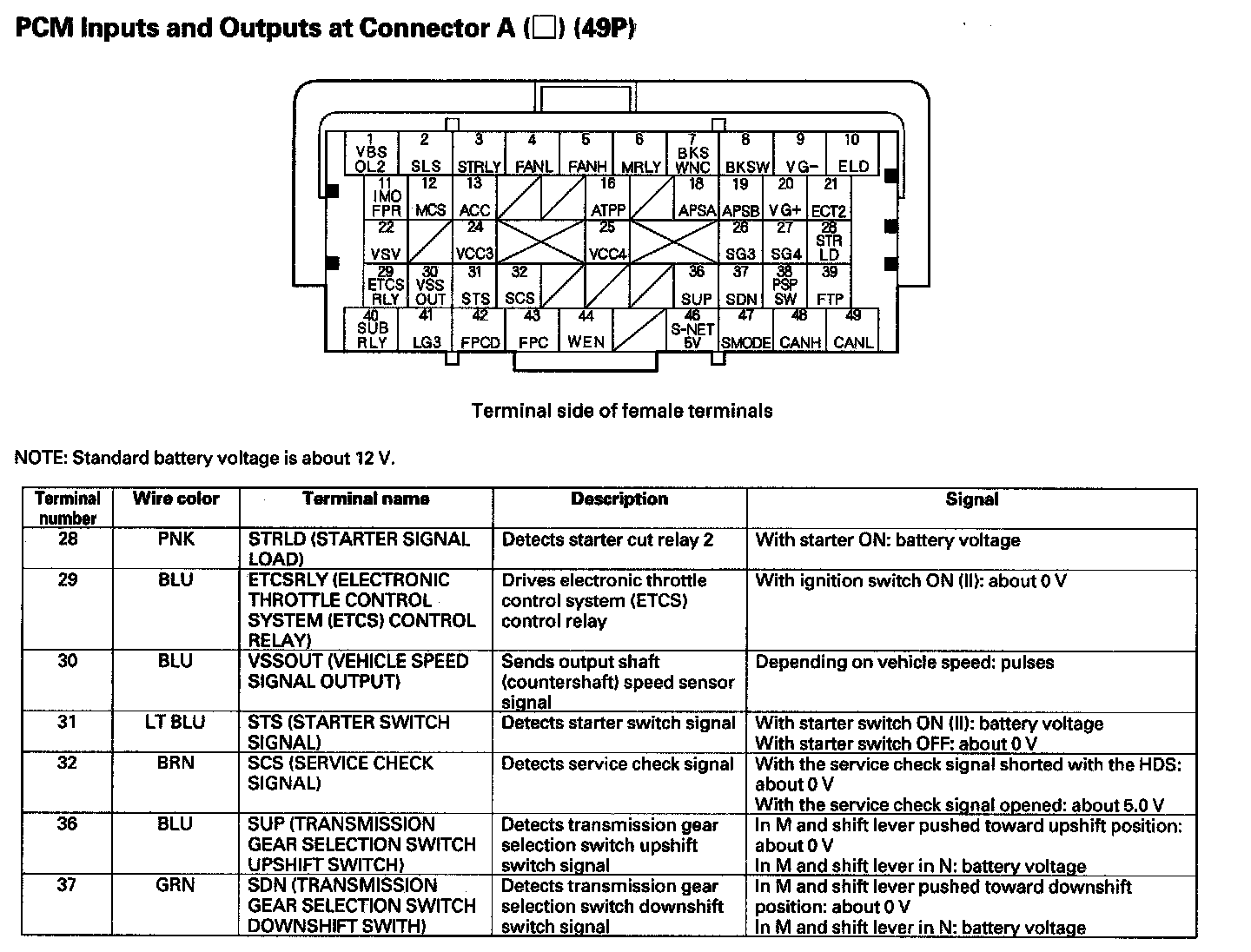

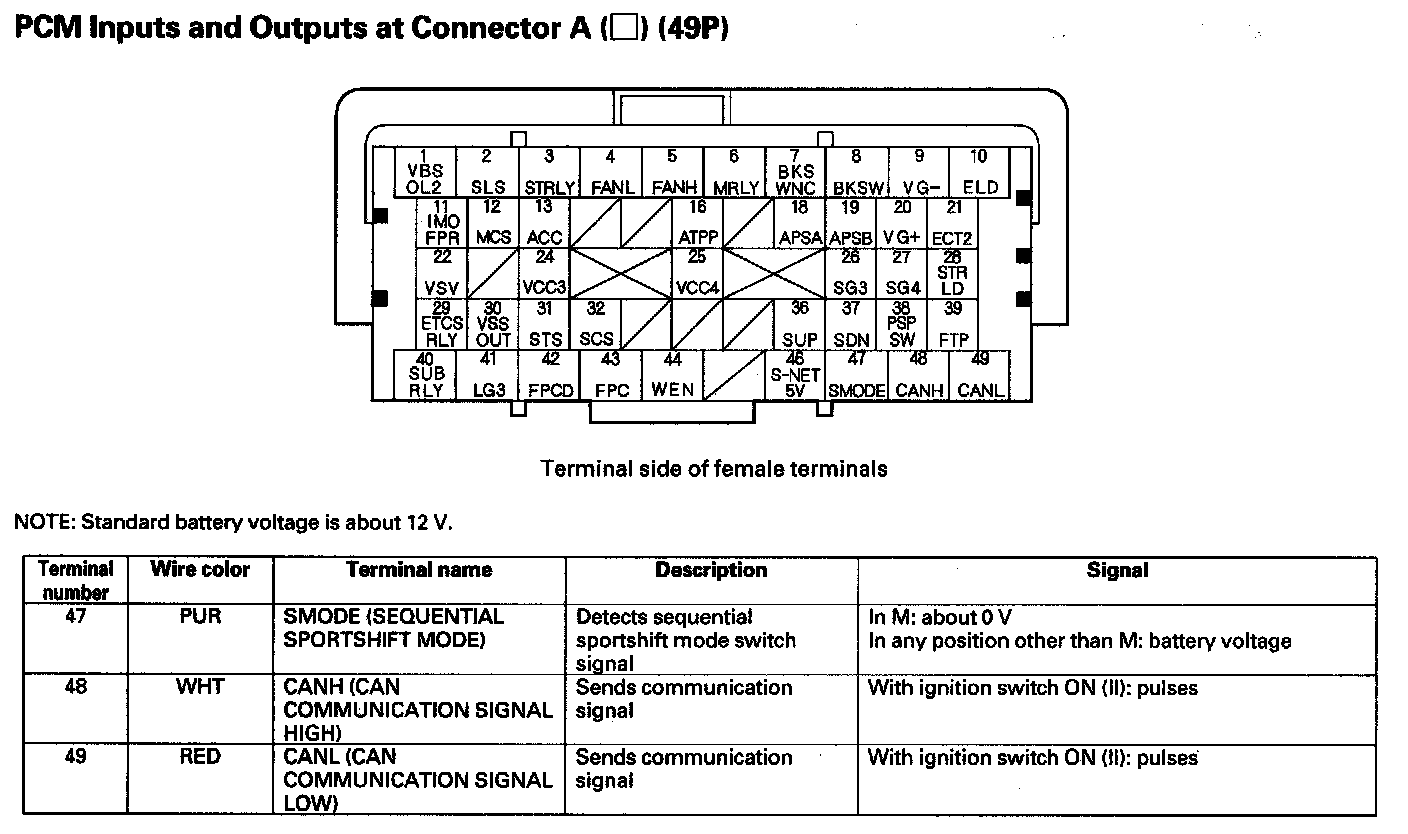

PCM Inputs And Outputs at Connector A (49P) (Part 1):



PCM Inputs And Outputs At Connector A (49P) (Part 2):



PCM Inputs And Outputs At Connector A (49P) (Part 3):



PCM Inputs And Outputs At Connector A (49P) (Part 4):

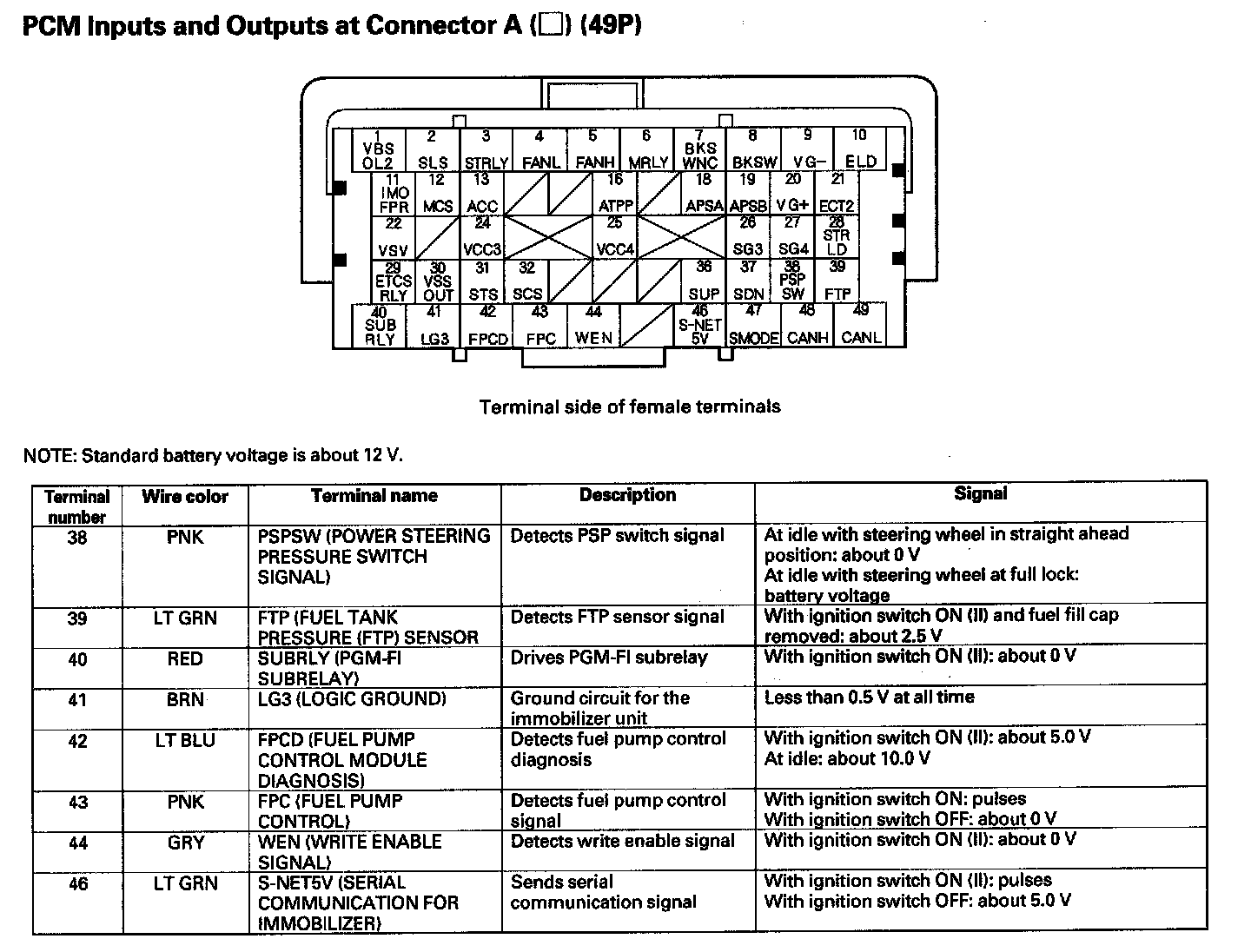

PCM Inputs And Outputs At Connector A (49P) (Part 5):

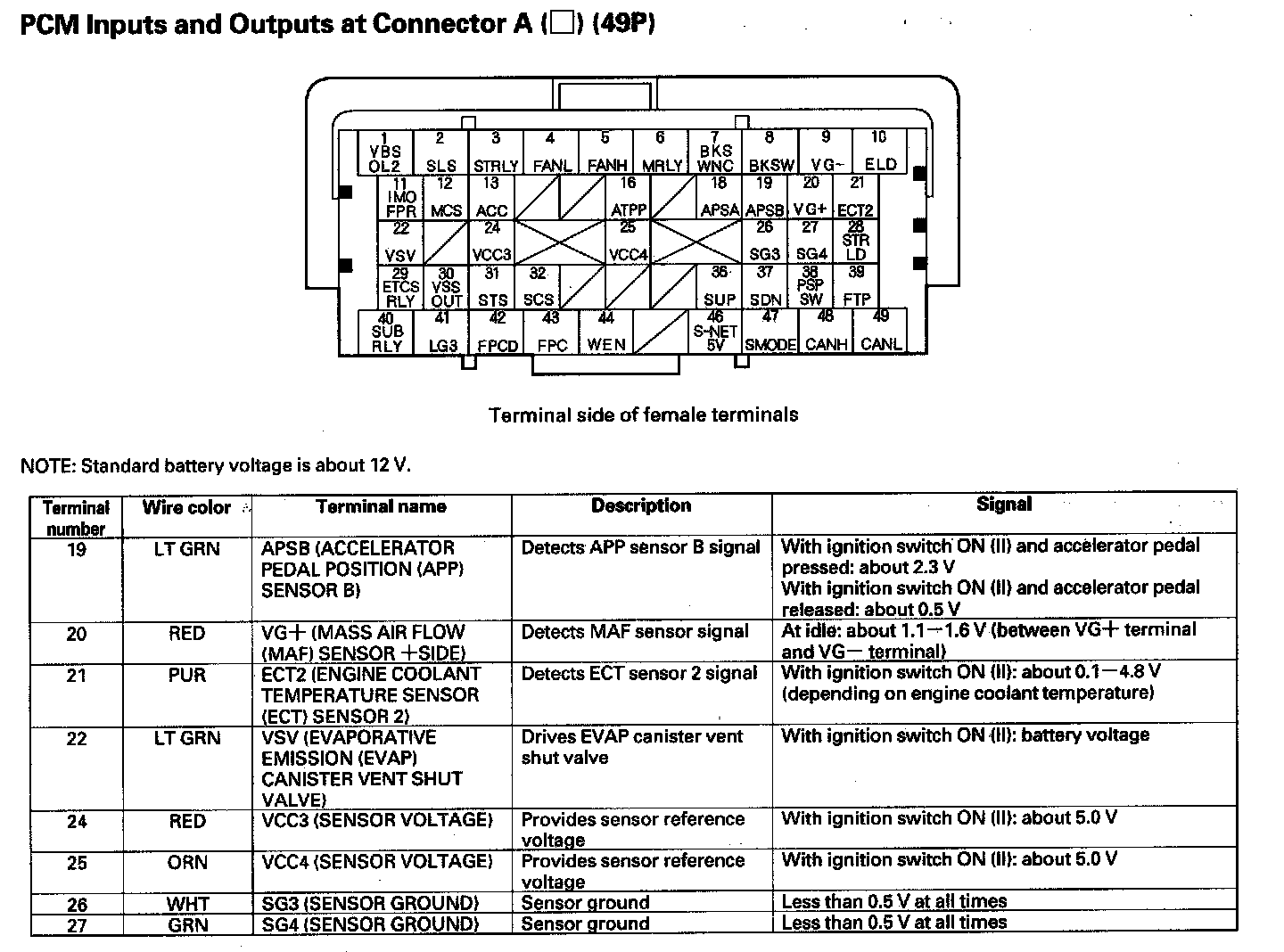

PCM Inputs And Outputs At Connector A (49P) (Part 6):

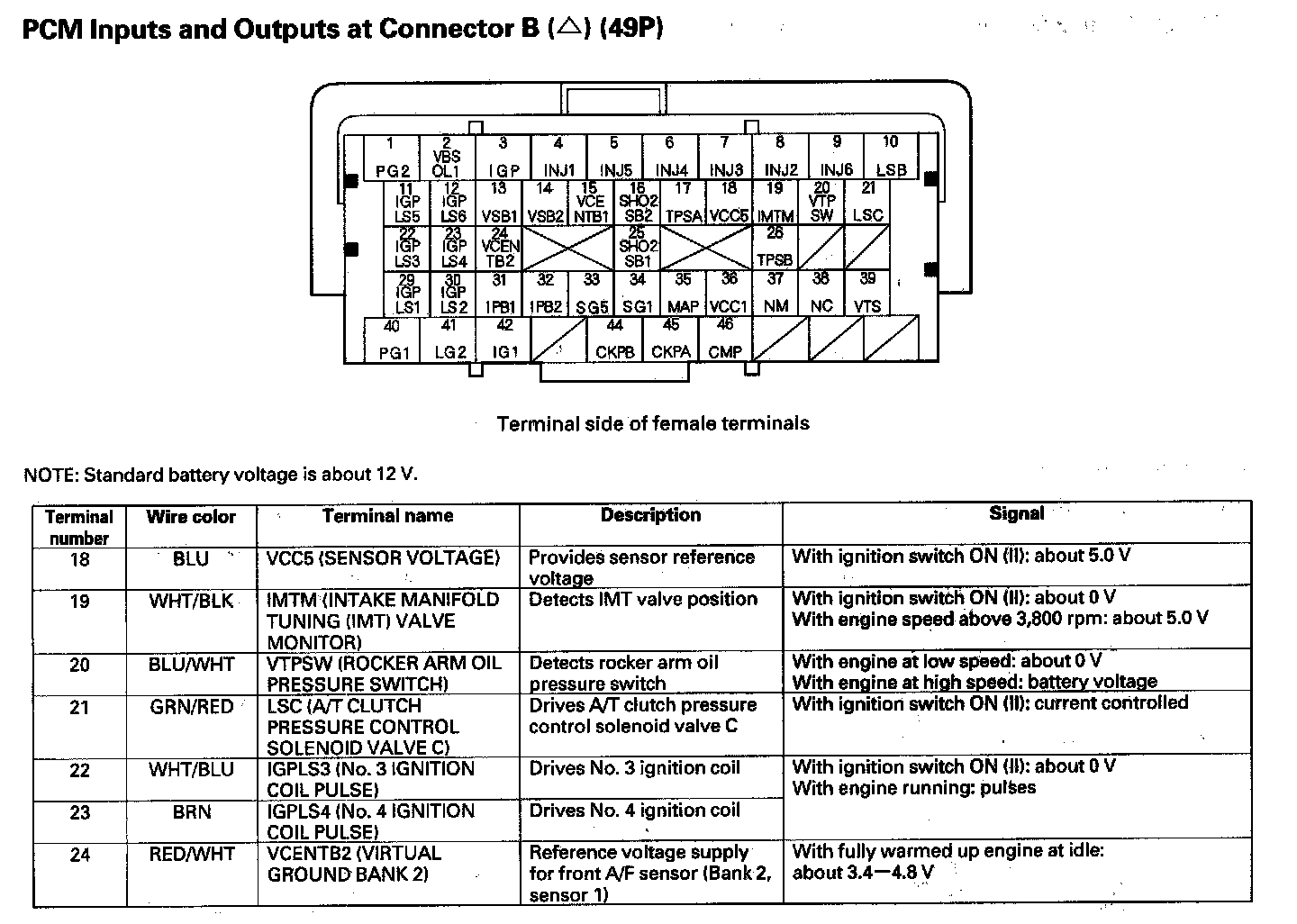

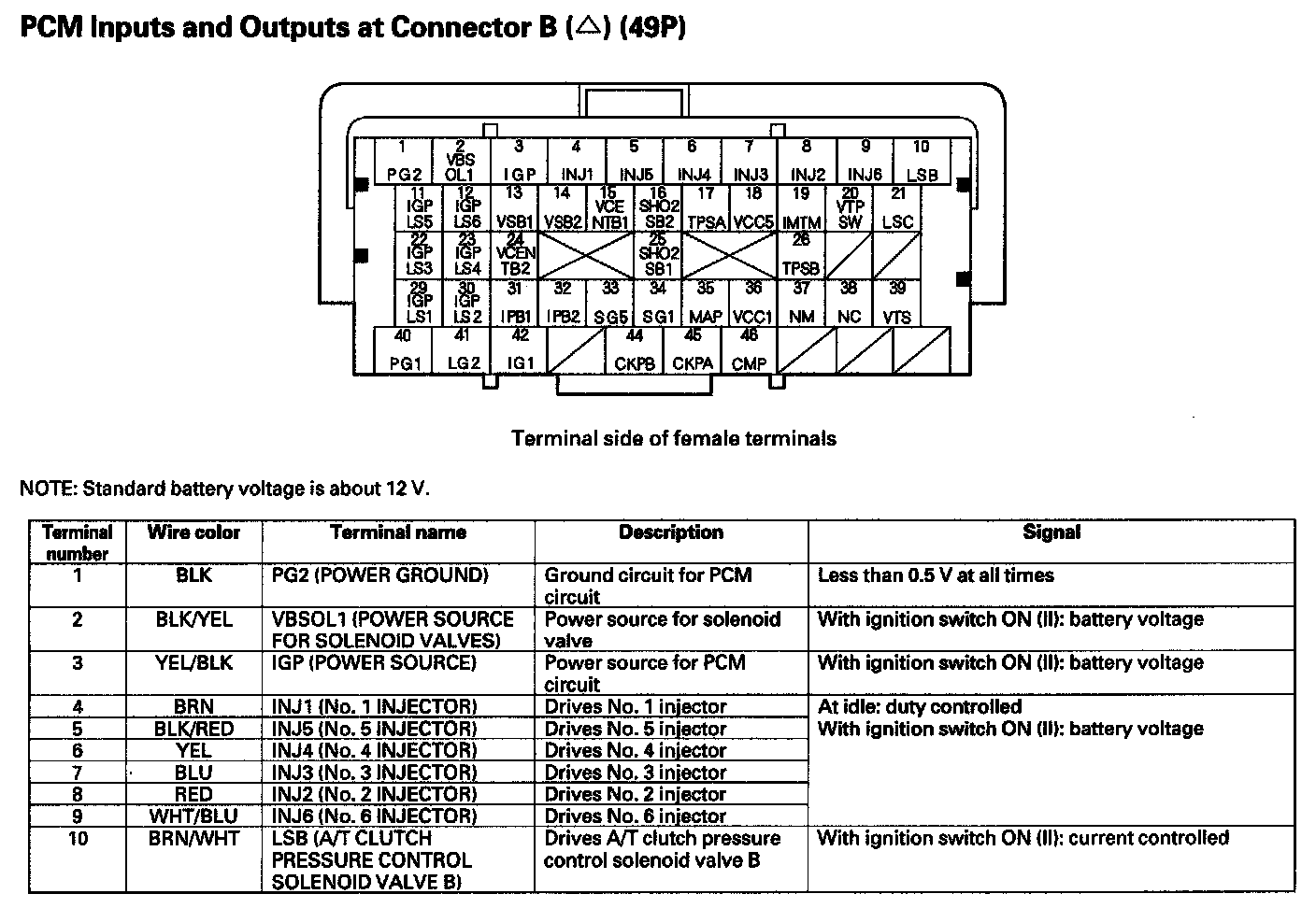

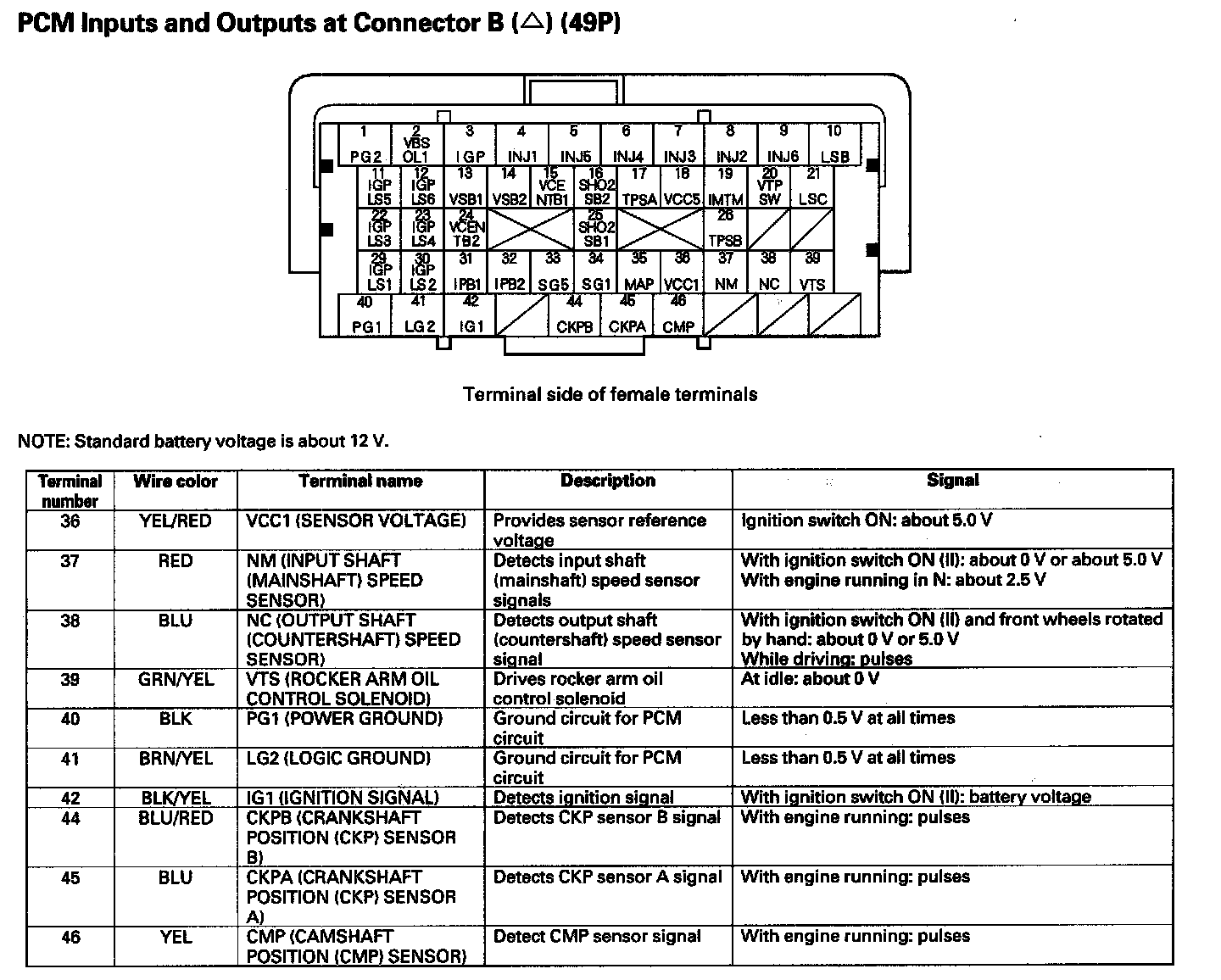

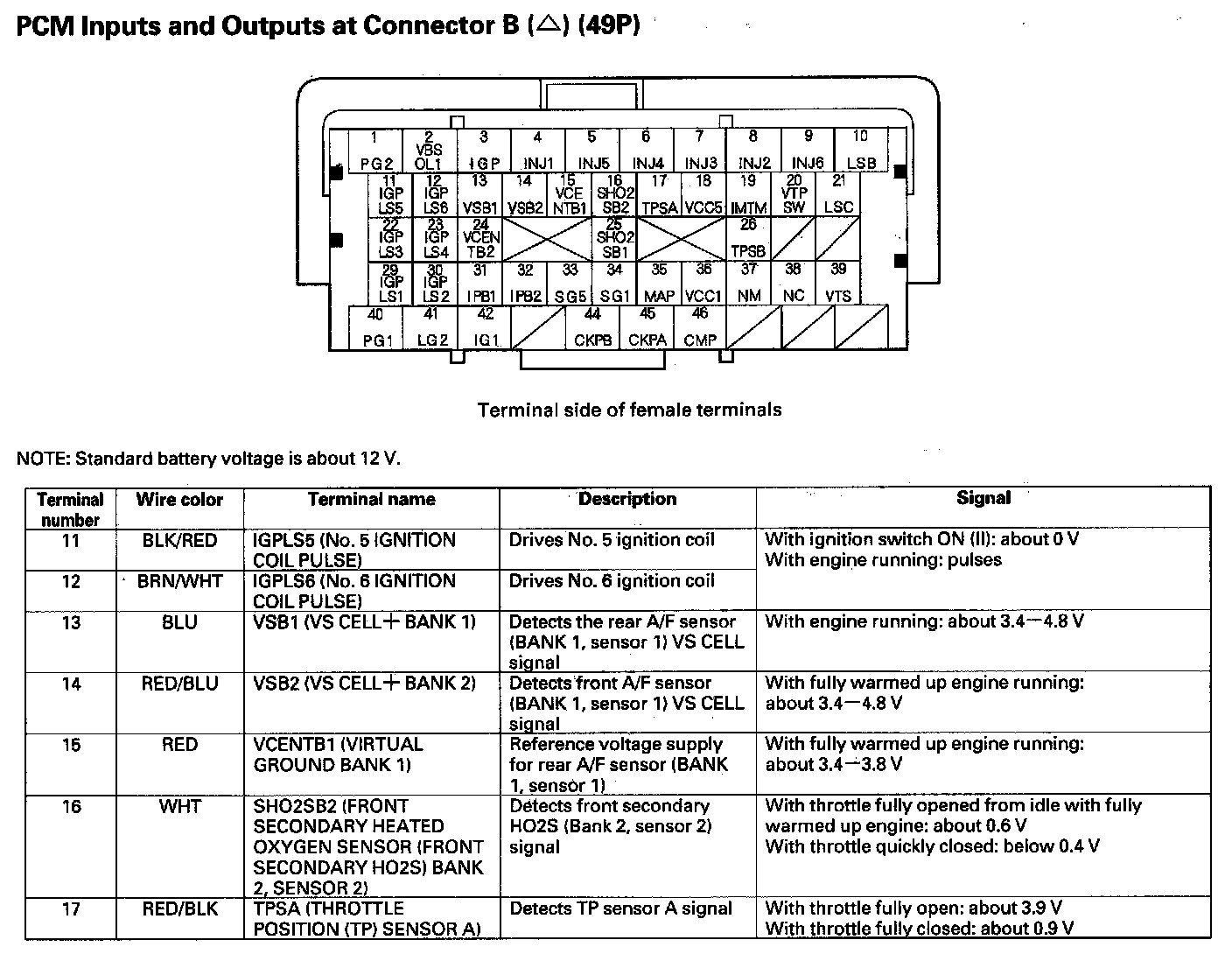

PCM Inputs And Outputs At Connector B (49P) (Part 1):



PCM Inputs And Outputs At Connector B (49P) (Part 2):

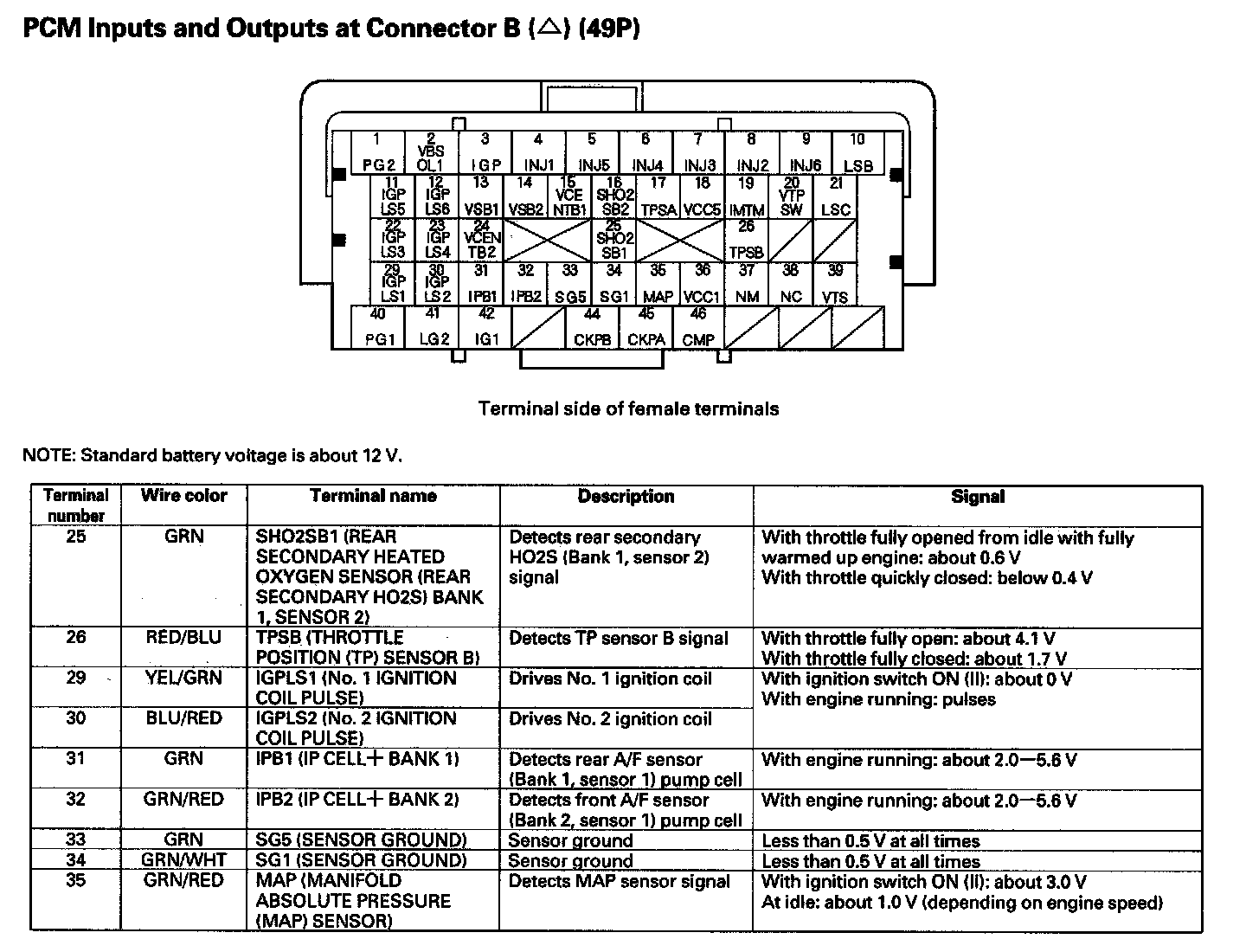

PCM Inputs And Outputs At Connector B (49P) (Part 3):



PCM Inputs And Outputs At Connector B (49P) (Part 4):



PCM Inputs And Outputs At Connector B (49P) (Part 5):

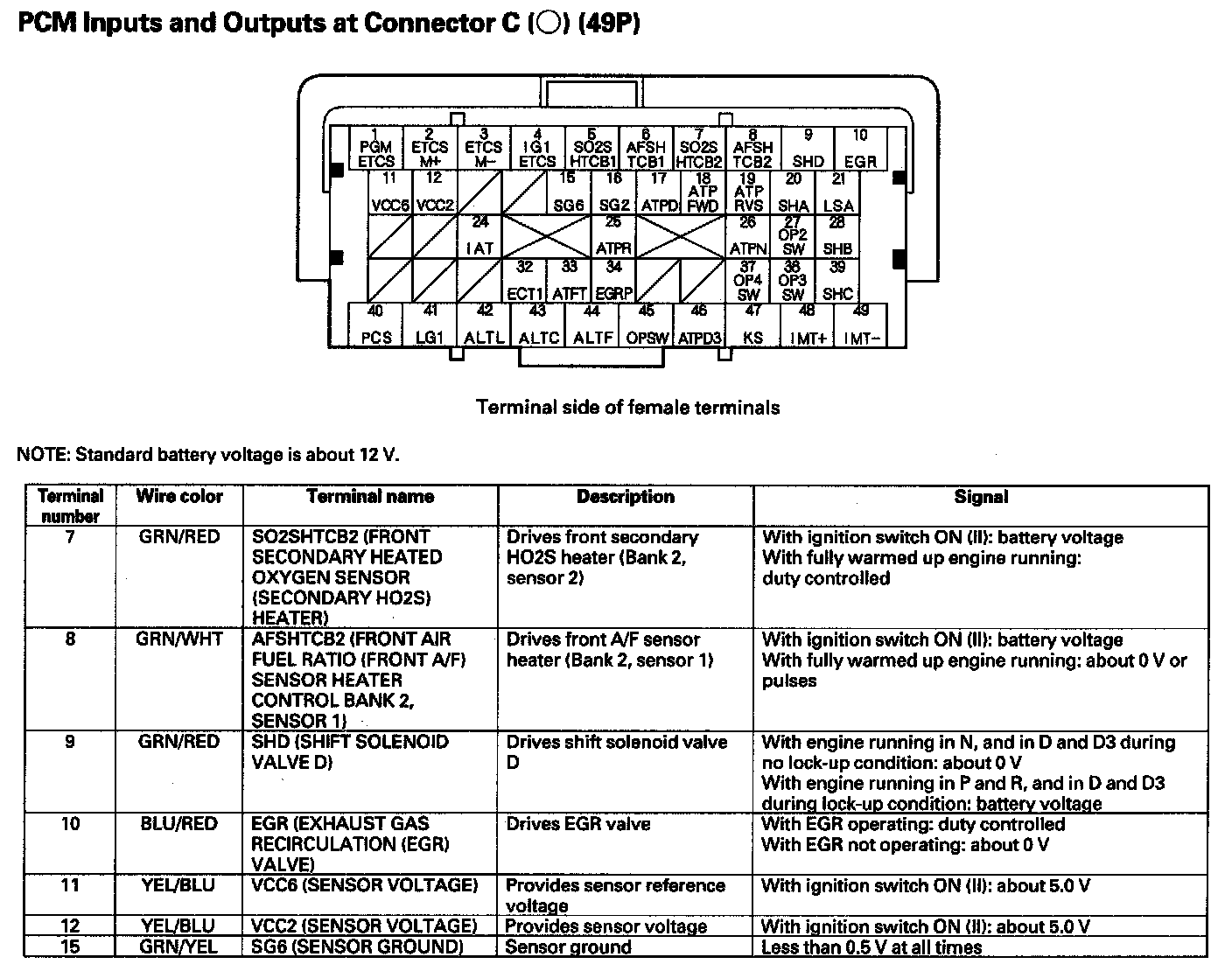

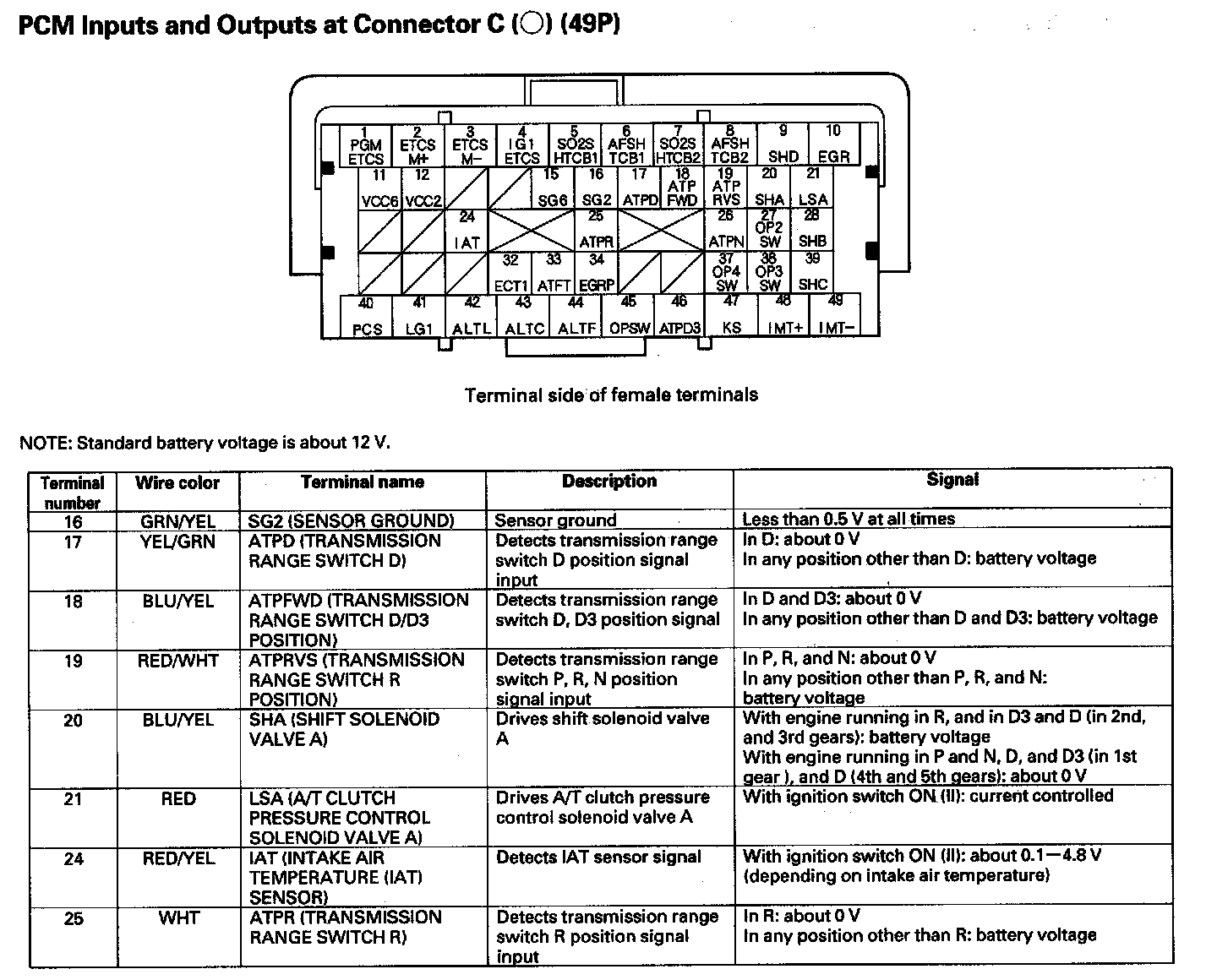

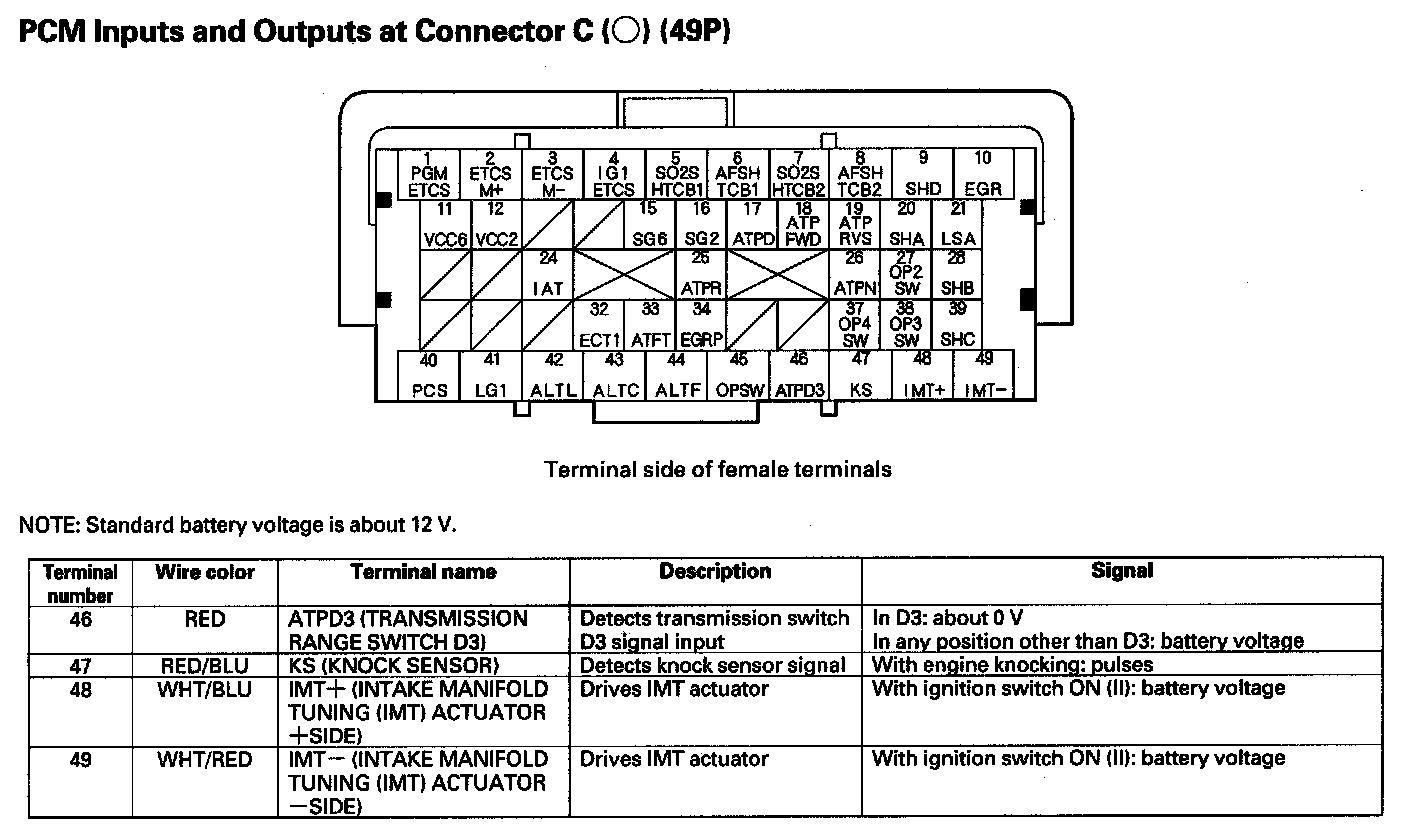

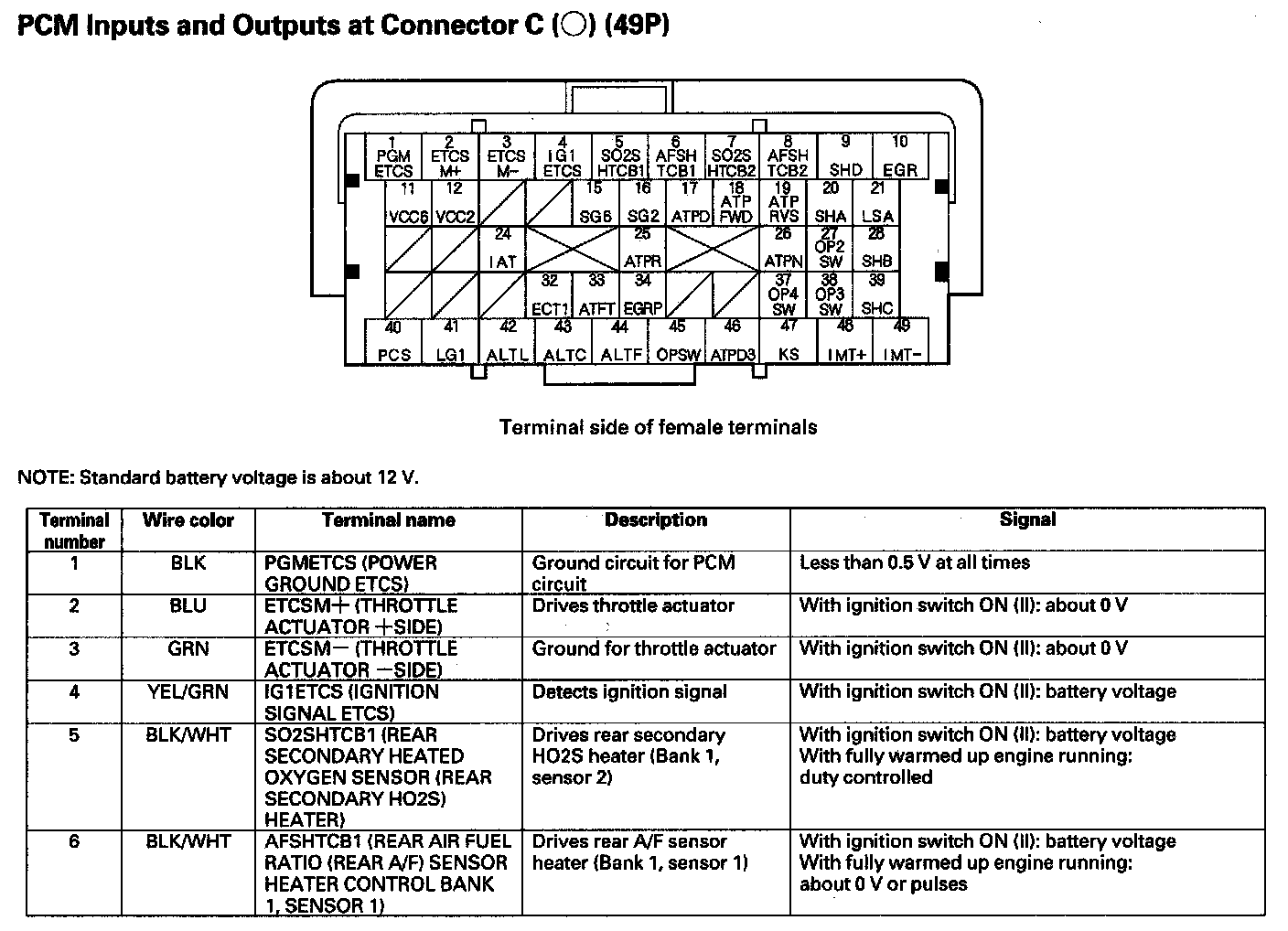

PCM Inputs And Outputs At Connector C (49P) (Part 1):



PCM Inputs And Outputs At Connector C (49P) (Part 2):



PCM Inputs And Outputs At Connector C (49P) (Part 3):

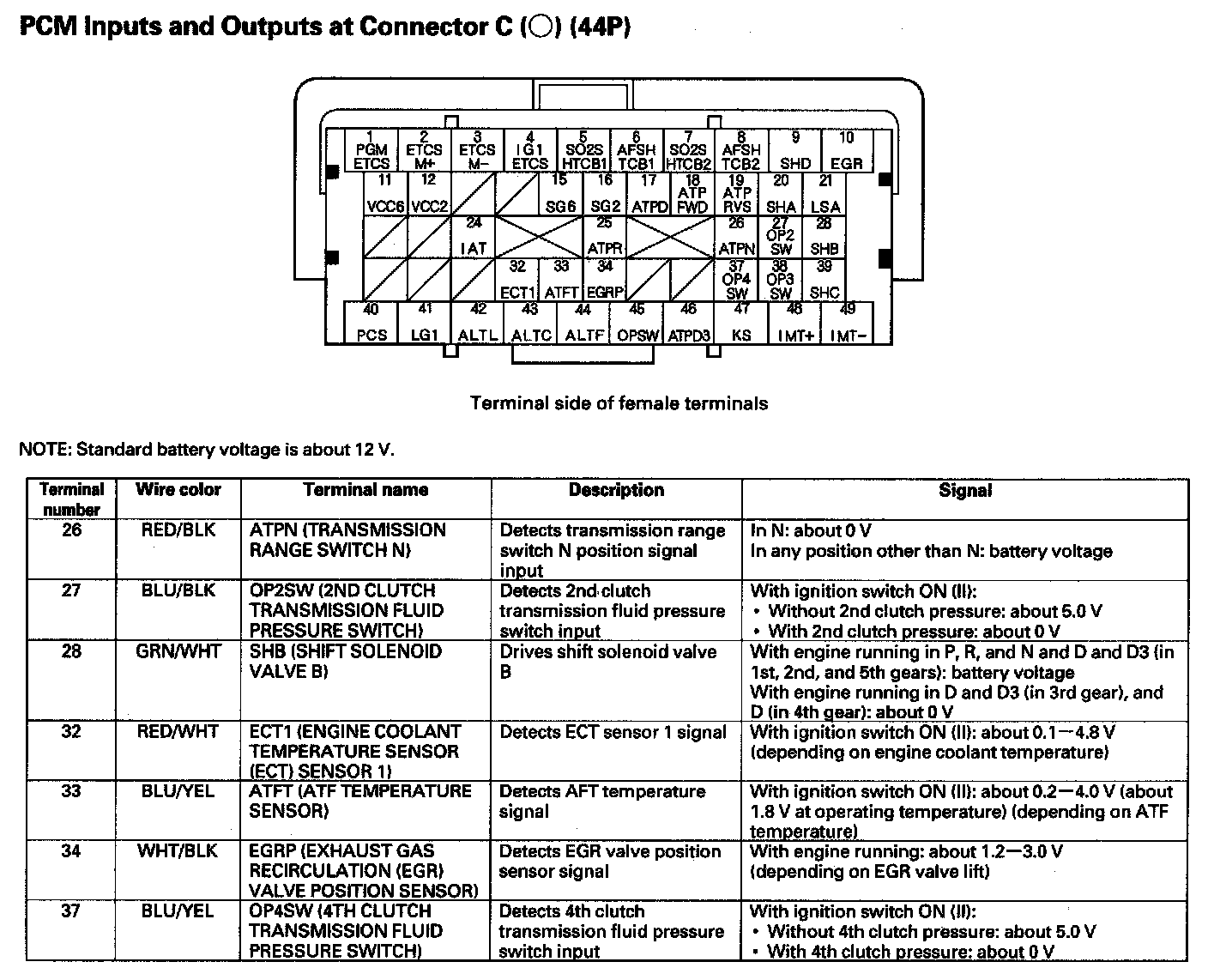

PCM Inputs And Outputs At Connector C (44P) (Part 4):

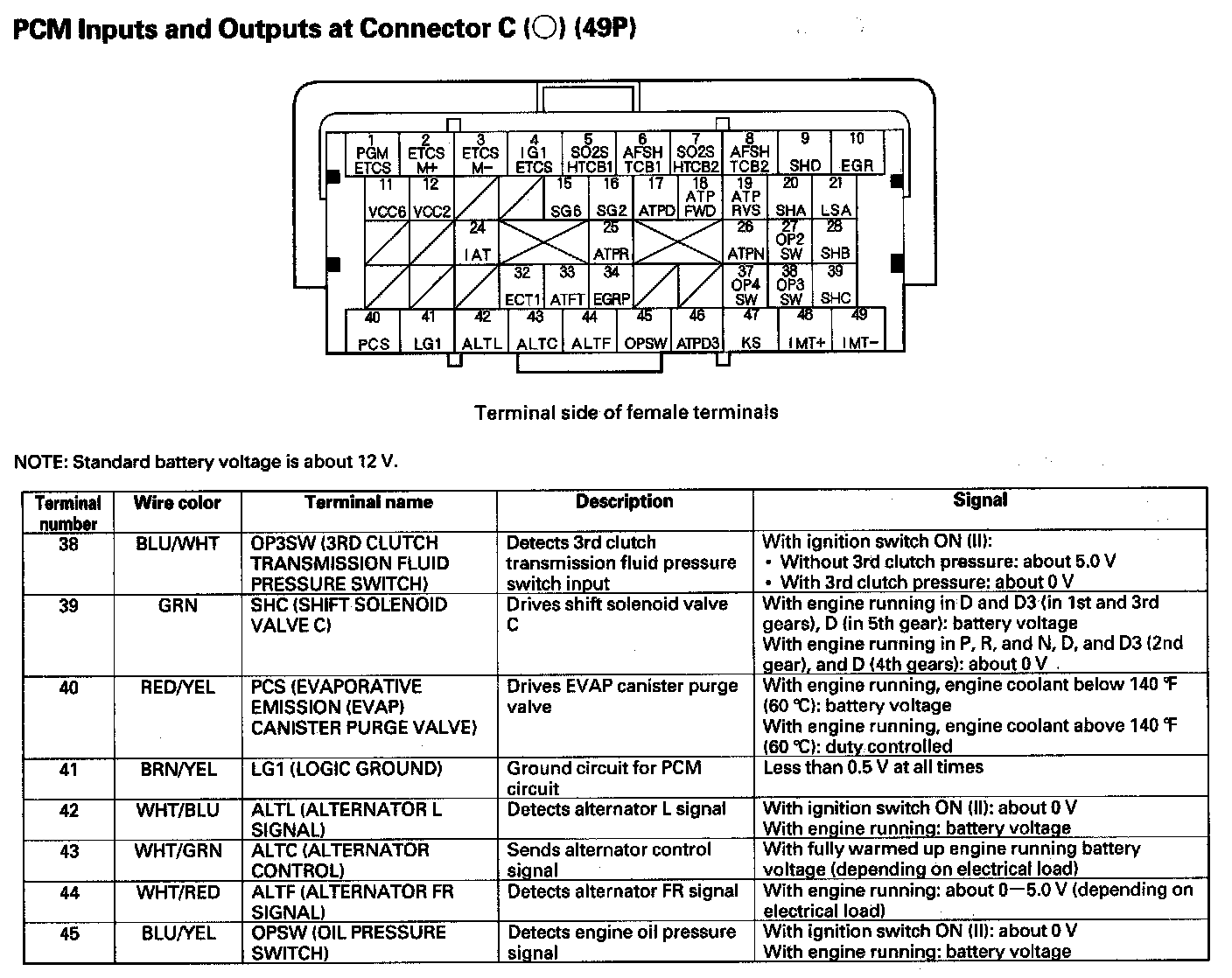

PCM Inputs And Outputs At Connector C (49P) (Part 5):



PCM Inputs And Outputs At Connector C (49P) (Part 6):
