Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor Replacement

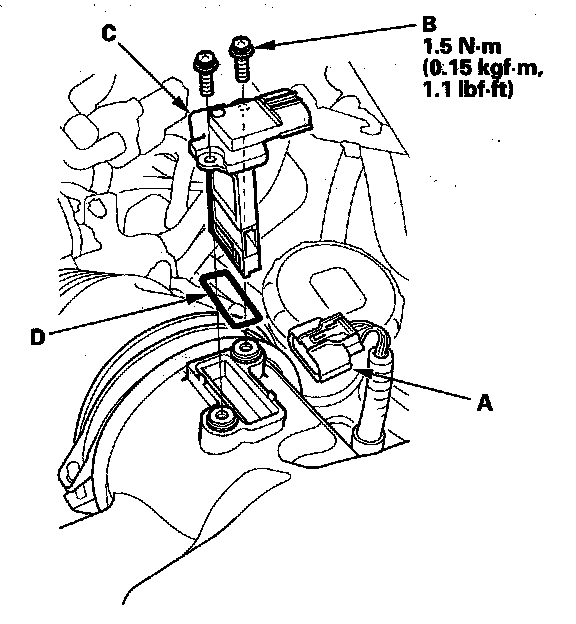

1. Disconnect the MAF sensor/IAT senor connector (A).






2. Remove the screw (B).
3. Remove the MAF sensor/IAT senor (C).
4. Install the parts in the reverse order of removal with a new gasket (D).
