Driving Position Memory System (DPMS) Circuit Diagram

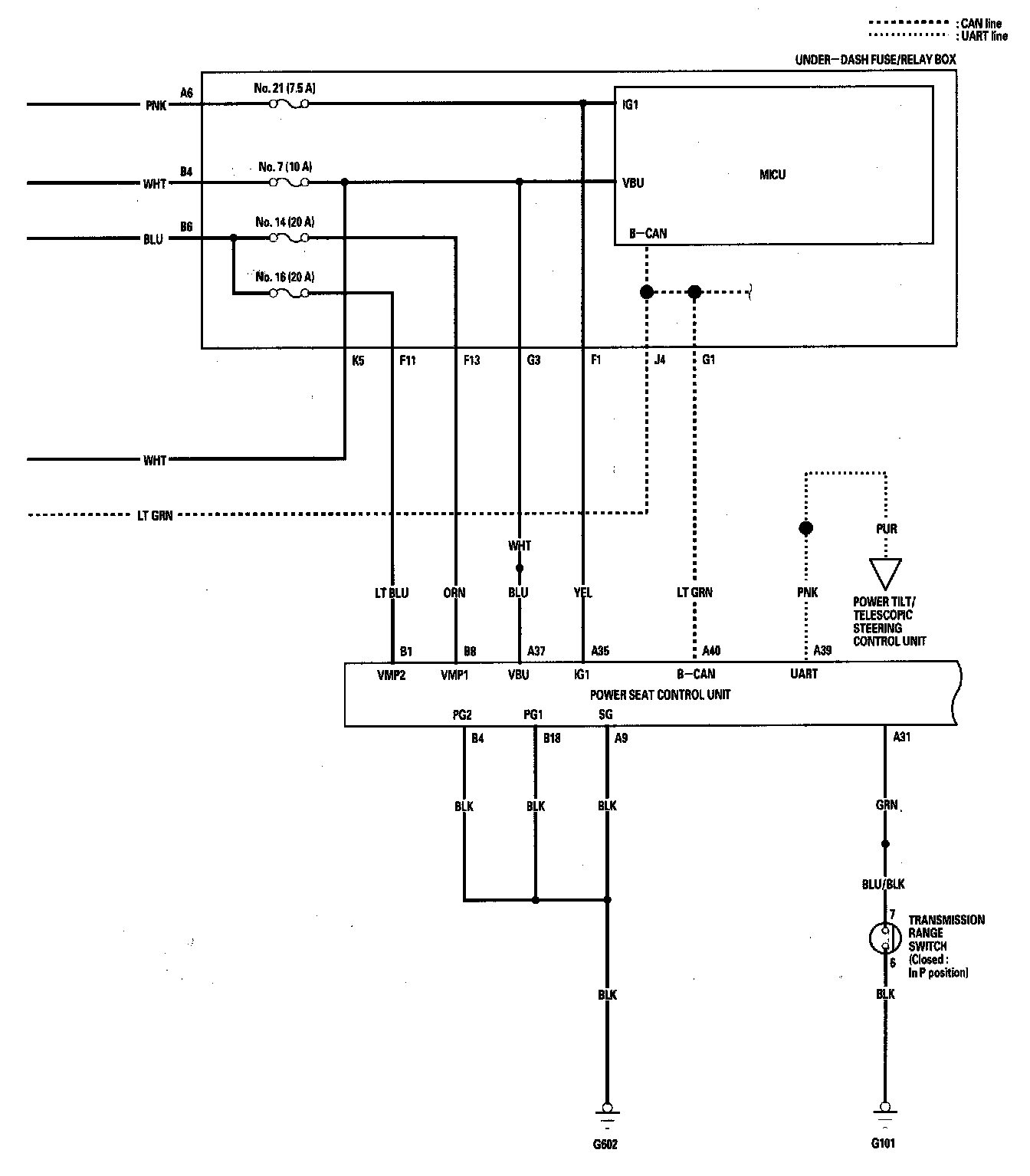

Driving Position Memory System (DPMS) Circuit Diagram (Part 1):

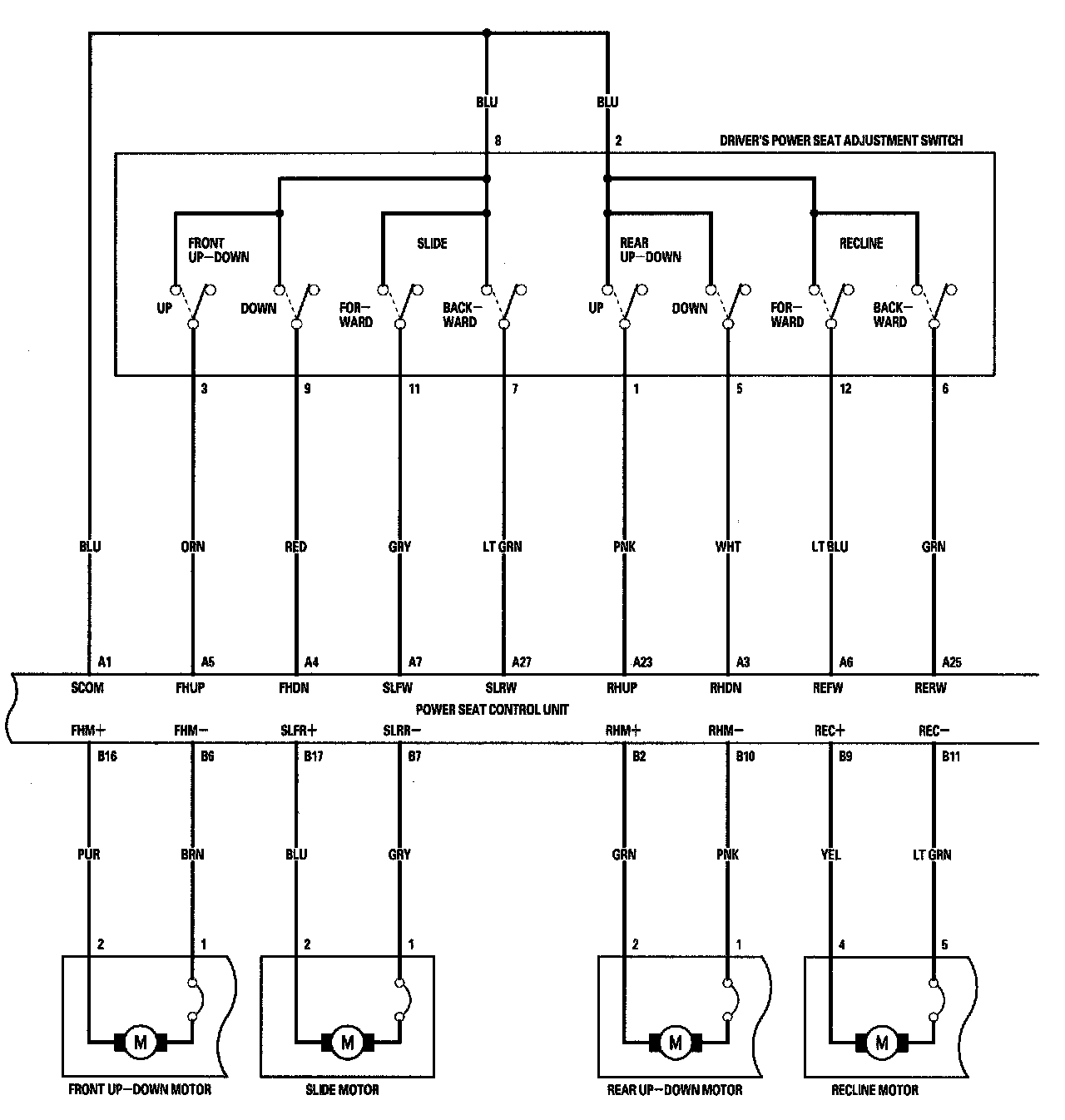

Driving Position Memory System (DPMS) Circuit Diagram (Part 2):

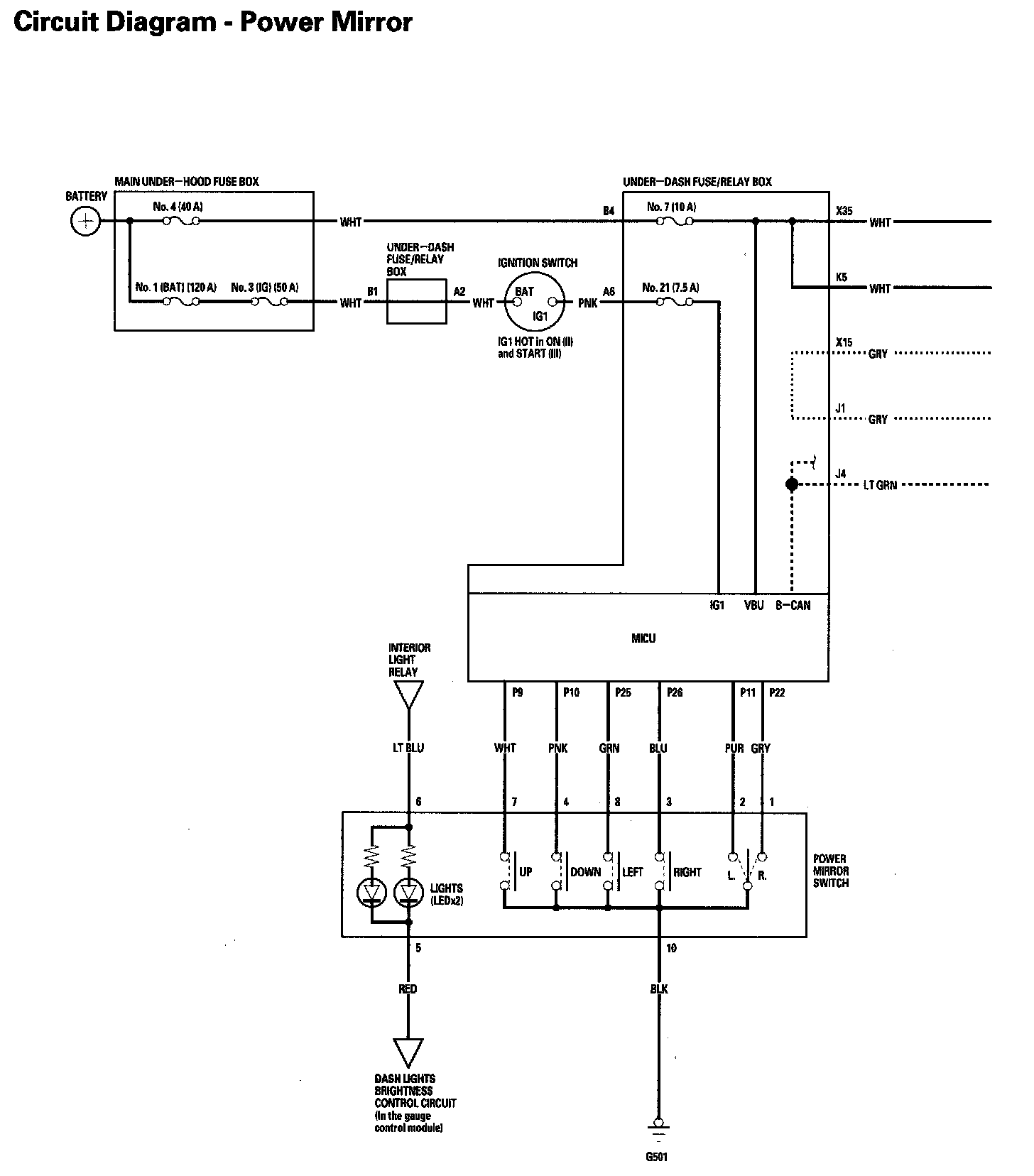

Driving Position Memory System (DPMS) Circuit Diagram (Part 3):

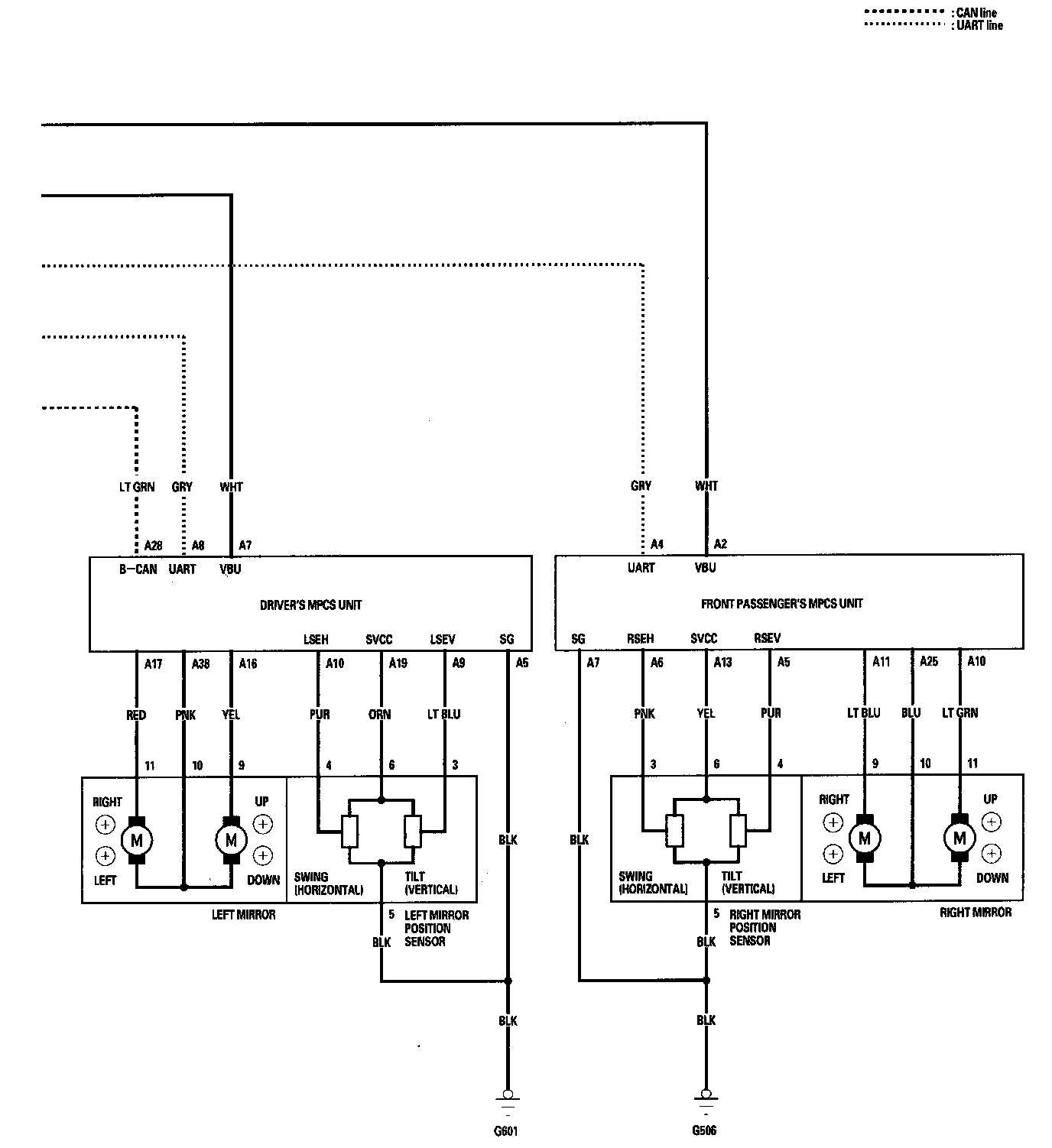

Driving Position Memory System (DPMS) Circuit Diagram (Part 4):

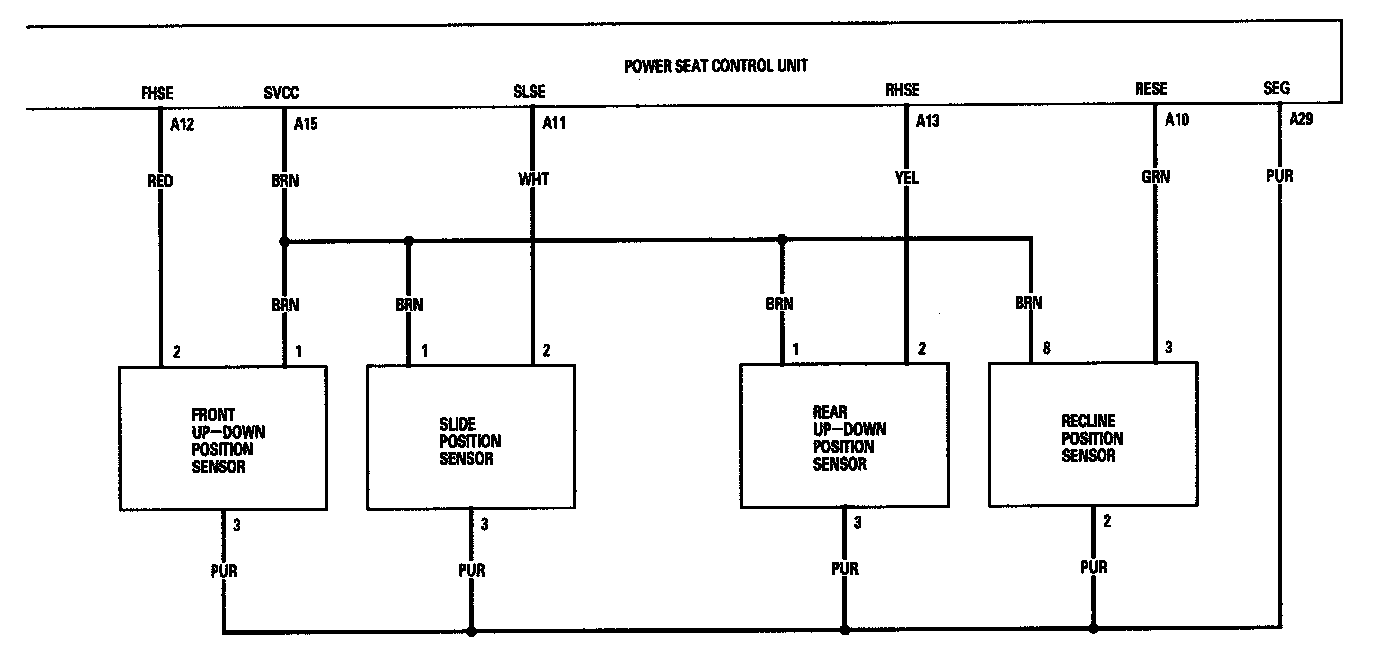

Driving Position Memory System (DPMS) Circuit Diagram (Part 5):

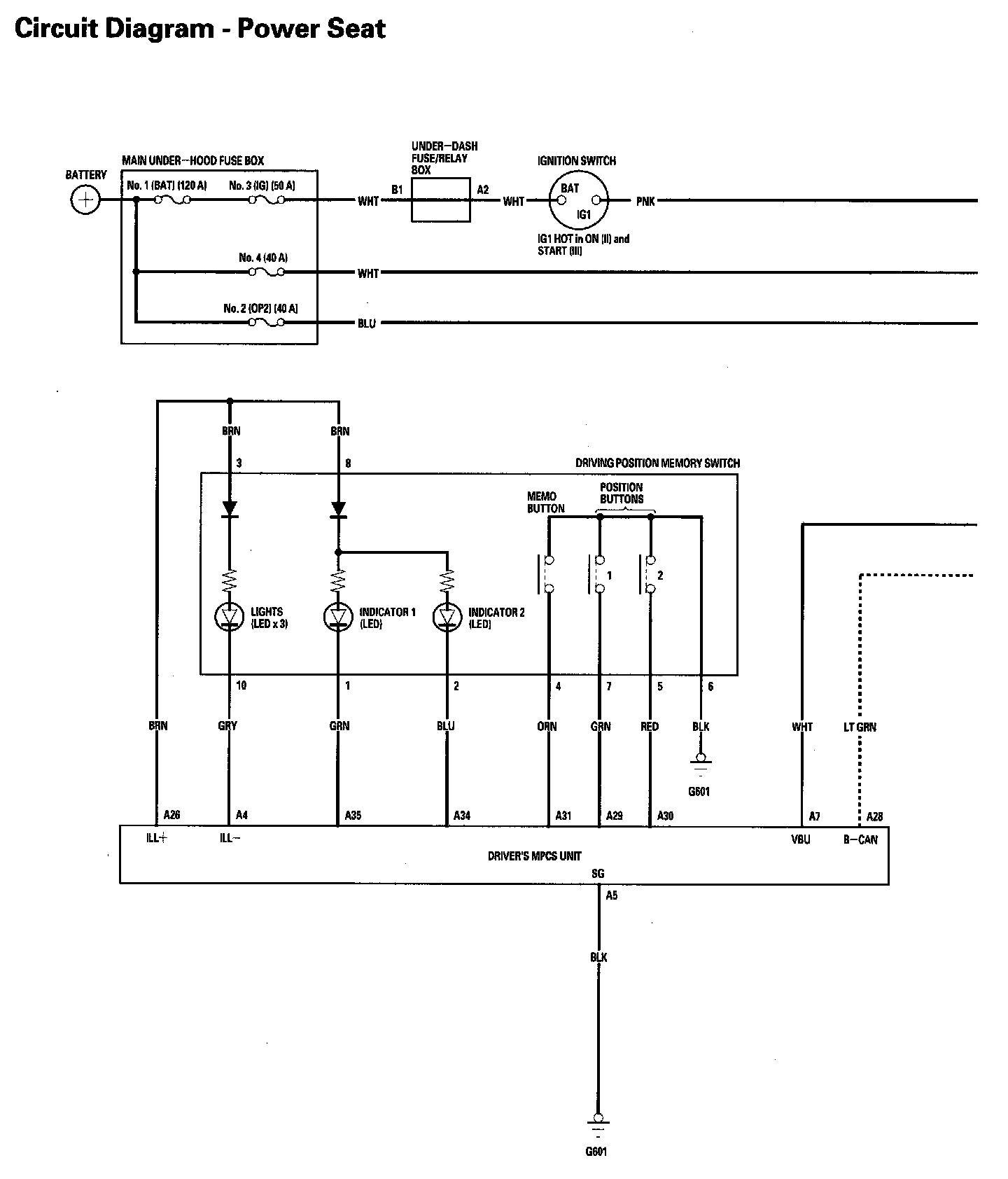

Driving Position Memory System (DPMS) Circuit Diagram (Part 6):



Driving Position Memory System (DPMS) Circuit Diagram (Part 7):
