Navigation Module

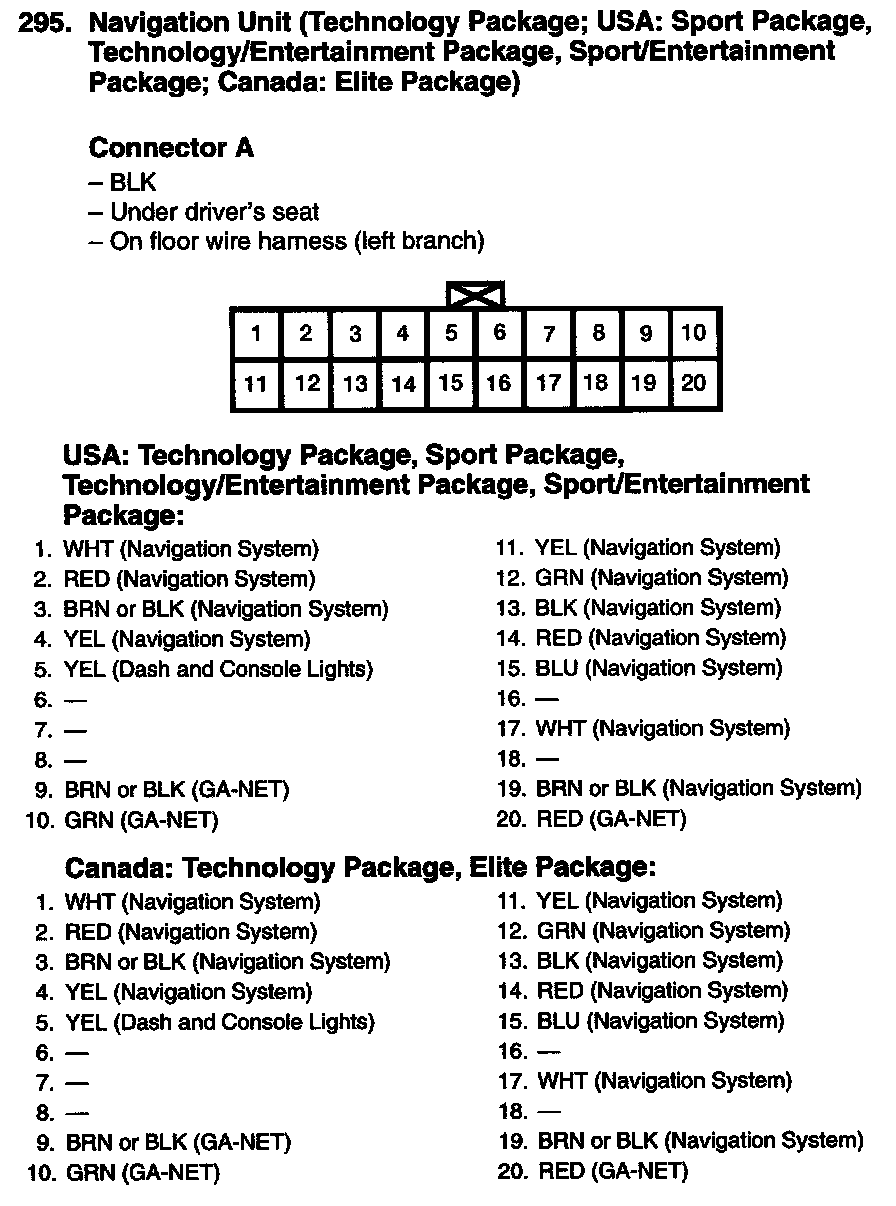

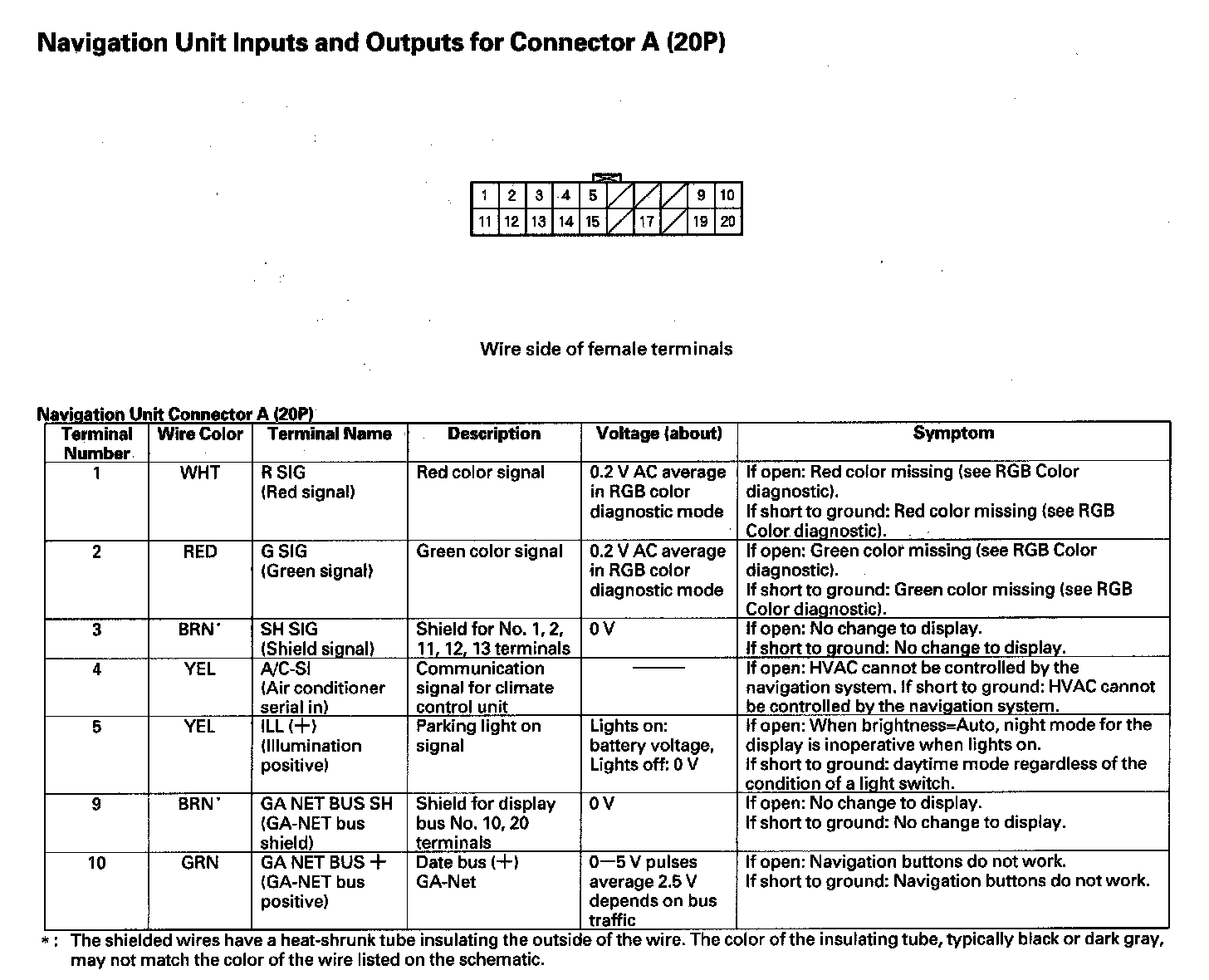

Navigation Unit Inputs And Outputs For Connector A (20P) (Part 1):

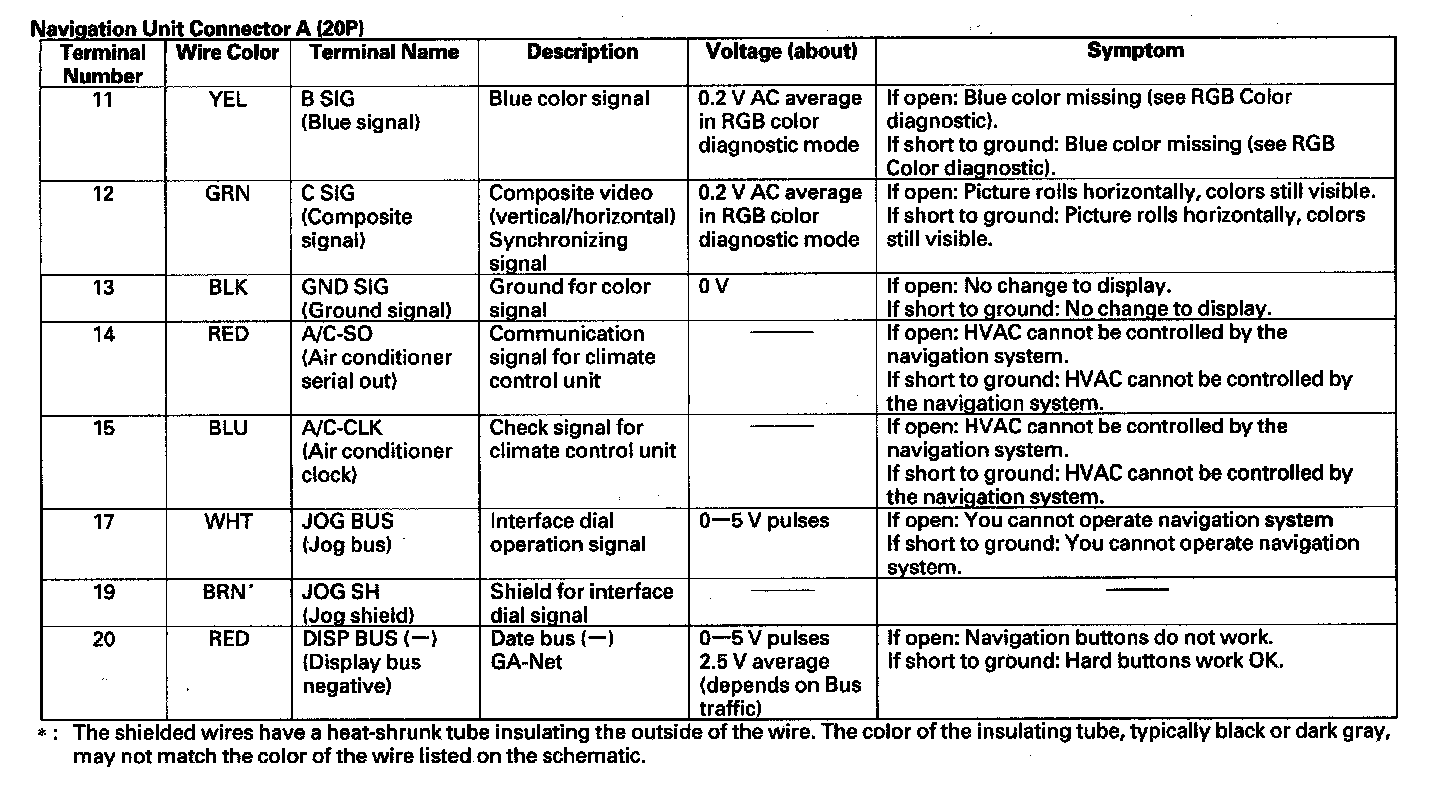

Navigation Unit Inputs And Outputs For Connector A (20P) (Part 2):

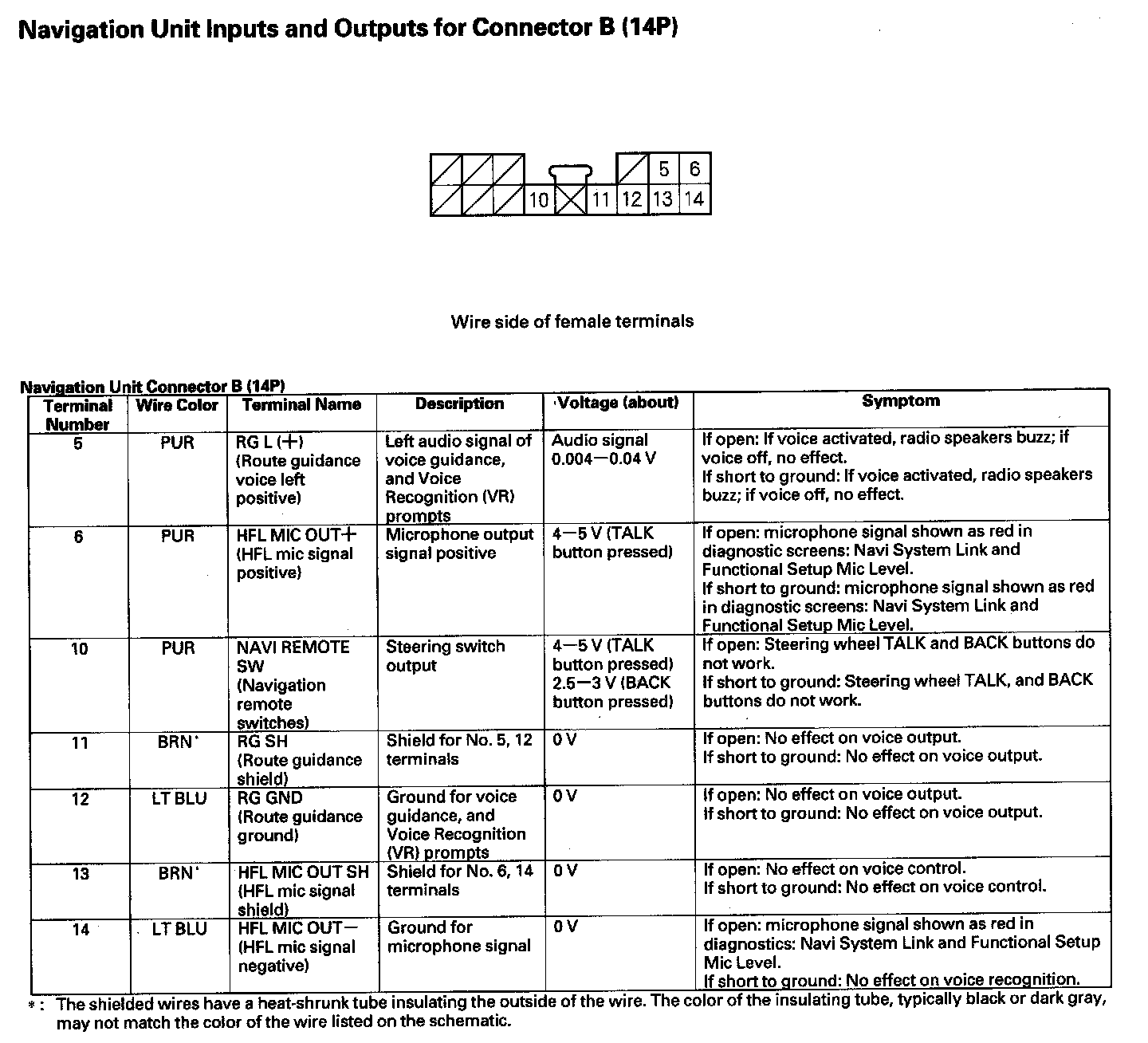

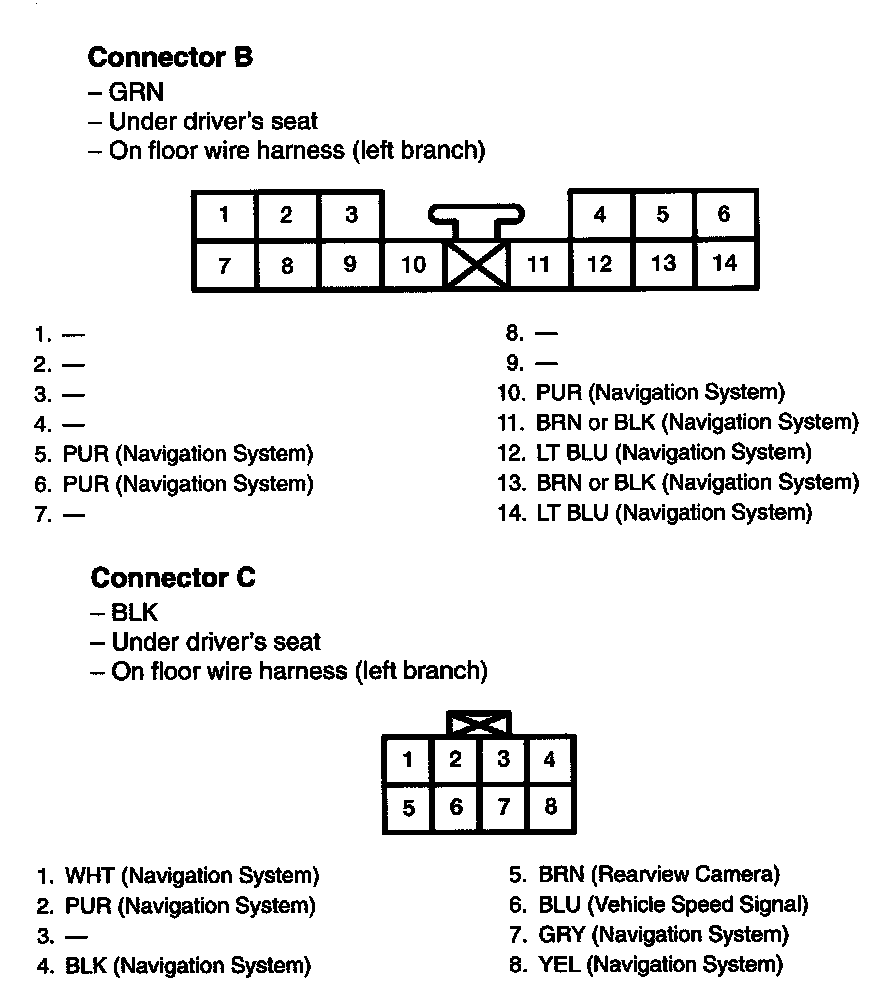

Navigation Unit Inputs And Outputs For Connector B (14P):

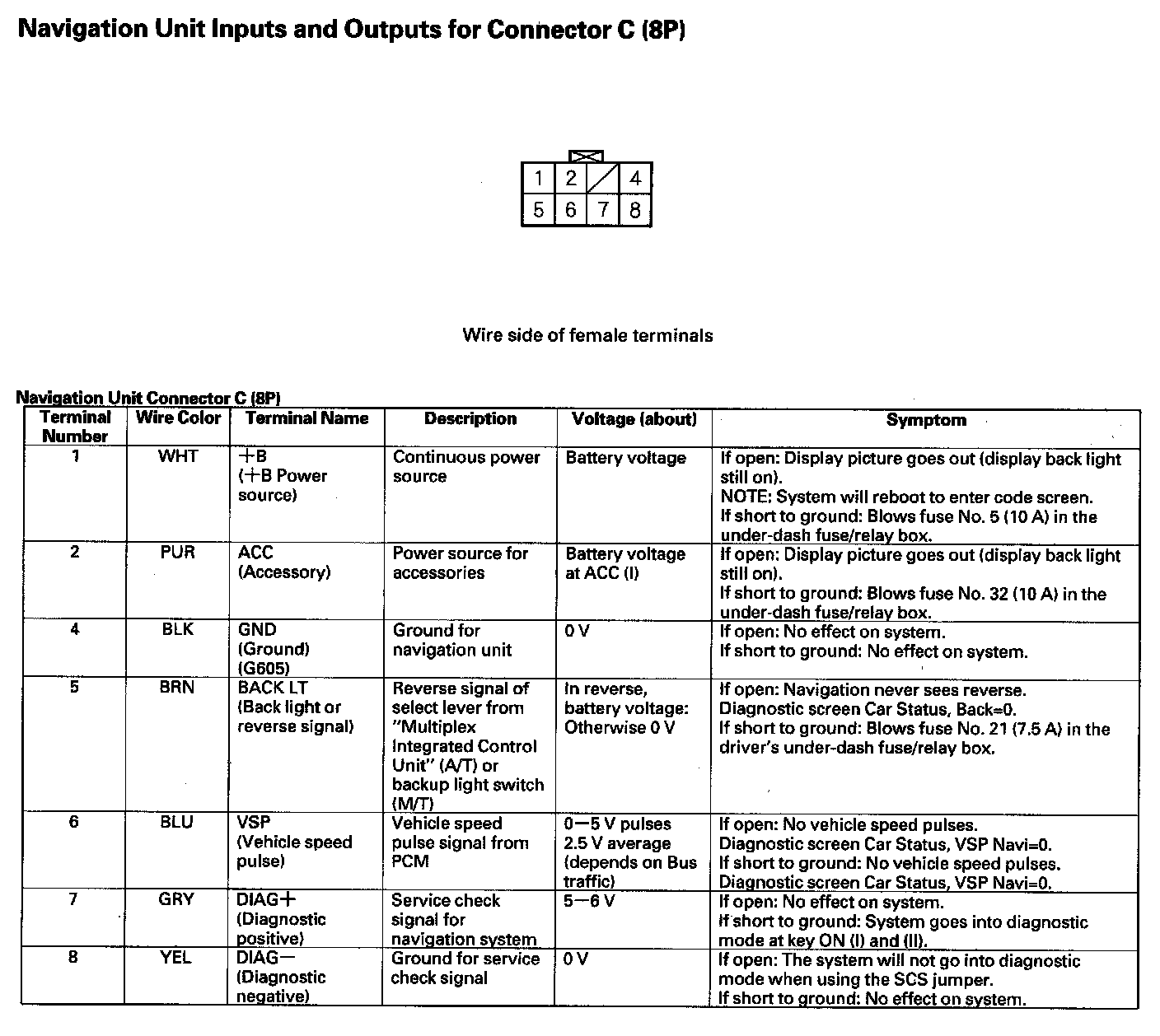

Navigation Unit Inputs And Outputs For Connector C (8P):

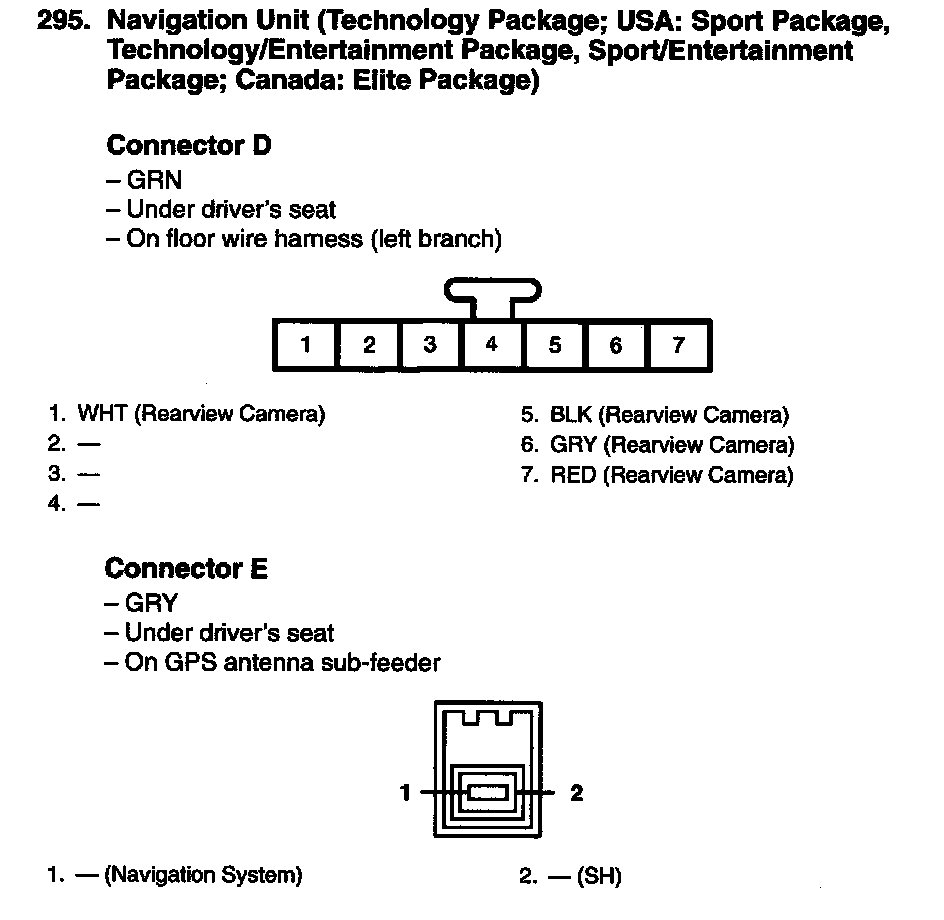

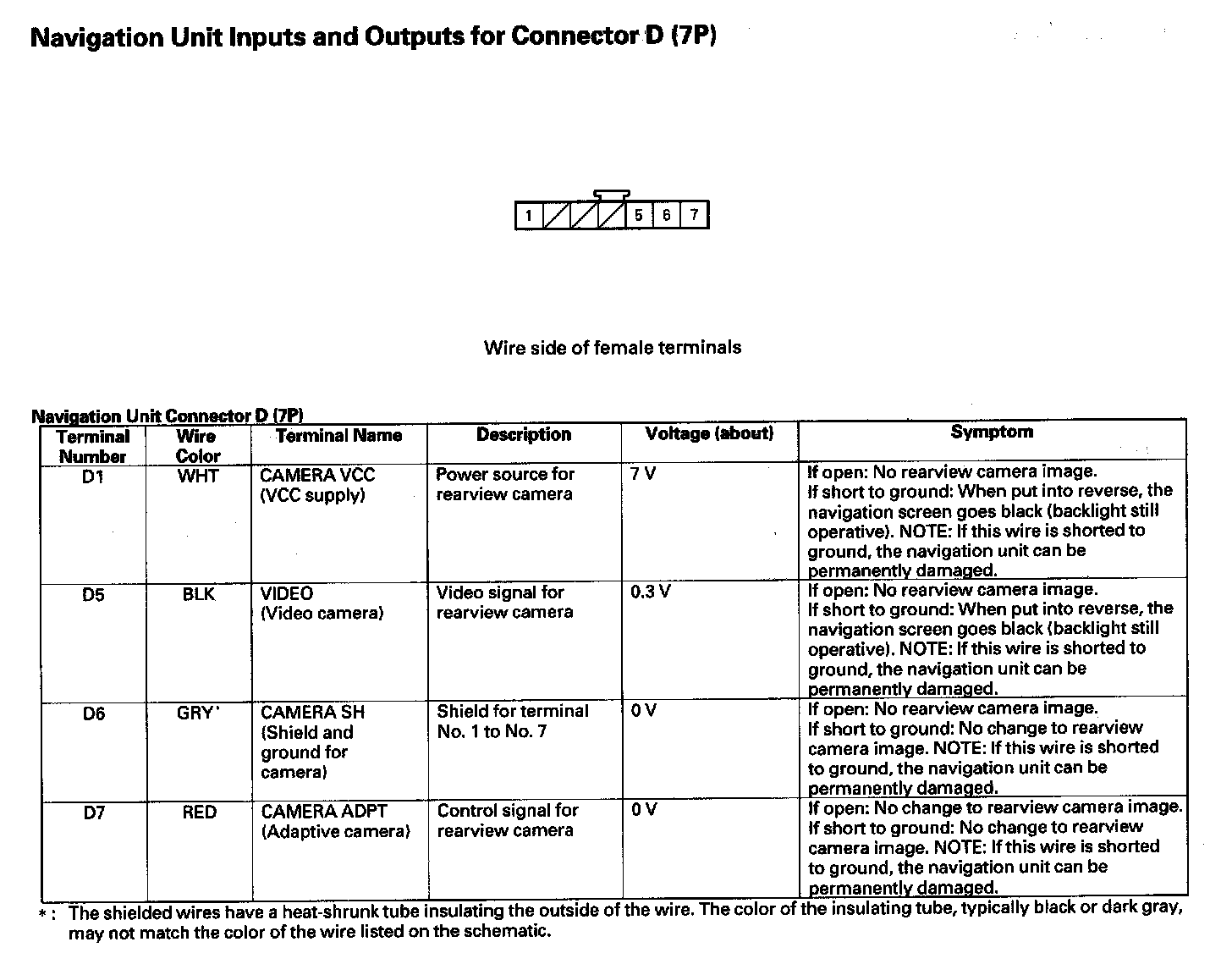

Navigation Unit Inputs And Outputs For Connector D (7P):

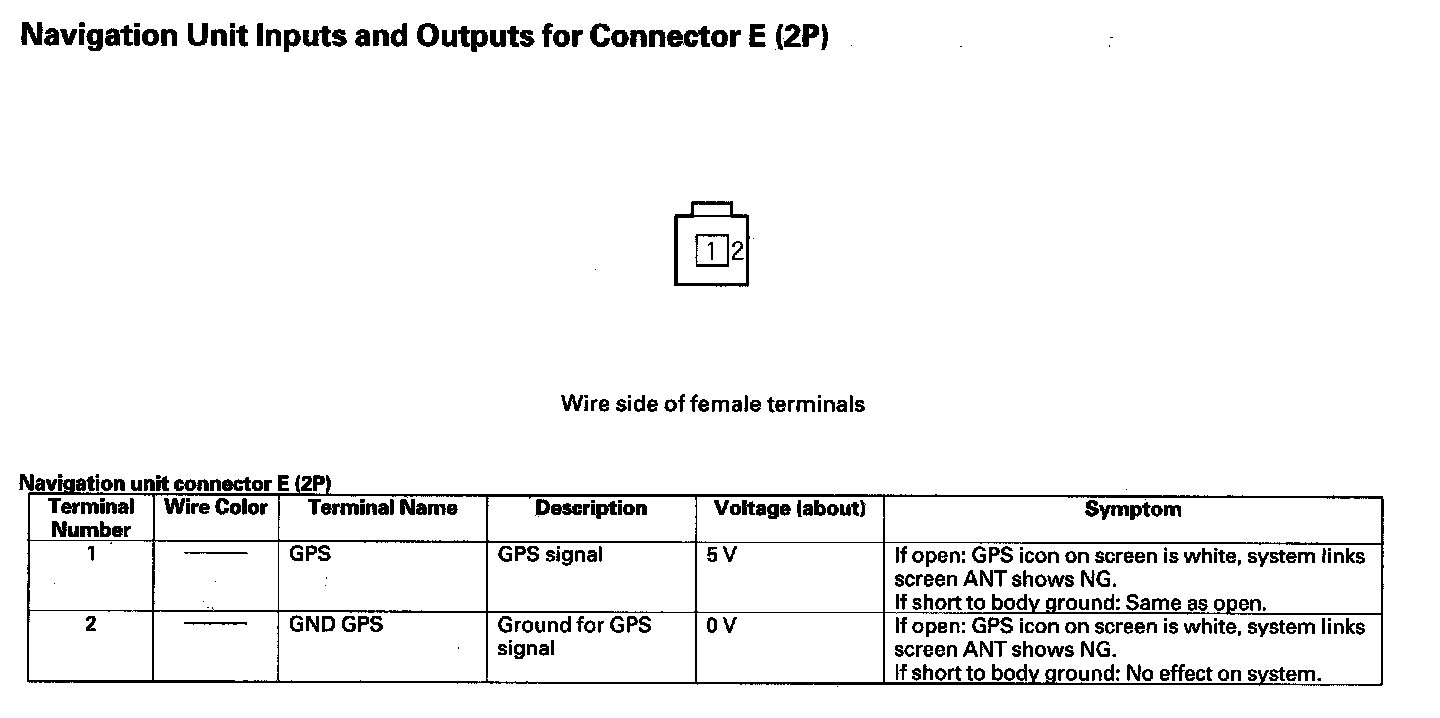

Navigation Unit Inputs And Outputs For Connector E (2P):

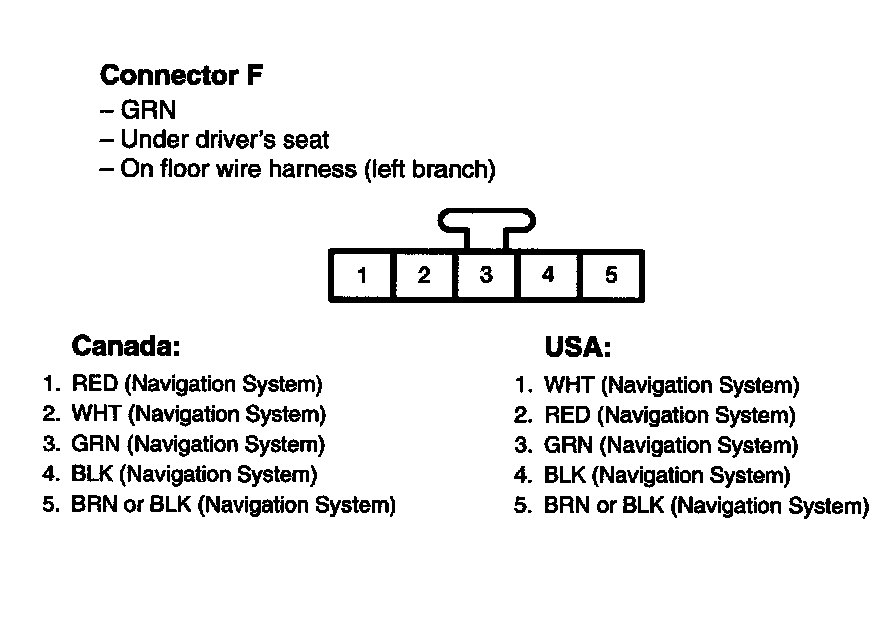

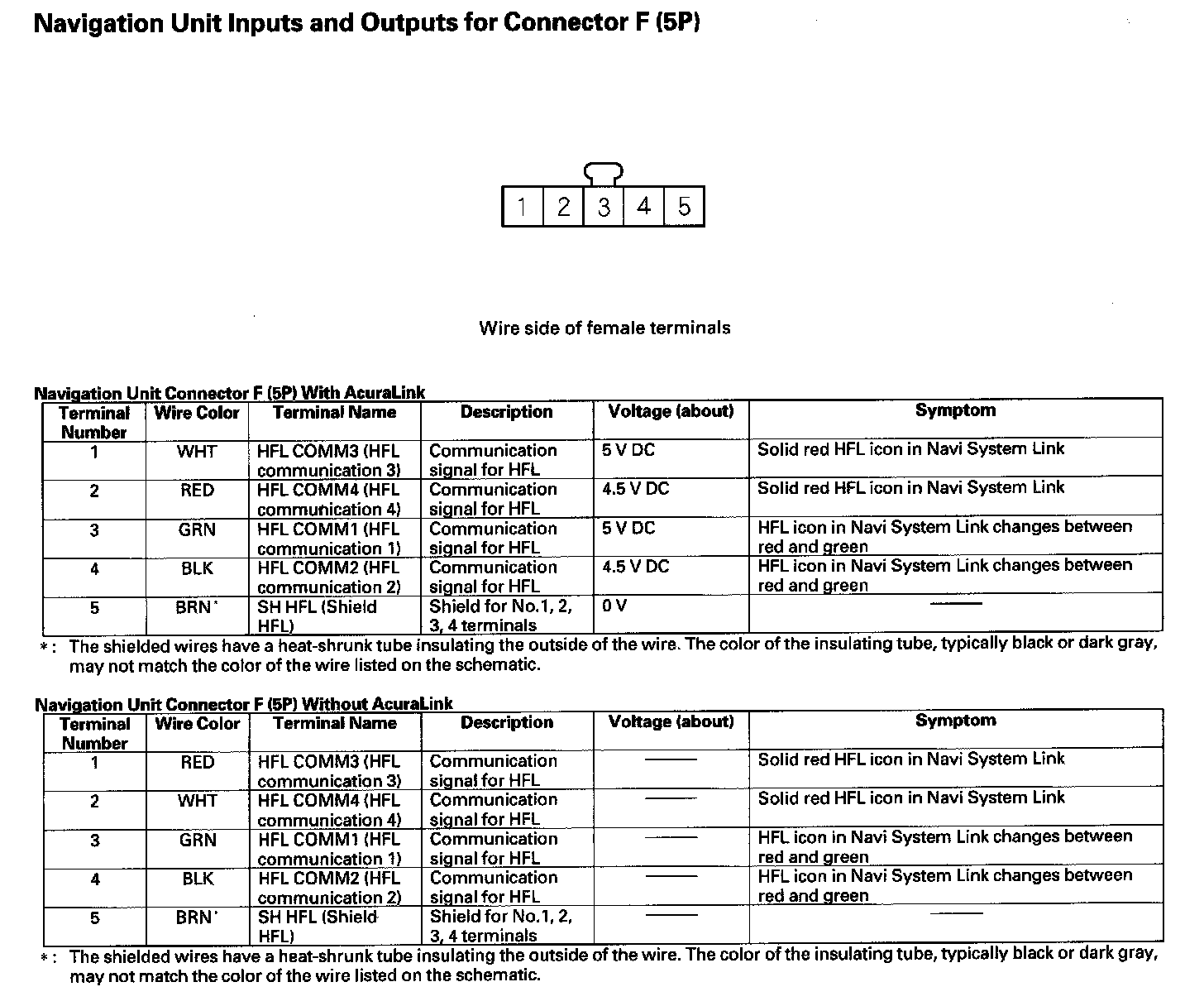

Navigation Unit Inputs And Outputs For Connector F (5P):
