Navigation System
>>

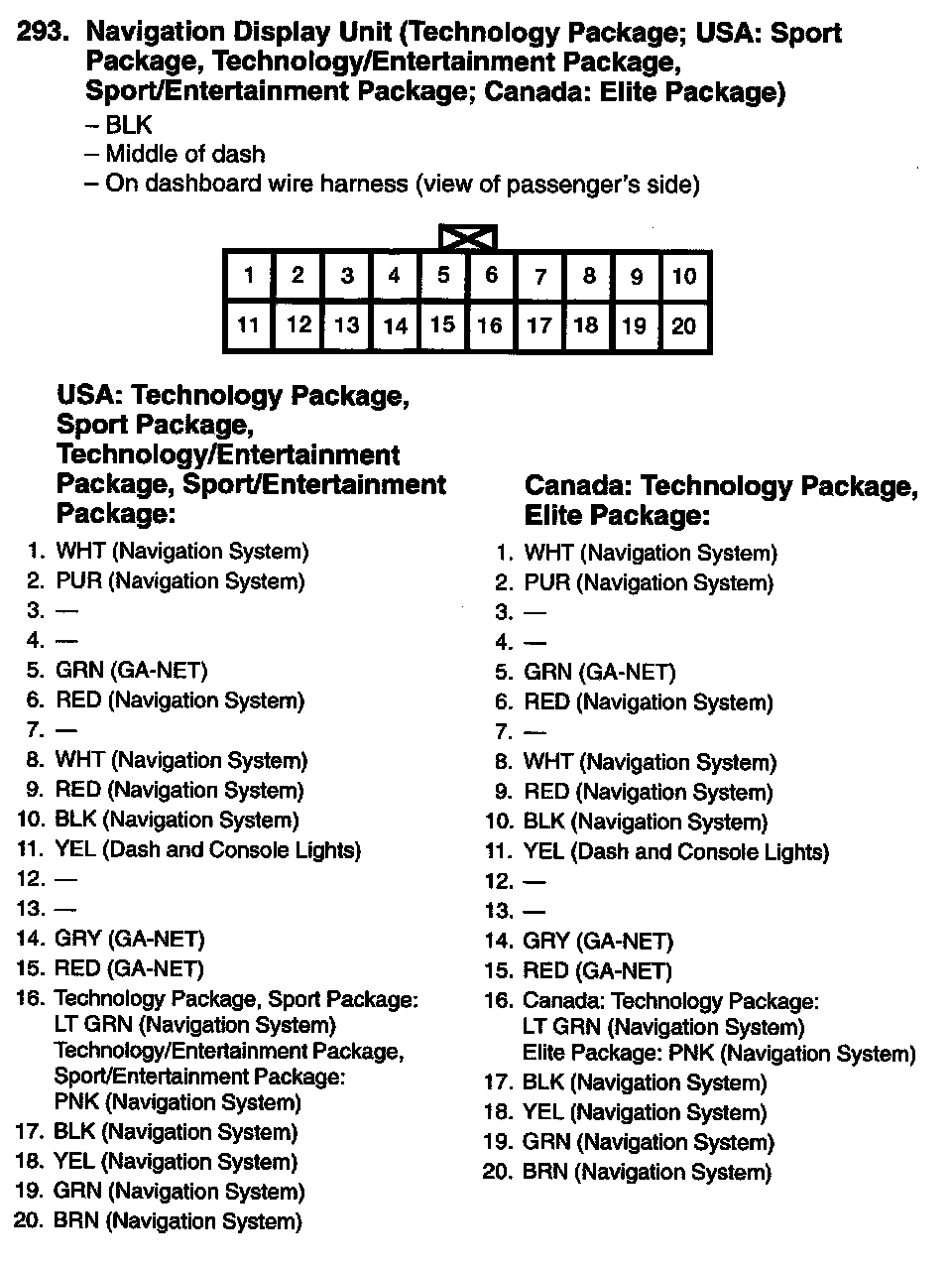

Navigation Display
Navigation Display

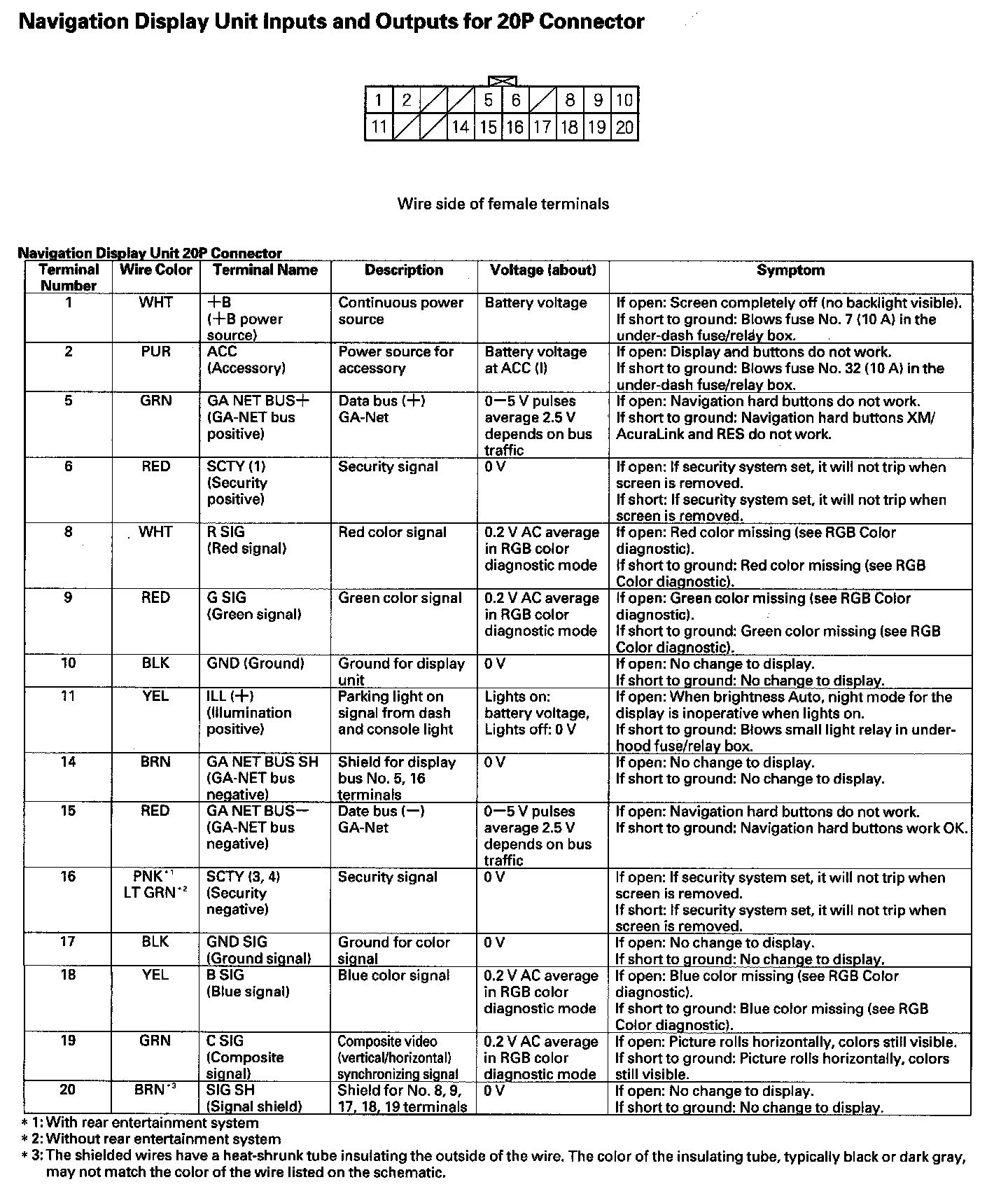

Navigation Unit Inputs And Outputs For 20P Connector:
