Cylinder Head Assembly

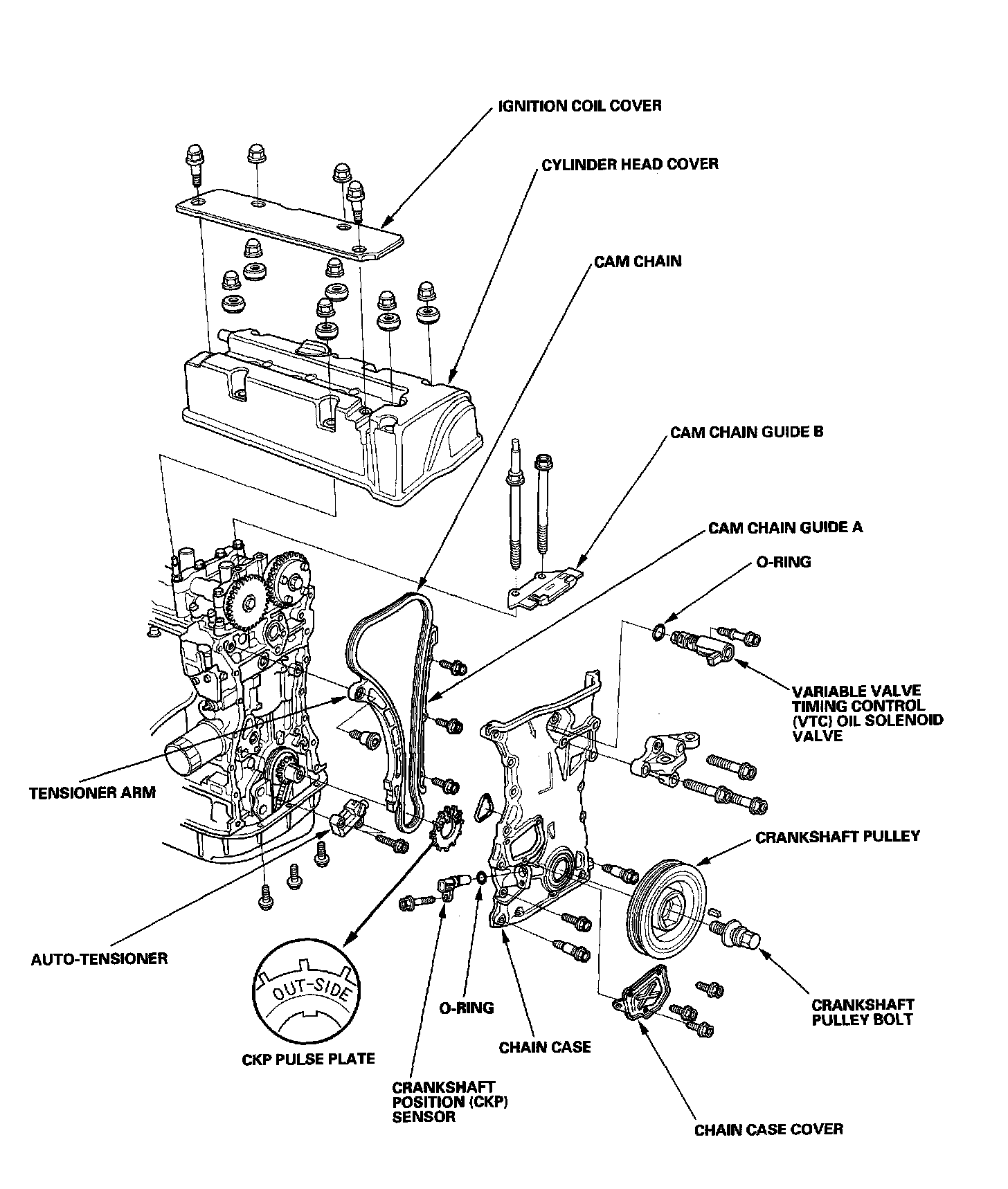

Cylinder Head Component Location Index (part 1):

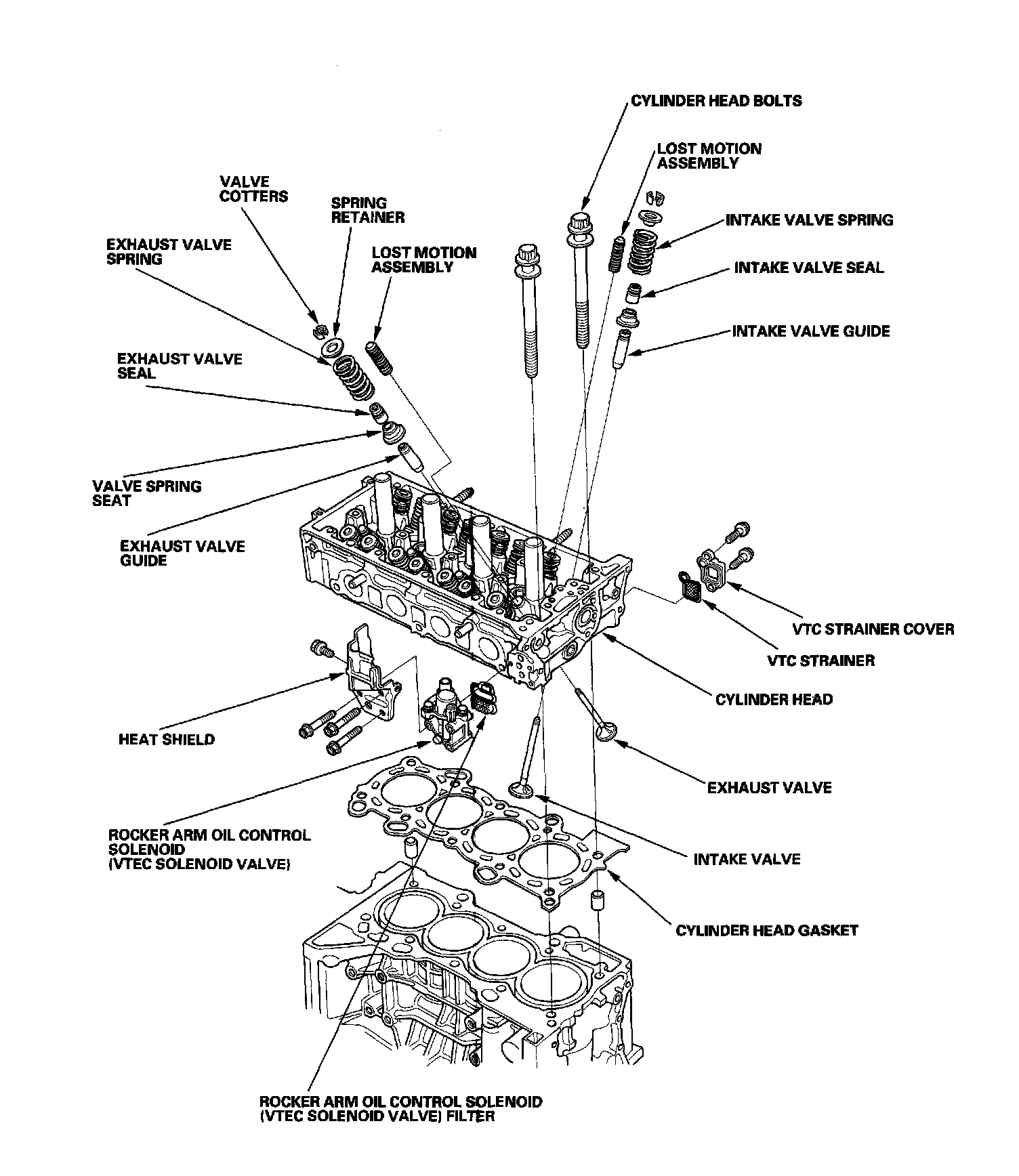

Cylinder Head Component Location Index (part 2):

Cylinder Head Component Location Index (part 3):
