Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

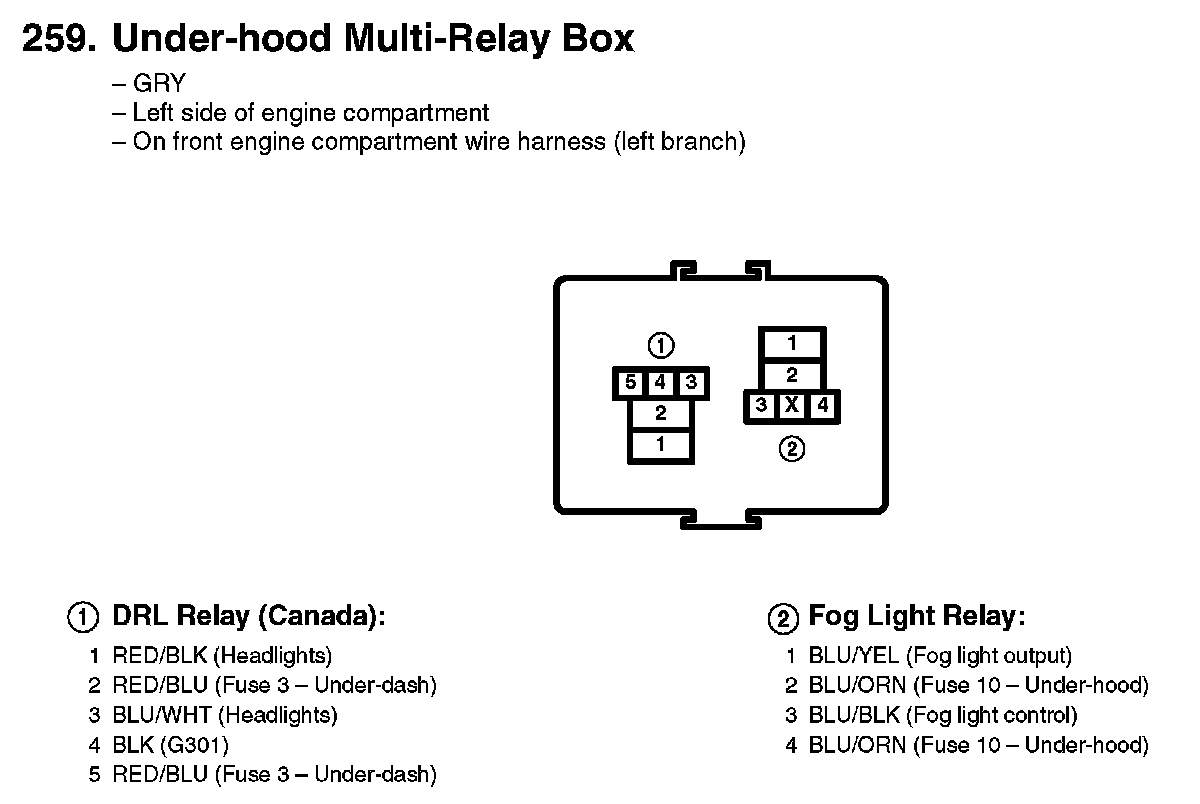

259. Under-hood Multi-Relay Box:

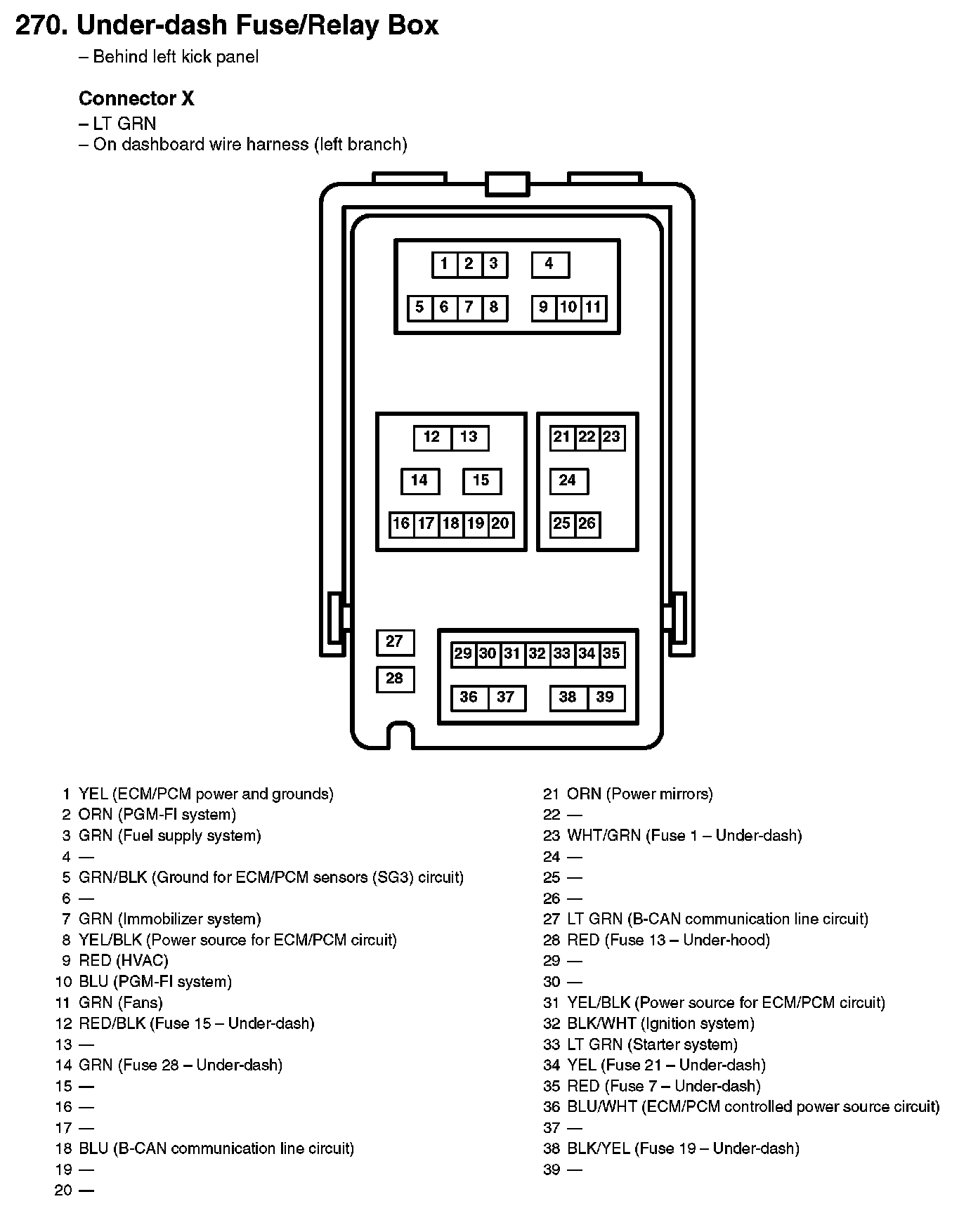

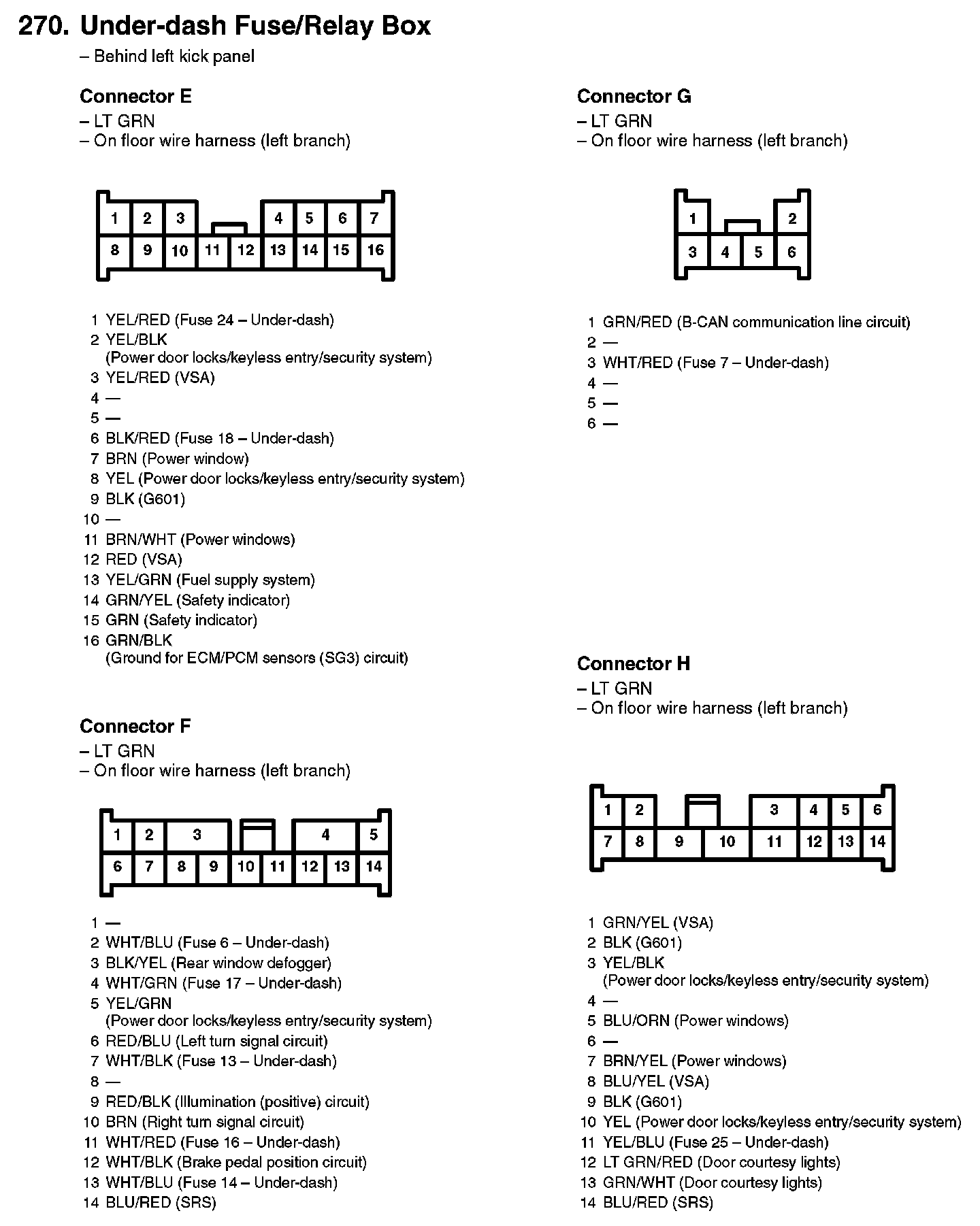

270. Under-dash Fuse/Relay Box:

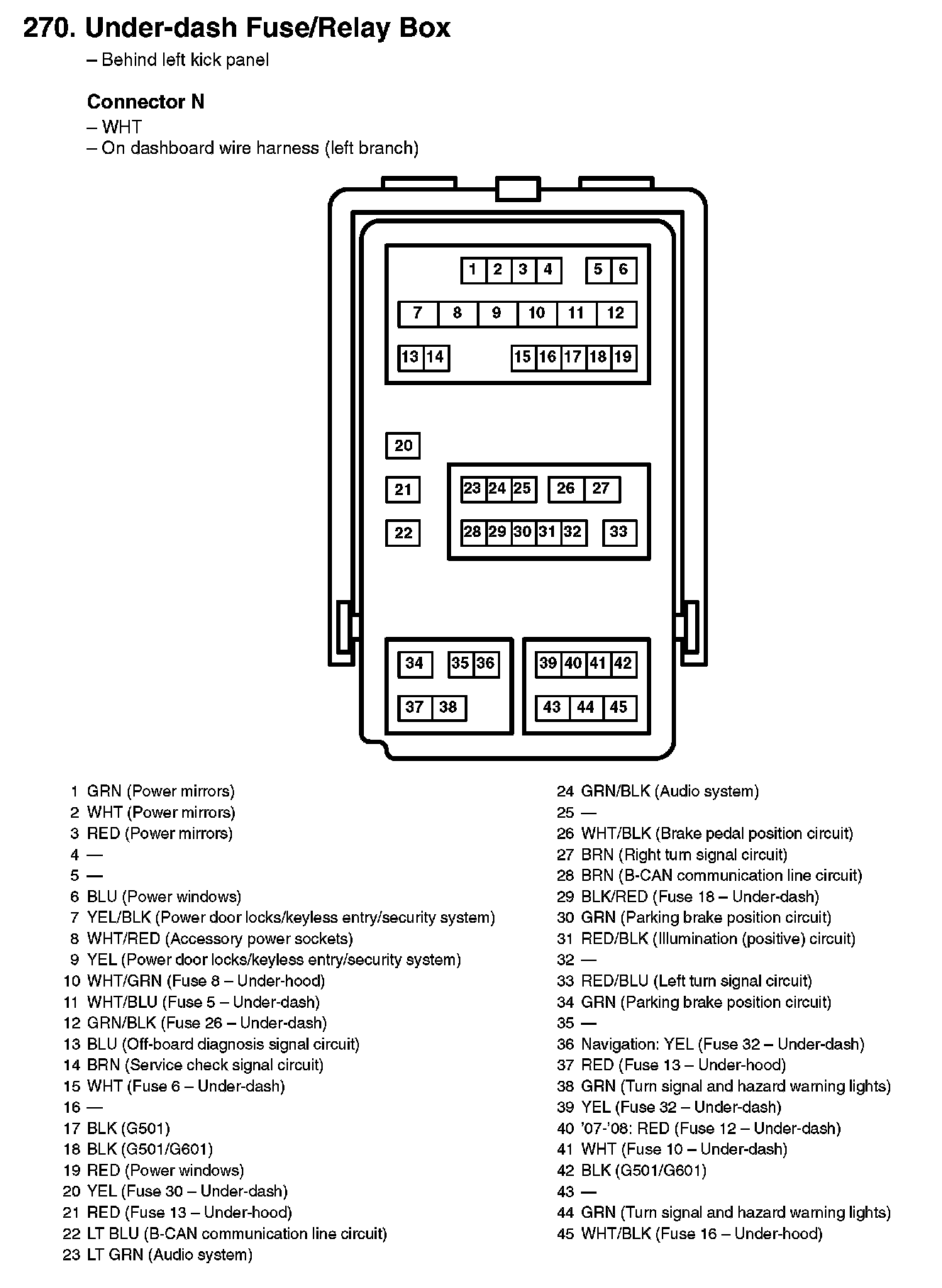

270. Under-dash Fuse/Relay Box:

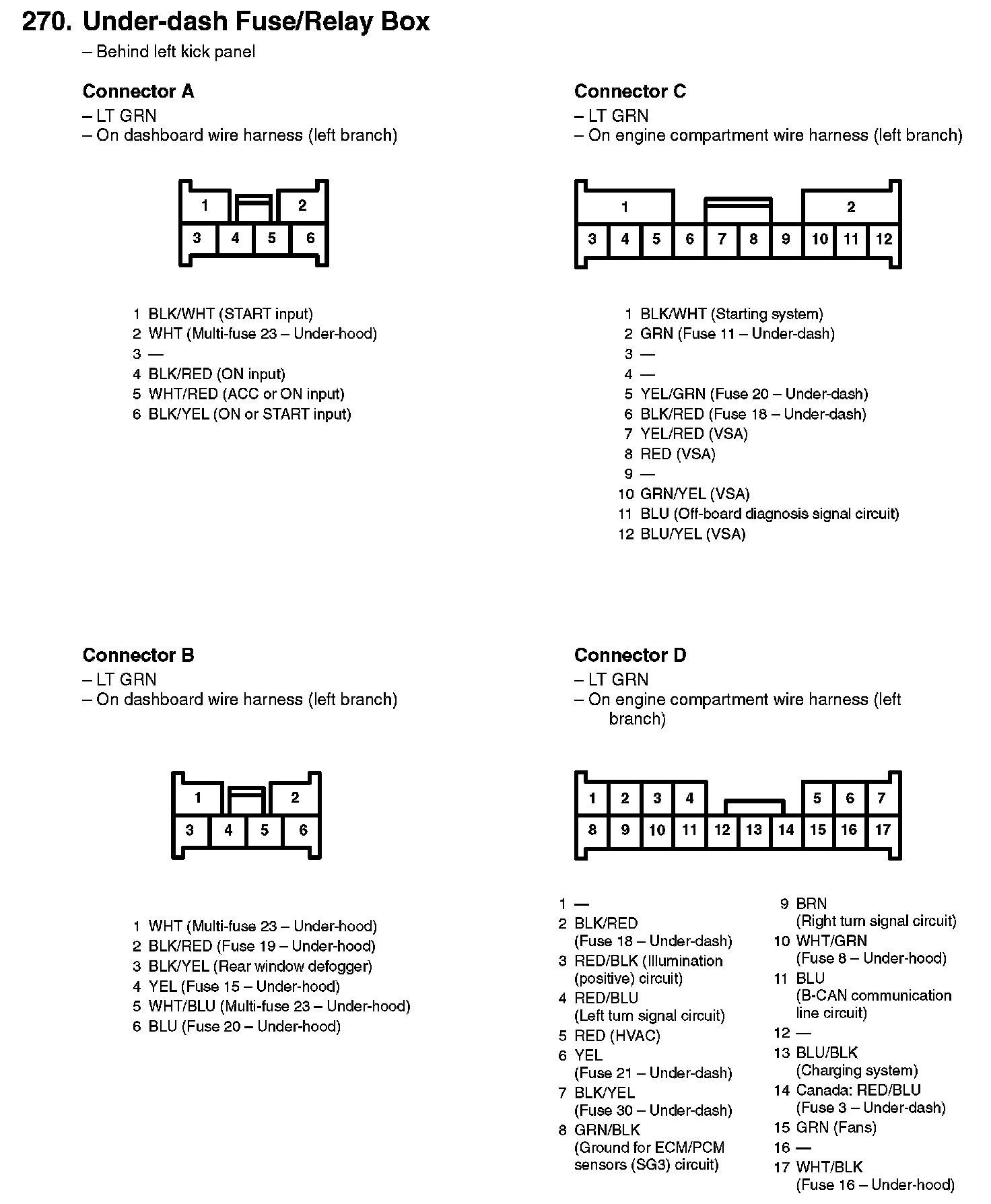

270. Under-dash Fuse/Relay Box:

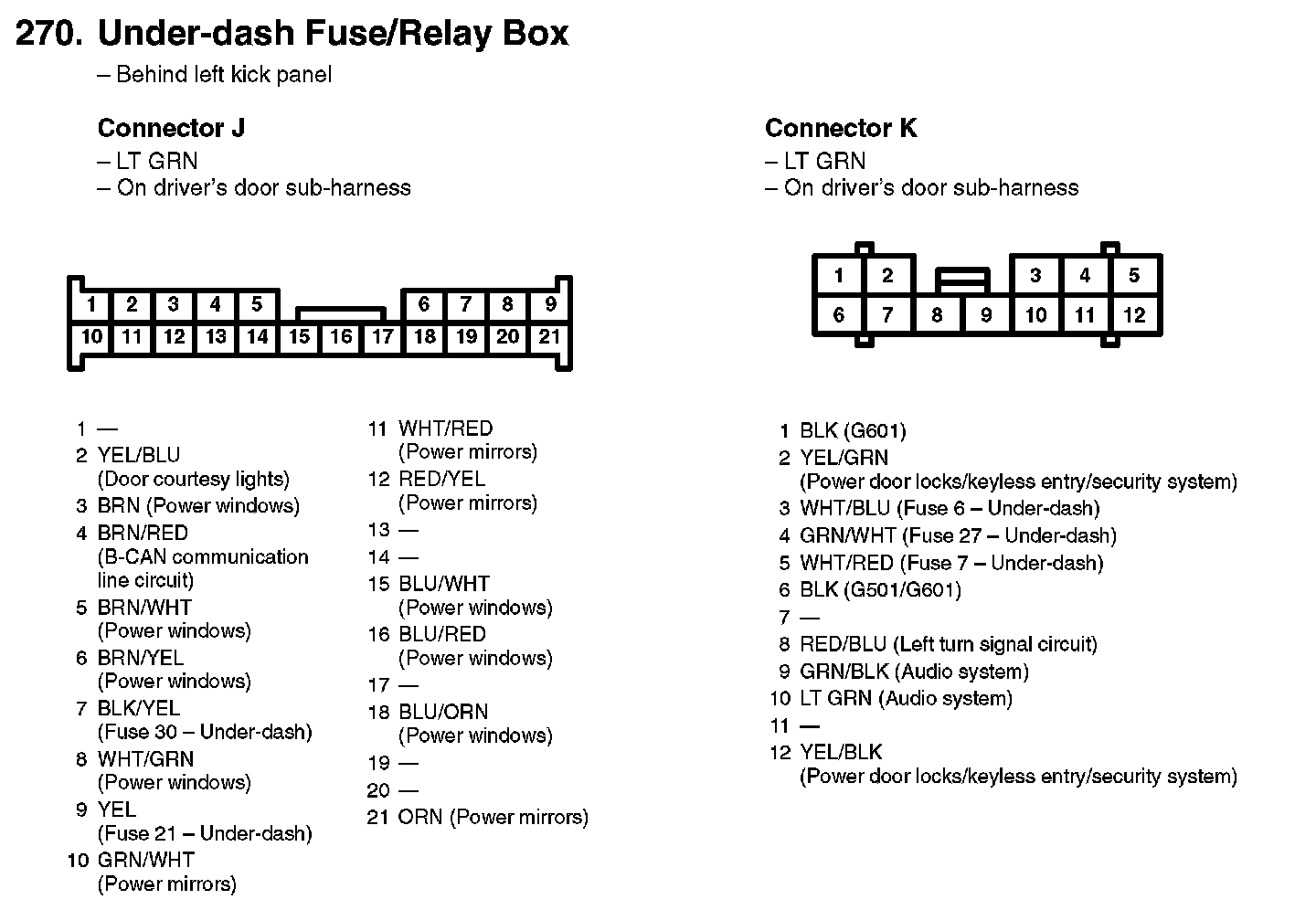

270. Under-dash Fuse/Relay Box:

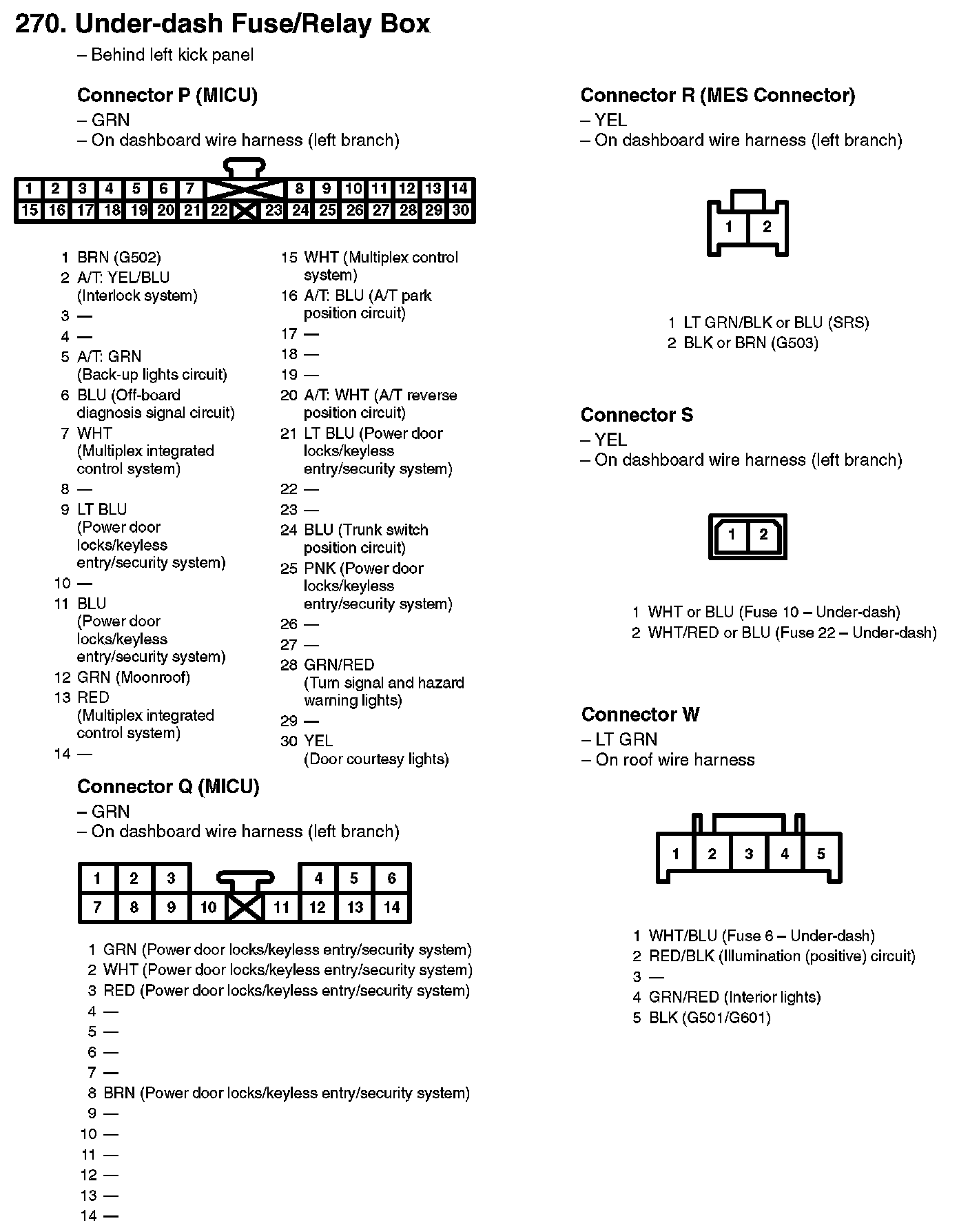

270. Under-dash Fuse/Relay Box:



270. Under-dash Fuse/Relay Box:

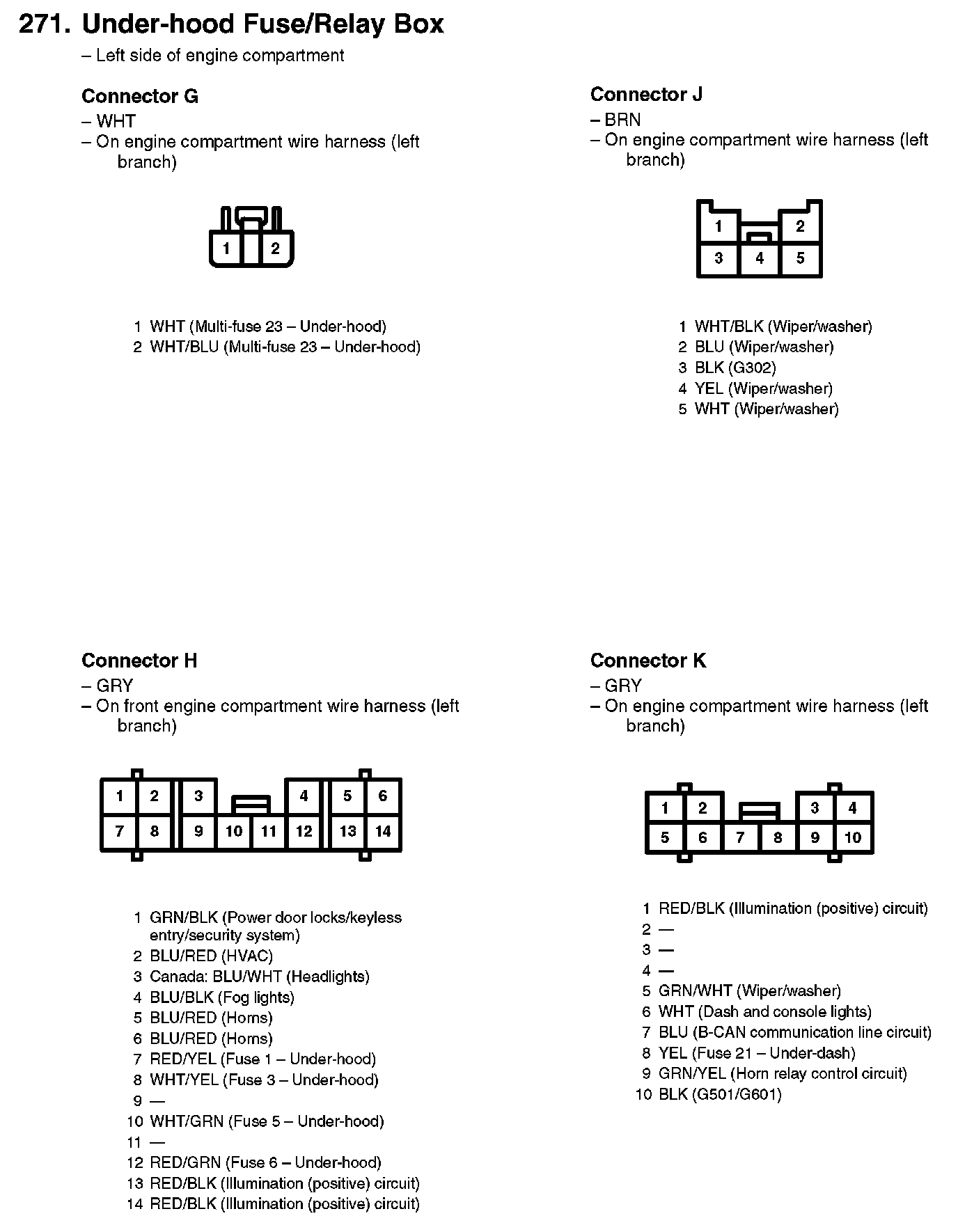

271. Under-hood Fuse/Relay Box:

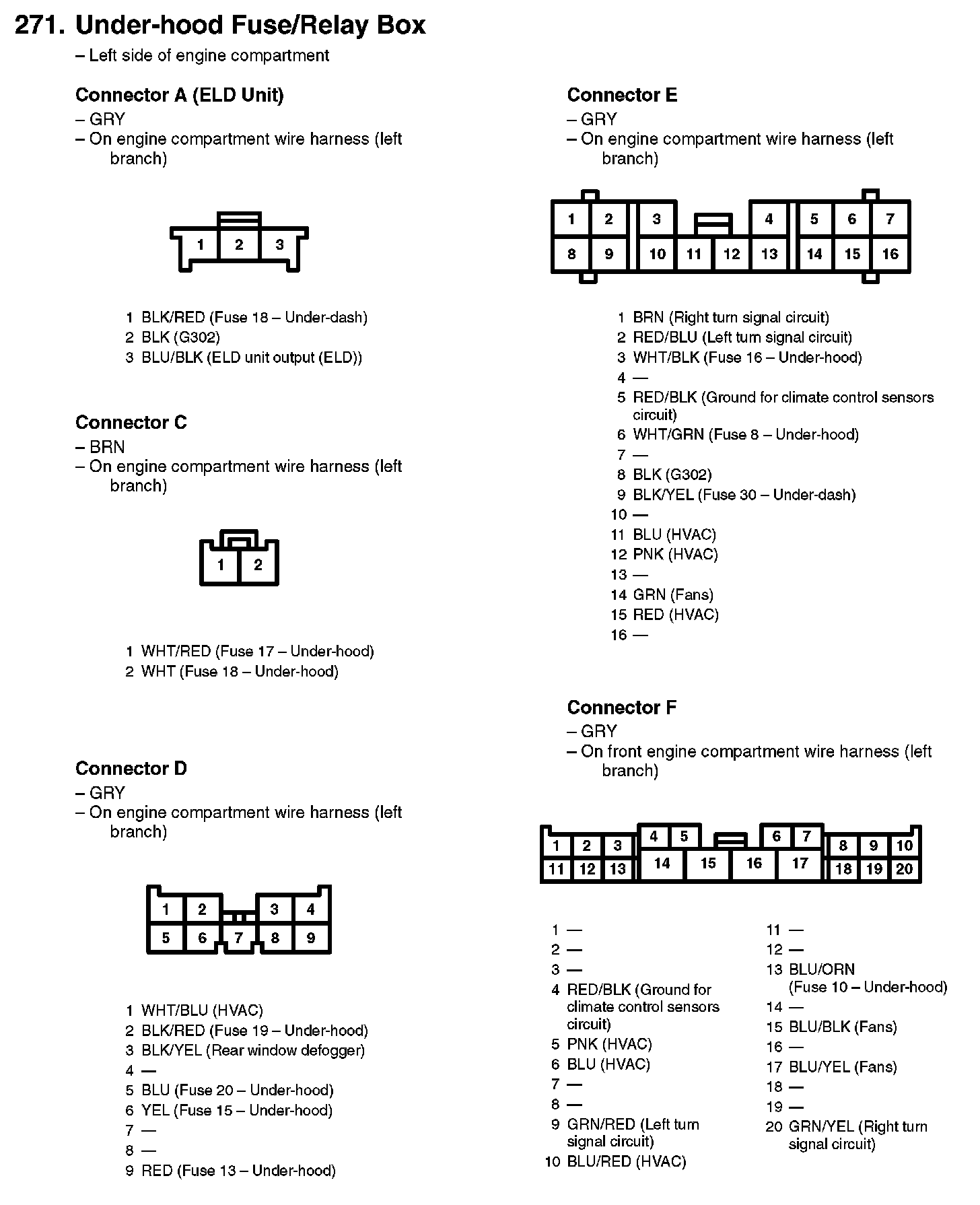

271. Under-hood Fuse/Relay Box:
