Power Window Switch
Power Window Switch
191. Power Window Switch, Front Passenger's:
192. Power Window Switch, Left Rear:
193. Power Window Switch, Right Rear:

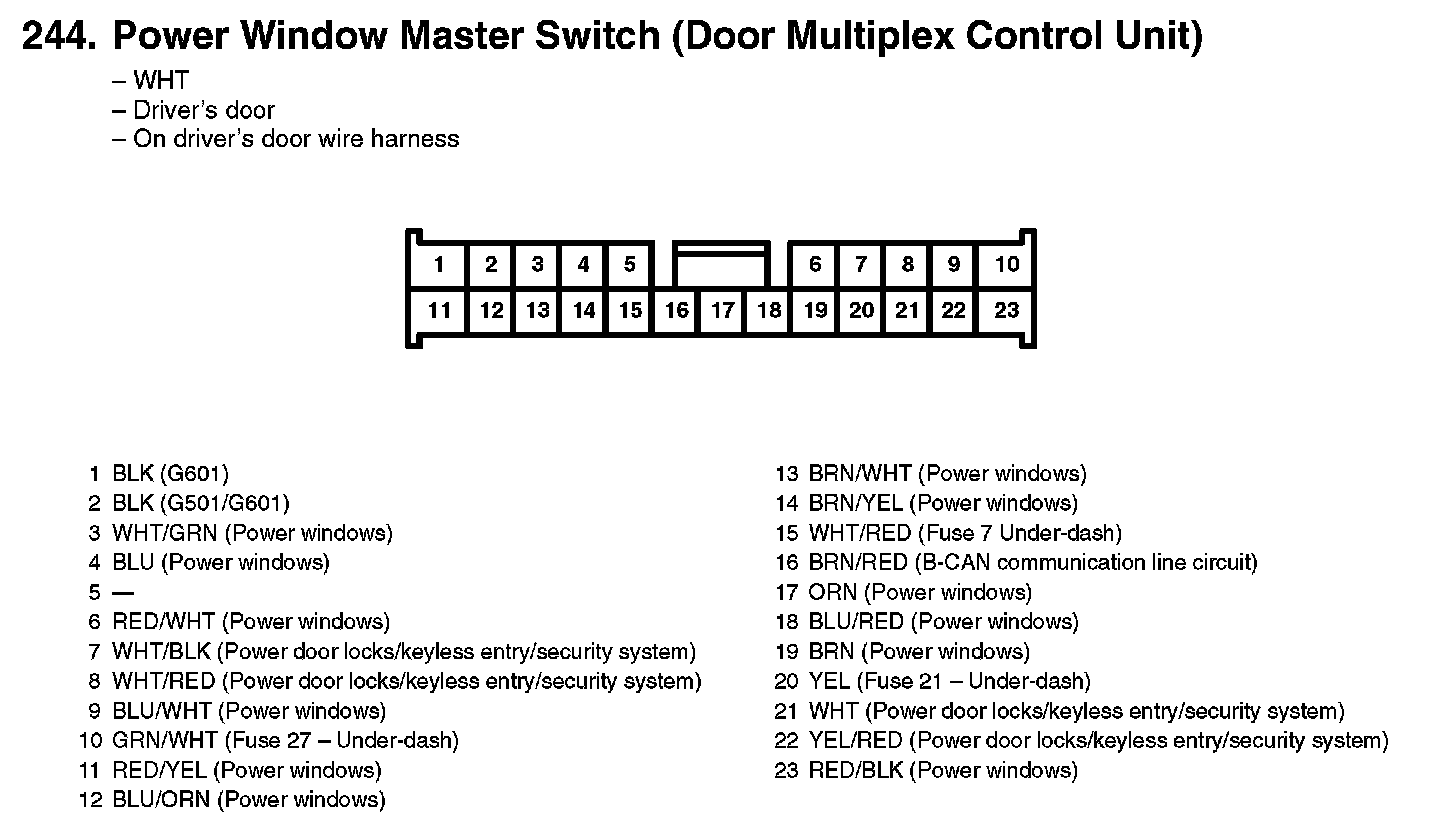

244. Power Window Master Switch (Door Multiplex Control Unit):
