Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Module

Navigation Module

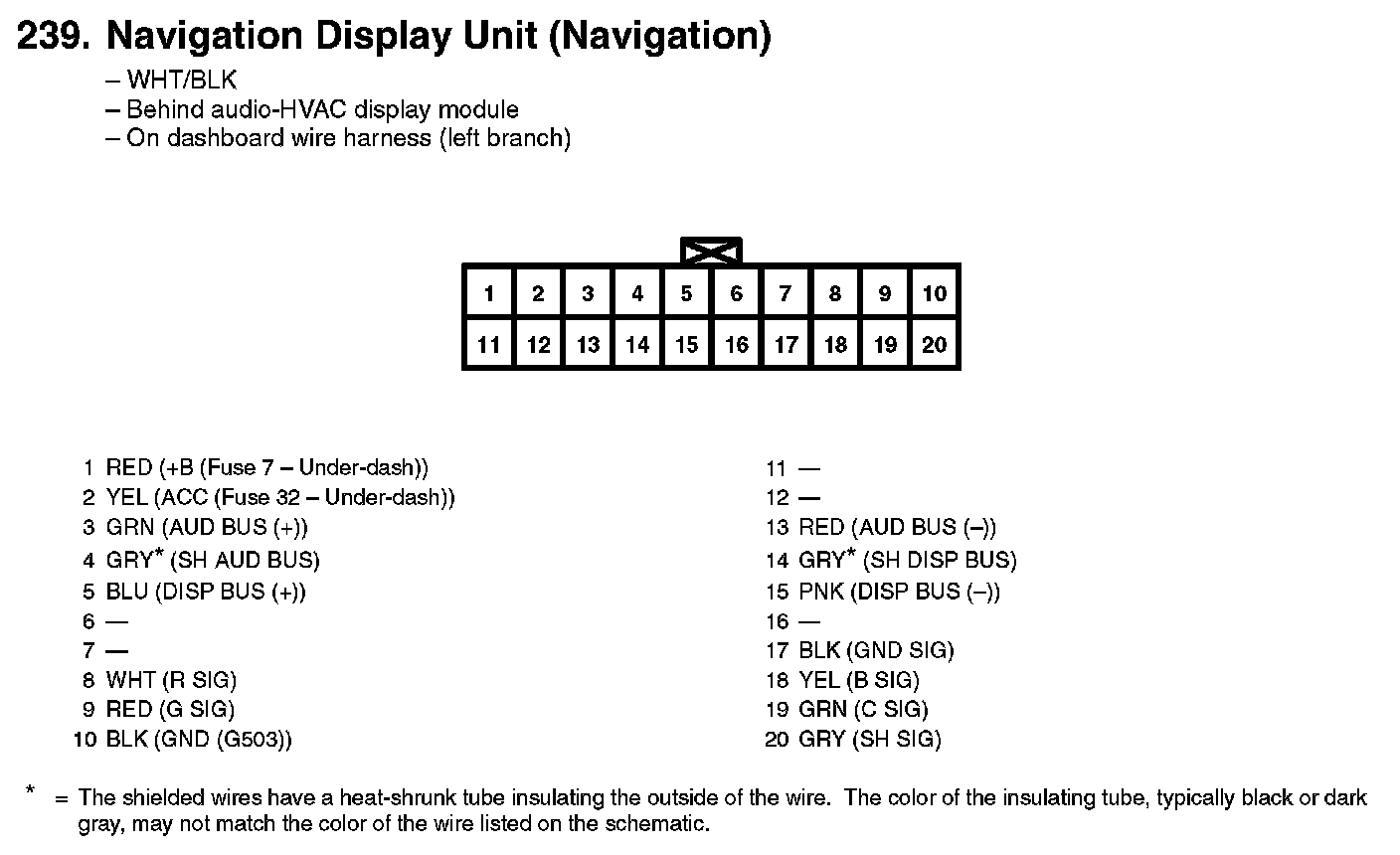

239. Navigation Display Unit (Navigation):

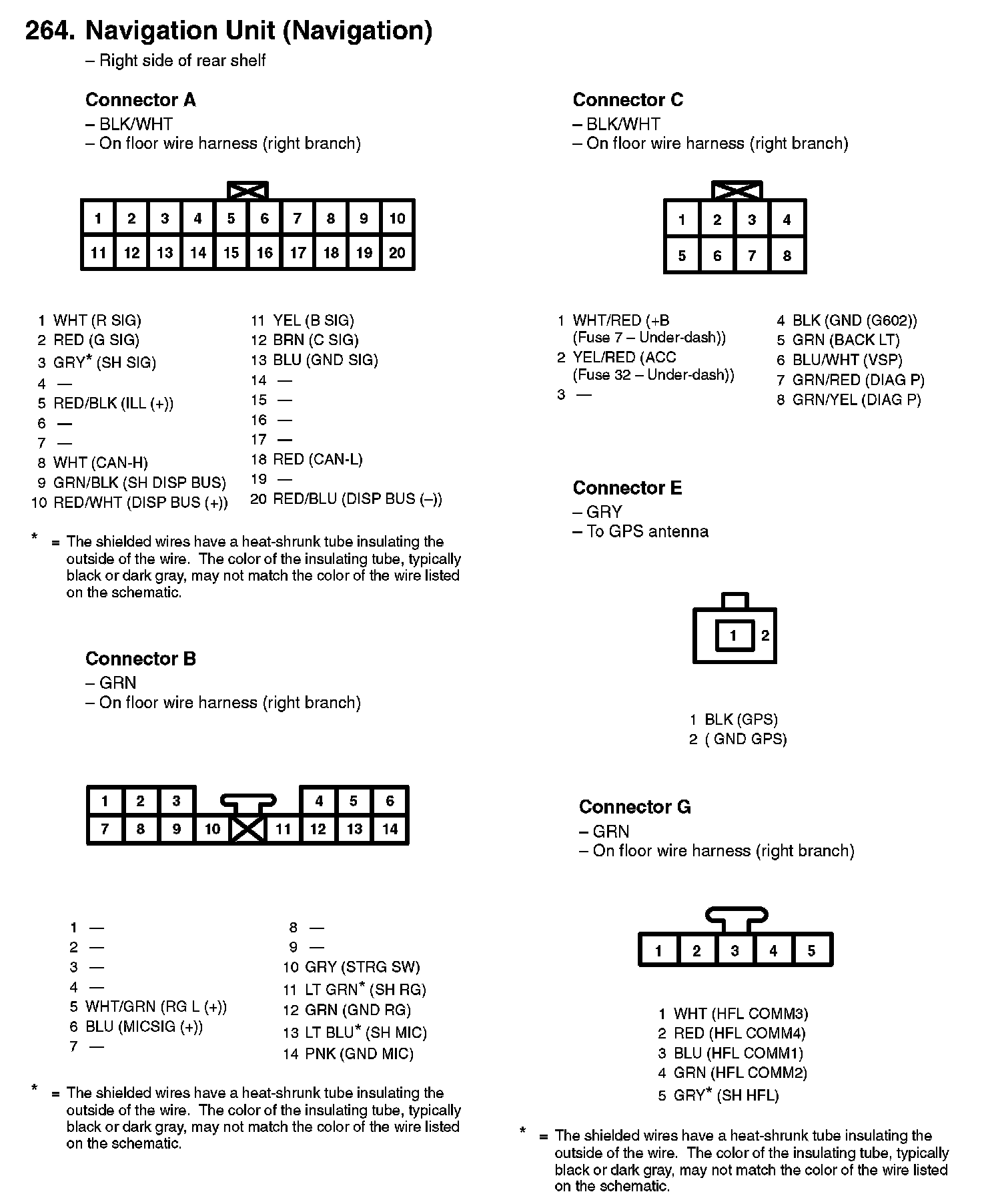

264. Navigation Unit (Navigation):
