Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

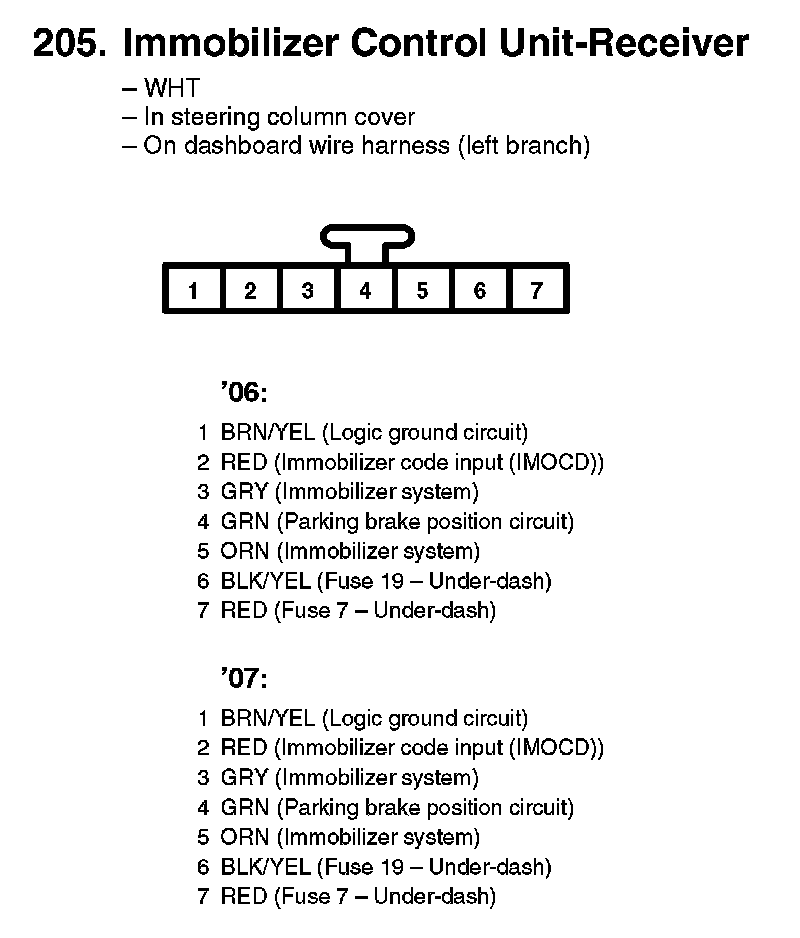

205. Immobilizer Control Unit-Receiver:

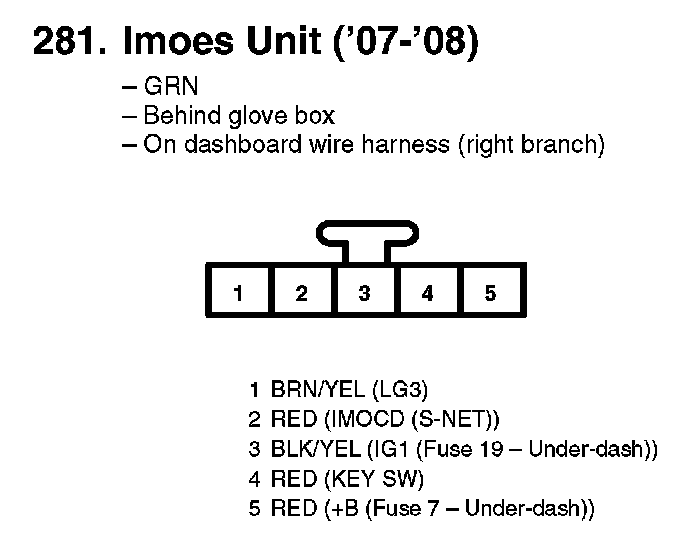

281. Imoes Unit:
