Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Locations

Power Seat Control Module: Locations

Relay And Control Unit Locations Door And Seat:

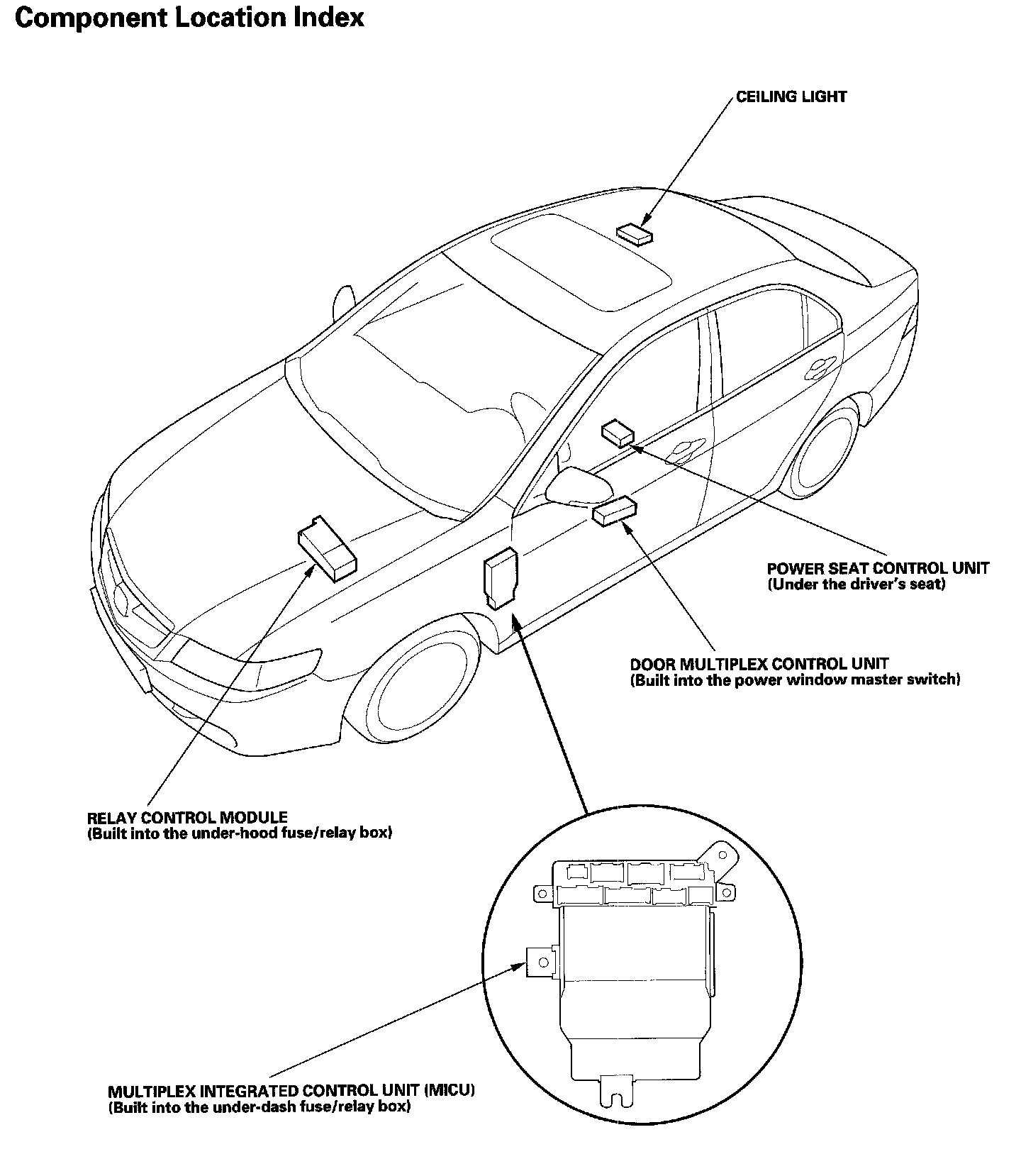

Multiplex Integrated Control System Component Location Index:

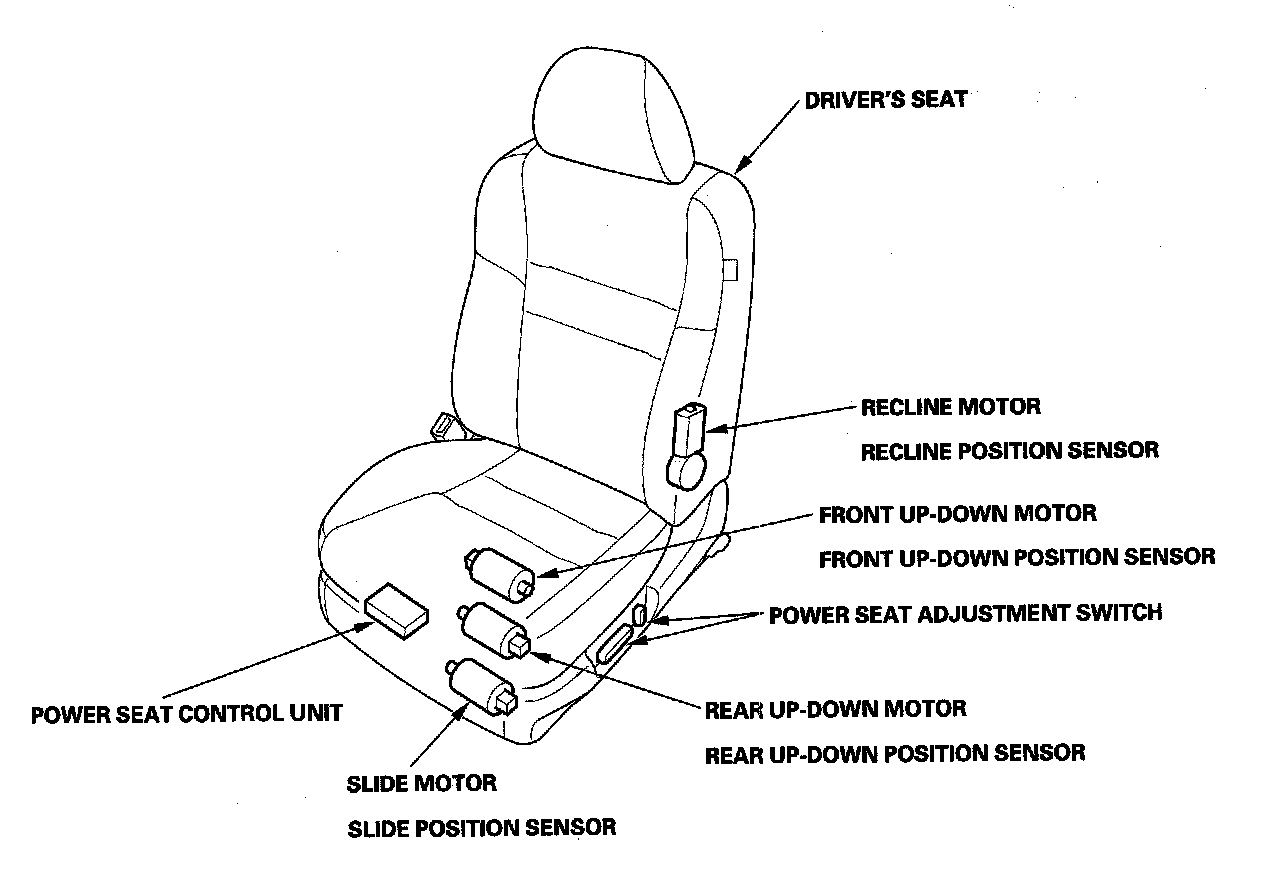

Driving Position Memory System (DPMS) Component Location:

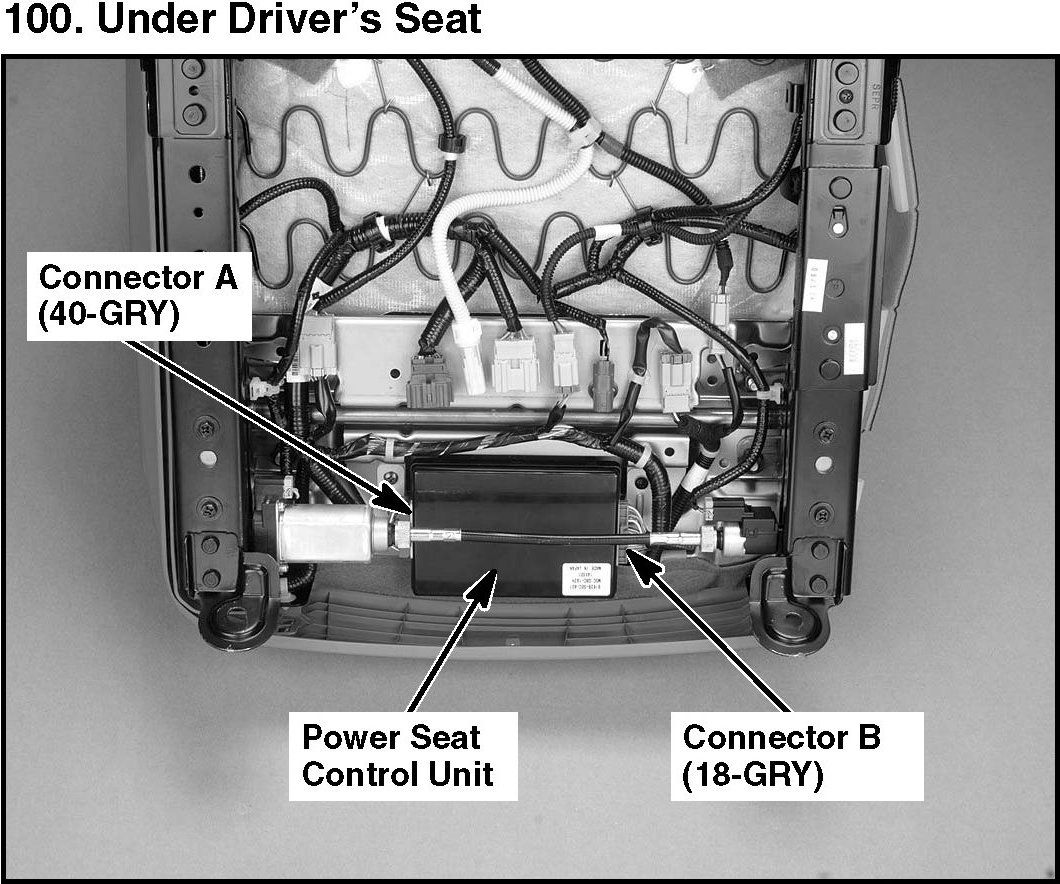

100. Under Driver's Seat:
