Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

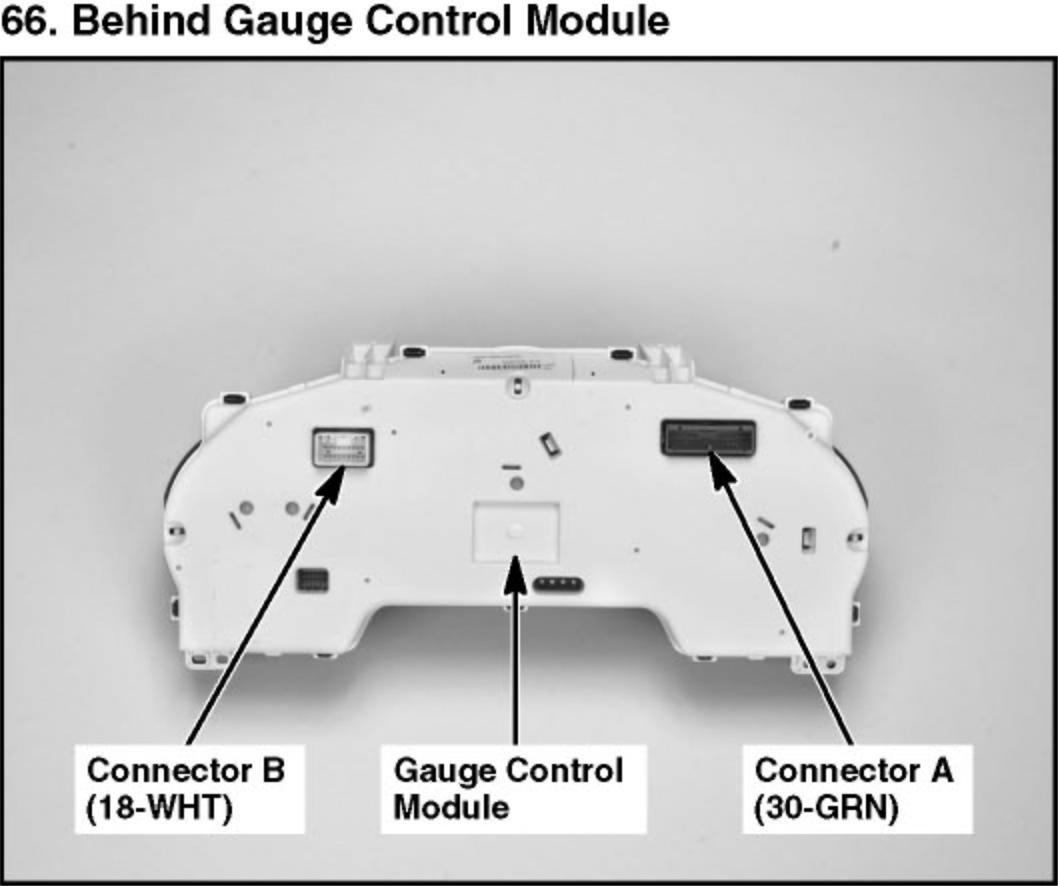

66. Behind Gauge Control Module:

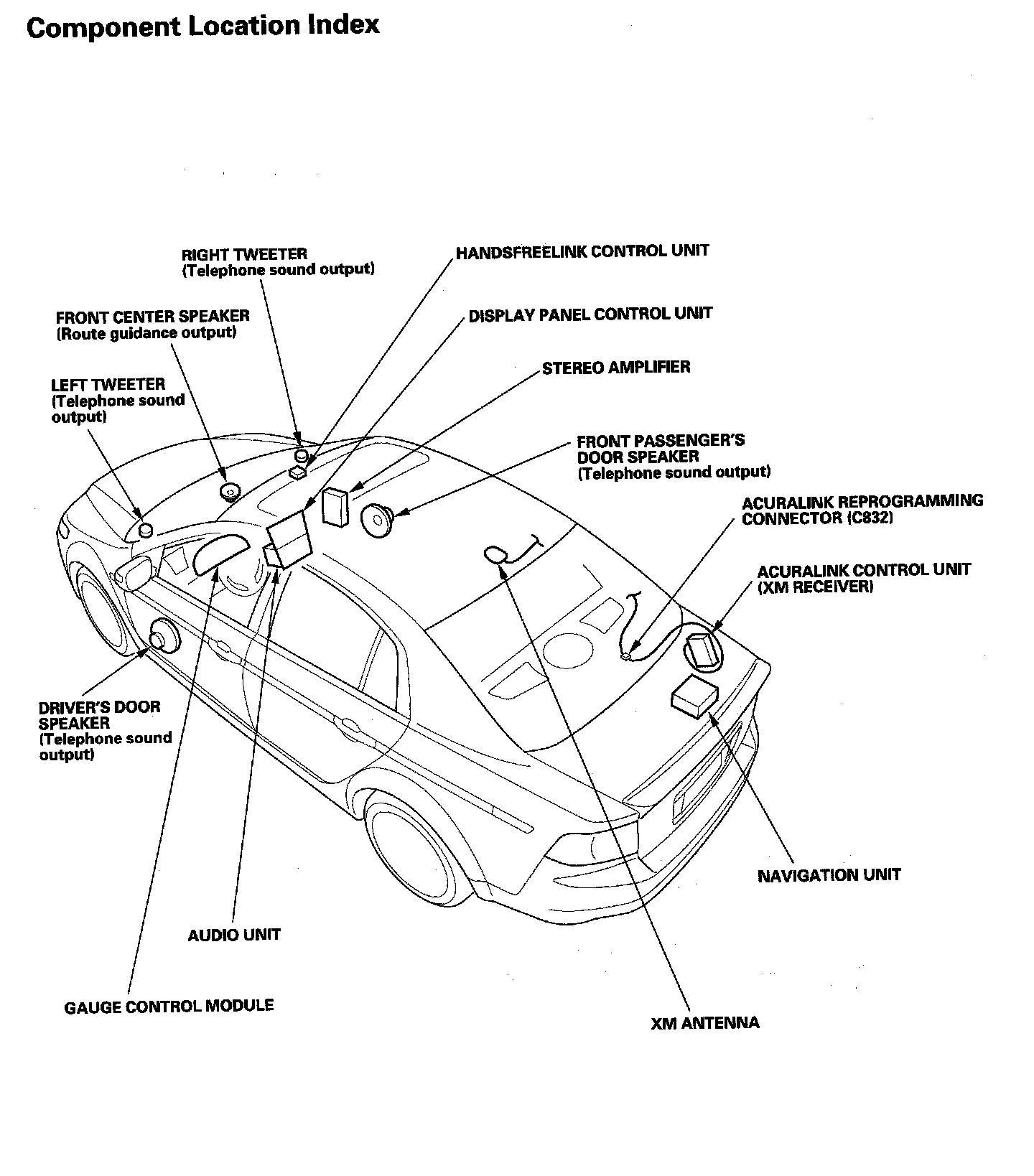

AcuraLink Component Location Index:

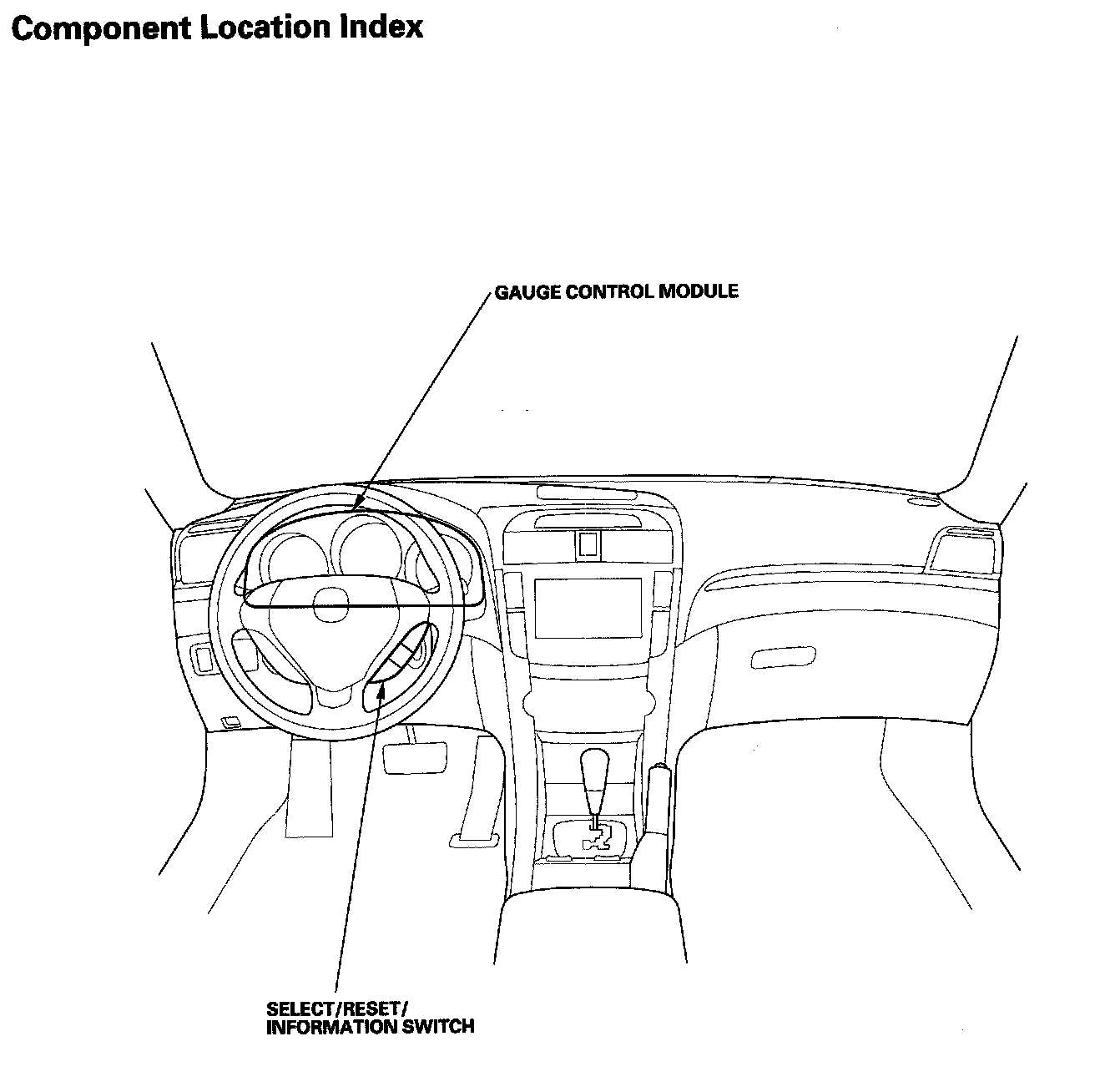

Gauges Component Location Index:
