Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Switch >> Locations

Memory Positioning Switch: Locations

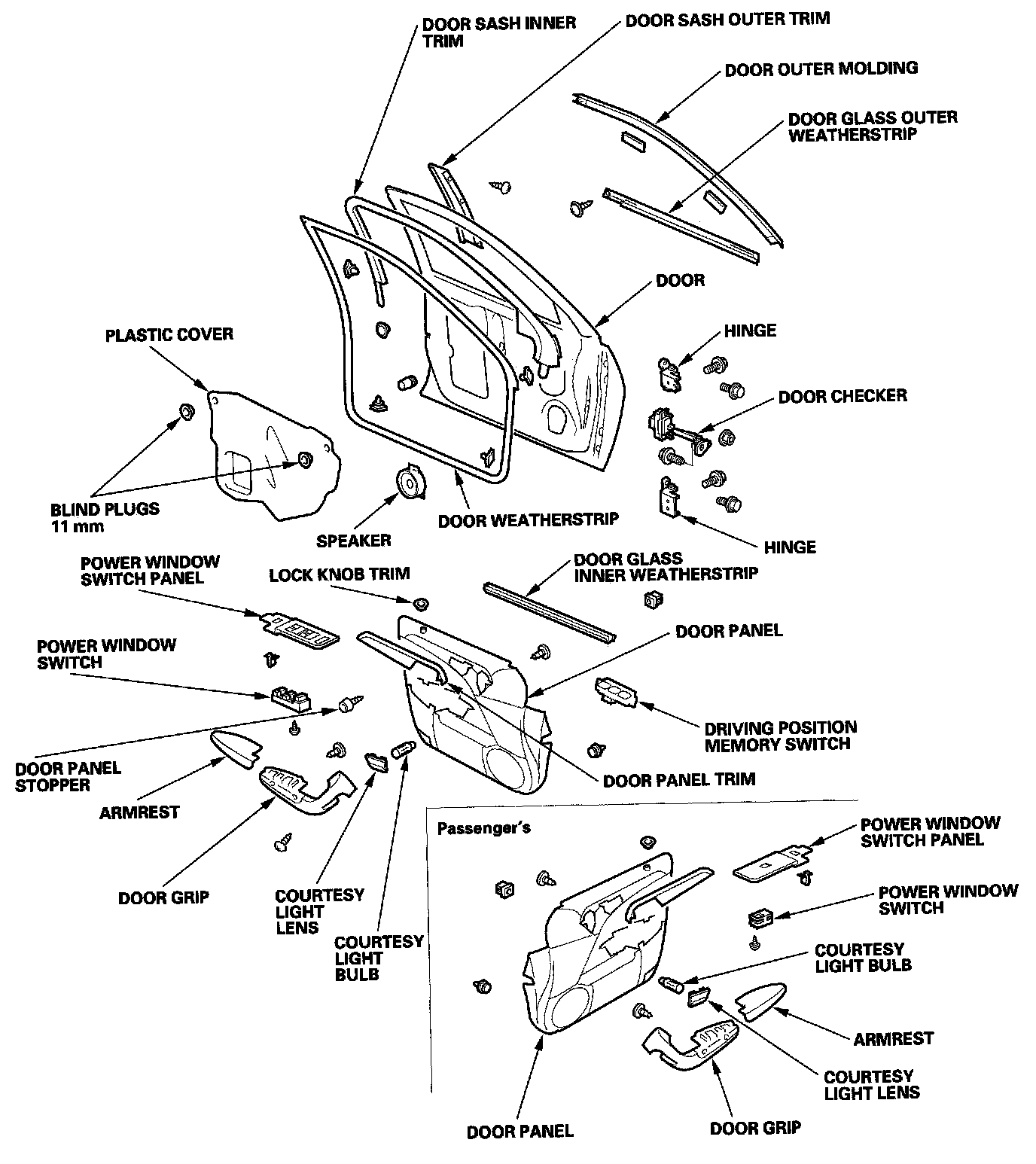

Front Door Component Location Index:

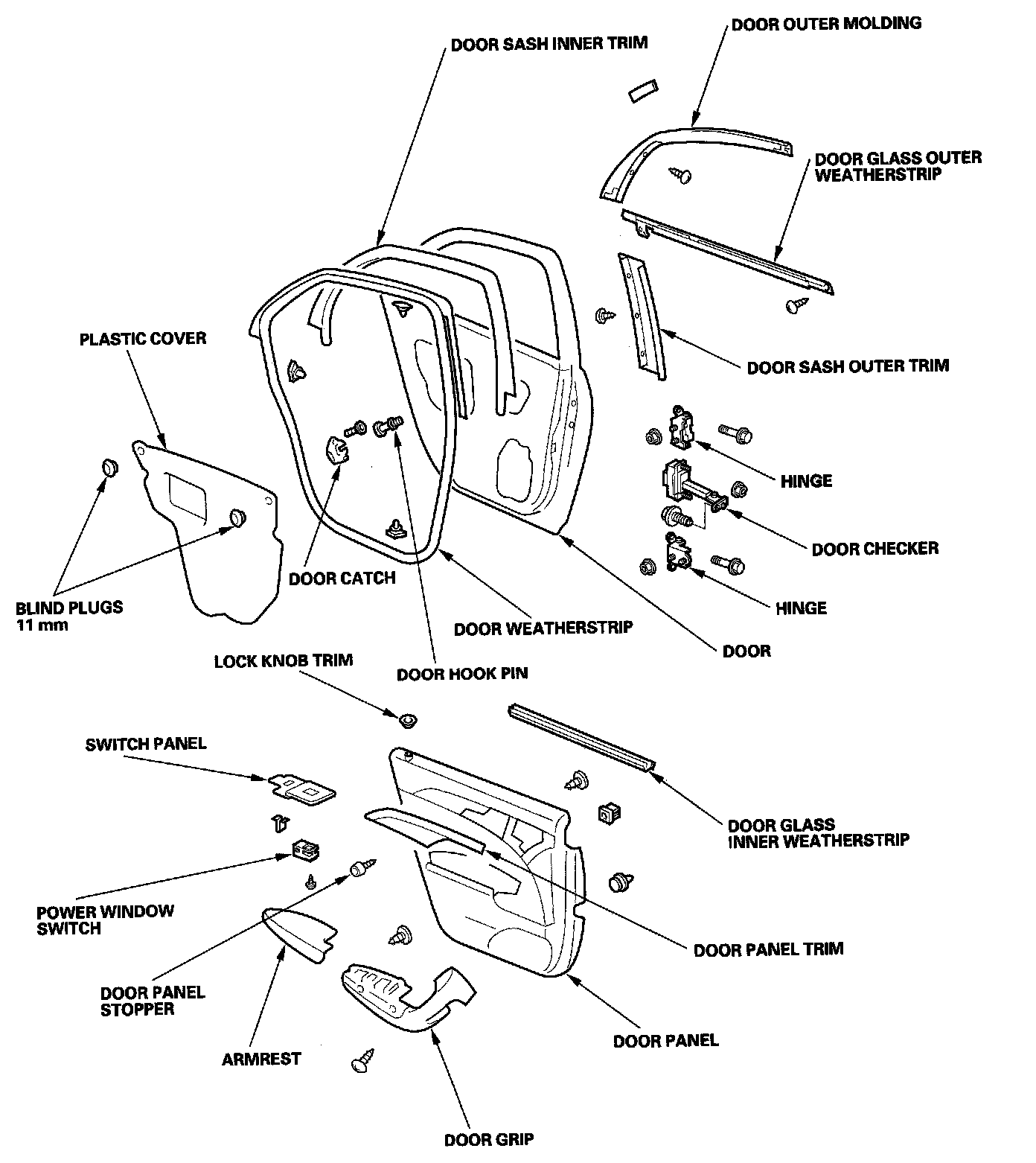

Rear Door Component Location Index:



Power Windows Component Location Index:

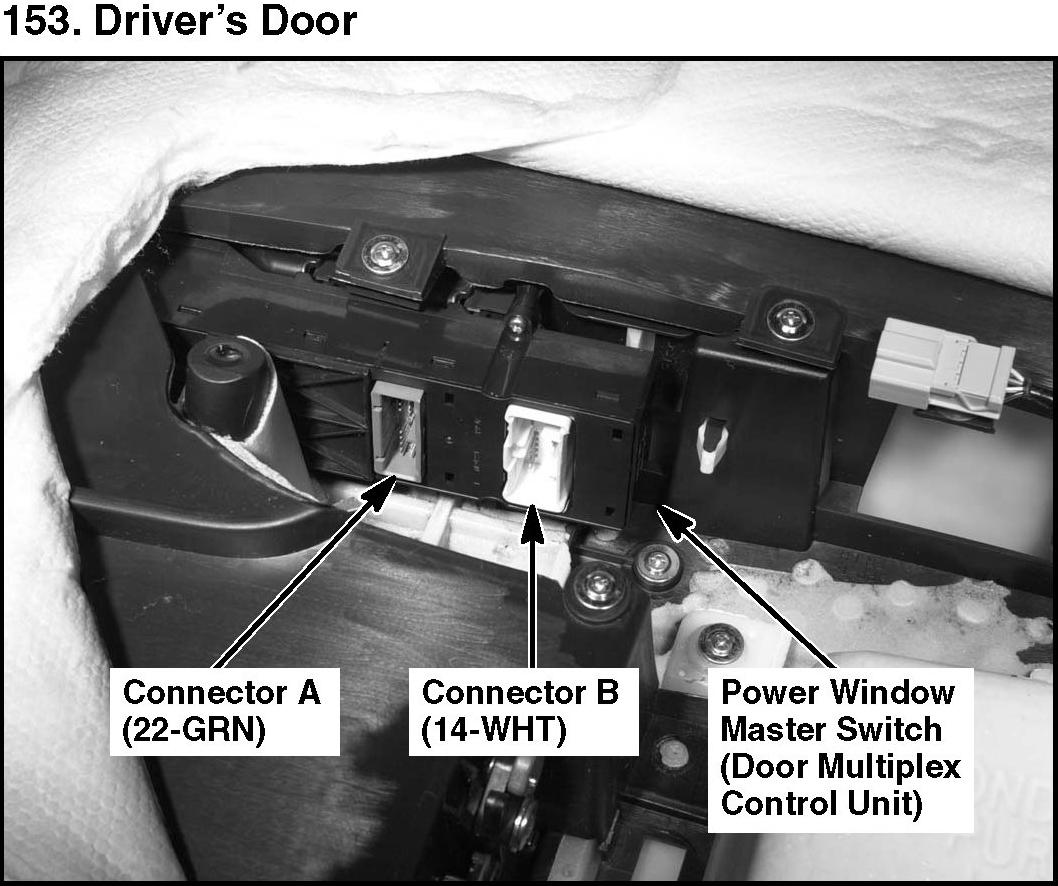

153. Driver's Door:

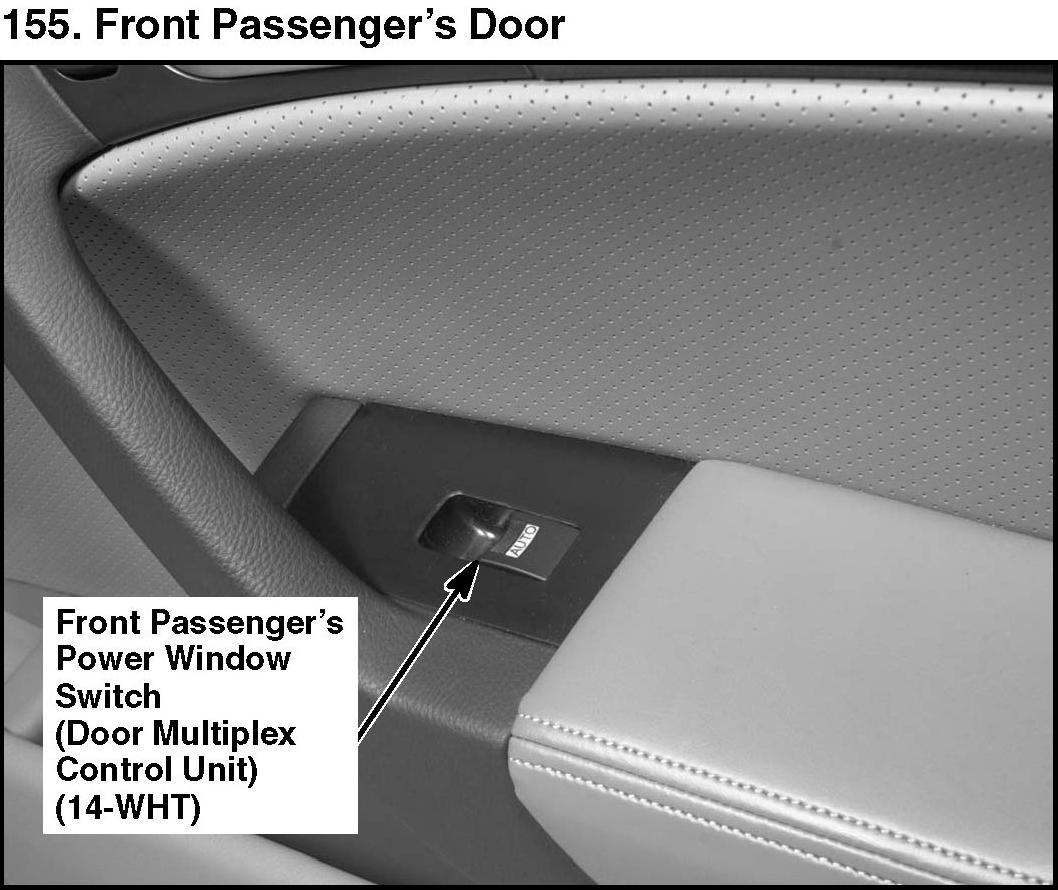

155. Front Passenger's Door:

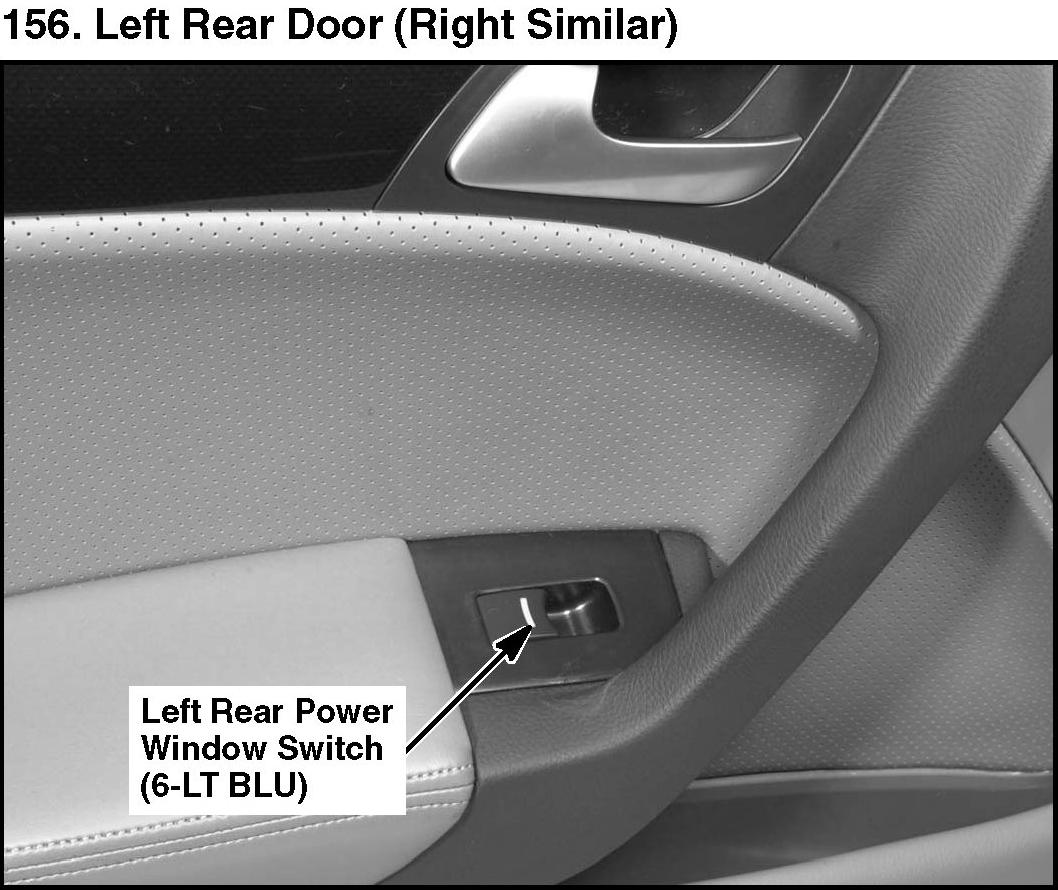

156. Left Rear Door (Right Similar):
