Home >> Acura >> 2007 >> TL V6-3.2L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Locations

Keyless Entry Receiver: Locations

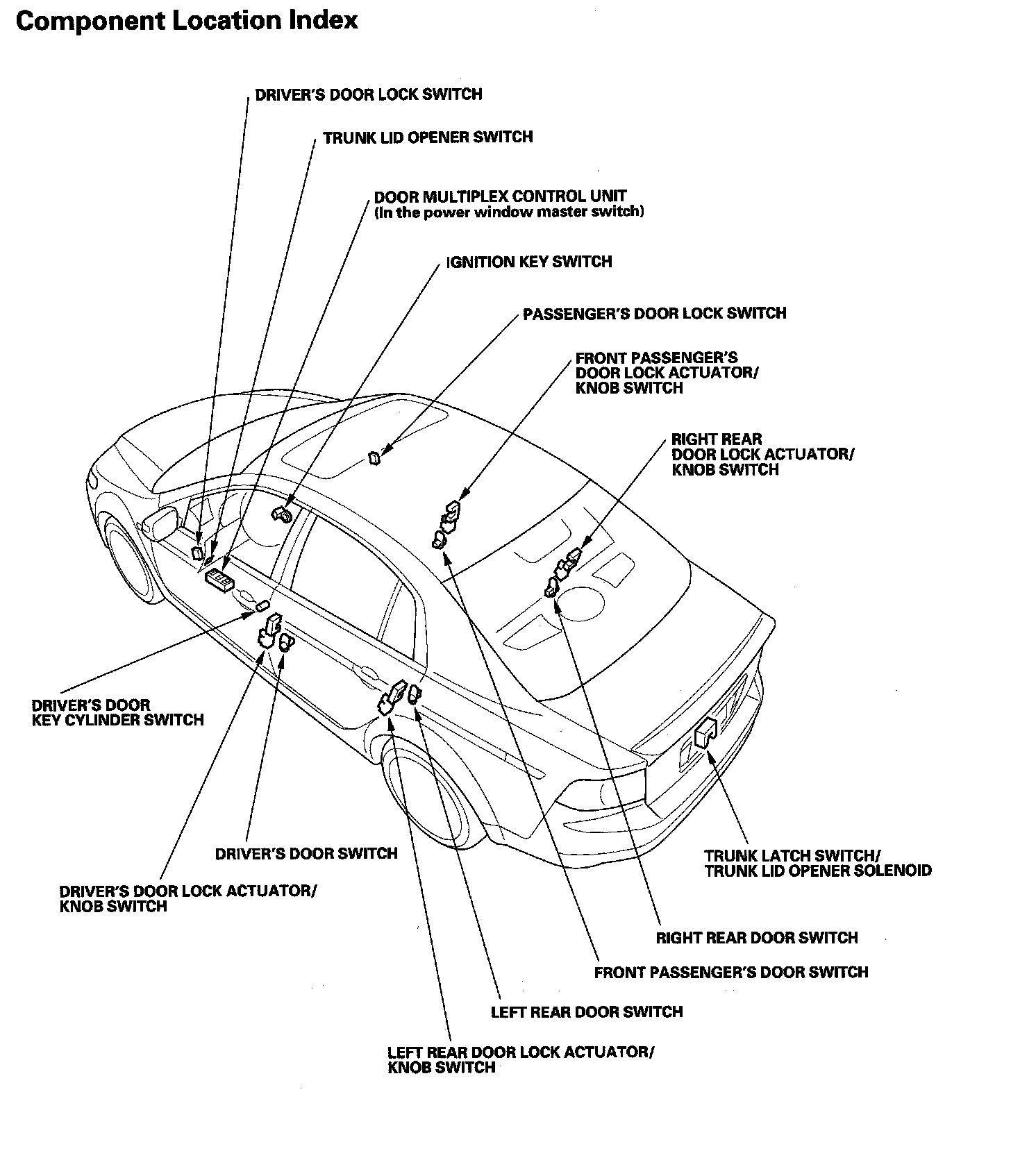

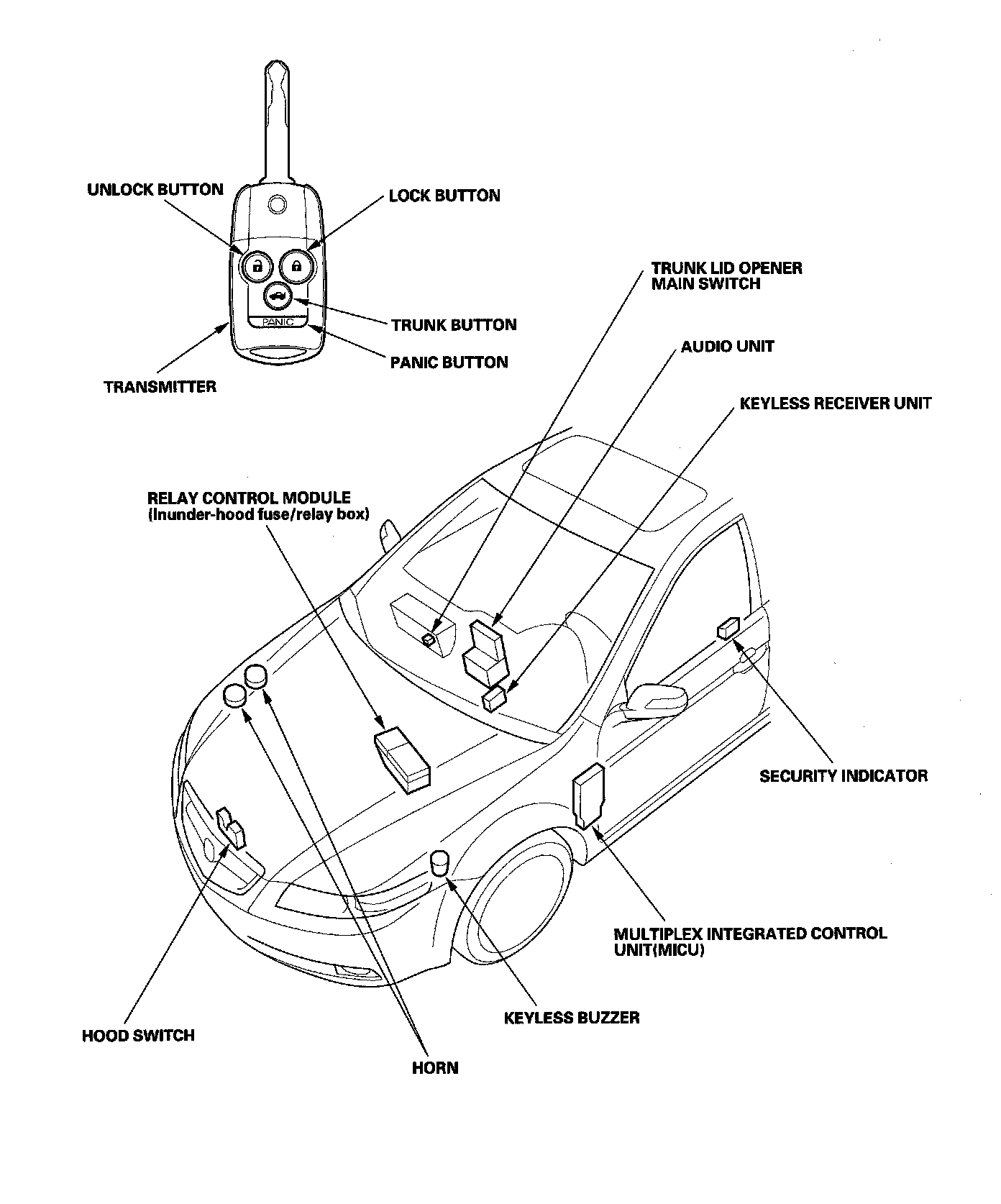

Keyless/Power Door Locks/Security System Component Location Index:



Keyless/Power Door Locks/Security System Component Location Index:

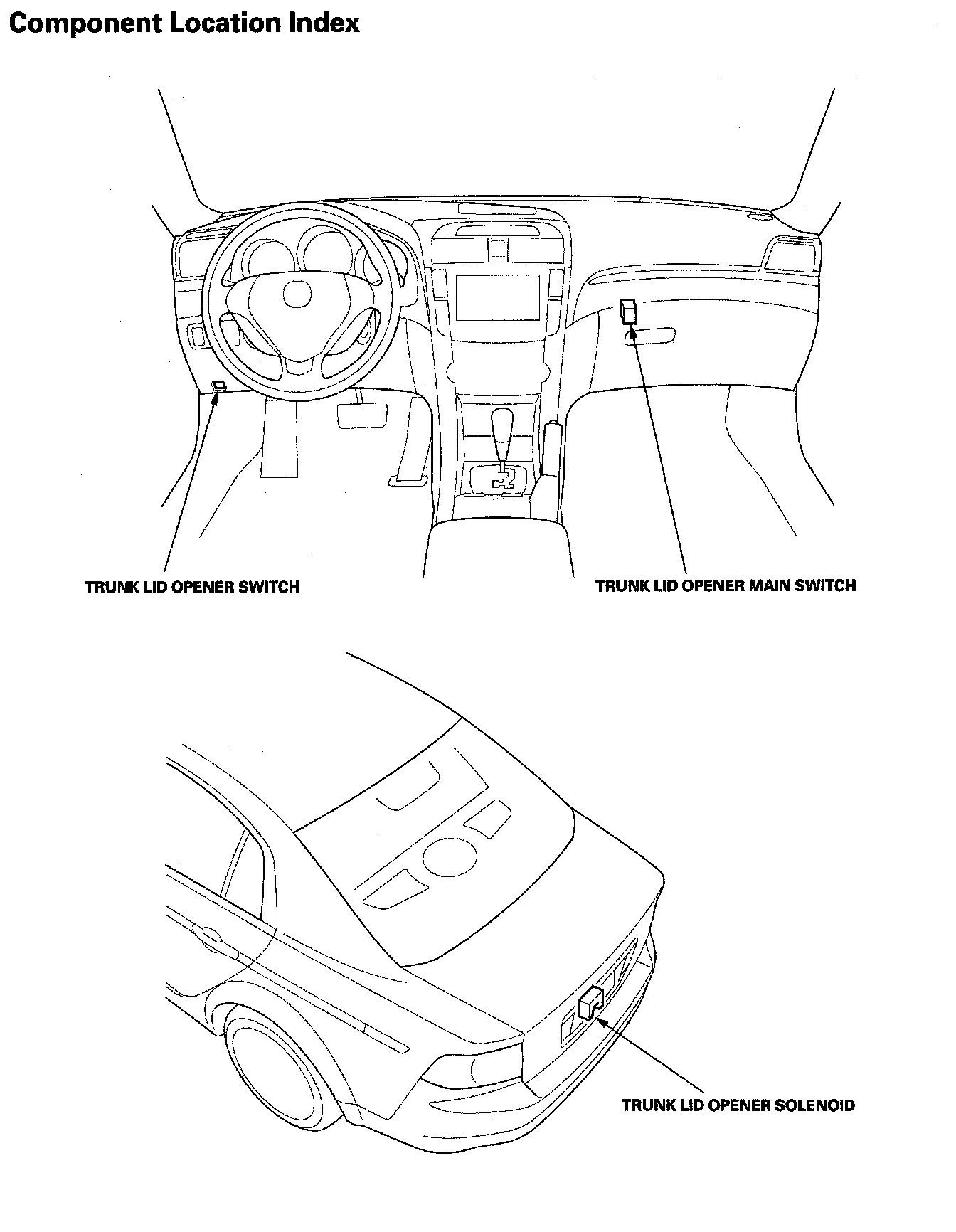

Trunk Lid Opener Component Location Index:

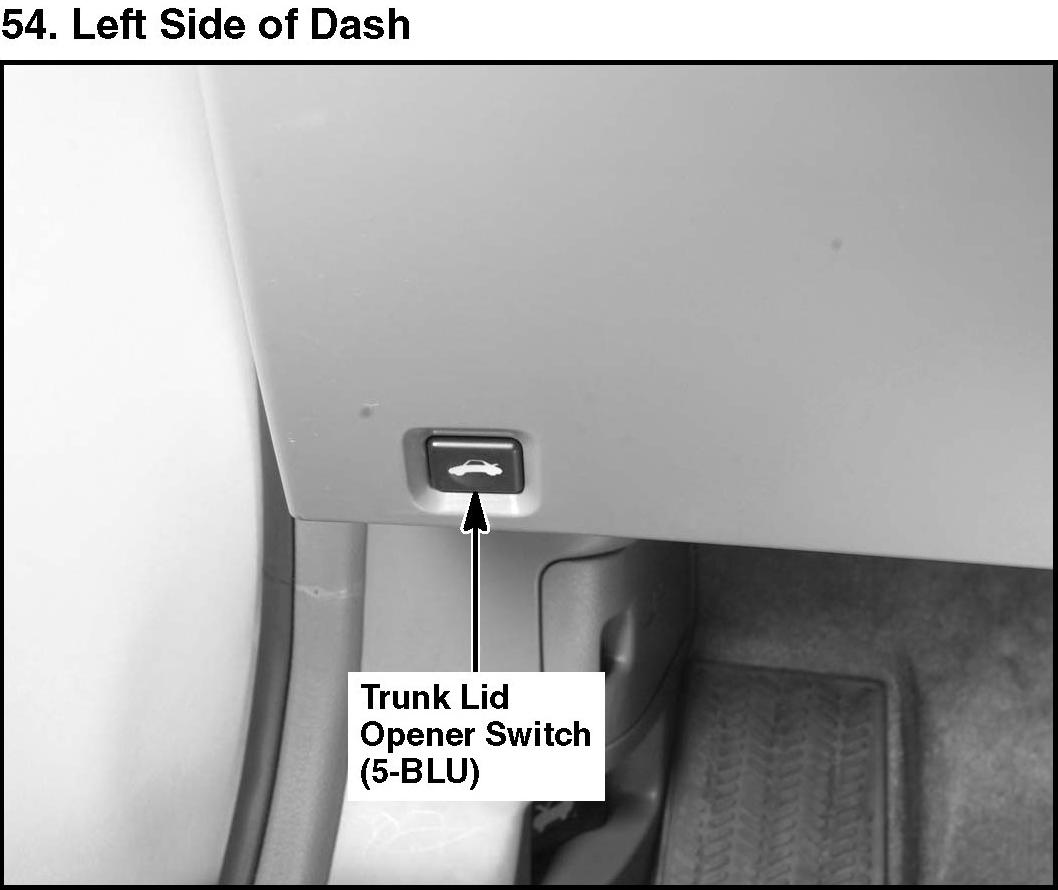

54. Left Side Of Dash:

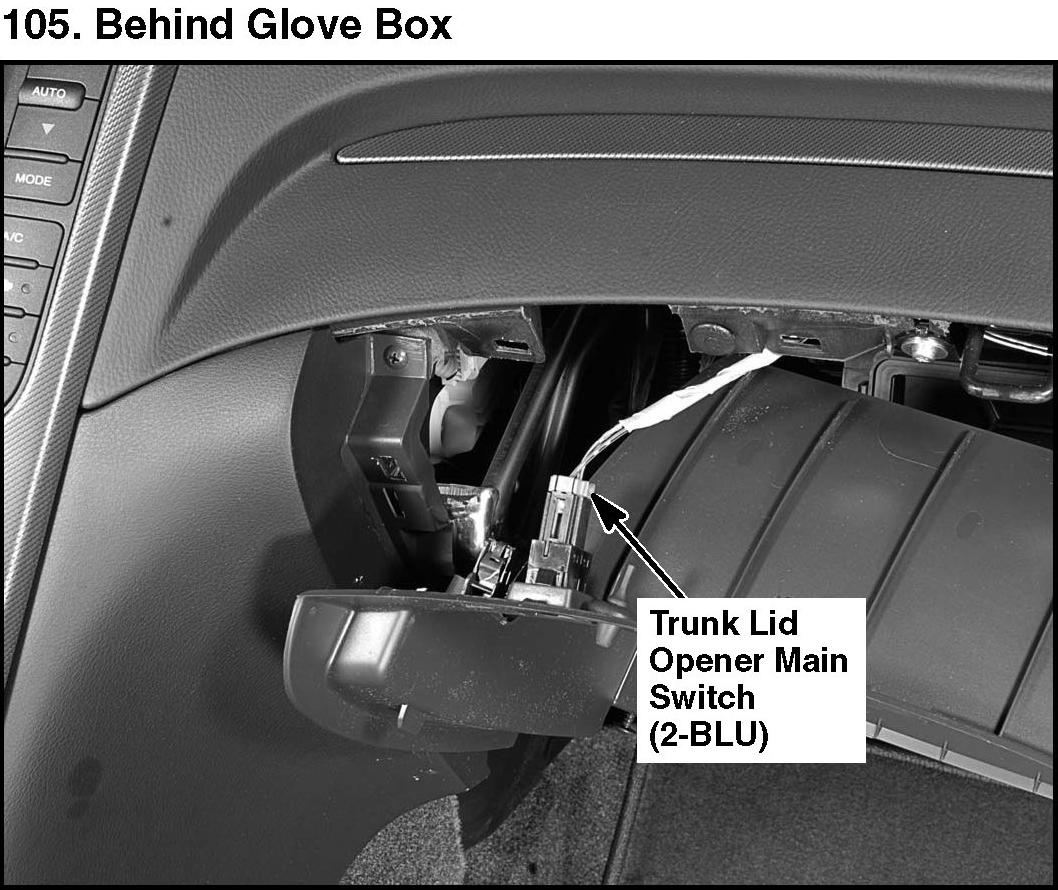

105. Behind Glove Box:
