Vehicle Speed Sensor: Service and Repair

Hypoid Gear Speed Sensor Replacement

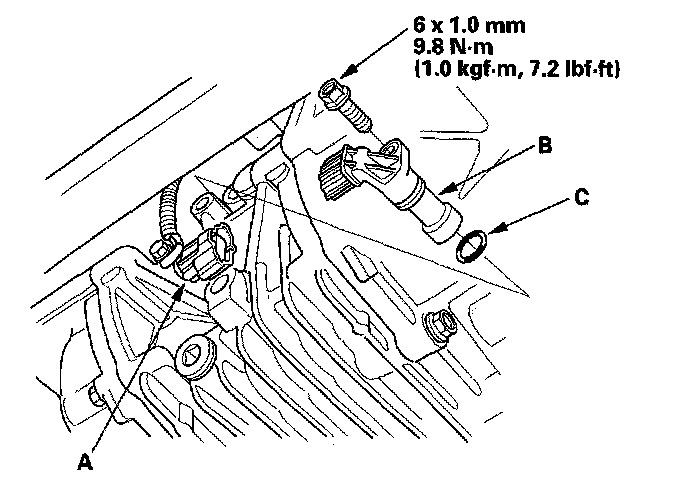

1. Disconnect the hypoid gear speed sensor connector (A).





2. Remove the hypoid gear speed sensor (B).
3. Install the hypoid gear speed sensor with a new O-ring (C) in the reverse order of removal.
