Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal/Installation

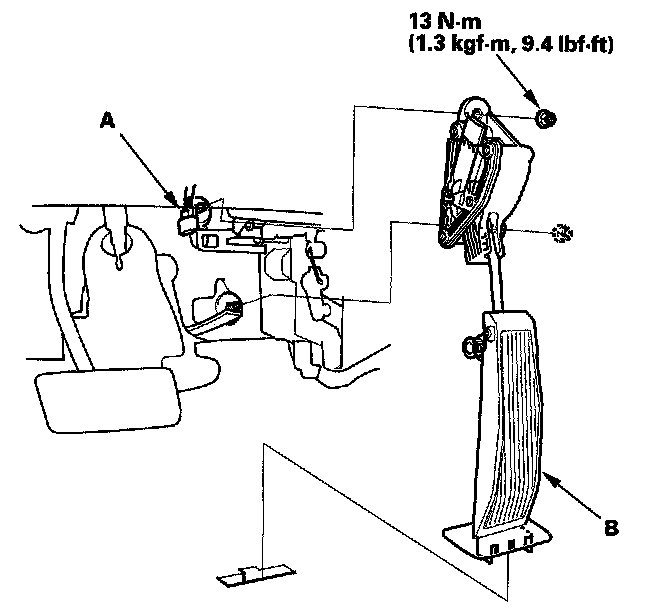

1. Disconnect the APP sensor connector (A).
2. Release the lock tab on the base of the accelerator pedal, then remove the accelerator pedal module (B).
3. Install the parts in the reverse order of removal.
