Home >> Acura >> 2007 >> RL V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Locations

Power Distribution Module: Locations

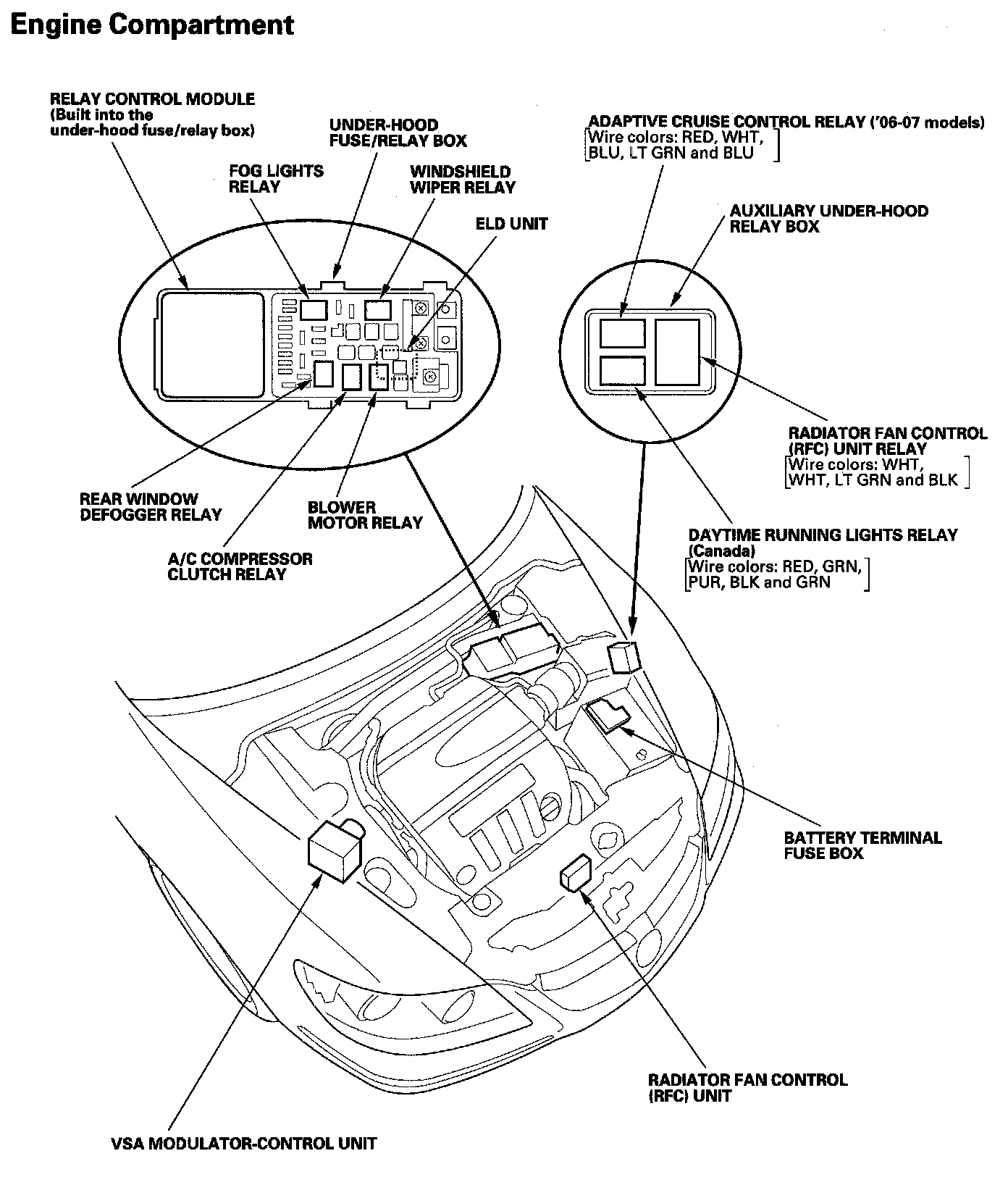

Relay And Control Unit Locations Engine Compartment:

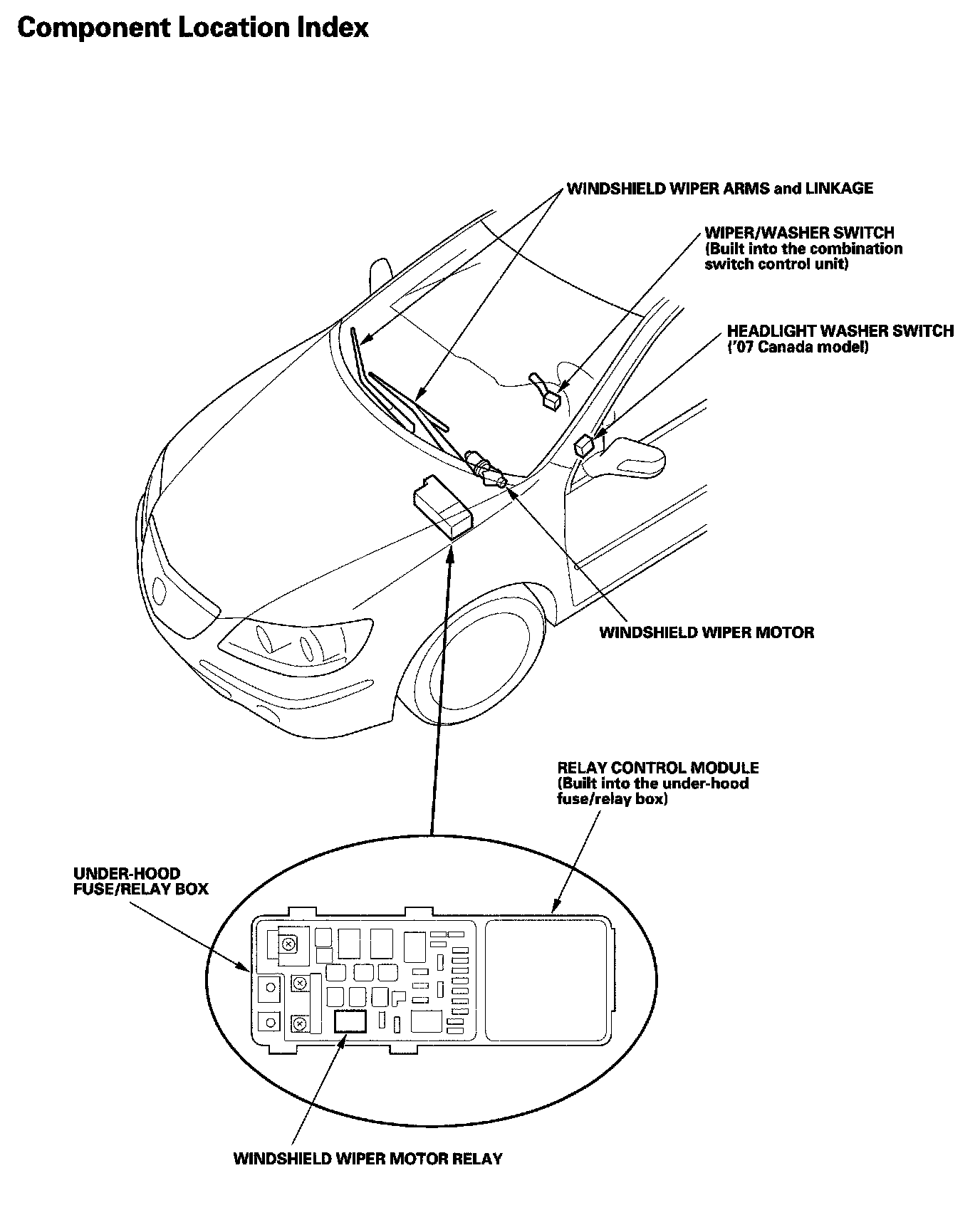

Wipers/Washers Component Location Index:
