Throttle Actuator Control Module Subharness
Throttle Actuator Control Module Subharness

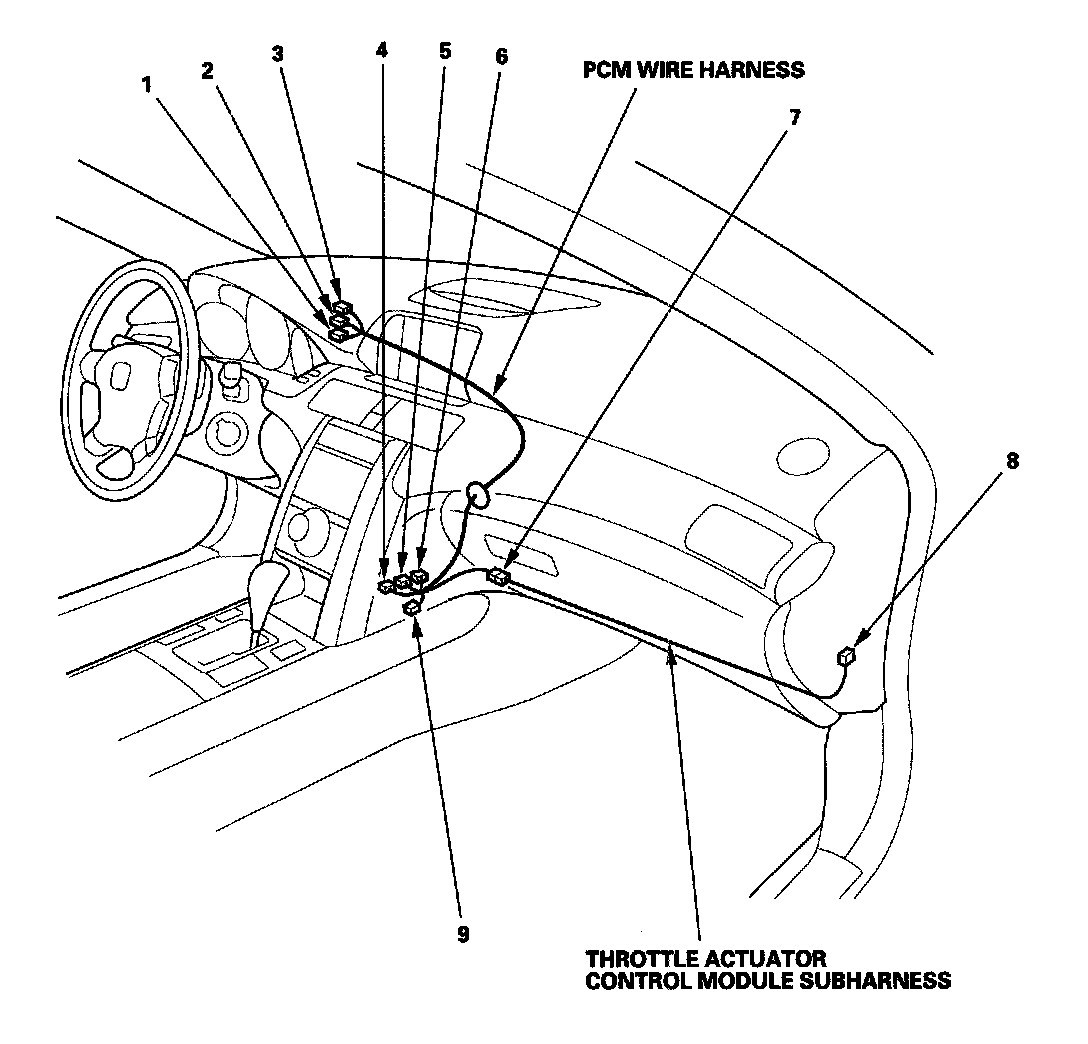

Harness Location View:

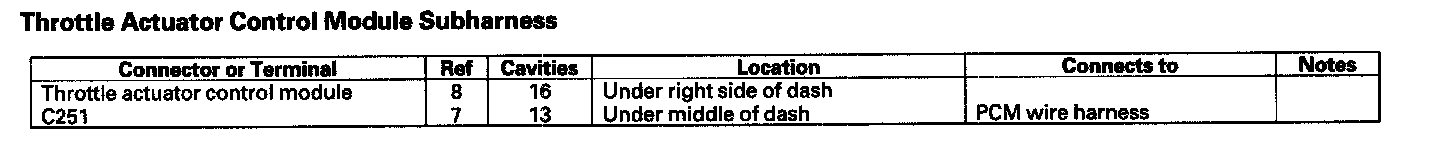

Throttle Actuator Control Module Subharness:
