Home >> Acura >> 2007 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

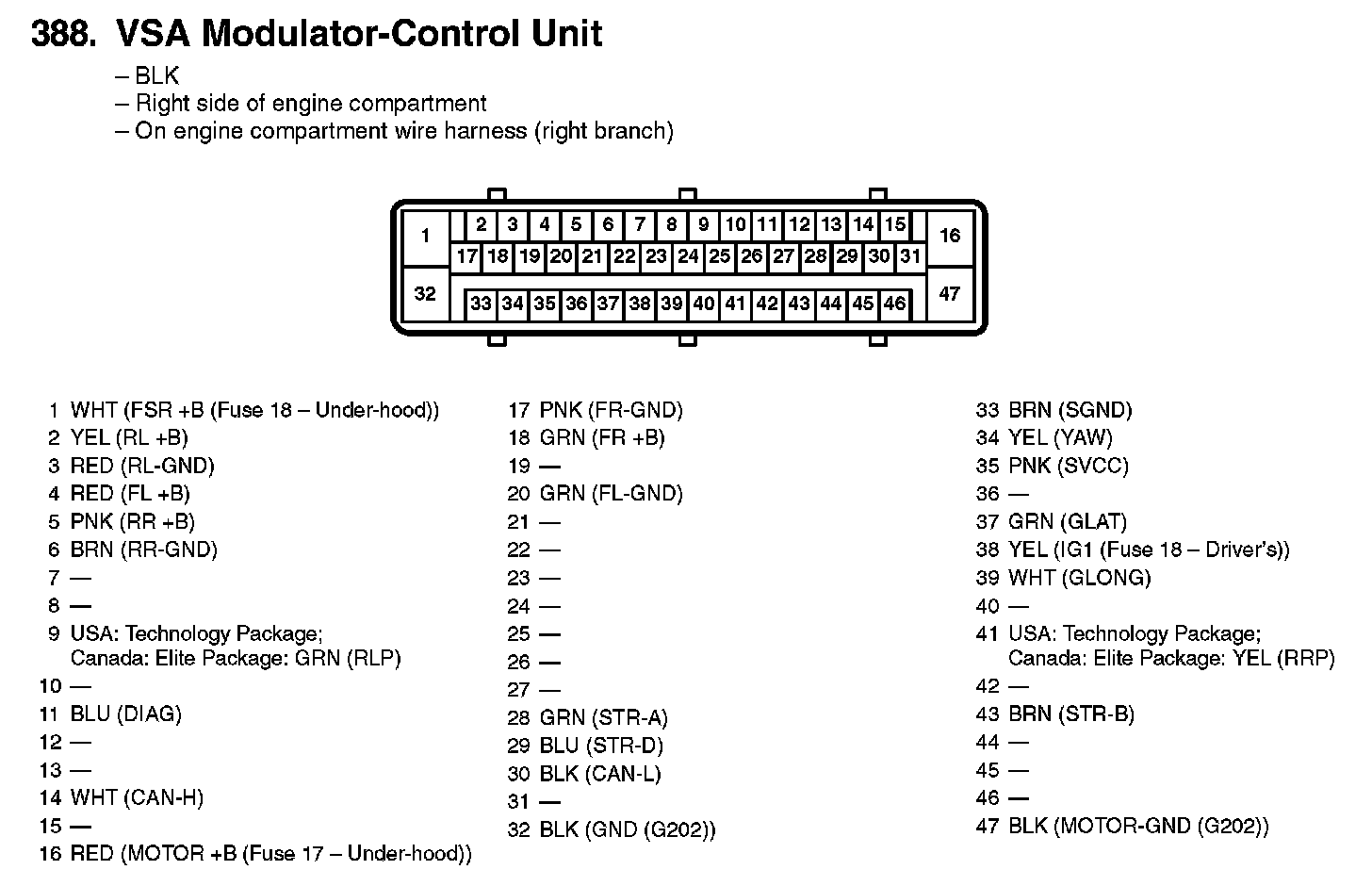

388. VSA Modulator-Control Unit:

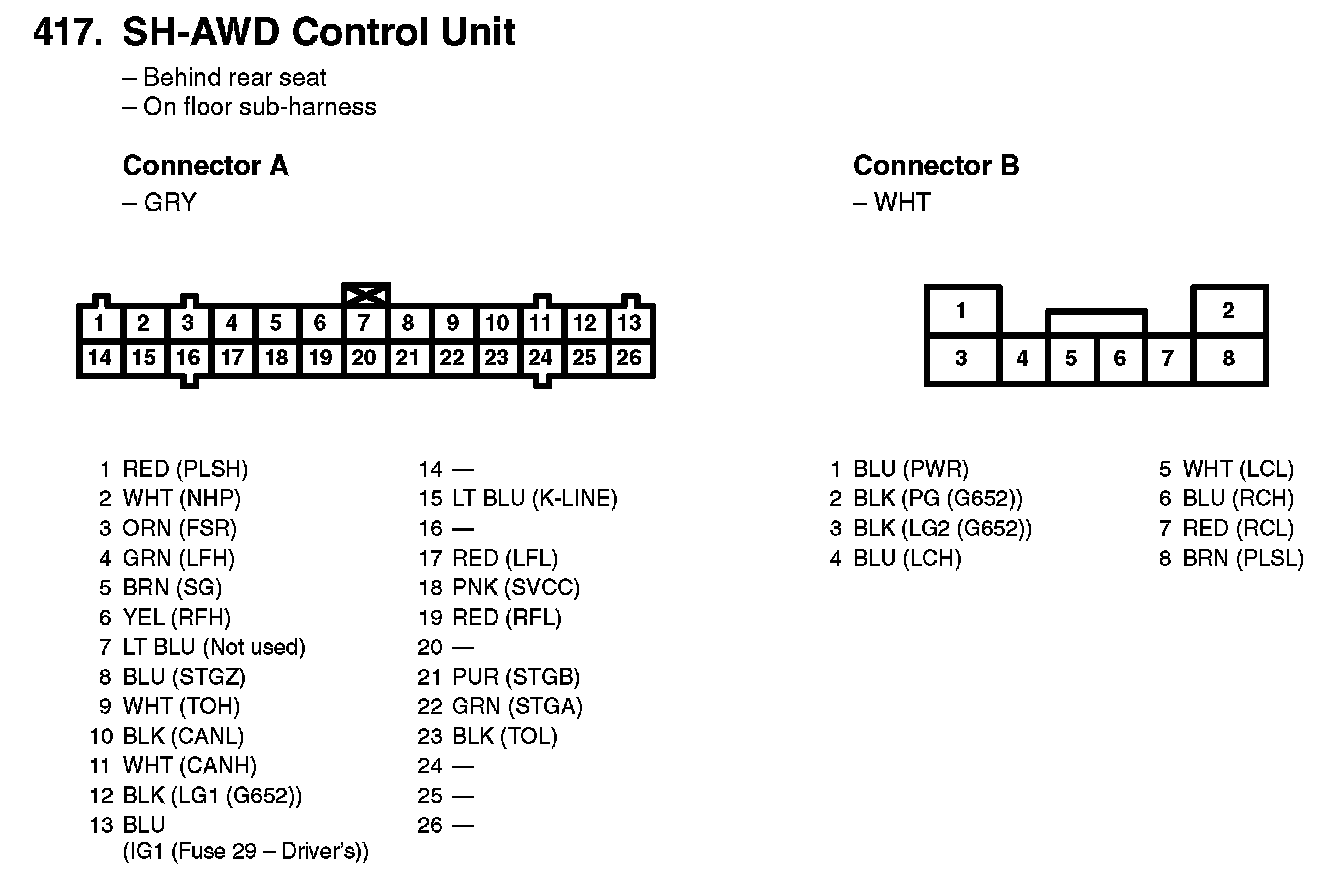

417. SH-AWD Control Unit:
