Tire Pressure Module

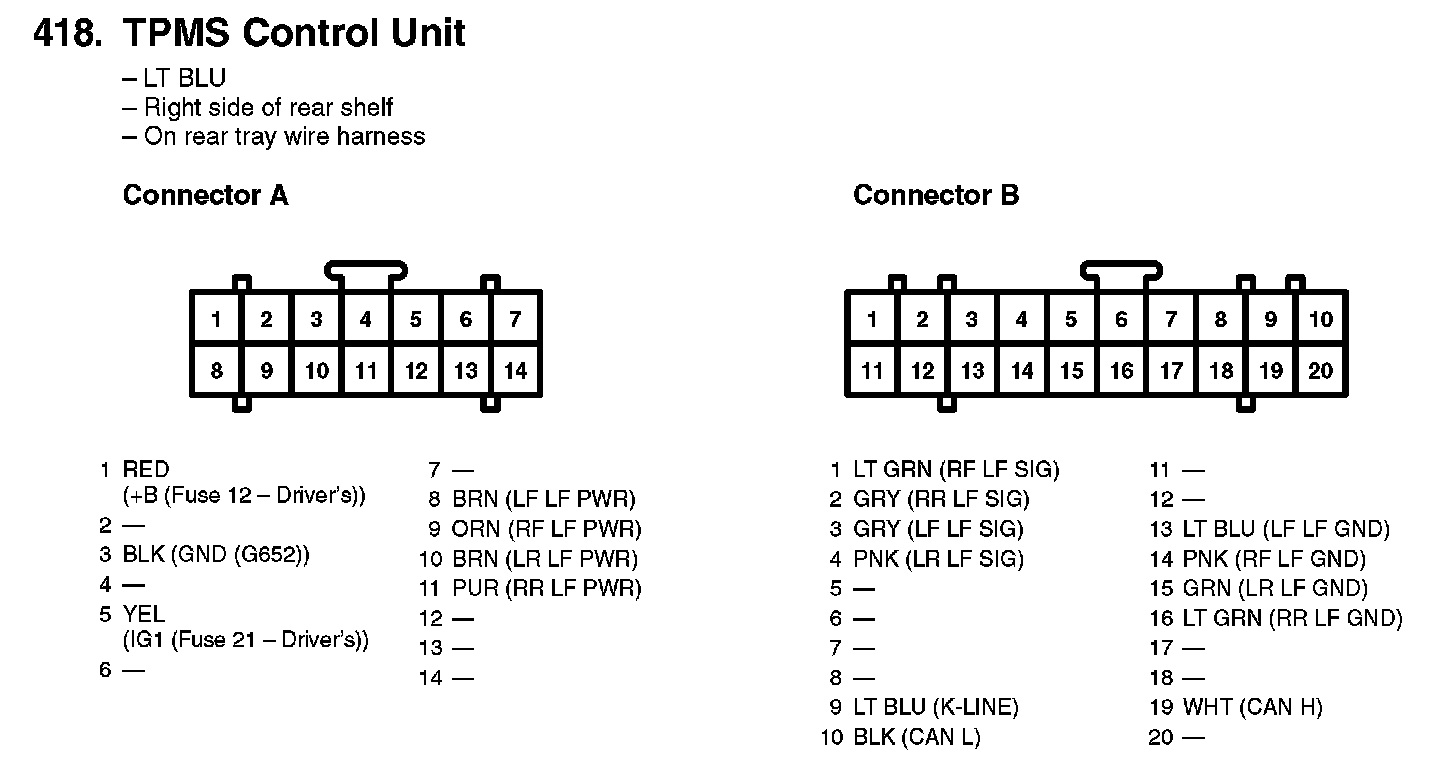

418. TPMS Control Unit:

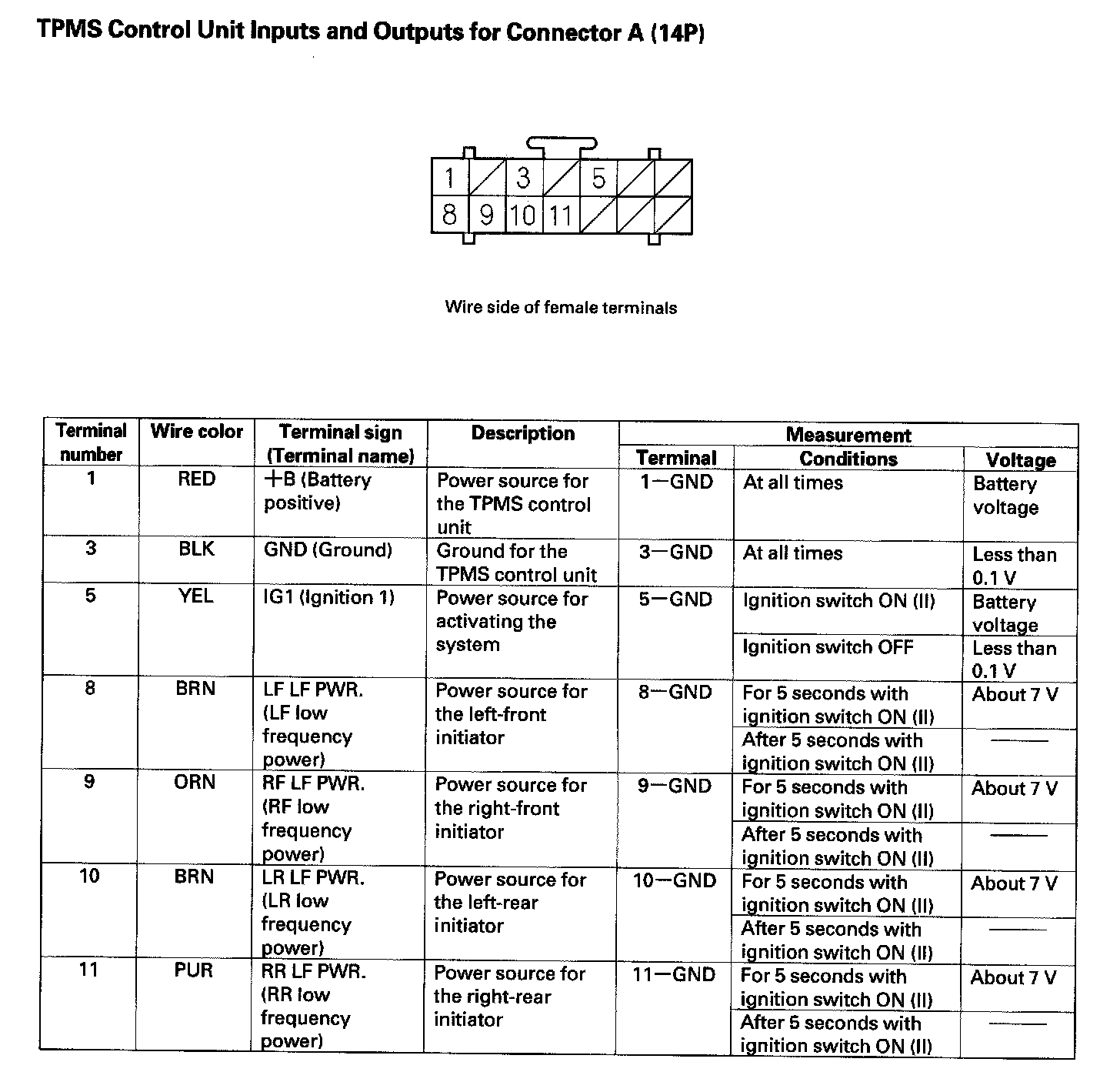

TPMS Control Unit Inputs And Outputs For Connector A (14P):

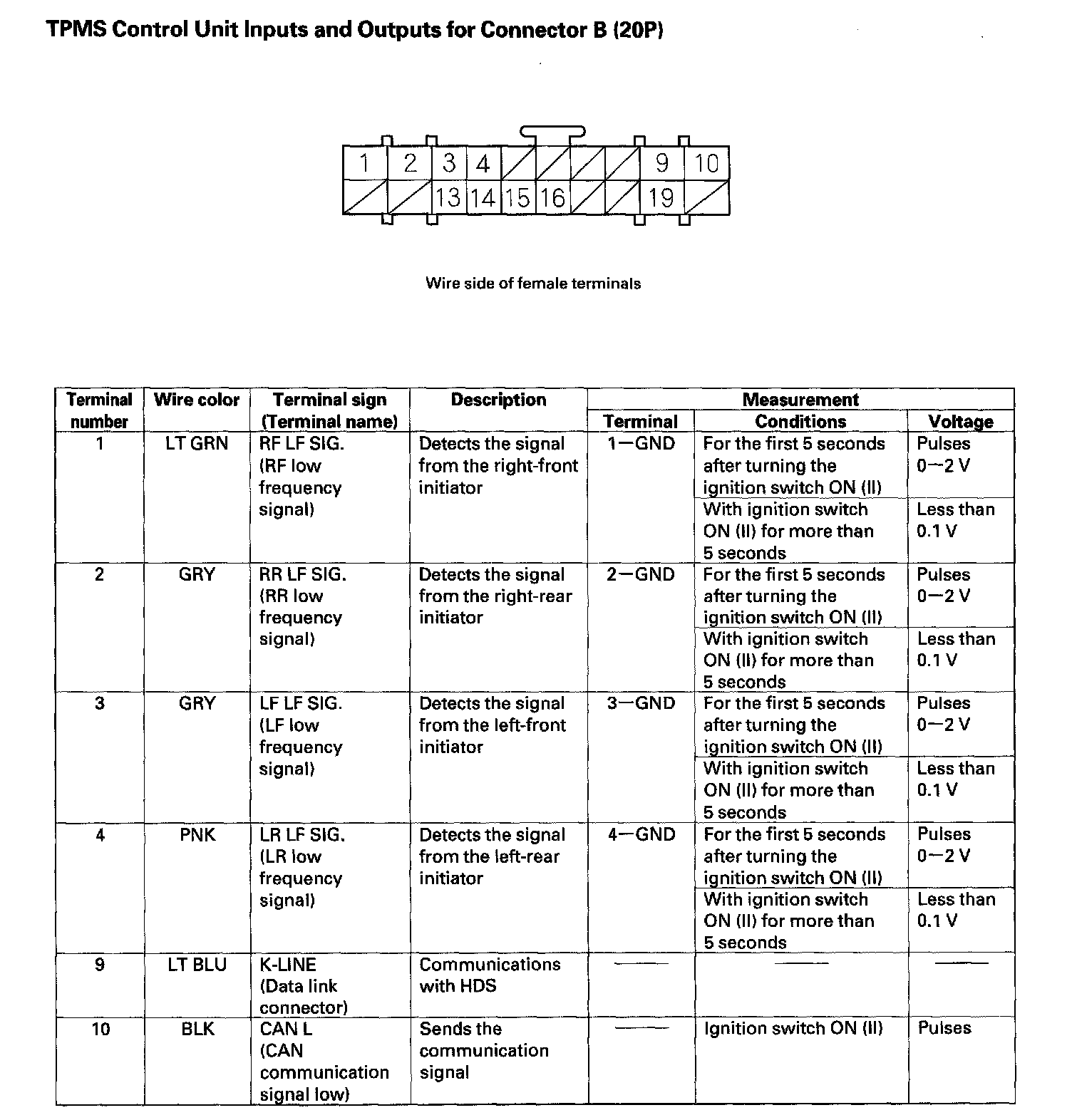

TPMS Control Unit Inputs And Outputs For Connector B (20P) (Part 1):

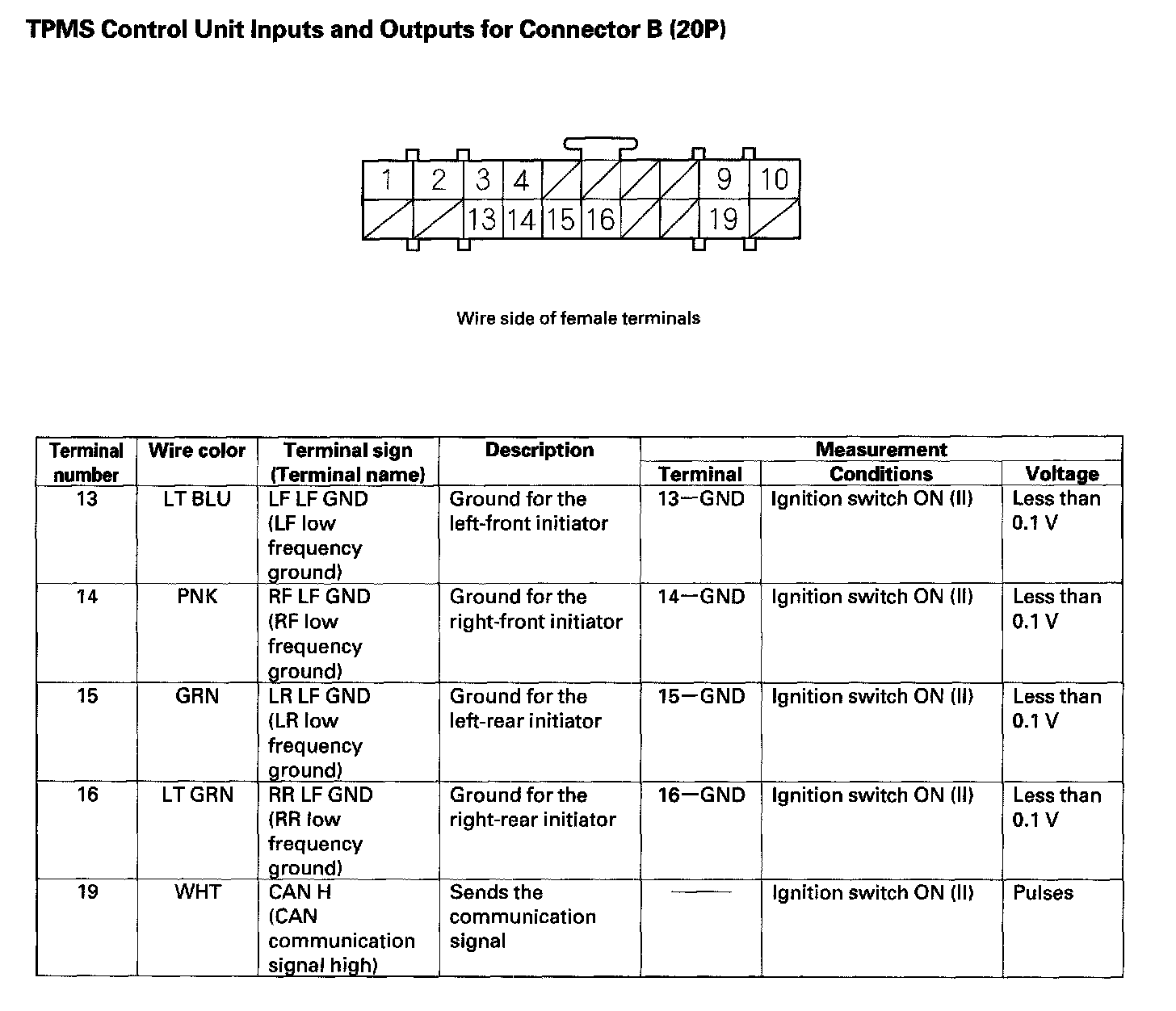

TPMS Control Unit Inputs And Outputs For Connector B (20P) (Part 2):
