Home >> Acura >> 2007 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

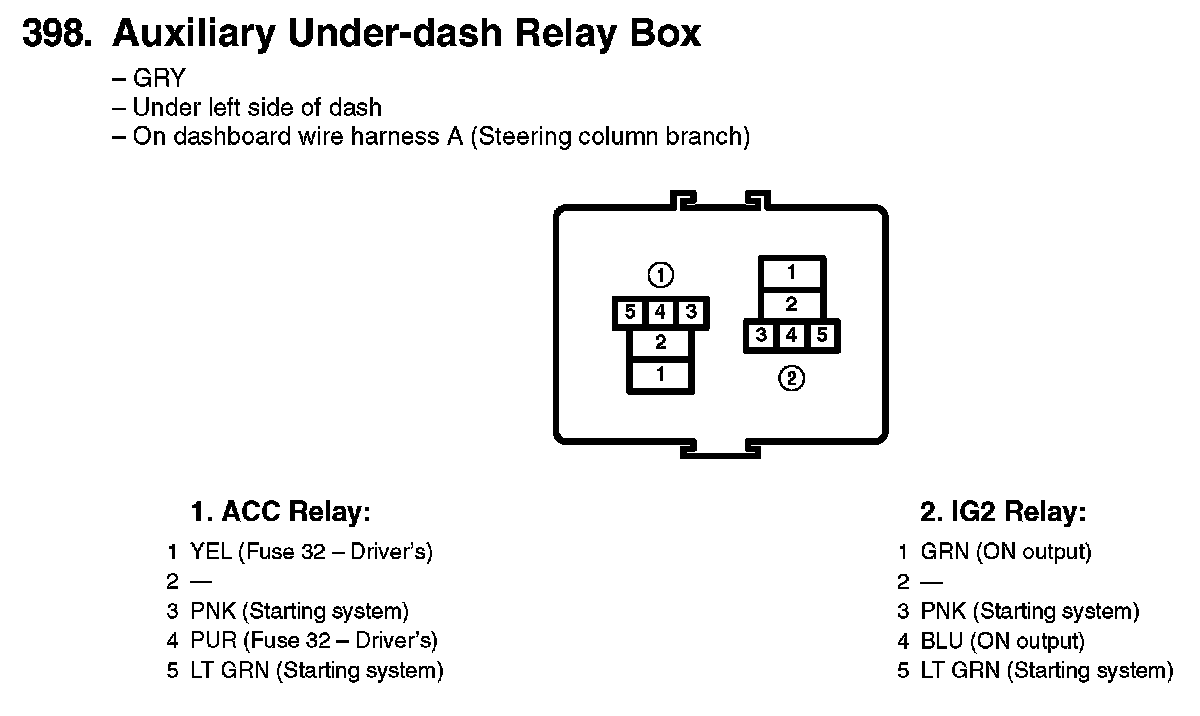

398. Auxiliary Under-dash Relay Box:

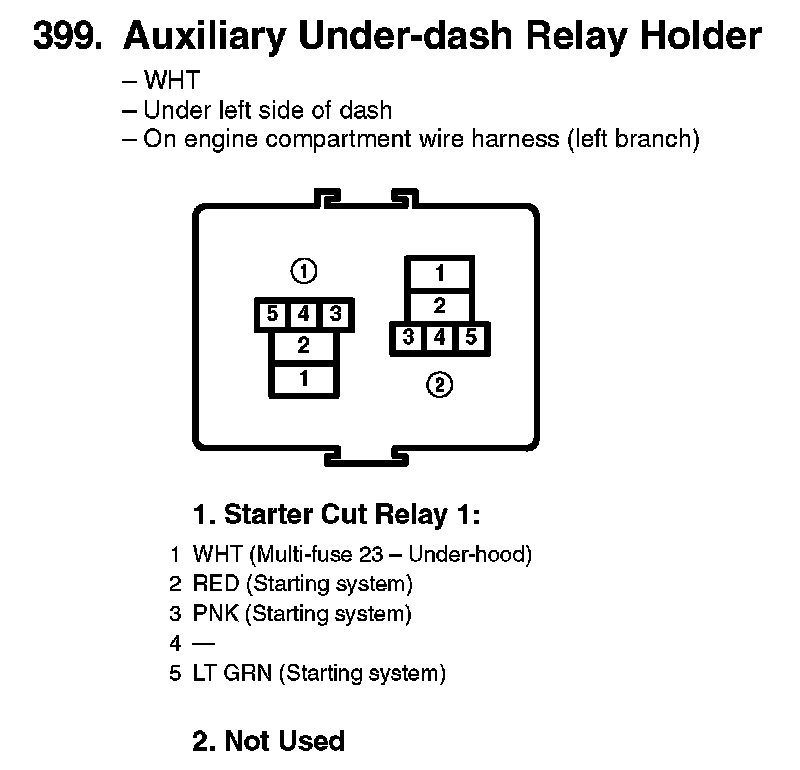

399. Auxiliary Under-dash Relay Holder:



406. Auxiliary Under-hood Relay Box:

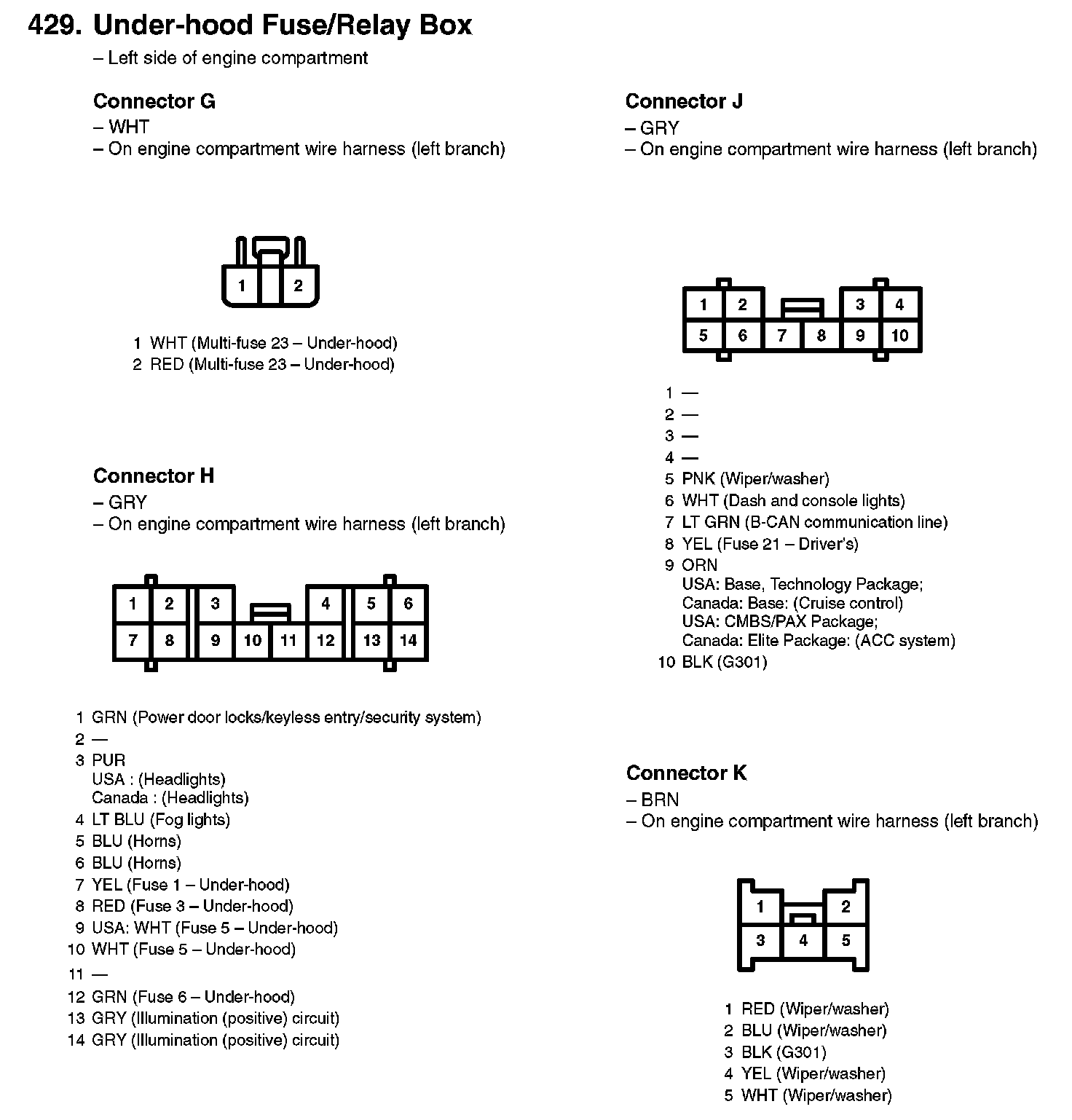

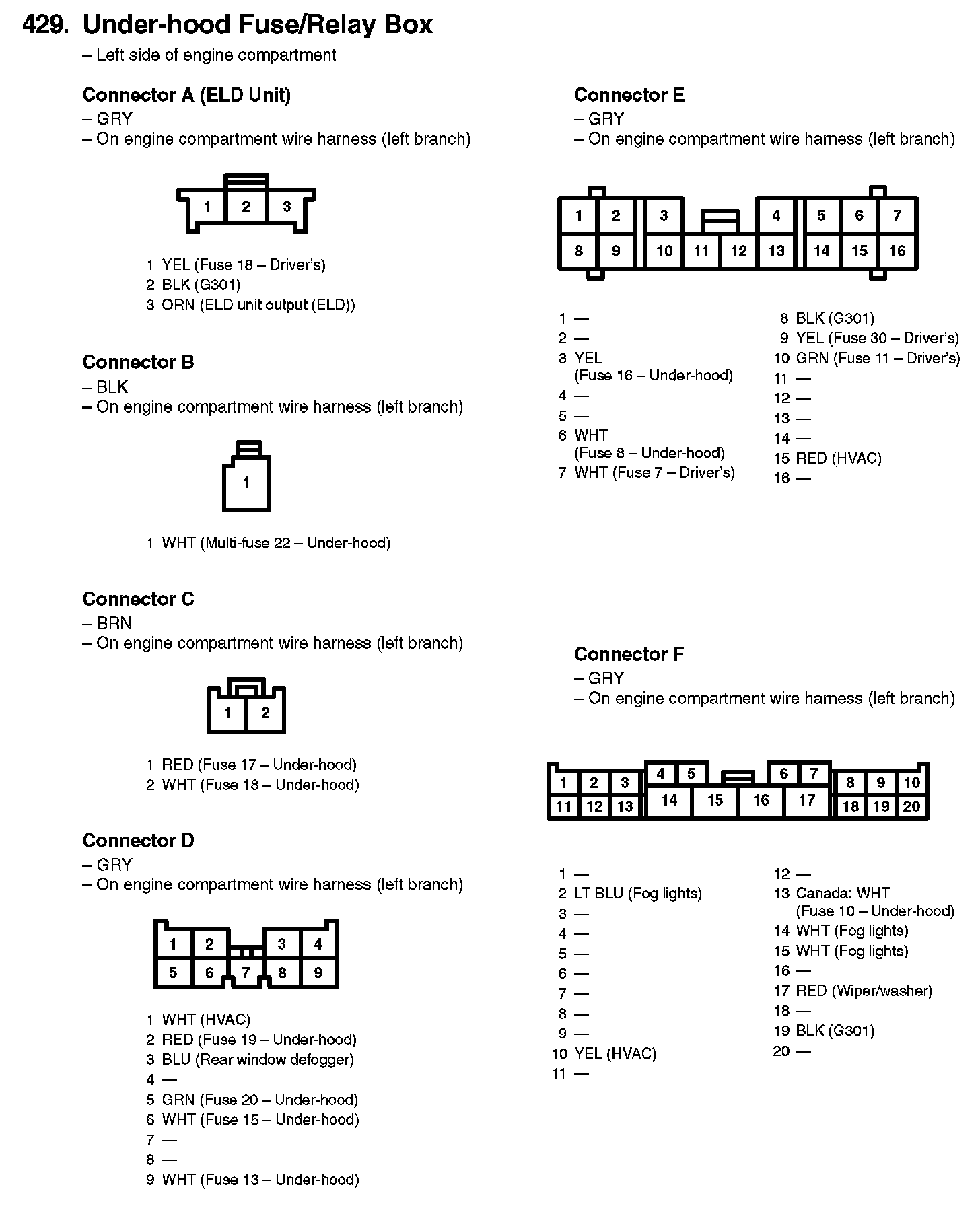

429. Under-hood Fuse/Relay Box:



429. Under-hood Fuse/Relay Box:

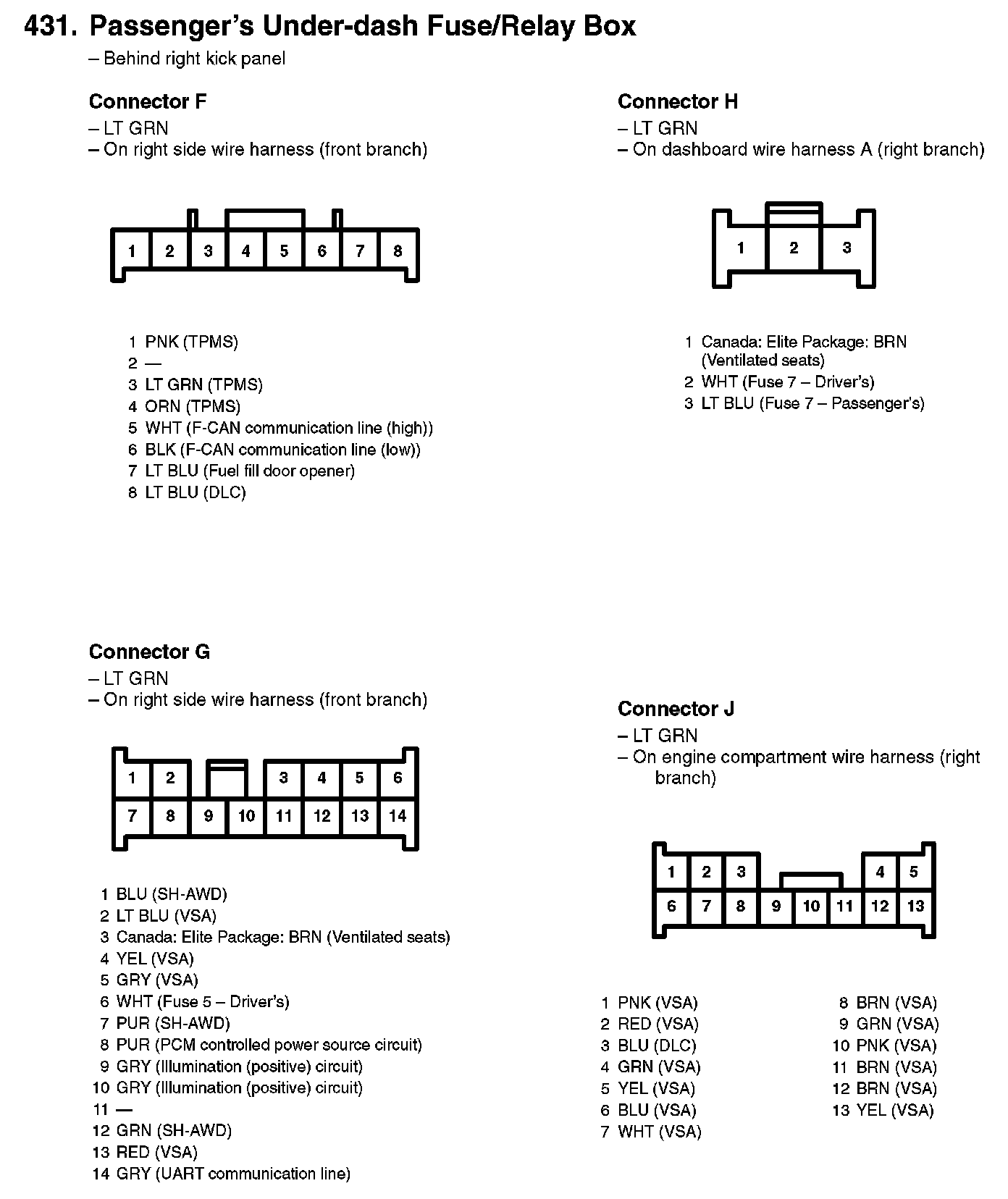

431. Passenger's Under-dash Fuse/Relay Box:

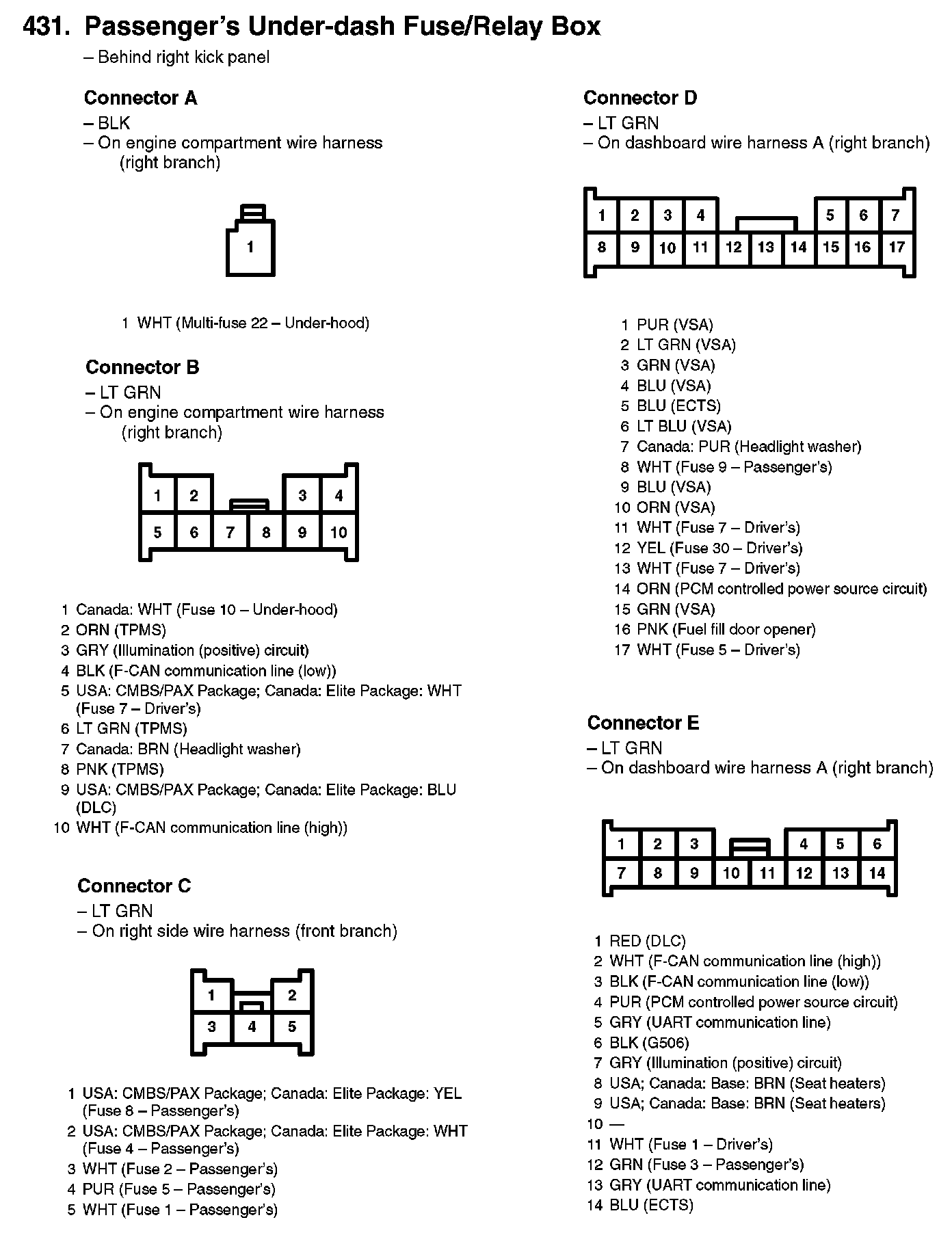

431. Passenger's Under-dash Fuse/Relay Box:

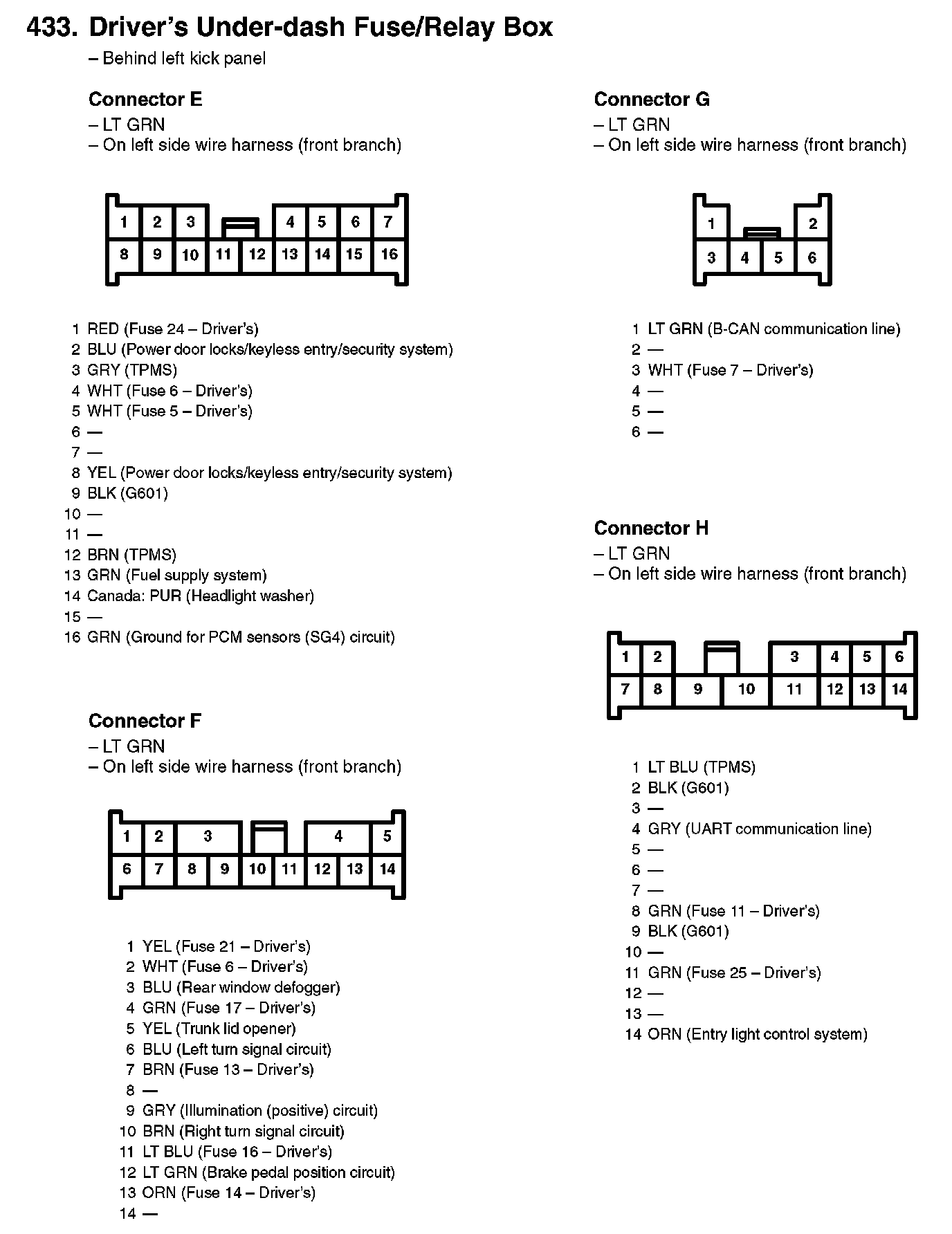

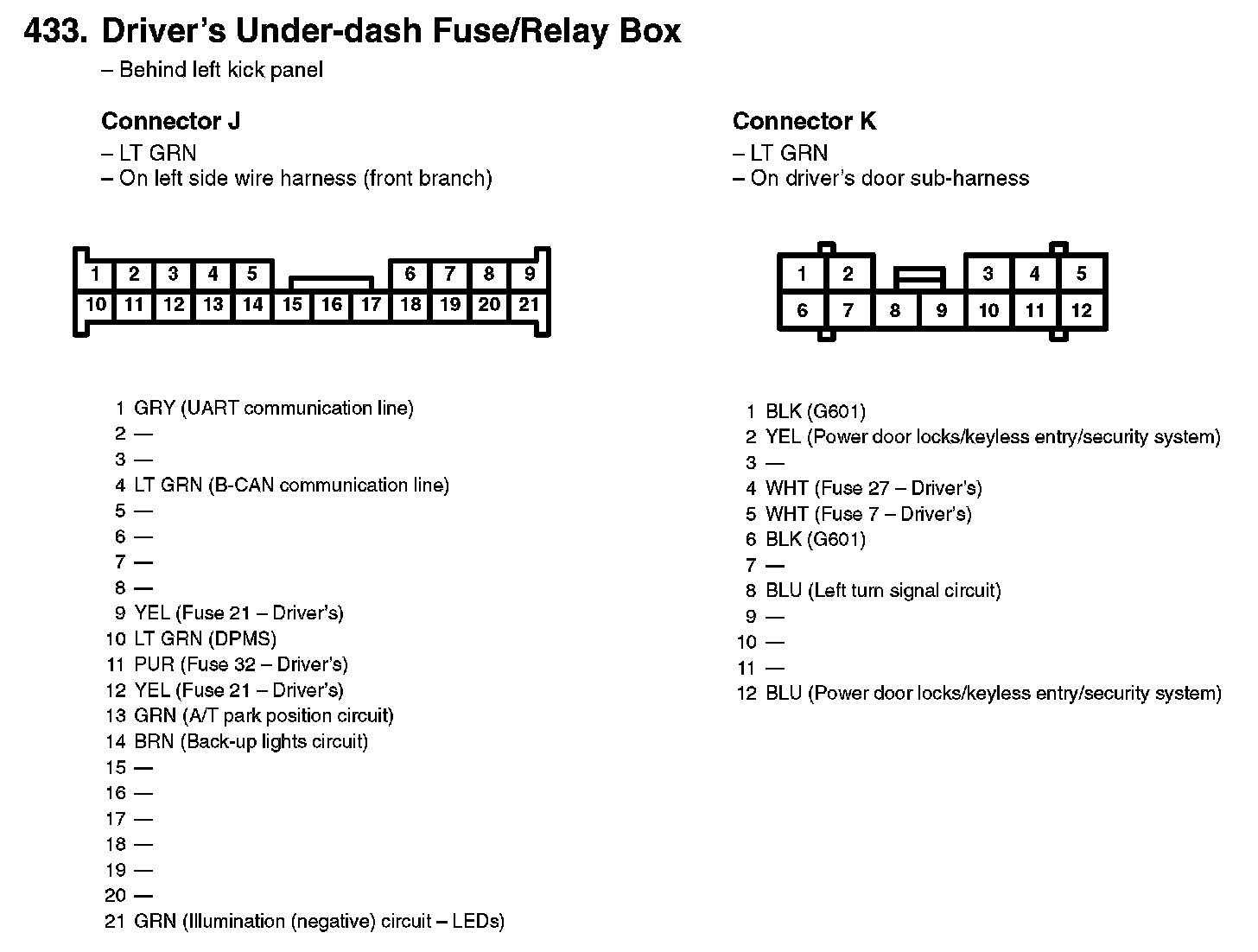

433. Driver's Under-dash Fuse/Relay Box:

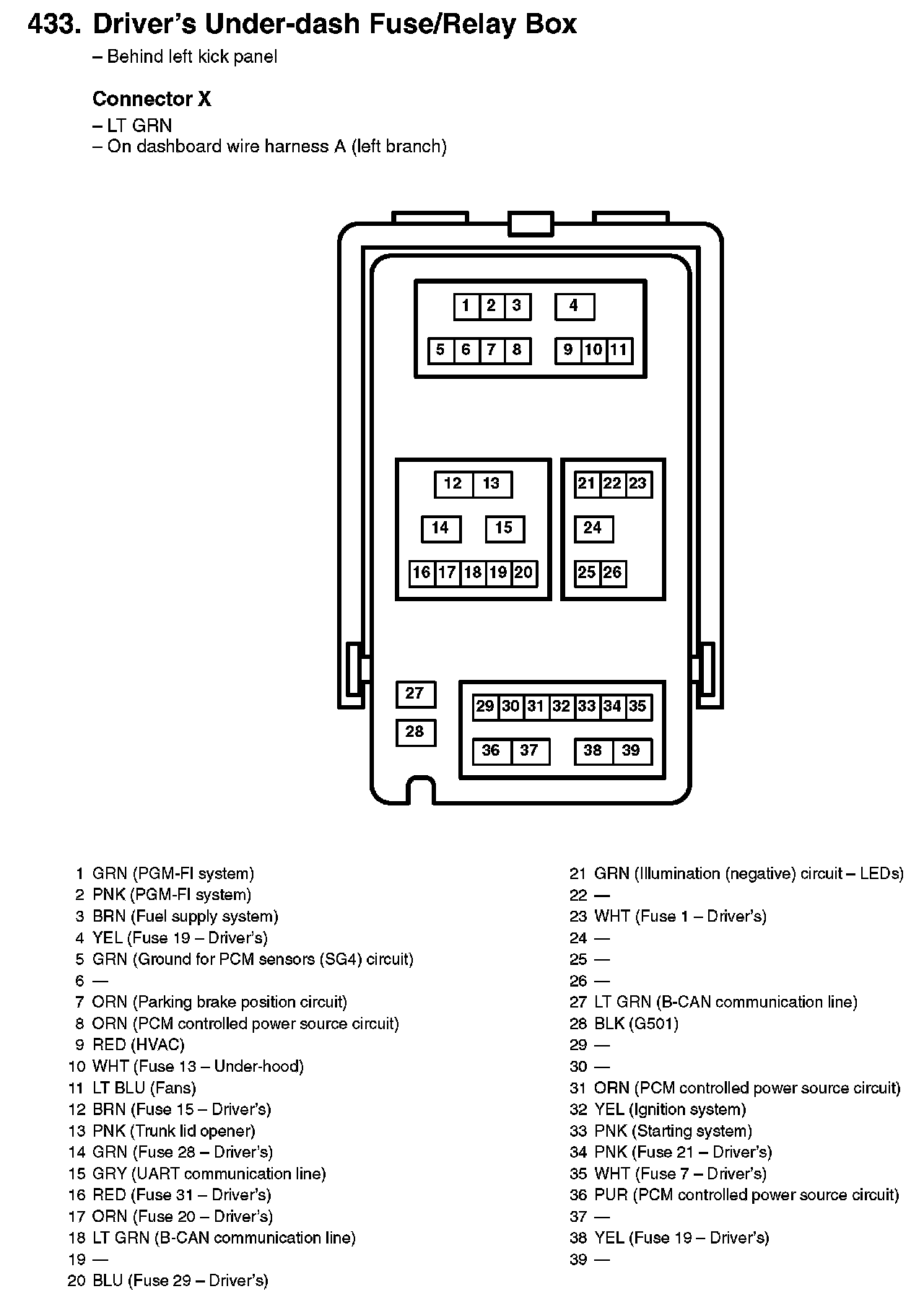

433. Driver's Under-dash Fuse/Relay Box:

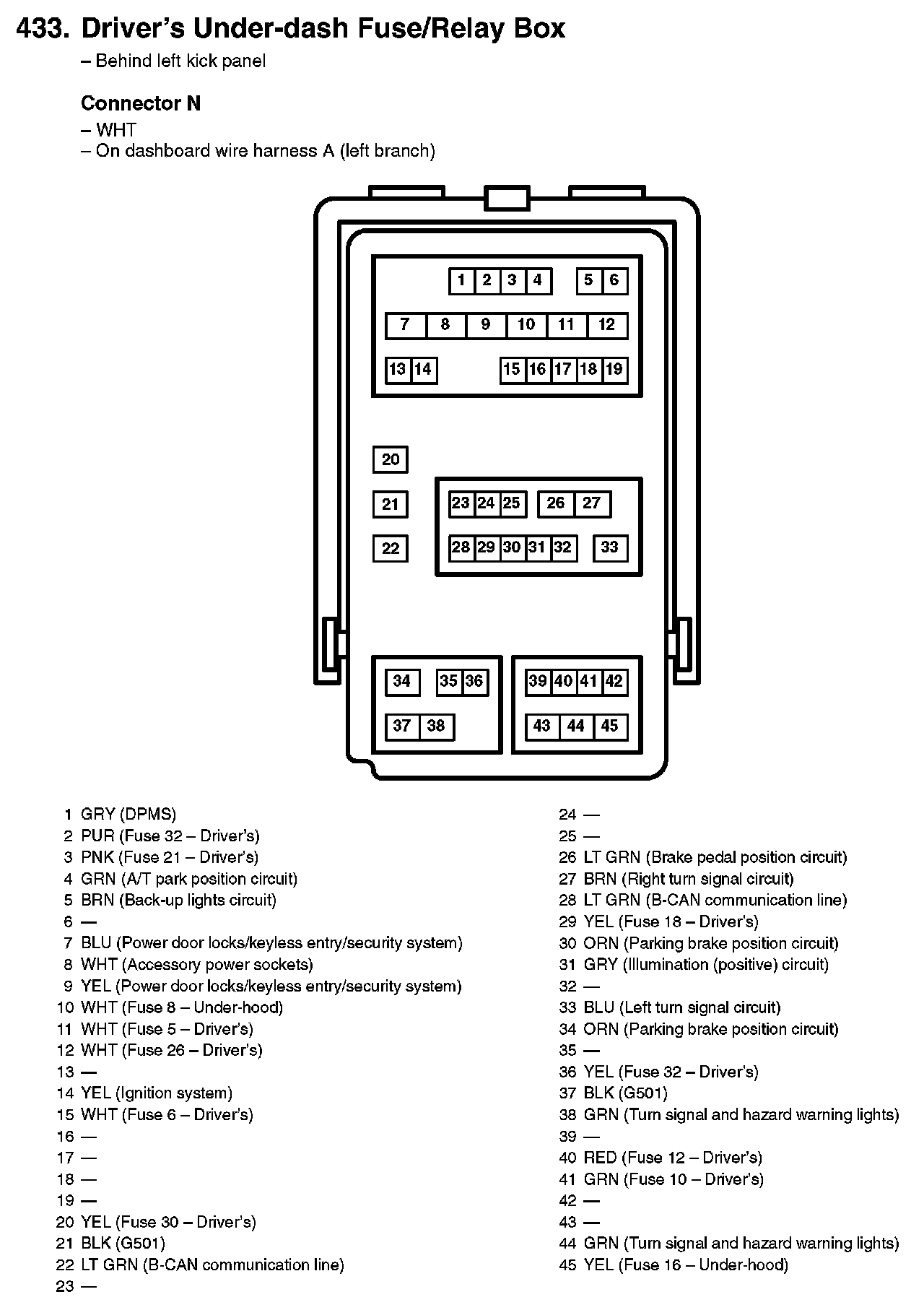

433. Driver's Under-dash Fuse/Relay Box:

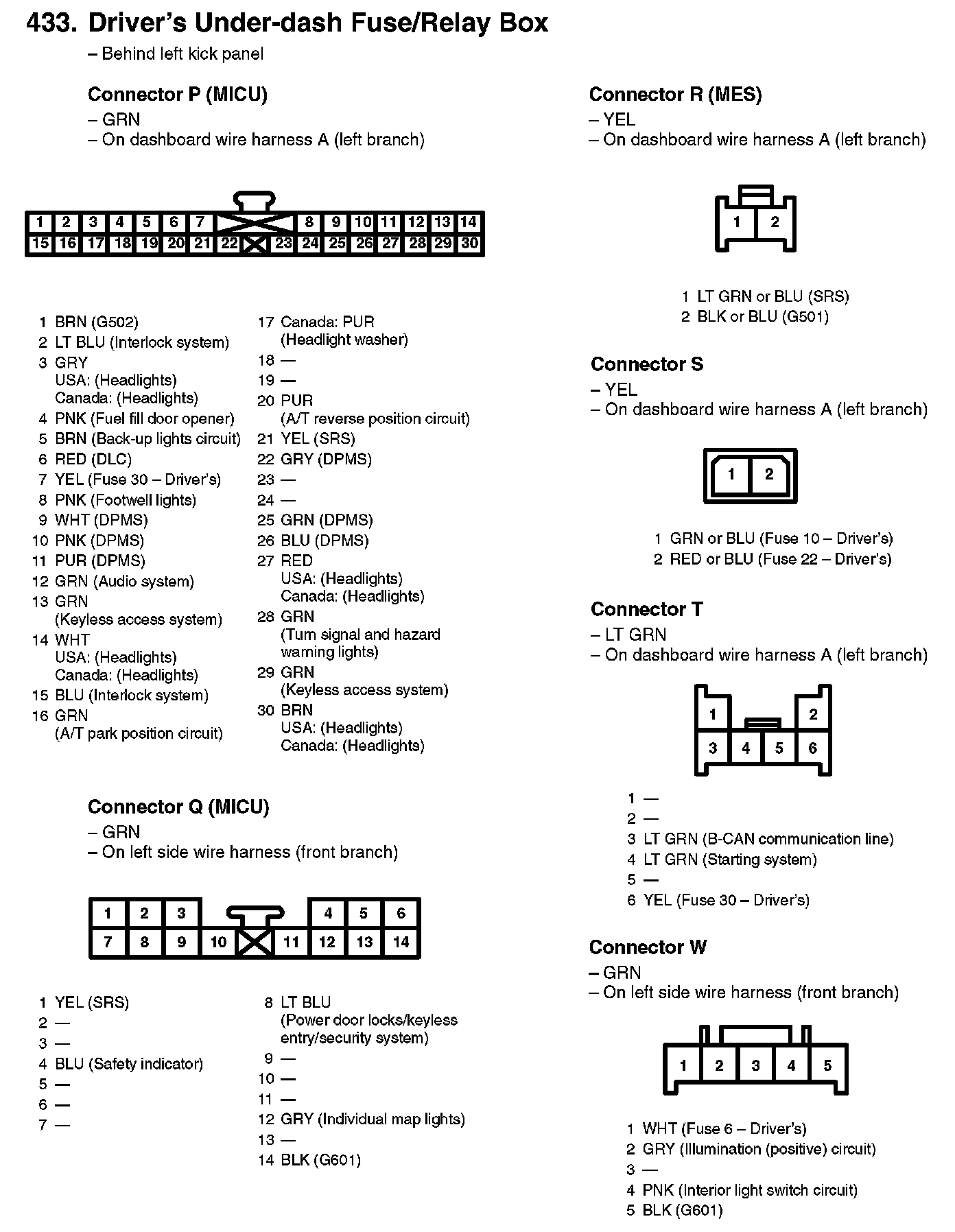

433. Driver's Under-dash Fuse/Relay Box:

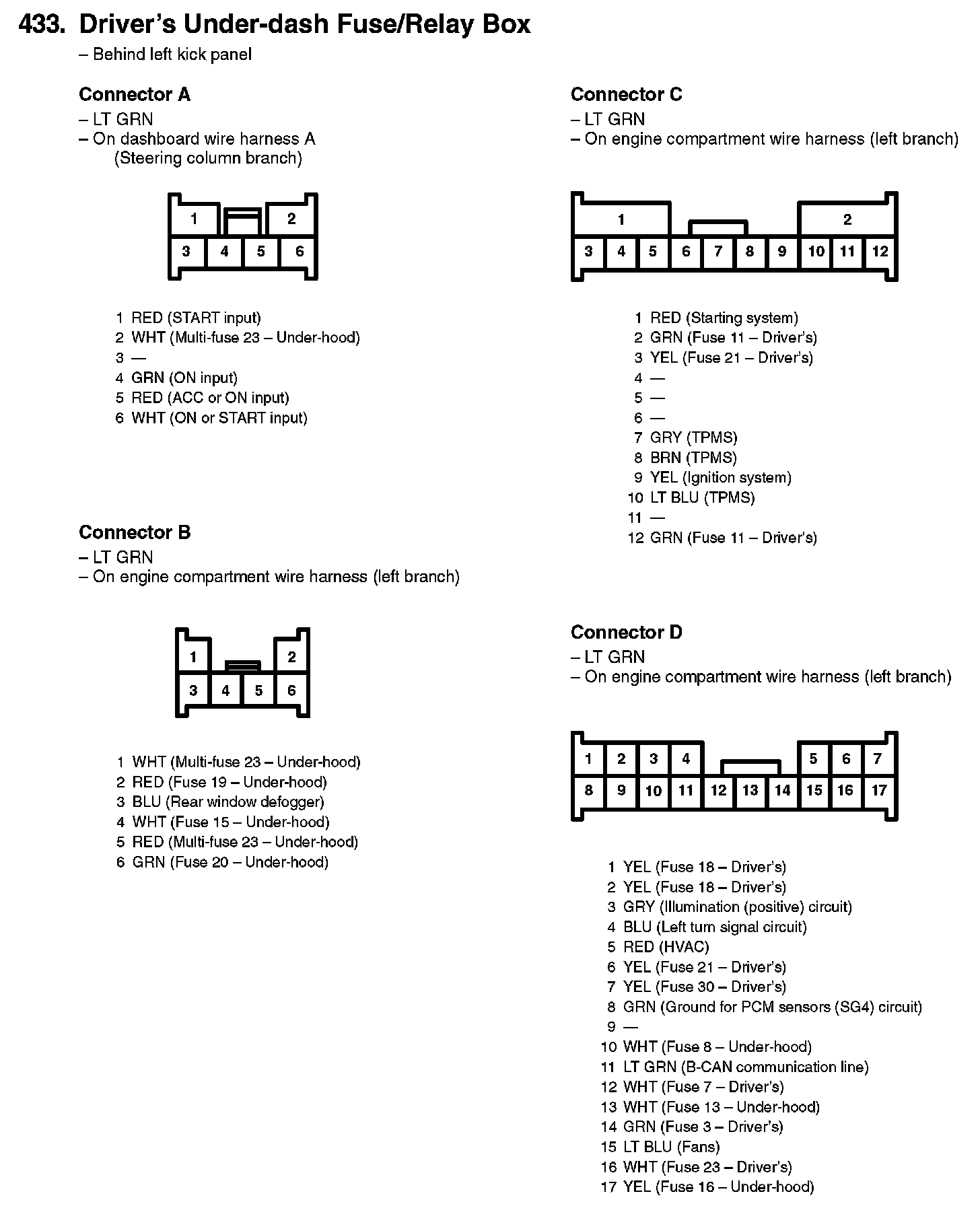

433. Driver's Under-dash Fuse/Relay Box:



433. Driver's Under-dash Fuse/Relay Box:
