Home >> Acura >> 2007 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Systems >> System Diagram

System Diagram

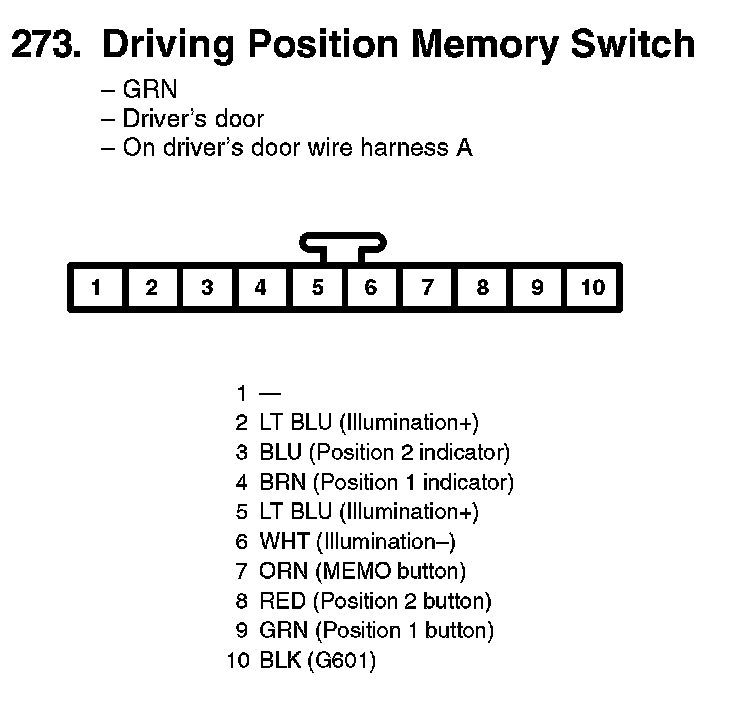

273. Driving Position Memory Switch:
