System Diagram
System Diagram

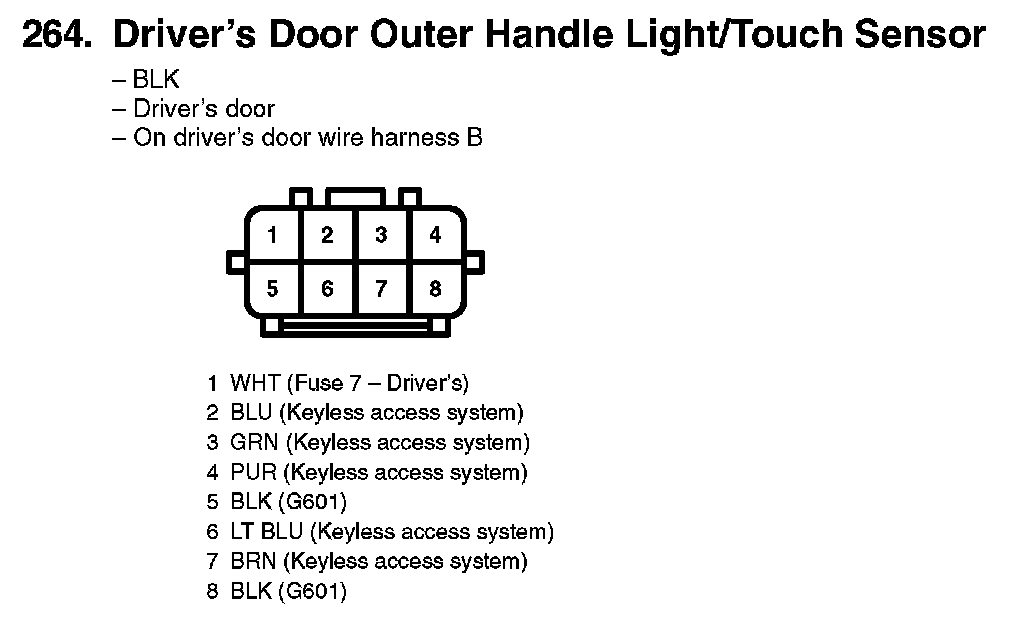

264. Driver's Door Outer Handle Light/Touch Sensor:

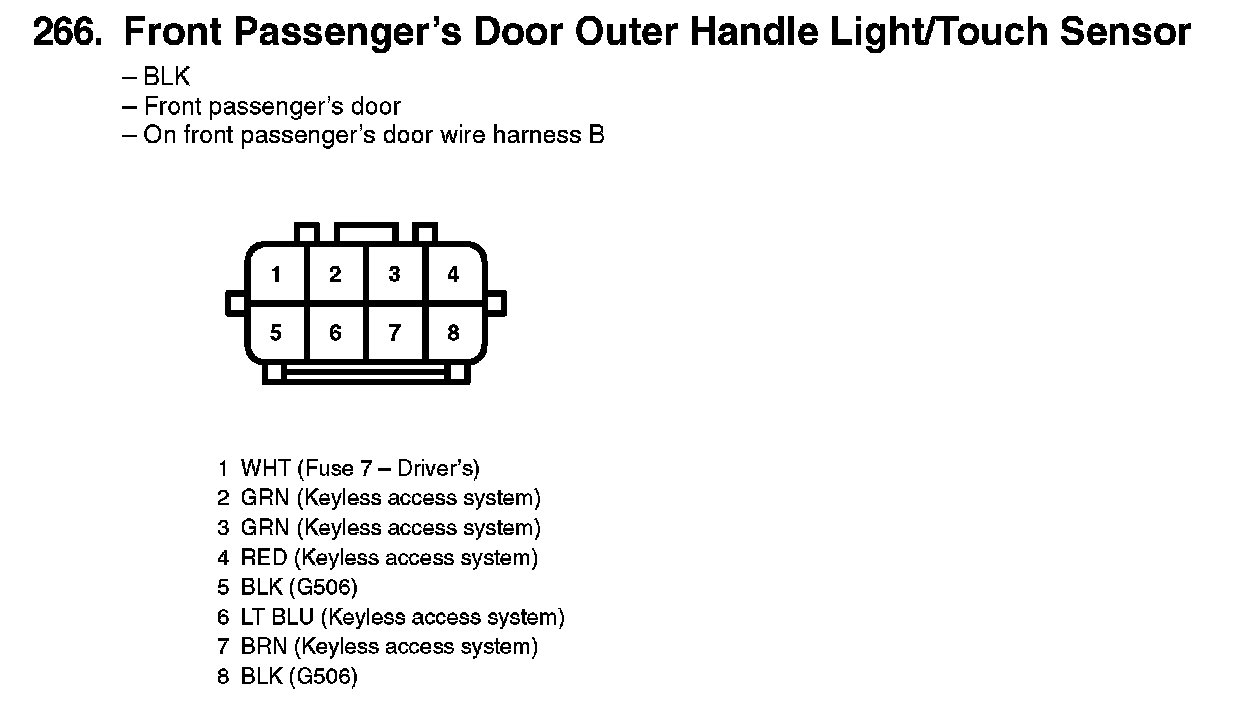

266. Front Passenger's Door Outer Handle Light/Touch Sensor:
