Keyless Entry Module

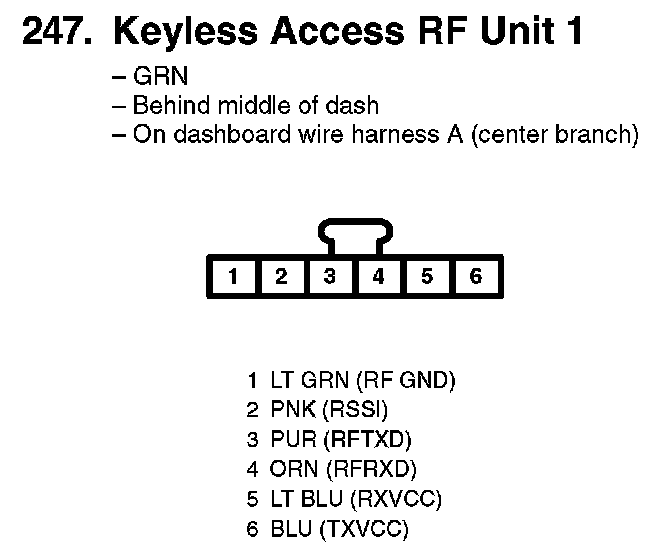

247. Keyless Access RF Unit 1:

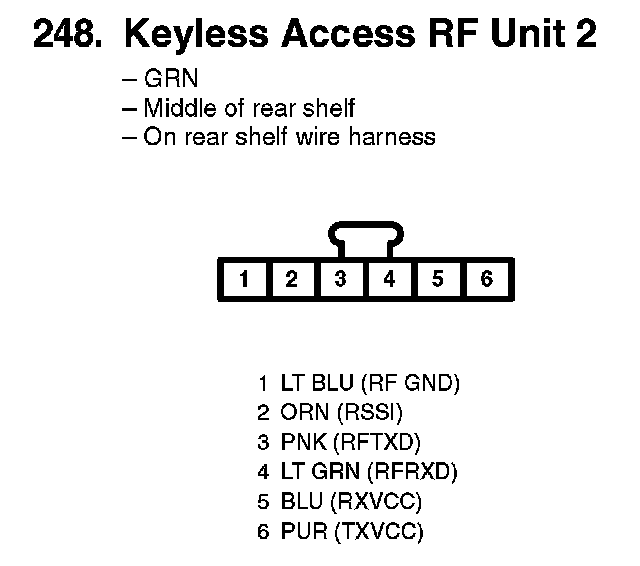

248. Keyless Access RF Unit 2:

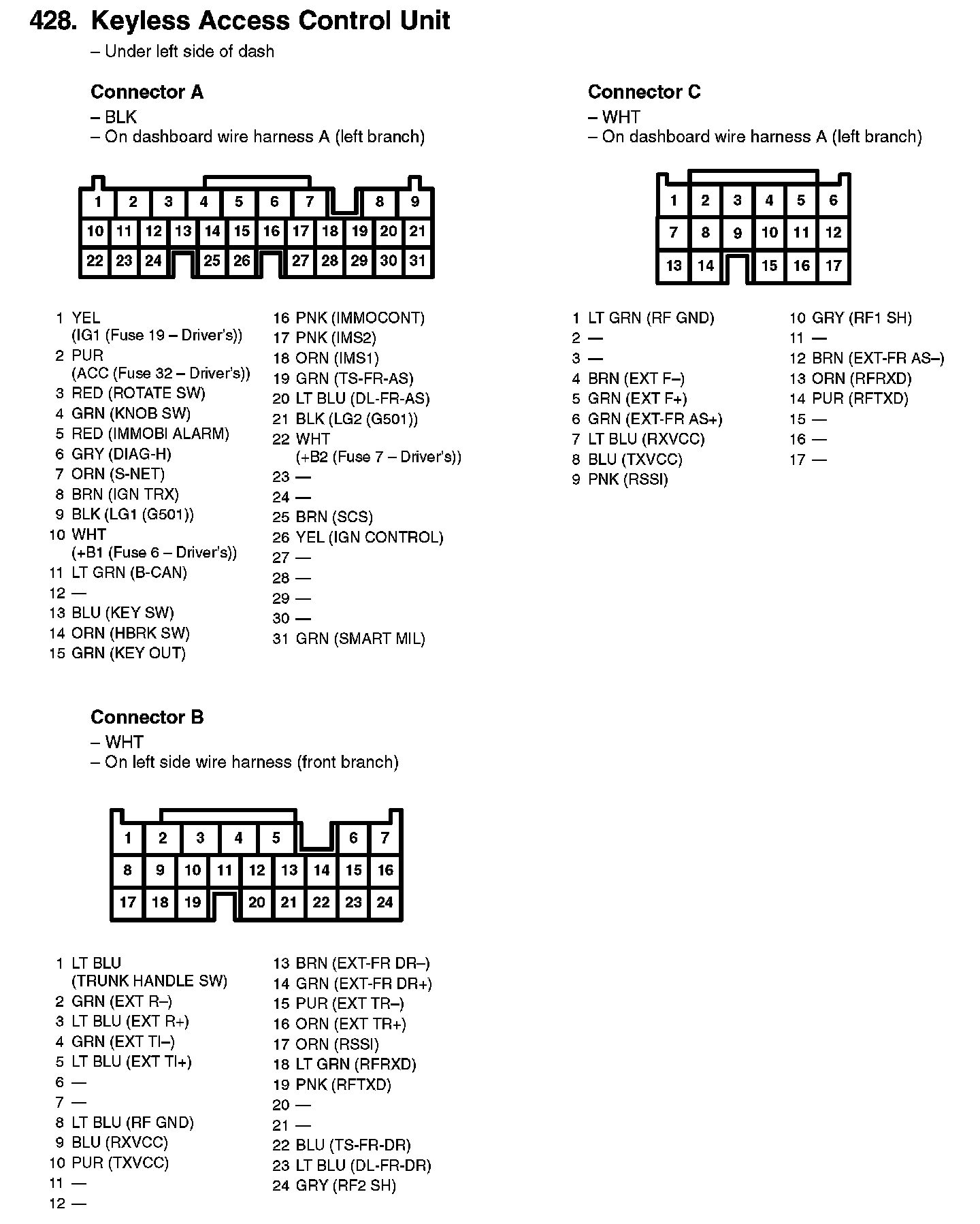

428. Keyless Access Control Unit:
