lemon-mirror
:
Home
>>
Acura
>>
2007
>>
RL V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

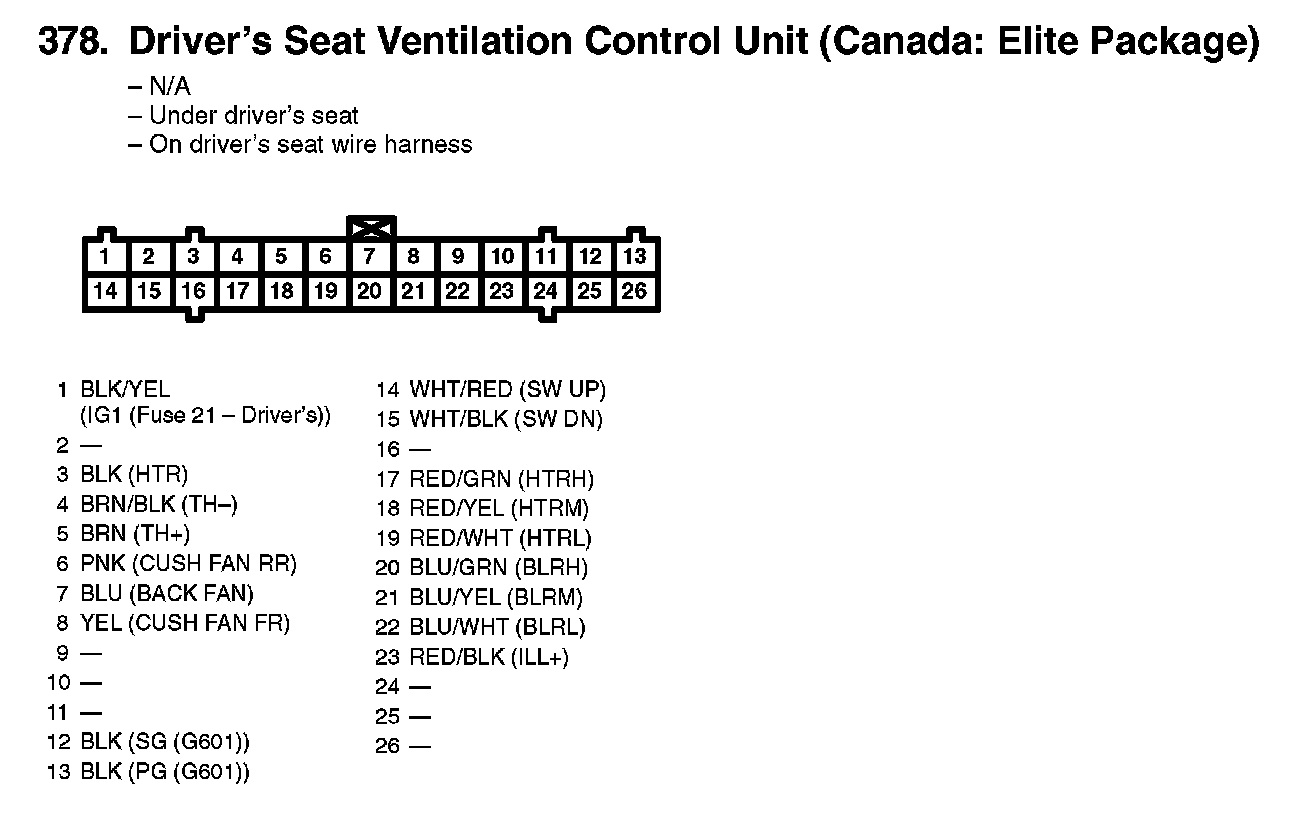

378. Driver's Seat Ventilation Control Unit (Canada: Elite Package):

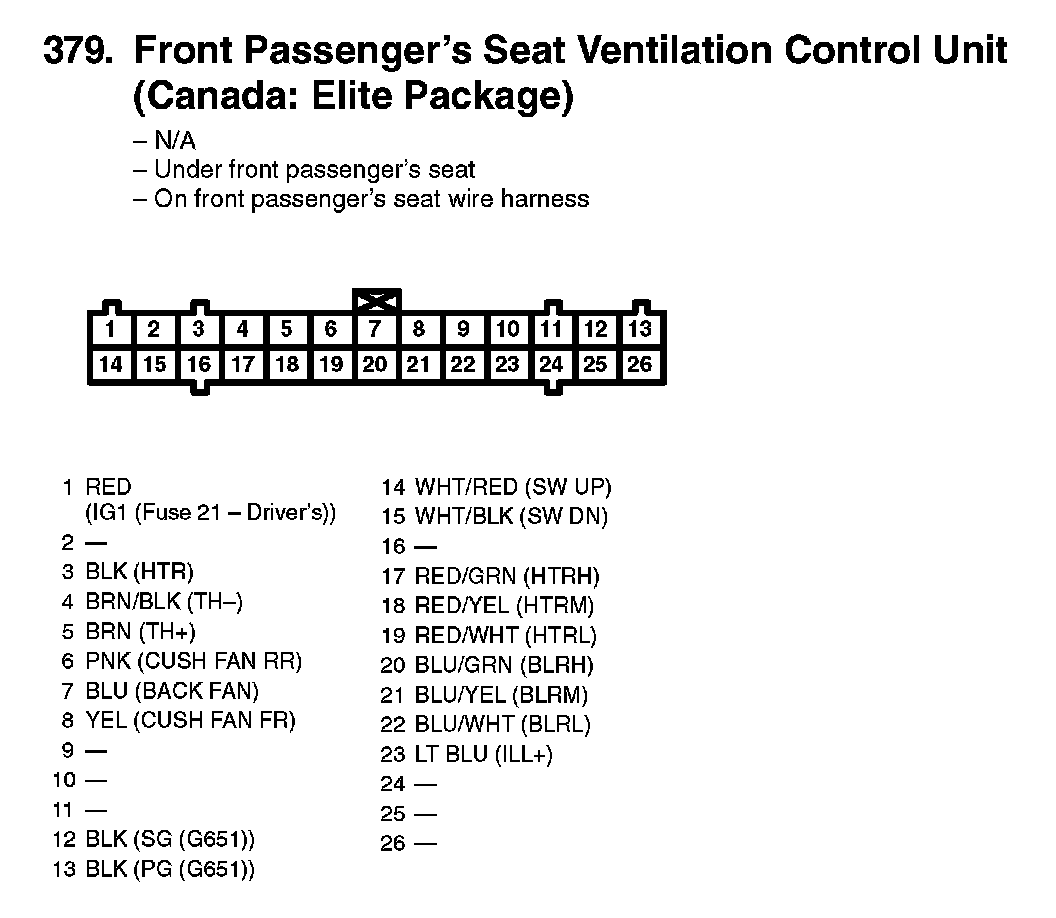

379. Front Passenger's Seat Ventilation Control Unit (Canada: Elite Package):
