Collision Avoidance Sensor

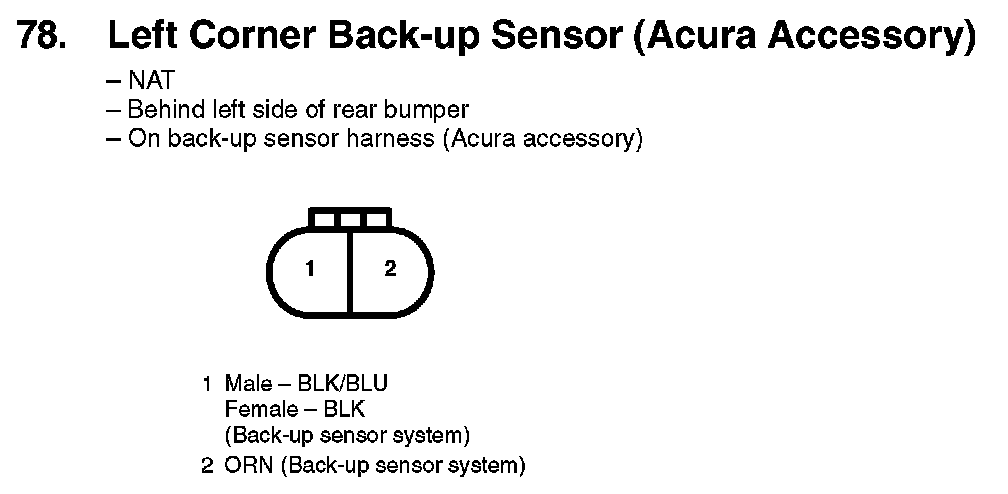

78. Left Corner Back-up Sensor (Acura Accessory):

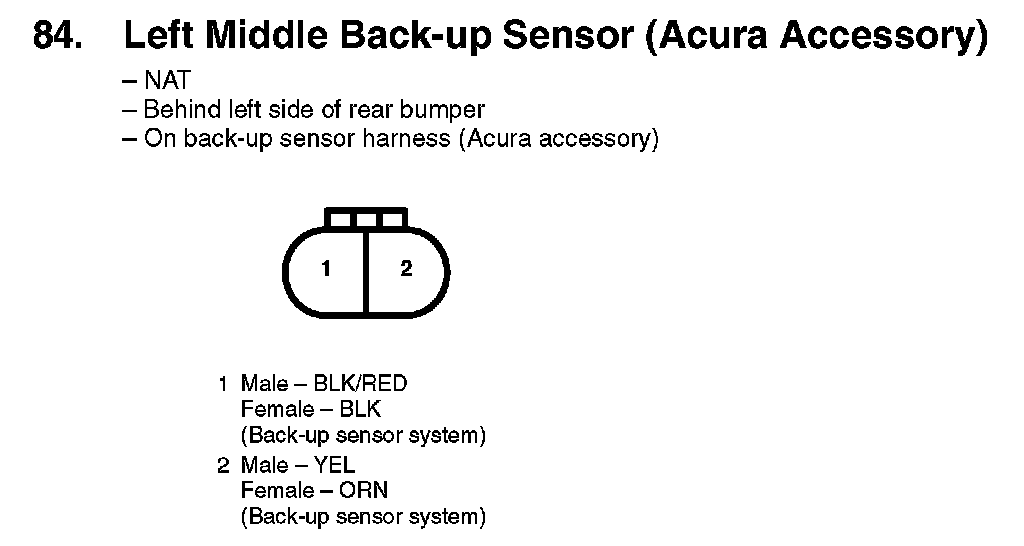

84. Left Middle Back-up Sensor (Acura Accessory):

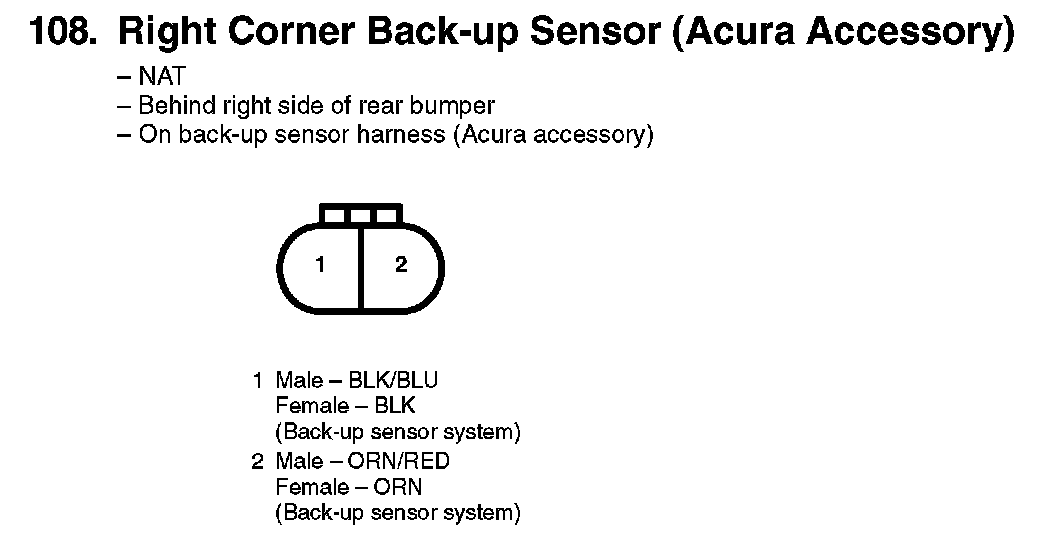

108. Right Corner Back-up Sensor (Acura Accessory):

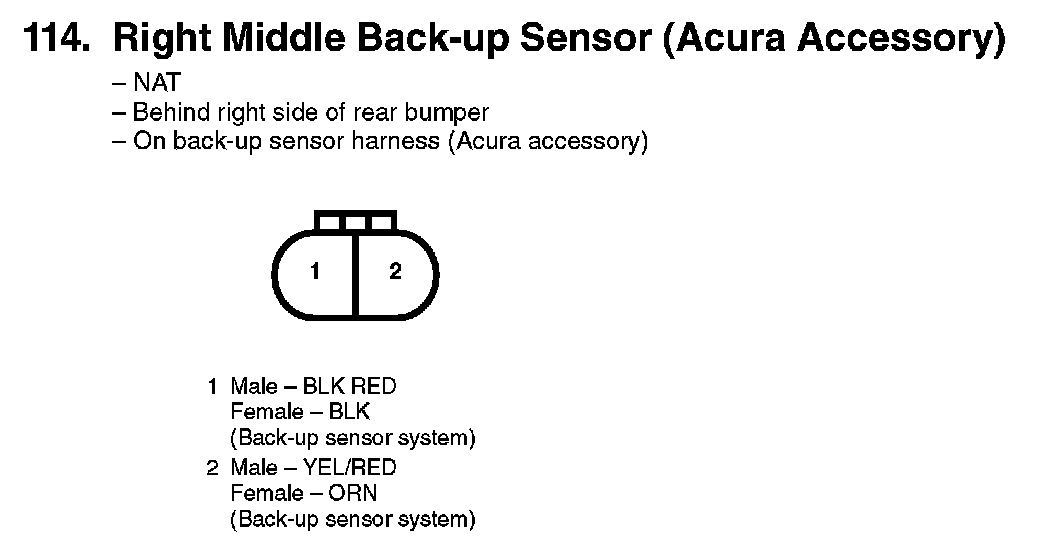

114. Right Middle Back-up Sensor (Acura Accessory):

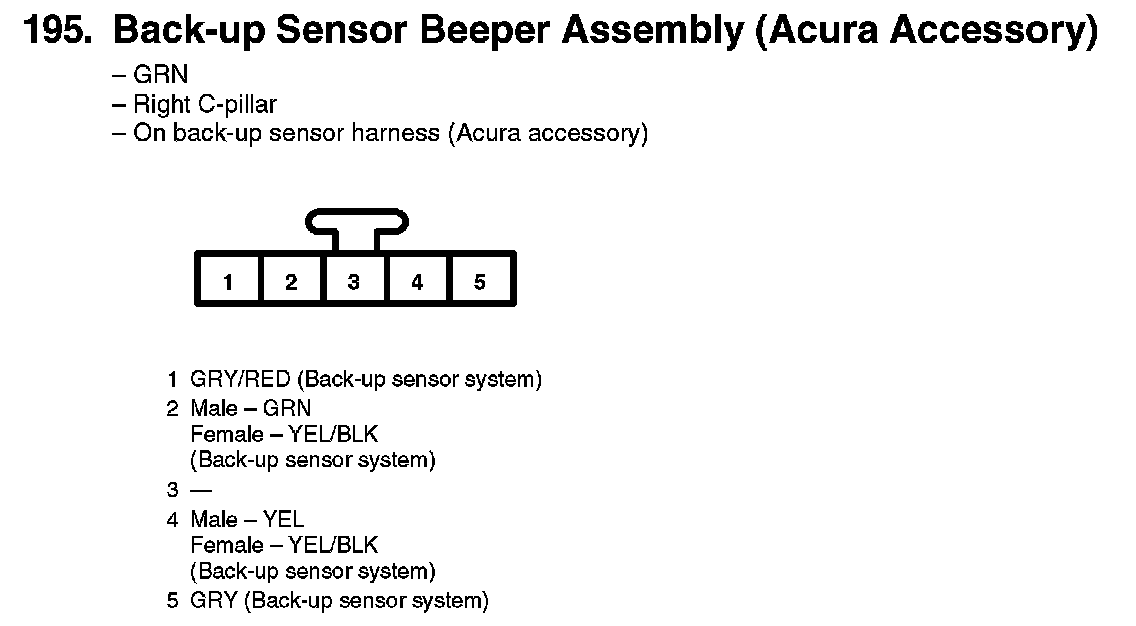

195. Back-up Sensor Beeper Assembly (Acura Accessory):
