Collision Avoidance Module
Collision Avoidance Module

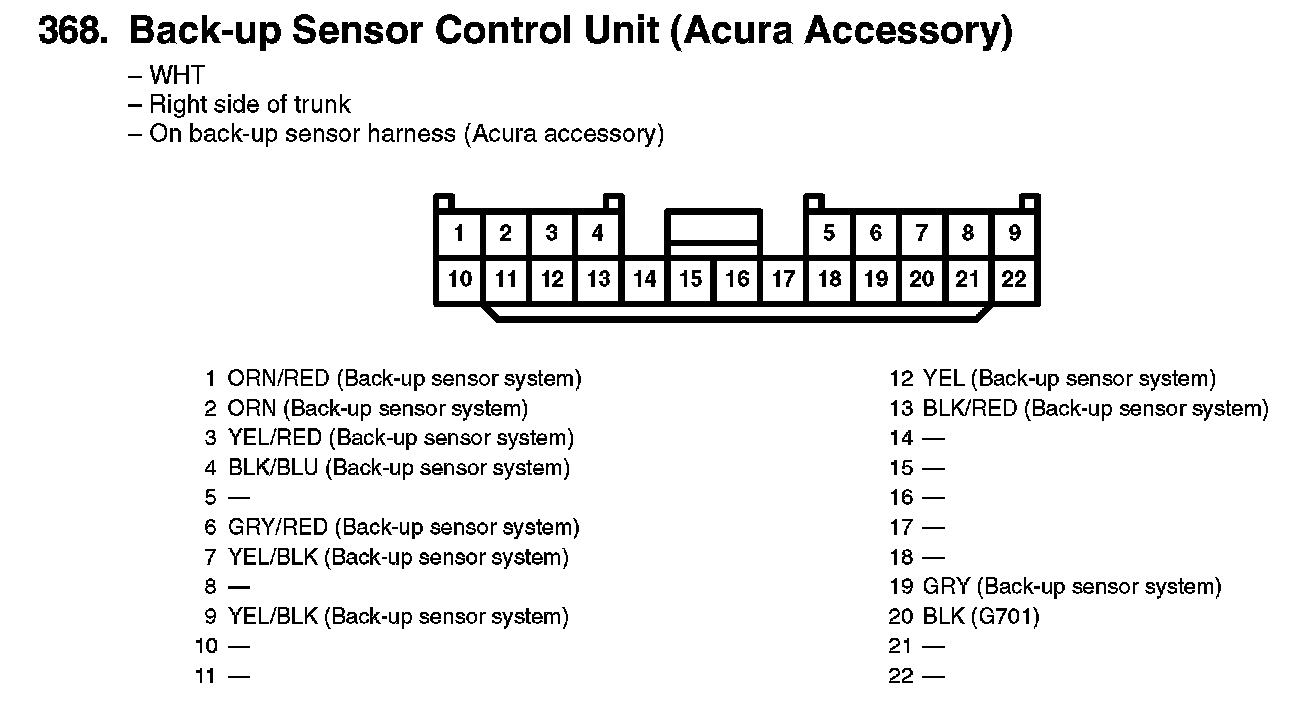

368. Back-up Sensor Control Unit (Acura Accessory):
